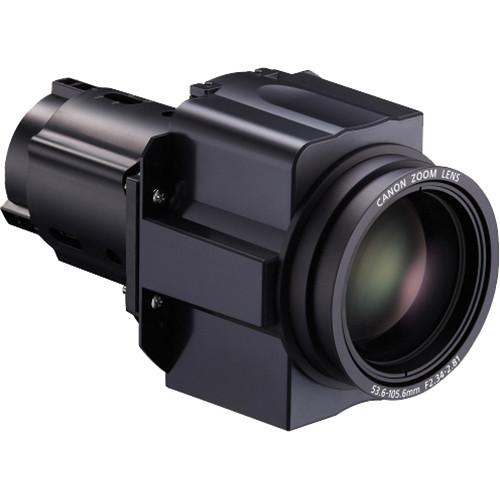

User Manual for Canon 53.6-105.6mm F2.34-2.81 RS-IL04UL REALiS Pro AV Series Interchangeable Ultra-Long Focus Zoom Lens Click to enlarge the picture
Contents of the user manual for the Canon 53.6-105.6mm F2.34-2.81 RS-IL04UL REALiS Pro
- Product category: Projector Lenses Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Projector Lenses
|
User manual for the Canon 53.6-105.6mm F2.34-2.81 RS-IL04UL REALiS Pro contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description The Canon 53.6-105.6mm F2.34-2.81 RS-IL04UL REALiS Pro AV Series Interchangeable Ultra-Long Focus Zoom Lens is a high-resolution projection lens for the REALiS WUX4000, WUX5000, WX6000, and SX6000 Pro AV Installation LCOS Projectors. It is designed to deliver high-quality imagery and installation flexibility, with a wide range of throw distances and other optical performance characteristics to suit the different projection environments.
This interchangeable lens includes features developed from EOS technology, including aspherical lens elements for very low distortion and UD (Ultra Low Dispersion) elements to help reduce chromatic aberration. The lens is sized to fit within the body of Canon REALiS Pro AV Series projectors, allowing for easy installation, regardless of the desired throw distance, when using a lift. - Throw Ratio:
For WUX5000 / WUX4000 Projector: 3.76 to 7.35:1
For WX6000 Projector: 3.86 to 7.54:1
For SX6000 Projector: 3.74 to 7.32:1 - 1.95x ultra-long focus zoom lens
- Low distortion through zoom range
- Focal length of 53.6 to 105.6mm and a relative aperture of F2.34 to 2.81
- Suited for large venues including houses of worship, auditoriums, and lecture halls
- Minimal image quality change and light loss throughout the zoom length
- Optimized for 60 to 600" (152.4 to 1,524cm) screens
UPC: 013803145533 Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon 53.6-105.6mm F2.34-2.81 RS-IL04UL REALiS Pro AV Series Interchangeable Ultra-Long Focus Zoom Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon RS-IL04UL Specs | | | Throw Ratio | WUX5000: 3.76 to 7.35:1
WUX4000: 3.76 to 7.35:1
WX6000: 3.86 to 7.54:1
SX6000: 3.74 to 7.32:1 | | Aperture | f/2.34 to 2.81 | | Focal Length | f = 53.6 to 105.6mm | | Projection Size | 60.0 to 600.0" / 152.4 to 1524.0 cm | | Lens Shift Percentage | WUX4000
Vertical: -15 to 55%
Horizontal:
