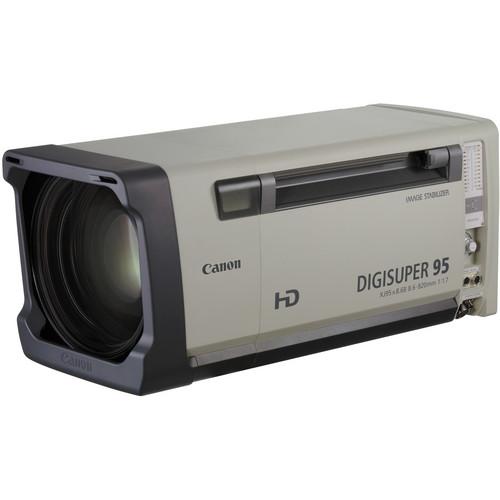

User Manual for Canon 8.6-820mm DIGISUPER 95 XJ95X8.6B Super-Telephoto Lens Click to enlarge the picture
Contents of the user manual for the Canon 8.6-820mm DIGISUPER 95 XJ95X8.6B Super-Telephoto
- Product category: Professional Lenses Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Professional Lenses
|
User manual for the Canon 8.6-820mm DIGISUPER 95 XJ95X8.6B Super-Telephoto contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description The Canon 8.6-820mm DIGISUPER 95 XJ95X8.6B Super-Telephoto Lens incorporates advanced lens technology for reproducing detailed images. A combination of a wide focal length of 8.6mm and a 95x zoom range helps in capturing far-off objects accurately and clearly.
Along with greater imaging capability, this lens also offers good optical performance and image stabilization. This lens also provides high-quality picture sharpness across the 16:9 HD image plane.
The aspherical lens technology and exotic glass materials help overcome lateral chromatic aberration, monochromatic aberrations, and geometric distortion. Canon's Advanced Stabilization System has an improved optical shift-type stabilizer that incorporates a sensor inside the lens for detecting vibrations. Compensating optics are then engaged at a high speed to cancel out any effect on the image.
This lens also features CAFS (Constant Angle Focusing System) to counteract breathing, a phenomenon that occurs while focusing or changing the picture size / angle of view. Via a 32-bit CPU, the zoom is calculated and controlled to give an almost zero zooming effect of focus.
This Super-Telephoto lens provides good tracking capability and pan and tilt functionality. With a 20-pin lens interface, it works effortlessly with a wide range of virtual systems. - From Wide Angle to Telephoto
-
- Offers a wide range of imaging possibilities with its 95x zoom ratio and 8.6mm focal length
- With extensive image-framing latitude, the lens can dramatically capture almost all possible on-site sensations, from the emotion of an entire crowded stadium to the facial expression of an individual player
- Optical Performance
-
- Provides a wider angle of view, a higher zoom ratio, and unparalleled overall optical performance
- Canon's proprietary large-diameter aspherical lens technology and exotic new glass materials effectively minimizes lateral chromatic aberration, monochromatic aberrations, and geometric distortion
- Significant reduction of these aberrations further enhance the resolution and contrast in a manner that contributes to the capture of images having superb picture sharpness across the 16:9 HD image plane
- CAFS (Constant Angle Focusing System)
-
- 32-bit CPU calculates and controls the zoom when focusing to counteract breathing (phenomena where picture size/ angle of view changes when focusing) and has almost zero zoom effect
- Advanced Image Stabilization System
-
- Minimizes image blurring at long focal lengths caused by the wind or slight vibrations transmitted through the stadium stand or tower
- On detection of vibration, the compensating optics is shifted at high-speed to instantly deflect the light rays in a direction that cancels out the vibration's effect on the image
- Optical Tracking Capability
-
- High-resolution encoders to reproduce the camera operator's intended movements, whether a slow zoom or a preset sequence
- Support for Many Virtual Systems
-
- Equipped with high-performance zoom, focus, and iris encoders
- Multiple supports for encoder outputs, analog outputs, and serial outputs, it can work with many kinds of virtual systems
- Easily adapts to existing virtual systems because it comes standard equipped with 20-pin lens interface
In the Box Canon 8.6-820mm DIGISUPER 95 XJ95X8.6B Super-Telephoto Lens Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon 8.6-820mm DIGISUPER 95 XJ95X8.6B Super-Telephoto Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon 8.6-817mm Specs | Aspect Ratio | 16:9 and 4:3 | | Zoom Ratio | 95x | | Focal Length Range | 16:9/4:3: 8.6-820 mm (1.0x), 17.2-1,640 mm (2.0x) | | Angular Field of View | For 16:9
58.3 to 34.9° at 8.6 mm (1.0x)
0.67 to 0.38° at 820 mm (1.0x)
31.2 to 17.8° at 17.2 mm (2.0x)
0.34 to 0.19° at 1,640 mm (2.0x)
For 4:3
54.2 to 42.0° at 8.6 mm (1.0x)
0.61 to 0.46° at 820 mm (1.0x)
28.7 to 21.7° at 17.2 mm (2.0x)
0.31 to 0.23° at 1,640 mm (2.0x) | | Maximum Relative Aperture | For 16:9 / 4:3
1:1.7 at 8.6-340 mm (1.0x)
1:4.1 at 820 mm (1.0x)
1:3.4 at 17.2-680 mm (2.0x)
1:8.2 at 1,640 mm (2.0x) | | MOD | 9.84' (3.00 m) from front vertex | | Object Dimensions at M.O.D. | For 16:9
1.0x
117.36 to 66.02" (298.10 to 167.70 cm) at 8.6 mm
1.26 to 0.71" (3.20 to 1.80 cm) at 820 mm
2.0x
58.7 to 33.0" (149.1 to 83.9 cm) at 17.2 mm
0.63 to 0.35" (1.60 to 0.90 cm) at 1,640 mm
For 4:3
1.0x
107.9 to 80.9" (274.1 to 205.6 cm) at 8.6 mm
1.18 to 0.90" (3.00 to 2.30 cm) at 820 mm
2.0x
53.98 to 40.47" (137.10 to 102.80 cm) at 17.2 mm
0.59 to 0.47" (1.50 to 1.20 cm) at 1,640 mm | | Dimensions (WxHxL) | 9.86 x 10.05 x 24.01" (250.60 x 255.50 x 610.00 mm) | | Weight | 51.1 lb (23.2 kg) |
