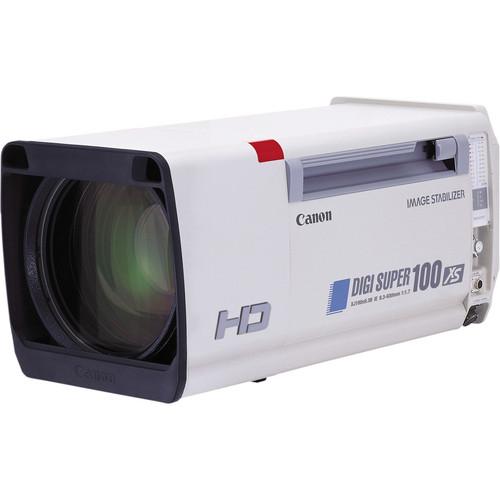

User Manual for Canon 9.3-930mm XJ100X9.3B IE-D LO Digisuper 100xs HD SDTV Field Lens Click to enlarge the picture
Contents of the user manual for the Canon 9.3-930mm XJ100X9.3B IE-D LO Digisuper
- Product category: Professional Lenses Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Professional Lenses
|
User manual for the Canon 9.3-930mm XJ100X9.3B IE-D LO Digisuper contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description The Canon 9.3-930mm XJ100X9.3B IE-D / LO Digisuper 100xs HD/SDTV Field Lens incorporates advanced lens technology for reproducing detailed images. Canon's Advanced Stabilization System has an improved optical shift-type stabilizer that incorporates a sensor inside the lens for detecting vibrations. Compensating optics are then engaged at a high speed to cancel out any effect on the image.
This lens also features CAFS (Constant Angle Focusing System) to counteract breathing, a phenomenon that occurs when focusing or changing the picture size / angle of view. Via a 32-bit CPU, the zoom is calculated and controlled to give an almost zero zooming effect of focus. The lens also features a 4-position turret. - Optical Performance with a 100x Zoom Ratio
- The Digisuper 100xs is a powerful field lens that utilizes Canon's unique optical design concept, the Power Optical System with X-Element. By adopting this concept and advanced technology, The Digisuper 100xs has improved the range of focal length from 9.3-930mm and also has succeeded in compensating the chromatic aberration to a very high accuracy. The superior optical capacity also allows the lens to offer a maximum relative aperture of 1.7 and a minimum object distance of 9.84' (3m)
- X-Element & Power Optical System
- Power Optical System uses for eliminating aberrations and achieving high quality images
- Internal Focusing System
- The lens features realization of wide-angle with reduced distortion. It minimizes variation of chromatic aberration while focusing and of the centre of gravity through focus movement. Anti-Dust, Anti-Fog, thanks to a perfectly airtight Internal Focusing System
- Constant Angle Focusing System (CAFS)
- 32-bit CPU calculates and controls the zoom when focusing to counteract breathing (phenomena where picture size/ angle of view changes when focusing) and has almost zero zoom effect. The lens supports 10-bit iris compatibility and has high resolution zoom and focus servo 13-bit repeatability
- Superior Image Stabilizer
- Built-in Optical Shift-IS (Shift Image Stabilizer) minimizes image shaking at telephoto focal length.
- Crossover Compatibility
- Available optionally is the dual aspect ratio switching system, crossover, for switchable 16:9/4:3 cameras
- Versatile Zoom/Focus Controllers
- Protection against dust, rain, and radio interference
In the Box Canon 9.3-930mm XJ100X9.3B IE-D / LO Digisuper 100xs HD/SDTV Field Lens Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon 9.3-930mm XJ100X9.3B IE-D LO Digisuper 100xs HD SDTV Field Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon 9.3-930mm Specs | Zoom Ratio | 100x | | Focal Length Range | 4:3 Aspect Ratio (Normal):
1x: 9.3-930 mm
2x: 18.6-1,860 mm
16:9 Aspect Ratio:
1x: 9.3-930 mm
2x: 18.6-1,860 mm
4:3 Aspect Ratio (Switchable):
1x: 7.65-296 mm
1.2x: 9.3-930 mm
2.4x: 18.6-1,860 mm | | Maximum Speed | Zoom: 0.6 sec
Focus: 0.8 sec | | Maximum Relative Aperture | 4:3 Aspect Ratio (Normal):
1x: 1:1.7 at 9.3-296 mm, 1:4.7 at 930 mm
2x: 1:3.4 at 18.6-592 mm, 1:9.4 at 1860 mm
16:9 Aspect Ratio:
1x: 1:1.7 at 9.3-296 mm, 1:4.7 at 930 mm
2x: 1:3.4 at 18.6-592 mm, 1:9.4 at 1,860 mm
4:3 Aspect Ratio (Switchable):
1x: 1:1.7 at 7.65-296 mm, 1:3.85 at 765 mm
1.2x: 1:17 at 9.3-296 mm, 1:4.7 at 930 mm
2.4x: 1:3.4 at 18.6-592 mm, 1:9.4 at 1,860 mm | | Angular Field of View | 4:3 Aspect Ratio (Normal):
1x: 50.6 x 39.1°, 0.54 x 0.41°
2x: 26.6 x 20.1°, 0.27 x 0.20
16:9 Aspect Ratio:
1x: 54.6 x 32.4°, 0.59 x 0.33°
2x: 28.9 x 16.5°, 0.30 x 0.17°
4:3 Aspect Ratio (Switchable):
1x: 50.6 x 39.1°, 0.54 x 0.41°
1.2x: 42.3 x 32.4°, 0.44 x 0.33°
2.4x: 21.9 x 16.5°, 0.22 x 0.17° | | Minimum Object Distance (M.O.D.) | 9.84' (3.00 m) from front lens vertex | | Object Dimensions at M.O.D. | 4:3 Aspect Ratio (Normal):
1x: 99.96 x 74.96” (2,539.00 x 1,904.00 mm) at 9.3 mm, 1.00 x 0.74” (25.40 x 19.00 mm) at 930 mm
2x: 50.00 x 37.48” (1,270.00 x 952.00 mm) at 18.6 mm, 0.5 x 0.37” (12.70 x 9.50 mm) at 1,860 mm
16:9 Aspect Ratio:
1x: 108.82 x 61.22” (2,764.00 x 1,555.00 mm) at 9.3 mm, 1.09 x 0.61” (27.60 x 15.60 mm) at 930 mm
2x: 54.40 x 30.63” (1,382.00 x 778.00 mm) at 18.6 mm, 0.54 x 0.31” (13.80 x 7.80 mm) at 1,860 mm
4:3 Aspect Ratio (Switchable):
1x: 99.69 x 74.96” (2,539.00 x 1,904.00 mm) at 7.65 mm, 1.00 x 0.74” (25.40 x 19.00 mm) at 765 mm
1.2x: 81.66 x 61.22” (2,074.20 x 1,555.00 mm) at 9.3 mm, 0.81 x 0.61” (20.70 x 15.60 mm) at 930 mm
2.4x: 41.69 x 30.63” (1,059.00 x 778.00 mm) at 18.6 mm, 0.42 x 0.31” (10.60 x 7.80 mm) at 1,860 mm
| | Macro | No | | Size (WxHxL) | 9.87 x 10.06 x 23.29" (250.60 x 255.50 x 591.50 mm) | | Weight | 51.8 lb (23.5 kg) |
