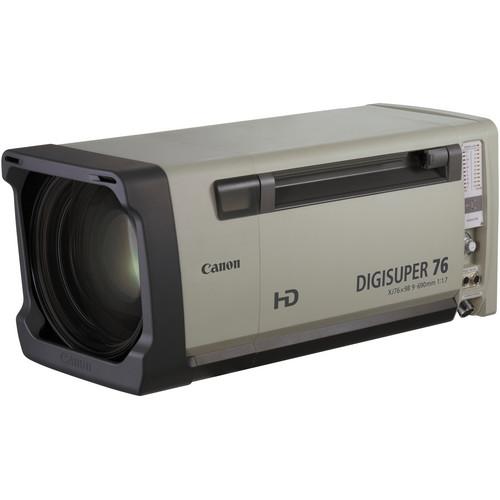

User Manual for Canon 9-690mm XJ76x9B LO DIGISUPER 76x Field Lens Click to enlarge the picture
Contents of the user manual for the Canon 9-690mm XJ76x9B LO DIGISUPER 76x
- Product category: Professional Lenses Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Professional Lenses
|
User manual for the Canon 9-690mm XJ76x9B LO DIGISUPER 76x contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description The Canon 9-690mm XJ76x9B / LO DIGISUPER 76x Field Lens offers a wider angle, longer focal length, and superior optical performance and operability. - Simultaneously Offers a Maximum Wide Angle of 9mm and a High Magnification of 76x for Wider and Long
- The lens is capable of a maximum wide angle of 9mm (56.1° perpendicular angle of view), which is approximately 3% wider than previous long-zoom lenses. This enables the lens to pull back and fully capture the scene even in limited space, and also capture images that exhibit a stunning degree of intensity. With high magnification boasting a zoom factor of 76x, the lens allows any and all scenes, from a panoramic view of a stadium to the detailed expressions on players, to be taken with a single lens.
- Good Operability and Tracking Enables You to capture Images Exactly as You Want to
- With its superior operability, the XJ76x9B makes nimble camerawork possible while also offering enhanced width and higher magnification despite no intrusive increases in physical lens size. Moreover, the use of a high-speed CPU and high-resolution encoder, coupled with improvements in control algorithms, have yielded significant enhancements in handling subjects entering motion and subsequent tracking when zooming at super-slow speeds. The results are shots taken exactly as you intended to take them.
- Reduces Shifts in Angles of View Caused by Focusing to Nearly Zero CAFS
- A 32-bit CPU calculates and controls the zoom when focusing to counteract breathing (phenomena where picture size/angle of view changes when focusing) and has almost zero zoom effect.
- Support for Various Virtual System
- The lens is equipped with high-performance zoom, focus, and iris encoders. With multiple supports for encoder outputs, analog outputs, and serial outputs, the lens can work with many kinds of virtual systems. It easily adapts to existing virtual systems because it comes equipped with a 20-pin lens interface.
In the Box Canon 9-690mm XJ76x9B / LO DIGISUPER 76x Field Lens Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon 9-690mm XJ76x9B LO DIGISUPER 76x Field Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon 9-690mm Specs | Zoom Ratio | 76x | | Focal Length Range | 16:9 Aspect ratio:
1x: 9-690 mm
2x: 18-1,380 mm
4:3 Aspect ratio:
1x: 9-690 mm
2x: 18-1,380 mm | | Maximum Relative Aperture | 16:9 Aspect ratio:
1x: 1:1.7 at 9-340 mm, 1:3.45 at 690 mm
2x: 1:3.4 at 18-680 mm, 1:6.9 at 1380 mm
4:3 Aspect ratio:
1x: 1:1.7 at 9-340 mm, 1:3.45 at 690 mm
2x: 1:3.4 at 18-680 mm, 1:6.9 at 1,380 mm | | Angular Field of View | 16:9 Aspect ratio:
1x: 56.1 x 33.4° at 9 mm, 0.80 x 0.45° at 690 mm
2x: 29.9 x 17.1° at 18 mm, 0.40 x 0.22° at 1,380 mm
4:3 Aspect ratio:
1x: 52.1 x 40.3° at 9 mm, 0.73 x 0.55° at 690 mm
2x: 27.5 x 20.8° at 18 mm, 0.37 x 0.27° at 1,380 mm | | Minimum Object Distance (M.O.D.) | 9.84' (3.00 m) from front lens vertex | | Object Dimensions at M.O.D. | 16:9 Aspect ratio:
1x: 111.18 x 62.56” (2,824.00 x 1,589.00 mm) at 9 mm, 1.50 x 0.83” (38.00 x 21.00 mm) at 690 mm
2x: 55.59 x 31.29” (1,412.00 x 795.00 mm) at 18 mm, 0.74 x 0.43” (19.00 x 11.00 mm) at 1,380 mm
4:3 Aspect ratio:
1x: 102.32 x 76.73” (2,599.00 x 1,949.00 mm) at 9 mm, 1.38 x 1.02” (35.00 x 26.00 mm) at 690 mm
2x: 51.18 x 38.38” (1,300.00 x 975.00 mm) at 18 mm, 0.70 x 0.51” (18.00 x 13.00 mm) at 1,380 mm | | Size (WxHxL) | Approximately 9.86 x 10.06 x 24.02" (250.60 x 255.50 x 610.00 mm) | | Weight | Approximately 50.6 lb (23.0 kg) |
