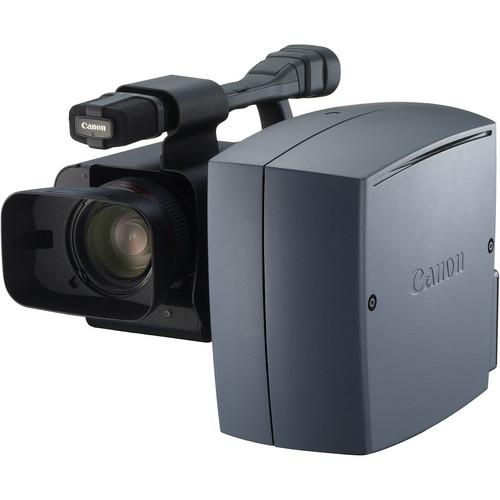

User Manual for Canon BU-51H PTZ Camera Click to enlarge the picture
Contents of the user manual for the Canon BU-51H PTZ Camera
- Product category: PTZ Cameras Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon PTZ Cameras
|
User manual for the Canon BU-51H PTZ Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description The Canon BU-51H PTZ Camera is PTZ video camera designed for low operational noise and, with a maximum noise level of NC30 it is well suited for use in quiet environments. The camera features three 1/3" CCD sensors with 1.67MP each and a 20x zoom lens with a 35mm equivalent of 32.45-649mm, a very fast f/1.6-3.5 maximum aperture, and a 2x digital extender. The BU-51H is also equipped with a built-in microphone with adjustable settings.
Uncompressed video with embedded audio can be output via HD/SD-SDI. In addition, an SD Composite signal can be output simultaneously. The BU-51H provides Pan/Tilt/Zoom/Focus position information and can be panned 300° and/or tilted +/- 40° at up to 30° per second. "Night mode" slows down the shutter speed to a minimum of 1/4 (60i, 30F) or 1/3 (50i, 25F, 24F), allowing frame accumulation that enhances low light sensitivity.
In an effort to facilitate custom system design and installation, Canon has implemented an open-source control protocol, for third party development. The control protocol developed for the BU-51H is totally open to all such partners who have an interest in working with Canon. - Key Features
-
- Extremely quiet pan/tilt operation with maximum noise level of NC30
- Three 1/3" CCD sensors with 1.67 million pixels each
- 32.45-649mm (35mm equivalent) 20x zoom lens with 2X digital extender
- Very fast f/1.6-3.5 maximum aperture for enhanced low-light capability
- Built-in microphone with adjustable settings
- Uncompressed HD/SD-SDI output with embedded audio
- Pan/Tilt/Zoom/Focus position information
- Pans 300° and tilts +/- 40° at up to 30° per second
- Night Mode for enhanced sensitivity
- Open-source control protocol facilitates third party development
In the Box Canon BU-51H PTZ Camera 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon BU-51H PTZ Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon BU-51H Specs | | | Sensor | 1.67MP 1/3" CCD (x3) | | Frame Rate | 60i | | Shutter Speeds | 1/4, 1/15, 1/60, 1/100, 1/1000 | | Gain | AUTO, 0dB, 6dB, 12dB, 18dB, 36db | | White Balance | AUTO, Set | | Shooting Modes | AUTO, Manual, Night | | CCU Adjustments | Master pedestal, R-gain and B-gain | | GENLOCK Phase Adjustment | Adjustment range approximately ±0.4H | | Built-In Microphone | Yes | | | | Focal Length | 4.5 - 90mm (8.25 - 165mm with 2/3" conversion) | | Maximum Aperture | f/1.6-3.5 | | Zoom Ratio | 20x optical zoom
2x digital extender | | Focusing System | AUTO, Manual | | Iris | AUTO, Manual | | Image Stabilizer | Optical Shift method | | Optical Filter | CLEAR, 1/6 ND, 1/32 ND (can be remote controlled) | | | | Operation Angle | Panning: 300°
Tilting: + 40°, -40° | | Operation Speed | Panning: 0.3° up to 30°/s
Tilting: 0.3° up to 30°/s | | Repeatability | Within +/- 10 arc degrees | | Noise | NC30 below (when operated at 25°/s) | | | | Outputs | HD/SD-SDI output (video with embedded audio)
HD analog component
SD composite
Aux output (includes position information) | | Inputs | GENLOCK input (BNC 1 line, 3 value/BB) | | Remote Connection | RS-232C | | Power Connections | AC input | | | | Power Source | AC100~240V 50/60Hz 60W | | Operating Temperature | 59 - 104° F (15 - 40° C), 90% humidity (without condensation) | | Dimensions | 12 x 10.83 x 13.78" (30.5 x 27.5 x 35 cm) | | Weight | 24.25 lb (11 kg) |
