Product description

• Canon EOS C200B Cinema Camera with Accessory Kit (EF-Mount)
  • The Canon Cinema EOS C200 and C200B Video Training Series: Shooting with the Camera
  • From Dock to Dish - Canon EOS C200
  • The Canon Cinema EOS C200 and C200B Video Training Series: Dual Pixel CMOS Autofocus Features

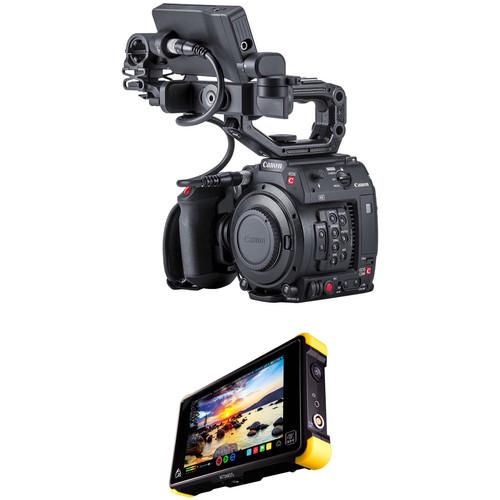

  Canon's EOS C200B Cinema Camera with Accessory Kit features a 4" LCD screen, top handle, Super 35mm CMOS sensor, and Dual-Pixel Autofocus. The EF lens mount on the EOS C200B offers compatibility not only with Canon's existing broad range of DSLR lenses, but also with their line of EF-Mount CN-E cinema prime and zoom lenses. The Super 35mm sensor is paired with Canon's Dual DIGIC DV 6 image processor, allowing it to capture and record up to DCI 4K resolution.The C200B can also record Canon's Cinema Raw Light internally via its single CFast card slot. The camera also incorporates two SD card slots for recording UHD 4K and HD MP4 video. You can output video via the camera's SDI output, and the built-in XLR connectors provide two channels of audio at line, mic, and mic +48V level. A built-in Ethernet connector provides input/output control.

  Accessory Kit Contents

  • • LCD monitor
    • LCD attachment
    • Camera grip
    • Handle unit
    • Unit cable
    • AC power adapter

  Main Features

  Canon Super 35mm CMOS Sensor
  • Modeled on the Super 35mm motion picture film standard, the Canon CMOS sensor has an active image size of 24.4 x 13.5mm. It features 4096 x 2160 resolution to deliver Cine 4K images, as well as supporting Ultra HD (3840 x 2160), and Full HD (1920 x 1080).
  Dual-Pixel CMOS AF Technology
  • Provides continuous AF function for all autofocus lenses, using Dual-Pixel CMOS AF technology. A new AF Lock setting also lets you change the image framing while holding the desired focus. This feature is ideal for users who regularly shoot with smaller crews who shoot moving subjects or want smoother, more natural-looking autofocus.

    Dual-Pixel CMOS AF technology features a CMOS sensor that consists of an array of pixels and two separate photodiodes. By continuously comparing their outputs during AF mode, phase-difference autofocus helps ensure non-blurred images and smooth focus transitions even when the talent and/or camera are moving. The new feature places a high priority on maintaining sharp focus while providing a natural, smooth autofocus movement with select Canon EF lenses including newer-generation STM lenses, which offer even smoother and quieter operation.
  Dynamic Range, ISO Range
  • The C200B features a dynamic range of approximately 13 stops, and an ISO range of 160 to 25,600. You can also select an expanded ISO range of 100 to 102,400. It supports Wide DR Gamma, Canon Log, and Canon Log 3.
  Dual Canon DIGIC DV 6 Image Processor
  • The camera features dual DIGIC DV 6 processors to handle the internal data processing.
  Rich Audio Controls
  • Built directly into the C200B are two XLR audio inputs with +48V phantom power, and a 3.5mm microphone terminal. Audio is recorded uncompressed in 16-bit PCM format at 48 kHz for high-fidelity sound. Both XLR inputs, as well as the mic terminal, offer the option of automatic or manual gain control.
  Canon Cinema Raw Light
  • This codec allows you to record raw data internally to a CFast 2.0 card via the camera's single CFast card slot. The CFast card slot enables capturing DCI 4K in Canon's Cinema Raw Light format.
  MP4 Recording
  • • UHD 4K and Full HD recording onto SD cards is available via the two SD card slots
    • Slow-motion recording, pre-recording, frame recording, and interval recording
  Recording Functions
  • Relay recording and double-slot recording.
  High-Speed Shooting
  • You can choose to record at 120/100p when recording in Full HD.
  White Balance
  • • Auto WB
    • Kelvin setting (range: 2000 to 15,000K / -20 to +20 cc)
    • Daylight
    • Tungsten
    • Set A
    • Set B
  Other Recording Functions
  • • Custom picture setting
    • Black balance adjustments
    • Color bars
    • Peaking
    • Zebra
    • My Menu setting
    • Waveform monitor
    • Assignable buttons (1-17)
    • Key lock
    • Marker
    • Enlarged display
    • Custom display
    • Peripheral illumination correction
    • GPS support (GP-E2)
    • Monaural microphone
  Playback Operations
  • Normal playback, fast-forward (at speeds of 5x, 15x, 60x), fast-reverse (at speeds of 5x, 15x, 60x), frame-forward, frame-reverse, and rec review.
  Clip Display
  • 3 x 4 (clip) index screen (raw/MP4/photo)
  UPC: 660685185722
• Atomos Shogun Flame 7" 4K HDMI/SDI Recording Monitor
  • The Canon Cinema EOS C200 and C200B Video Training Series: Shooting with the Camera
  • From Dock to Dish - Canon EOS C200
  • The Canon Cinema EOS C200 and C200B Video Training Series: Dual Pixel CMOS Autofocus Features
  The Atomos Shogun Flame is a 7", 1920 x 1200 on-camera recording monitor that combines 4K recording with a 10-bit FRC panel that supports native display of HDR (log) footage as well as high brightness viewing of Rec. 709 footage. It utilizes 4K HDMI and 12G-SDI inputs to support clean output signals at resolutions up to UHD 4K (3840 x 2160), recording it to 2.5" SSDs using 10-bit, 4:2:2 Apple ProRes and Avid DNxHR codecs. It even supports DCI 4K (4096 x 2160) raw video streams over SDI from select Sony and Canon cameras, encoding it as ProRes/DNxHR files.

  The monitor features 10-bit FRC processing and AtomHDR display technology supporting a 10-stop brightness range, allowing you to more accurately monitor your log gamma footage without having to view flat, washed-out looking images or use a LUT to compress the dynamic range and color space. The monitor offers built-in pre-sets to accurately translate popular log formats from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras. The settings only affect viewing, with recorded video remained unaltered.

  In addition to HDR monitoring, the monitor also offers a High-Bright mode for traditional Rec. 709 monitoring. This mode takes advantage of the full 1500 cd/m² brightness to allow for more confident monitoring in bright outdoor environments, even without a sun hood. In HDR mode, use of an included snap-on sun hood is required, as displaying a wider brightness range reduces the overall brightness of the monitor.

  Built to withstand the rigors of production, the Shogun Flame features built-in protective armor that features silicone-covered corners and chamfered edges. Compared to the original Shogun, the Flame now features dual Sony L-Series battery plates that support battery hot-swapping, enabling longer run times. For audio recording, the monitor supports balanced XLR inputs with +48V Phantom Power via an included audio breakout cable. Additional features included Genlock / LTC input, SDI/HDMI cross-conversion, and a variety of onscreen exposure analysis, framing, and focus assist tools. An AC adapter is included, as is a Master Caddy II 2.5" drive enclosure. For protection during storage and transport, a zippered travel case is also included.
  Monitor
  • • 1920 x 1200 resolution
    • 10-bit FRC monitoring processing
    • 1500 cd/m² brightness
    • AtomHDR technology displays 10 stops of dynamic range to natively display HDR (log) footage
    • Presets for viewing log gamma curves from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras
    • High-Bright mode for Rec. 709 viewing
    • Supports custom 3D LUTs (.cube format)
    • Anamorphic de-squeeze: 2x, 1.5x, 1.33x, Panasonic 8:3
    • 4K UHD downscale for HD monitoring
  Input/Output
  • • 4K HDMI and 12G-SDI inputs / outputs
    • SDI/HDMI cross-conversion
    • Genlock / LTC input
    • Audio breakout cable for XLR audio input
  Recording
  • • UHD 4K recording at 24/25/30 fps
    • 1080p recording up to 120 fps
    • 10-bit 4:2:2 ProRes and DNxHR recording to SSD/HDD media
    • 4K raw to ProRes/DNxHR recording over SDI from Sony FS700, Sony FS7, Canon C300 Mark II, and Canon C500
    • Pre-roll record (HD 8 seconds, 4K 2 seconds)
    • Custom time-lapse mode
    • 10 metadata fields
  Additional Features
  • • Dual Sony L-Series battery slots support hot-swappable for continuous power
    • Built-in armor with silicone-covered corners
    • Audio level meters and mic level adjustment
  UPC: 814164020725

• EOS C200B Cinema Camera with Accessory Kit (EF-Mount) xsycxvccwaxzbycwsvufcbazvfwfu
• LM-V1 4" LCD Monitor for Canon C200 & C300 Mk II
• LA-V1 LCD Attachment Unit for EOS C200
• HDU-2 Handle Unit for EOS C200/C200B
• GR-V1 Camera Grip for EOS C200
• CA-A10 Compact Power Adapter for EOS C300 Mark II, C200, and C200B Camcorders
• Single Battery Charger for EOS C300 Mark II, C200, and C200B Batteries
• Compact Power Adapter
• UN-5 Unit Cable for Canon EOS C200, C300 Mark II, C700, and XC15 (20"')
• BP-A30 Battery Pack For EOS C300 Mark II, C200, and C200B
• Mic Holder Unit
• Tape Measure Hook
• Thumb Rest
• Body Cap
• Limited 1-Year Warranty

• Atomos - Shogun Flame 7" 4K HDMI/SDI Recording Monitor

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Canon EOS C200B Cinema Camera with Accessory Kit (EF-Mount)

  Image Sensor Size	24.6 x 13.8 mm (Super35)
  Sensor Type	CMOS
  Sensor Resolution	4206 x 2340
  Effective Sensor Resolution	4096 x 2160 (8.85 MP)
  Pixel Pitch	6.4 µm
  Color Filter	Bayer
  Shutter Type	Rolling Shutter
  ISO	160 to 25,600 (Native) 100 to 102,400 (Expanded)
  Gain	-2 to 42 dB (Native) -6 to 54 dB (Expanded)
  Lens Mount	Canon EF
  Lens Communication	Yes, with Autofocus Support
  Built-In ND Filter	Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters
  Recording Media	1 x CFast 2.0 Card Slot (VPG-130 or faster cards recommended) 2 x SD (Unspecified Type) Card Slots

  Raw Recording	Cinema RAW Light 10-Bit: 4096 x 2160 at 50/59.94 fps (1 Gb/s) Cinema RAW Light 12-Bit: 4096 x 2160 at 23.98/24/25/29.97 fps (1 Gb/s)
  Recording Modes	H.264 4:2:0 8-Bit: 3840 x 2160 2048 x 1080 1920 x 1080
  Audio Recording	4-Channel 16-Bit 48 kHz
  Video Connectors	1 x BNC (SDI) Output 1 x HDMI Output
  Audio Connectors	2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input 1 x 1/8" / 3.5 mm Stereo Headphone Output
  Other I/O	1 x RJ45

  Display Type	LCD
  Screen Size	4"
  Touchscreen	Yes
  Screen Resolution	1,230,000 Dots

  Battery Type	Canon BP-A Series
  Dimensions	5.7 x 5.7 x 5.4" / 14.48 x 14.48 x 13.72 cm
  Weight	2.9 lb / 1.3 kg

  Box Dimensions (LxWxH)	18.4 x 14.4 x 12.8"

• Atomos Shogun Flame 7" 4K HDMI/SDI Recording Monitor

  Panel Type	IPS-Type LCD
  Display Size	7.1" / 18.0 cm
  Screen Resolution	1920 x 1200
  Aspect Ratio	16:9
  Touchscreen	Yes
  Maximum Brightness	1500 cd/m2
  Bit Depth / Color Support	8-Bit+FRC (1.07 Billion Colors)
  Pixels Per Inch (ppi)	325 ppi
  Real-Time LUT Monitoring	SDR

  Video	1 x HDMI Type A (HDMI 1.4b) Output 1 x BNC (12G-SDI) Output
  Embedded Audio	HDMI: 8-Channel SDI: 12-Channel
  Audio	1 x 3.5 mm Headphone Output 1 x 10-Pin LEMO Input/Output
  Built-In Speaker	None
  Power	1 x Barrel Input
  Other I/O	1 x Genlock/LTC (BNC) 1 x LANC (2.5 mm)
  Card Slot	None

  Video Format	HDMI (8/10-Bit 4:2:2) UHD 4K: 24/25/30 1080p: 24/25/30/50/60/120 1080i: 50/60 720p: 50/60 SDI (8/10-Bit 4:2:2) UHD 4K: 24/25/30 1080p: 24/25/30/50/60/120 1080PsF: 24/25/30 1080i: 50/60 720p: 50/60
  Video Signal Conversion	HDMI to SDI UHD 4K: 24/25/30 1080p: 24/25/30/50/60/120 1080i: 50/60 720p: 50/60 SDI to HDMI UHD 4K: 24/25/30 1080p: 24/25/30/50/60/120 1080i: 50/60 720p: 50/60

  Pulldown Conversion	2:2, 3:2
  Camera Trigger	SDI, HDMI
  Encoding Formats	4096 x 2160 ProRes Raw, Raw HQ, 422, LT, HQ DNxHR HQ, HQX, SQ, LB 3840 x 2160 ProRes 422, LT, HQ DNxHR HQ, HQX, SQ, LB 1920 x 1080 ProRes 422, LT, HQ DNxHD 220x, 145, 36
  Recording Media	1 x 2.5" SSD (SATA III)
  Phantom Power	+48 V

  DC Input Power	6.2 to 16.8 VDC
  Battery Type	2 x L-Series
  Power Consumption	10 W (Typical) 24 W (Maximum)

  Material of Construction	Polycarbonate
  Dimensions (W x H x D)	8.4 x 5 x 1.8" / 21.4 x 12.7 x 4.5 cm
  Weight	1.4 lb / 0.65 kg 2.4 lb / 1.09 kg, Including Battery, Recording Media

  Box Dimensions (LxWxH)	10.079 x 6.535 x 4.095"
