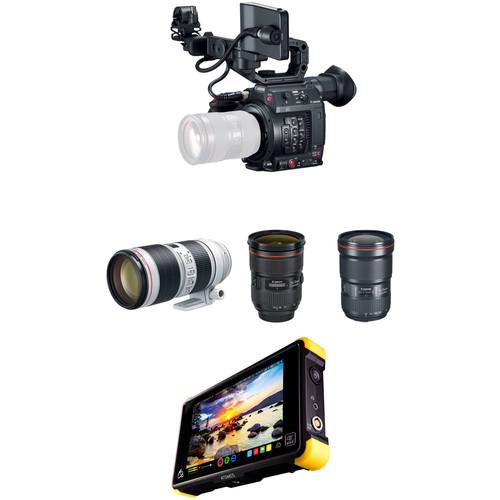

User Manual for Canon C200 EF with EVF, Accessories, 3 Zoom Lenses, and Shogun Flame Kit Click to enlarge the picture
Contents of the user manual for the Canon C200 EF with EVF, Accessories,
- Product category: Digital Cine Cameras Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Digital Cine Cameras
|
User manual for the Canon C200 EF with EVF, Accessories, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description This B&H Kit includes the Canon C200 EF Mount with EVF and Accessories, 3 Zoom Lenses and the Atomos Shogun Flame. The C200 features a Super 35mm sensor and records DCI 4K resolution internally in Canon Cinema RAW Light format to a CFast 2.0 card. It also records UHD 4K and HD video to dual SD cards in MP4 format. Storage cards are sold separately. The camera has a compact design and includes a built-in EVF, top handle, mic mount, camera grip, and removable 4" LCD, providing just about everything you need right out of the box in a handheld form factor. Connections include HDMI, SDI, XLR, and Ethernet ports.
The zoom lens set consists of a 16-35mm f/2.8L lens, 24-70mm f/2.8L lens, and 70-200mm f/2.8L lens, all in an EF mount. The "L" represents Canon's L-series, meaning a weather-resistant design with front and rear fluorine coatings to protect against fingerprints and smudging. All three provide full frame coverage, so they won't vignette when used with the C200. Key features include Super Spectra Coating, a four-stop optical image stabilizer, and a ring-type Ultrasonic Motor (USM) that allows silent autofocus performance and full-time manual focus override.
The Atomos Shogun Flame 7" recorder/monitor has a 1920 x 1200 resolution touchscreen display and both HDMI and 12G-SDI inputs. It supports up to UHD 4K signal input and records up to UHD 4K in 10-bit 4:2:2 ProRes and DNxHR. When you record DCI 4K on the C200, you can assign a lower-resolution output in the camera's menu in order to output the signal to the Shogun Flame for monitoring. The Shogun Flame supports HDR (log) footage and custom 3D LUTs. Featuring a 1500 cd/m² brightness, it also offers a High-Bright mode for Rec. 709 monitoring. Other features include anamorphic de-squeeze, presets for viewing log gamma curves, and SDI/HDMI cross conversion. - Canon EOS C200 Cinema Camera and Triple Lens Kit
- The Canon Cinema EOS C200 and C200B Video Training Series: Shooting with the Camera
- From Dock to Dish - Canon EOS C200
- The Canon Cinema EOS C200 and C200B Video Training Series: Dual Pixel CMOS Autofocus Features
This Canon EOS C200 Cinema Camera and Triple Lens Kit includes the Canon C200 camera body and three Canon EF USM lenses, to create a versatile digital cinema production kit. The three lenses included are the EF 16-35mm f/2.8L III, EF 24-70mm f/2.8L II, and EF 70-200mm f/2.8L IS III. UPC: 660685182547 - Atomos Shogun Flame 7" 4K HDMI/SDI Recording Monitor
- The Canon Cinema EOS C200 and C200B Video Training Series: Shooting with the Camera
- From Dock to Dish - Canon EOS C200
- The Canon Cinema EOS C200 and C200B Video Training Series: Dual Pixel CMOS Autofocus Features
The Atomos Shogun Flame is a 7", 1920 x 1200 on-camera recording monitor that combines 4K recording with a 10-bit FRC panel that supports native display of HDR (log) footage as well as high brightness viewing of Rec. 709 footage. It utilizes 4K HDMI and 12G-SDI inputs to support clean output signals at resolutions up to UHD 4K (3840 x 2160), recording it to 2.5" SSDs using 10-bit, 4:2:2 Apple ProRes and Avid DNxHR codecs. It even supports DCI 4K (4096 x 2160) raw video streams over SDI from select Sony and Canon cameras, encoding it as ProRes/DNxHR files.
The monitor features 10-bit FRC processing and AtomHDR display technology supporting a 10-stop brightness range, allowing you to more accurately monitor your log gamma footage without having to view flat, washed-out looking images or use a LUT to compress the dynamic range and color space. The monitor offers built-in pre-sets to accurately translate popular log formats from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras. The settings only affect viewing, with recorded video remained unaltered.
In addition to HDR monitoring, the monitor also offers a High-Bright mode for traditional Rec. 709 monitoring. This mode takes advantage of the full 1500 cd/m² brightness to allow for more confident monitoring in bright outdoor environments, even without a sun hood. In HDR mode, use of an included snap-on sun hood is required, as displaying a wider brightness range reduces the overall brightness of the monitor.
Built to withstand the rigors of production, the Shogun Flame features built-in protective armor that features silicone-covered corners and chamfered edges. Compared to the original Shogun, the Flame now features dual Sony L-Series battery plates that support battery hot-swapping, enabling longer run times. For audio recording, the monitor supports balanced XLR inputs with +48V Phantom Power via an included audio breakout cable. Additional features included Genlock / LTC input, SDI/HDMI cross-conversion, and a variety of onscreen exposure analysis, framing, and focus assist tools. An AC adapter is included, as is a Master Caddy II 2.5" drive enclosure. For protection during storage and transport, a zippered travel case is also included. - Monitor
-
- 1920 x 1200 resolution
- 10-bit FRC monitoring processing
- 1500 cd/m² brightness
- AtomHDR technology displays 10 stops of dynamic range to natively display HDR (log) footage
- Presets for viewing log gamma curves from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras
- High-Bright mode for Rec. 709 viewing
- Supports custom 3D LUTs (.cube format)
- Anamorphic de-squeeze: 2x, 1.5x, 1.33x, Panasonic 8:3
- 4K UHD downscale for HD monitoring
- Input/Output
-
- 4K HDMI and 12G-SDI inputs / outputs
- SDI/HDMI cross-conversion
- Genlock / LTC input
- Audio breakout cable for XLR audio input
- Recording
-
- UHD 4K recording at 24/25/30 fps
- 1080p recording up to 120 fps
- 10-bit 4:2:2 ProRes and DNxHR recording to SSD/HDD media
- 4K raw to ProRes/DNxHR recording over SDI from Sony FS700, Sony FS7, Canon C300 Mark II, and Canon C500
- Pre-roll record (HD 8 seconds, 4K 2 seconds)
- Custom time-lapse mode
- 10 metadata fields
- Additional Features
-
- Dual Sony L-Series battery slots support hot-swappable for continuous power
- Built-in armor with silicone-covered corners
- Audio level meters and mic level adjustment
UPC: 814164020725 In the Box - EOS C200 Cinema Camera and Triple Lens Kit fawesveacqtwsadarv
- EOS C200 Cinema Camera (EF-Mount)
- EF 16-35mm f/2.8L III USM Lens
- EF 24-70mm f/2.8L II USM Lens
- EF 70-200mm f/2.8L IS III USM Lens
- Atomos - Shogun Flame 7" 4K HDMI/SDI Recording Monitor
Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon C200 EF with EVF, Accessories, 3 Zoom Lenses, and Shogun Flame Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Canon EOS C200 Cinema Camera (EF-Mount)
| | | Image Sensor Size | 24.6 x 13.8 mm (Super35) | | Sensor Type | CMOS | | Sensor Resolution | 4206 x 2340 (9.84 MP) | | Effective Sensor Resolution | 4096 x 2160 (8.85 MP) | | Pixel Pitch | 6.4 µm | | Color Filter | Bayer | | ISO | 160 to 25,600 (Native)
100 to 102,400 (Expanded) | | Gain | -2 to 42 dB (Native)
-6 to 54 dB (Expanded) | | | | Lens Mount | Canon EF | | Lens Communication | Yes, with Autofocus Support | | Built-In ND Filter | Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters | | Built-In Microphone Type | Mono | | Recording Media | 1 x CFast 2.0 Card Slots
2 x SDXC Card Slots | | | | Raw Recording | Cinema RAW Light 12-Bit:
4096 x 2160 at 24/30 fps (1 Gb/s)
4096 x 2160 at 60 fps (1 Gb/s) | | Recording Modes | MP4 4:2:0 8-Bit:
3840 x 2160p at 24/30/60 fps (150 MB/s)
1920 x 1080p at 30/60/120 fps (35 MB/s) | | Audio Recording | 4-Channel 16-Bit 48 kHz | | | | Video Connectors | 1 x BNC (SDI) Output
1 x HDMI (HDMI 2.0) Output | | Audio Connectors | 2 x 3-Pin XLR Mic Level (+48 V Phantom Power) Input
1 x 1/8" / 3.5 mm Stereo Mic Level Input
1 x 1/8" / 3.5 mm Stereo Headphone Output | | Other I/O | 1 x 2.5 mm LANC Control Input
1 x RJ45 LAN | | | | Display Type | LCD | | Screen Size | 4" | | Touchscreen | Yes | | Screen Resolution | 1,230,000 Dots | | | | Screen Size | .46" | | EVF Resolution | 1,770,000 Dots | | | | Battery Type | Canon BP-A Series | | Power Connectors | 1 x 4-Pin LEMO Input | | | | Accessory Mount | 1 x 1/4"-20 Female
1 x Cold Shoe Mount | | Dimensions | 5.7 x 6 x 7" / 14.48 x 15.24 x 17.78 cm (Without Grip)
7 x 6 x 8" / 17.78 x 15.24 x 20.32 cm (With Grip) | | Weight | 3.2 lb / 1.5 kg | | | | Box Dimensions (LxWxH) | 18.4 x 14.4 x 12.8" | - Canon EF 16-35mm f/2.8L III USM Lens
| Focal Length | 16 to 35mm | | Maximum Aperture | f/2.8 | | Minimum Aperture | f/22 | | Lens Mount | Canon EF | | Format Compatibility | Full-Frame | | Angle of View | 108
