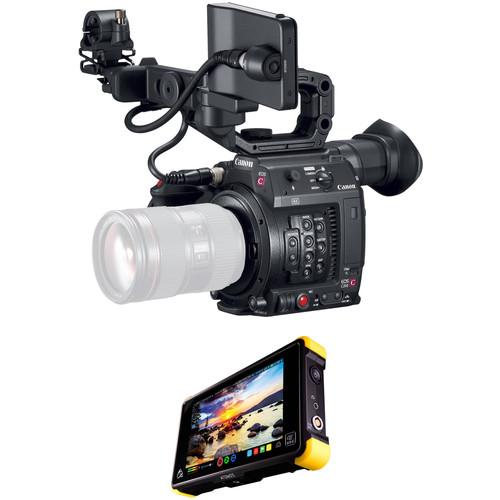

Product description This B&H Kit includes the Canon C200 EF Mount with EVF and Accessories and the Atomos Shogun Flame. The C200 features a Super 35mm sensor and records DCI 4K resolution internally in Canon Cinema RAW Light format to a CFast 2.0 card. It also records UHD 4K and HD video to dual SD cards in MP4 format. Storage cards are sold separately. The camera has a compact design and includes a built-in EVF, top handle, mic mount, camera grip, and removable 4" LCD, providing just about everything you need right out of the box in a handheld form factor. Connections include HDMI, SDI, XLR, and Ethernet ports.
The Atomos Shogun Flame 7" recorder/monitor has a 1920 x 1200 resolution touchscreen display and both HDMI and 12G-SDI inputs. It supports up to UHD 4K signal input and records up to UHD 4K in 10-bit 4:2:2 ProRes and DNxHR. When you record DCI 4K on the C200, you can assign a lower-resolution output in the camera's menu in order to output the signal to the Shogun Flame for monitoring. The Shogun Flame supports HDR (log) footage and custom 3D LUTs. Featuring a 1500 cd/m² brightness, it also offers a High-Bright mode for Rec. 709 monitoring. Other features include anamorphic de-squeeze, presets for viewing log gamma curves, and SDI/HDMI cross conversion. - Canon EOS C200 Cinema Camera (EF-Mount)
- The Canon Cinema EOS C200 and C200B Video Training Series: Shooting with the Camera
- From Dock to Dish - Canon EOS C200
- The Canon Cinema EOS C200 and C200B Video Training Series: Dual Pixel CMOS Autofocus Features
Canon's EOS C200 EF Cinema Camera features a built-in EVF, 4" LCD screen, top handle, Super 35mm CMOS sensor, and Dual Pixel Autofocus. The EF lens mount on the EOS C200 offers compatibility not only with Canon's existing broad range of DSLR lenses but also with their line of EF-mount CN-E cinema prime and zoom lenses. The Super 35mm sensor is paired with Canon's Dual DIGIC DV 6 image processor, allowing it to capture and record up to DCI 4K resolution.
The C200 can also record Canon's Cinema RAW Light internally via its single CFast card slot. The camera also incorporates two SD card slots for recording UHD 4K/HD MP4 video. A built-in EVF enables the camera to maintain a small footprint when you shoot. However, the included removable 4" LCD screen as well as the included top handle and camera grip make this camera versatile for larger shoots. You can output video via the camera's SDI output, and the built-in XLR connectors provide two channels of audio at line, mic, and mic+48V level. A built-in Ethernet connector provides input/output control. Main Features - Canon Super 35mm CMOS Sensor
- Modeled on the Super 35mm motion picture film standard, the Canon CMOS sensor has an active image size of 24.4 x 13.5mm. It features 4096 x 2160 resolution to deliver Cine 4K images, as well as supporting Ultra HD (3840 x 2160), and Full HD (1920 x 1080).
- Dual Pixel CMOS AF Technology
- Provides continuous AF (Autofocus) function for all autofocus lenses, using Dual Pixel CMOS AF technology. A new AF Lock setting also lets you change the image framing while holding the desired focus. This feature is ideal for users who regularly shoot with smaller crews, who shoot moving subjects, or who want smoother, more natural-looking autofocus.
Dual Pixel CMOS AF technology features a CMOS sensor that consists of an array of pixels that each feature two separate photodiodes. By continuously comparing their outputs during AF mode, phase-difference autofocus helps ensure non-blurred images and smooth focus transitions even when the talent and/or camera are moving. The new feature places a high priority on maintaining sharp focus while providing a natural, smooth autofocus movement with select Canon EF lenses - including newer-generation STM lenses - which offer even smoother and quieter operation. - Dynamic Range, ISO Range
- The C200 features a dynamic range of approximately 13 stops, and an ISO range of 160 to 25,600. You can also select an expanded ISO range of 100 to 102,400. It supports Wide DR Gamma, Canon Log and Canon Log 3.
- Dual Canon DIGIC DV 6 Image Processor
- The camera features Dual DIGIC DV 6 processors to handle the internal data processing.
- Ultra High-Resolution EVF
- The EOS C200 features a built-in 0.46", 1.23MP color EVF and 100% field of view coverage for comfortable viewing and accurate judgment of composition, focus, and color. The angle of the viewfinder is adjustable for additional user comfort.
- 4" LCD Touchscreen Camera Grip and Top Handle
- Included with the C200 is a removable 4" Touchscreen LCD viewfinder. Also included with the C200 is a camera control handgrip as well as a removable top handle.
- Rich Audio Controls
- Built directly into the C200 are two XLR audio inputs with +48V phantom power, and a 3.5mm microphone terminal is also built into the camera. Audio is recorded uncompressed in 16-bit PCM format at 48 kHz for high fidelity sound. Both XLR inputs as well as the mic terminal have the option for automatic as well as manual gain control.
- Canon Cinema RAW Light
- This codec allows you to record raw data internally to a CFast 2.0 card via the camera's single CFast card slot. The CFast card slot enables capturing DCI 4K in Canon's Cinema RAW Light format.
- MP4 Recording
-
- UHD 4K and Full HD recording onto SD cards is available via the two SD card slots.
- Slow-motion recording, pre-recording, frame recording, interval recording
- Recording Functions
- Relay recording, double slot recording
- High-Speed Shooting
- You can choose to record at 120/100p when recording in Full HD.
- White Balance
- AWB
Kelvin setting (setting range: 2000K to 15000K/-20CC to +20CC)
Daylight
Tungsten
Set A
Set B - Other Recording Functions
- Custom picture setting
Black balance adjustments
Color bars
Peaking display
Zebra display
My Menu setting
Waveform monitor display
Assignable buttons (1-17)
Key lock
Marker display
Enlarged display
Custom display
Peripheral illumination correction
GPS support (GP-E2)
Monaural microphone - Playback Operations
- Normal playback, fast forward (at speeds of ×5, ×15, ×60), fast reverse (at speeds of ×5, ×15, ×60), frame forward, frame reverse, rec review
- Clip Display
- 3 x 4 (clip) index screen (raw/MP4/Photo)
UPC: 013803290035 - Atomos Shogun Flame 7" 4K HDMI/SDI Recording Monitor
- The Canon Cinema EOS C200 and C200B Video Training Series: Shooting with the Camera
- From Dock to Dish - Canon EOS C200
- The Canon Cinema EOS C200 and C200B Video Training Series: Dual Pixel CMOS Autofocus Features
The Atomos Shogun Flame is a 7", 1920 x 1200 on-camera recording monitor that combines 4K recording with a 10-bit FRC panel that supports native display of HDR (log) footage as well as high brightness viewing of Rec. 709 footage. It utilizes 4K HDMI and 12G-SDI inputs to support clean output signals at resolutions up to UHD 4K (3840 x 2160), recording it to 2.5" SSDs using 10-bit, 4:2:2 Apple ProRes and Avid DNxHR codecs. It even supports DCI 4K (4096 x 2160) raw video streams over SDI from select Sony and Canon cameras, encoding it as ProRes/DNxHR files.
The monitor features 10-bit FRC processing and AtomHDR display technology supporting a 10-stop brightness range, allowing you to more accurately monitor your log gamma footage without having to view flat, washed-out looking images or use a LUT to compress the dynamic range and color space. The monitor offers built-in pre-sets to accurately translate popular log formats from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras. The settings only affect viewing, with recorded video remained unaltered.
In addition to HDR monitoring, the monitor also offers a High-Bright mode for traditional Rec. 709 monitoring. This mode takes advantage of the full 1500 cd/m² brightness to allow for more confident monitoring in bright outdoor environments, even without a sun hood. In HDR mode, use of an included snap-on sun hood is required, as displaying a wider brightness range reduces the overall brightness of the monitor.
Built to withstand the rigors of production, the Shogun Flame features built-in protective armor that features silicone-covered corners and chamfered edges. Compared to the original Shogun, the Flame now features dual Sony L-Series battery plates that support battery hot-swapping, enabling longer run times. For audio recording, the monitor supports balanced XLR inputs with +48V Phantom Power via an included audio breakout cable. Additional features included Genlock / LTC input, SDI/HDMI cross-conversion, and a variety of onscreen exposure analysis, framing, and focus assist tools. An AC adapter is included, as is a Master Caddy II 2.5" drive enclosure. For protection during storage and transport, a zippered travel case is also included. - Monitor
-
- 1920 x 1200 resolution
- 10-bit FRC monitoring processing
- 1500 cd/m² brightness
- AtomHDR technology displays 10 stops of dynamic range to natively display HDR (log) footage
- Presets for viewing log gamma curves from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras
- High-Bright mode for Rec. 709 viewing
- Supports custom 3D LUTs (.cube format)
- Anamorphic de-squeeze: 2x, 1.5x, 1.33x, Panasonic 8:3
- 4K UHD downscale for HD monitoring
- Input/Output
-
- 4K HDMI and 12G-SDI inputs / outputs
- SDI/HDMI cross-conversion
- Genlock / LTC input
- Audio breakout cable for XLR audio input
- Recording
-
- UHD 4K recording at 24/25/30 fps
- 1080p recording up to 120 fps
- 10-bit 4:2:2 ProRes and DNxHR recording to SSD/HDD media
- 4K raw to ProRes/DNxHR recording over SDI from Sony FS700, Sony FS7, Canon C300 Mark II, and Canon C500
- Pre-roll record (HD 8 seconds, 4K 2 seconds)
- Custom time-lapse mode
- 10 metadata fields
- Additional Features
-
- Dual Sony L-Series battery slots support hot-swappable for continuous power
- Built-in armor with silicone-covered corners
- Audio level meters and mic level adjustment
UPC: 814164020725 In the Box - EOS C200 Cinema Camera (EF-Mount) xsycxvccwaxzbycwsvufcbazvfwfu
- LM-V1 4" LCD Monitor for Canon C200 & C300 Mk II
- LA-V1 LCD Attachment Unit for EOS C200
- HDU-2 Handle Unit for EOS C200/C200B
- GR-V1 Camera Grip for EOS C200
- Shoulder Strap
- CA-A10 Compact Power Adapter for EOS C300 Mark II, C200, and C200B Camcorders
- Single Battery Charger for EOS C300 Mark II, C200, and C200B Batteries
- Compact Power Adapter
- UN-5 Unit Cable for Canon EOS C200, C300 Mark II, C700, and XC15 (20"')
- Eyecup
- BP-A30 Battery Pack For EOS C300 Mark II, C200, and C200B
- Shoulder Strap
- Tape Measure Hook
- Thumb Rest
- Body Cap
- Limited 1-Year Warranty
- Atomos - Shogun Flame 7" 4K HDMI/SDI Recording Monitor
Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon C200 EF with EVF, Accessories, and Shogun Flame Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Canon EOS C200 Cinema Camera (EF-Mount)
| | | Image Sensor Size | 24.6 x 13.8 mm (Super35) | | Sensor Type | CMOS | | Sensor Resolution | 4206 x 2340 (9.84 MP) | | Effective Sensor Resolution | 4096 x 2160 (8.85 MP) | | Pixel Pitch | 6.4 µm | | Color Filter | Bayer | | ISO | 160 to 25,600 (Native)
100 to 102,400 (Expanded) | | Gain | -2 to 42 dB (Native)
-6 to 54 dB (Expanded) | | | | Lens Mount | Canon EF | | Lens Communication | Yes, with Autofocus Support | | Built-In ND Filter | Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters | | Built-In Microphone Type | Mono | | Recording Media | 1 x CFast 2.0 Card Slots
2 x SDXC Card Slots | | | | Raw Recording | Cinema RAW Light 12-Bit:
4096 x 2160 at 24/30 fps (1 Gb/s)
4096 x 2160 at 60 fps (1 Gb/s) | | Recording Modes | MP4 4:2:0 8-Bit:
3840 x 2160p at 24/30/60 fps (150 MB/s)
1920 x 1080p at 30/60/120 fps (35 MB/s) | | Audio Recording | 4-Channel 16-Bit 48 kHz | | | | Video Connectors | 1 x BNC (SDI) Output
1 x HDMI (HDMI 2.0) Output | | Audio Connectors | 2 x 3-Pin XLR Mic Level (+48 V Phantom Power) Input
1 x 1/8" / 3.5 mm Stereo Mic Level Input
1 x 1/8" / 3.5 mm Stereo Headphone Output | | Other I/O | 1 x 2.5 mm LANC Control Input
1 x RJ45 LAN | | | | Display Type | LCD | | Screen Size | 4" | | Touchscreen | Yes | | Screen Resolution | 1,230,000 Dots | | | | Screen Size | .46" | | EVF Resolution | 1,770,000 Dots | | | | Battery Type | Canon BP-A Series | | Power Connectors | 1 x 4-Pin LEMO Input | | | | Accessory Mount | 1 x 1/4"-20 Female
1 x Cold Shoe Mount | | Dimensions | 5.7 x 6 x 7" / 14.48 x 15.24 x 17.78 cm (Without Grip)
7 x 6 x 8" / 17.78 x 15.24 x 20.32 cm (With Grip) | | Weight | 3.2 lb / 1.5 kg | | | | Box Dimensions (LxWxH) | 18.4 x 14.4 x 12.8" | - Atomos Shogun Flame 7" 4K HDMI/SDI Recording Monitor
| | | Panel Type | IPS-Type LCD | | Display Size | 7.1" / 18.0 cm | | Screen Resolution | 1920 x 1200 | | Aspect Ratio | 16:9 | | Touchscreen | Yes | | Maximum Brightness | 1500 cd/m2 | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Pixels Per Inch (ppi) | 325 ppi | | Real-Time LUT Monitoring | SDR | | | | Video | 1 x HDMI Type A (HDMI 1.4b) Output
1 x BNC (12G-SDI) Output | | Embedded Audio | HDMI: 8-Channel
SDI: 12-Channel | | Audio | 1 x 3.5 mm Headphone Output
1 x 10-Pin LEMO Input/Output | | Built-In Speaker | None | | Power | 1 x Barrel Input | | Other I/O | 1 x Genlock/LTC (BNC)
1 x LANC (2.5 mm) | | Card Slot | None | | | | Video Format | HDMI (8/10-Bit 4:2:2)
UHD 4K: 24/25/30
1080p: 24/25/30/50/60/120
1080i: 50/60
720p: 50/60
SDI (8/10-Bit 4:2:2)
UHD 4K: 24/25/30
1080p: 24/25/30/50/60/120
1080PsF: 24/25/30
1080i: 50/60
720p: 50/60 | | Video Signal Conversion | HDMI to SDI
UHD 4K: 24/25/30
1080p: 24/25/30/50/60/120
1080i: 50/60
720p: 50/60
SDI to HDMI
UHD 4K: 24/25/30
1080p: 24/25/30/50/60/120
1080i: 50/60
720p: 50/60 | | | | Pulldown Conversion | 2:2, 3:2 | | Camera Trigger | SDI, HDMI | | Encoding Formats | 4096 x 2160
ProRes Raw, Raw HQ, 422, LT, HQ
DNxHR HQ, HQX, SQ, LB
3840 x 2160
ProRes 422, LT, HQ
DNxHR HQ, HQX, SQ, LB
1920 x 1080
ProRes 422, LT, HQ
DNxHD 220x, 145, 36 | | Recording Media | 1 x 2.5" SSD (SATA III) | | Phantom Power | +48 V | | | | DC Input Power | 6.2 to 16.8 VDC | | Battery Type | 2 x L-Series | | Power Consumption | 10 W (Typical)
24 W (Maximum) | | | | Material of Construction | Polycarbonate | | Dimensions (W x H x D) | 8.4 x 5 x 1.8" / 21.4 x 12.7 x 4.5 cm | | Weight | 1.4 lb / 0.65 kg
2.4 lb / 1.09 kg, Including Battery, Recording Media | | | | Box Dimensions (LxWxH) | 10.079 x 6.535 x 4.095" |
