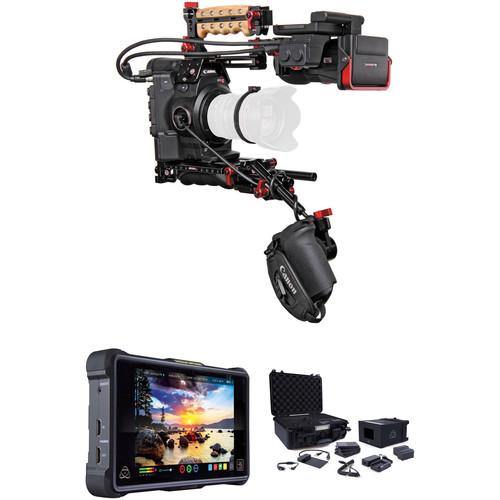

User Manual for Canon C300 Mark II ProRes RAW Atomos Kit with Z-Finder & Accessory Kit Click to enlarge the picture
Contents of the user manual for the Canon C300 Mark II ProRes RAW
- Product category: Digital Cine Cameras Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Digital Cine Cameras
|
User manual for the Canon C300 Mark II ProRes RAW contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description Canon EOS C300 Mark II 4K Cinema Camera Read More The Canon C300 Mark II ProRes RAW Atomos Kit with Z-Finder & Accessory Kit from B&H is assembled to provide you with a 4K digital cine camera, a 10-bit external monitor that supports 10-bit, 4:2:2 ProRes, ProRes RAW, and DNxHR recording, and an accessory kit for that monitor. The camera features a Super35mm-sized sensor that helps create the familiar cinema depth of field, and incorporates an EF mount which allows you to use a wide variety of EF-mount lenses, as well as Canons CN-E Cine Prime lenses and zooms. The camera captures DCI 4K images internally or to an external recorder. The included Zacuto Z-Finder kit allows you to relocate the camera's grip, and mount the camera onto a VCT universal baseplate that features front support rods. The included Helmet and Recoil Handle Kit securely attaches a top handle to the camera, and the 1.8x viewfinder kit magnifies the C300 Mark II's viewfinder screen
The Atomos Shogun Inferno is a 1500 cd/m² bright monitor and recorder. It is suitable for use in bright interior and exterior locations without a hood. The Shogun Inferno features 12G-SDI connectors that allow it to input UHD 4K signals at up to 60 fps, and it records 10-bit ProRes, ProRes RAW, or DNxHR files on 2.5" SSDs. Included is an accessory kit that includes a protective case with custom cut foam, two L-series batteries, a fast charger, a USB 3.0 docking station, and four Master Caddy II drive caddies. - Canon Cinema EOS C300 Mark II with Zacuto Z-Finder Kit (EF Mount)
- Introducing the Canon EOS C300 Mark II
The Canon EOS C300MK II (EF Mount) with Zacuto Z-Finder Kit in EF mount provides you with the components to shoot ENG-style with the included Canon EOS C300 Mark II and the Zacuto Z-Finder kit. The EF-mount camera features a Super 35mm CMOS. This provides faster and more accurate autofocusing to assist users when operating with small crews.The EF lens mount on the EOS C300Mk II offers compatibility not only with Canon's existing broad range of DSLR lenses but also with their line of EF-mount CN-E cinema prime and zoom lenses. The Super 35mm sensor is paired with the Canon DIGIC DV 5 image processor, which uses an innovative method of breaking out red, green, and blue data to enable color performance on a level that would otherwise require three separate chips. The camera records up to Full HD resolution video to CFast 1 cards using the XF-AVC codec, and H.264 format in MXF wrapper. For more flexibility to adjust your image during postproduction, the camera also offers Canon's Log gamma mode, which results in excellent tonal reproduction in the highlight and lowlight regions of an image, and an expanded dynamic range.
The Zacuto Z-Finder kit allows you to relocate the camera's grip, and mount the camera onto a VCT universal baseplate that features front support rods. The included Helmet and Recoil Handle Kit securely attach a top handle to the camera, and the 1.8x viewfinder kit magnifies the C300MK II's viewfinder screen UPC: 660685154728 - Atomos Shogun Inferno 7" 4K HDMI/Quad 3G-SDI/12G-SDI Recording Monitor
- Introducing the Canon EOS C300 Mark II
The Atomos Shogun Inferno is a 7", 1920 x 1200 on-camera recording monitor that combines 4K recording with a 10-bit FRC panel that supports native display of HDR (log) footage as well as high-brightness viewing of Rec. 709 footage. It utilizes 4K HDMI and 12G-SDI inputs to support clean output signals at resolutions up to UHD 4K (3840 x 2160) at 60 fps, recording it to 2.5" SSDs using 10-bit, 4:2:2 Apple ProRes, and Avid DNxHR codecs. The Inferno, unlike the similar Shogun Flame, supports Quad 3G-SDI input. It even supports DCI 4K (4096 x 2160) raw video streams over SDI from select Sony and Canon cameras, encoding it as ProRes/DNxHR files.
The monitor features 10-bit FRC processing and AtomHDR display technology support a 10-stop brightness range, allowing you to more accurately monitor your log gamma footage without having to view flat, washed-out looking images or use a LUT to compress the dynamic range and color space. The monitor offers built-in presets to accurately translate popular log formats from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras. The settings only affect viewing, with recorded video remained unaltered.
In addition to HDR monitoring, the monitor also offers a High Bright mode for traditional Rec. 709 monitoring. This mode takes advantage of the full 1500 cd/m² brightness to allow for more confident monitoring in bright outdoor environments, even without a sun hood. In HDR mode, use of an optional snap-on sun hood is required, as displaying a wider brightness range reduces the overall brightness of the monitor.
Built to withstand the rigors of production, the Shogun Inferno features built-in protective armor that features silicone-covered corners and chamfered edges. Compared to the original Shogun, the Inferno now features dual Sony L-series battery plates that support battery hot swapping, enabling longer runtimes. For audio recording, the monitor supports balanced XLR inputs with +48V phantom power via an included audio breakout cable. Additional features included genlock/LTC input, SDI/HDMI cross conversion, and a variety of on-screen exposure analysis, framing, and focus assist tools. - Monitor
-
- 1920 x 1200 resolution
- 10-bit FRC monitoring processing
- 1500 cd/m² brightness
- AtomHDR technology displays 10 stops of dynamic range to natively display HDR (log) footage
- Presets for viewing log gamma curves from Sony, Canon, Panasonic, ARRI, RED, and JVC cameras
- High Bright mode for Rec. 709 viewing
- Supports custom 3D LUTs (.cube format)
- Anamorphic de-squeeze: 2x, 1.5x, 1.33x, Panasonic 8:3
- UHD 4K downscale for HD monitoring
- Input/Output
-
- 4K HDMI and 12G-SDI inputs/outputs
- Four 3G-SDI inputs (or single 12G-SDI)
- SDI/HDMI cross conversion
- Genlock/LTC input
- Audio breakout cable for XLR audio input
- Recording
-
- UHD 4K recording at 24/25/30/50/60 fps in ProRes or DNxHR
- 1080p recording up to 240 fps
- 10-bit 4:2:2 ProRes and DNxHR recording to SSD/HDD media
- 4K raw to ProRes/DNxHR recording over SDI from Sony FS700, Sony FS7, Canon C300 Mark II, and Canon C500
- ProRes Raw and ProRes Raw HQ
- Record up to 5.7p30, 4Kp60, HDp240
- Pre-roll record (HD 8 seconds, 4K 2 seconds)
- Custom time-lapse mode
- Ten metadata fields
- Additional Features
-
- Dual Sony L-series battery slots support hot swapping for continuous power
- Built-in armor with silicone-covered corners
- Audio level meters and mic level adjustment
UPC: 814164020718 - Atomos Accessory Kit for Shogun/Ninja Inferno & Flame
- Introducing the Canon EOS C300 Mark II
The Atomos Accessory Kit includes everything you'll need for a complete workflow with your Shogun/Ninja Inferno and Flame monitors/recorders. - Kit Contents
-
- HPRC hard flight case
- 2.5mm female to dual 2.5mm male control cable
- Two NP-F750 5200mAh batteries
- Fast charger
- USB 3.0 docking station
- Coiled DC barrel to D-Tap cable
- Four Master Caddy II drive caddies
- AC power adapter
- HDR sunhood
UPC: 814164020749 In the Box - Cinema EOS C300 Mark II with Zacuto Z-Finder Kit (EF Mount) vfwszdqxfcdefdwfcv
- Cinema EOS C300 Mark II Camcorder Body with Dual Pixel CMOS AF (EF Lens Mount)
- C300 Mark II EVF Recoil
- C300/500 Z-Finder 1.8x with Mounting Kit
- Atomos - Shogun Inferno 7" 4K HDMI/Quad 3G-SDI/12G-SDI Recording Monitor
Includes Free - Atomos - Accessory Kit for Shogun/Ninja Inferno & Flame
Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon C300 Mark II ProRes RAW Atomos Kit with Z-Finder & Accessory Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Canon Cinema EOS C300 Mark II Camcorder Body with Dual Pixel CMOS AF (EF Lens Mount)
| | | Image Sensor Size | 24.6 x 13.8 mm (Super35) | | Sensor Type | CMOS | | Sensor Resolution | 4206 x 2340 (9.84 MP) | | Effective Sensor Resolution | 4096 x 2160 (8.85 MP) | | Pixel Pitch | 6.4 µm | | Color Filter | Bayer | | ISO | 160 to 25,600 (Native)
100 to 102,400 (Expanded) | | Gain | -2 to 44 dB (Native)
-6 to 54 dB (Expanded) | | | | Lens Mount | Canon EF | | Lens Communication | Yes, with Autofocus Support | | Shutter Speed | 1/24 to 1/2000 sec | | Shutter Angle | 11.25 to 360
