Product description

Firmware v.1.0.4.1.00
• Firmware v.1.0.4.1.00 adds the following features:
  • Canon Log 3, which achieves a dynamic range of 1600% with 14 stops of dynamic range, and can be ideal for middle end users that have a limited budget for post-production and need quick turnaround.
  • A reduction in the dark noise level when shooting in Canon Log 2 mode. Streaking and black sun spots have been reduced in all modes by changing the CMOS sensor control.
  • ACES 1.0 output via SDI/HDMI.
  • Magnify function during REC.
  • Additional lens functionality is now available with the Cine-Servo 50 to 1000mm, Cine-Servo 17 to 120mm, Compact-Servo 18 to 80mm, and Dual-Pixel Focus Guide added to the EF mount Canon Cinema prime lenses. Please note that you may need to also upgrade the firmware in your lens to access this functionality.

Dual-Pixel CMOS AF Technology
• It provides continuous autofocus (AF) function for all autofocus lenses, using Dual-Pixel CMOS AF technology. A new AF Lock setting also lets you change the image framing while holding the desired focus. This feature is ideal for users who regularly shoot with smaller crews, who shoot moving subjects, or who want smoother and more natural-looking autofocus.

  Dual-Pixel CMOS AF technology features a CMOS sensor consisting of an array of pixels, each featuring two separate photodiodes. By continuously comparing their outputs during AF mode, phase-difference autofocus helps ensure non-blurred images and smooth focus transitions even when the talent or camera is moving. The new feature places a high priority on maintaining sharp focus while providing a natural, smooth autofocus movement with select Canon EF lenses—including newer-generation STM lenses—which offer even smoother and quieter operation.

Main Features

Canon Super 35mm CMOS Sensor
• Modeled on the Super 35mm 3-perf motion picture film standard, the Canon CMOS sensor has an active image size of 24.4 x 13.5mm. It features 4096 x 2160 resolution to deliver Cine 4K images, as well as supporting Ultra HD (3840 x 2160) and Full HD (1920 x 1080).

Canon Log Gamma
• Support for Canon Log Gamma 2/ACES/REC.2020.

Dual Canon DIGIC DV 5 Image Processor
• The camera features Dual DIGIC DV 5 processors to handle the internal data processing.

XF AVC Codec
• To create digital files robust enough for major post-production, the EOS C300 delivers the highest image quality with its XF-AVC codec, an H.264 format wrapped in the widely supported MXF wrapper

Designed with Filmmakers in Mind
• A logical layout of buttons and dials makes operation simple. A lock switch turns off all controls except for the recording button and function buttons. Small ridges between the buttons help prevent activating functions by mistake. A backlit display panel is great for low-light viewing. A tally lamp is clearly visible from the side or behind the camera.

Compact & Modular Design
• The EOS C300 body is compact and easily handheld at just over 3 lb. There is a bright 1.55MP electronic viewfinder, and the camera comes bundled with a removable combination 4", 1.23MP monitor and control panel. The camera also has a removable handgrip with a control dial and function buttons for handheld shooting in DSLR style, or remove it and use the supplied thumb rest for completely stripped-down shooting. The EOS C300 has a manually operated built-in neutral density (ND) glass filter offering 1/4, 1/16, and 1/64th steps of filtering. Handheld or using a tripod, on location or in the studio, the EOS C300 fits shooting situations that are challenging for larger cameras.

Rugged, Durable & Quiet
• The EOS C300's dustproof and splash-proof design includes sealing gaskets around the edges of all access covers, dials fitted with O-rings on the axis of rotation, and button key-tops sealed with rubber. The EOS C300 also features a built-in silent cooling system with a heat-dissipating duct in the center of the body, a graphite sheet that conducts sensor heat towards the heat sink, three ventilation holes, and a cooling fan that pulls hot air out through an exhaust opening. All air is directed through a discrete pathway that keeps dust particles away from sensitive components. Your camera runs cool, quiet, and clean.

Ultra High-Resolution EVF
• The EOS C300 features a 0.46", 1.17MP color EVF and 100% field of view coverage for comfortable viewing and accurate judgment of composition, focus, and color. The angle of the viewfinder is adjustable for additional user comfort. EVF adjustments include brightness, contrast, color, and backlight (normal or bright).

Rich Audio Controls
• When mounted on the EOS C300 Mark II camera, the included control unit provides two XLR audio inputs with +48V phantom power. A 3.5mm microphone terminal is also built into the camera. Audio is recorded uncompressed in 16-bit PCM format at 48 kHz for high-fidelity sound. Both XLR inputs, as well as the mic terminal, have the option for automatic and full manual gain control (-Infinity to +18 dB). Additionally, a 3.5mm headphone terminal with 16 volume settings offers accurate audio monitoring.

CFast Memory Card Recording
• The camera records to CFast 1 cards through two slots.

High-Speed, Slow-Motion, Time-Lapse & Stop-Motion
• Beyond the advantages of file-based recording, the camera offers several creative possibilities in post-production including slow- and fast-motion.

Connectivity
• To connect to external monitors, switchers, VTRs, and NLE systems with SDI inputs, the EOS C300 features industry-standard HD-SDI output, genlock, and timecode terminals, plus audio terminals with linear PCM recording. Timecode and genlock enable synchronized multicamera capture perfect for multiple-camera shots, 3D acquisition, and more. The HD-SDI sync terminal can be switched to output to HD sync, HD Y, black burst, and composite.

Full Manual Control & Focusing Aids

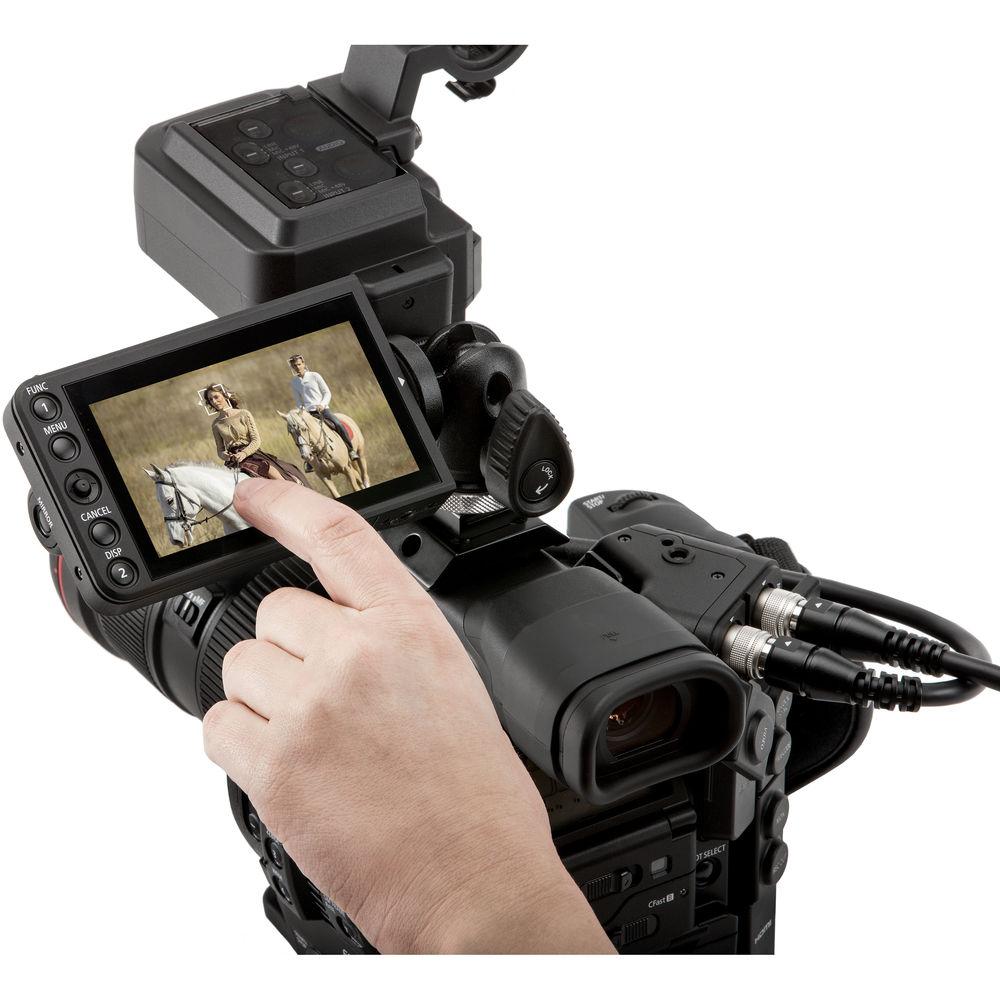

• The camera has a waveform monitor (WFM) function that shows the overall brightness of a scene, with RGB parade display to view red, green, and blue brightness or spot display to isolate the luminance distribution of a chosen area. The vectorscope (VS) display shows real-time hue and saturation levels. For sharp focus, the EOS C300 camera has two peaking modes and a magnified focus assist function. An Edge Monitor Focus Assist provides both a waveform representing the overall degree of focus and a red waveform representing focus in three specific areas, displayed on the camera's 4" touchscreen LCD monitor. The included touchscreen LCD monitor also allows for tap-focusing with compatible lenses. To maintain proper highlight exposure, it offers a zebra bar feature as well.

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Canon C300 Mark II Specs

Lens Mount	Canon EF
Lens Communication	Yes, with Autofocus Support
Shutter Speed	1/24 to 1/2000 sec
Shutter Angle	11.25 to 360 Rating 90% users recommend this product to others. And what about you? This product has already been rated by 42 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
