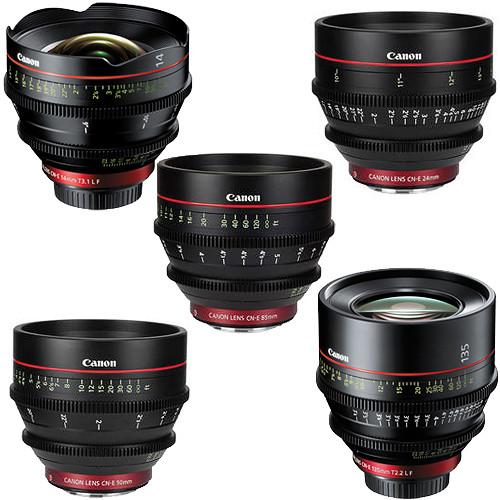

User Manual for Canon Cinema Prime EF 5 Lens Promotion Kit Click to enlarge the picture
Contents of the user manual for the Canon Cinema Prime EF 5 Lens
- Product category: Digital Cine Lenses Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Digital Cine Lenses
|
User manual for the Canon Cinema Prime EF 5 Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description Cinema Lens Care and Maintenance Read More The Canon Cinema Prime EF 5 Lens Promotion Kit from is Canon's CN-E line-up of five EF-mount cinema lenses, all featuring a 36mm x 24mm area of coverage that covers full frame and super 35mm sensors. The optics are designed for 4K capture, and the exterior components are identical across the line-up to afford consistent compatibility with accessories, enabling adjustment-free swaps. The focal lengths range from 14mm to 135mm and the apertures from T1.3 to T3.1. The wider lenses capture with minimal edge distortion, and the faster ones are very sensitive to available light.
The coating was developed to capture precise colors, high contrast, and natural skin tones, and to reduce ghosting and minimize flare. The lenses are designed to minimize breathing, and the glass is designed to avoid thermal expansion.
All five lenses have an 11-blade aperture, a 114mm front barrel diameter, stepless 300° focus ring, stepless aperture ring, the same form and placement of gear rings, glow-in-the-dark markings on angled surfaces on both sides of the barrel, and a dust/water-resistant build.
The 11-blade aperture contributes heavily to a pleasing bokeh and circular highlights. The consistent front diameter will allow quick swaps when matteboxes are involved. The control rings offer a resistance while maintaining operating torque. The markings can be read from either side of the camera and from behind, and they can be switched from standard labeling to metric.
This promotion kit offers a considerable savings over the combined cost of the lenses sold individually. - Canon CN-E 14mm T3.1 L F Cinema Prime Lens (EF Mount) The Canon CN-E 14mm T3.1 L F Cinema Prime Lens is an ultra wide-angle, manual focus prime lens that covers Full Frame and Super 35 sensor formats.
The lens offers a maximum T stop of 3.1 and has an 11-blade iris that provides round out of focus highlights for a natural looking bokeh. The lens barrel features 300° of stepless, smooth rotation from close focus to infinity, giving you a high degree of precision and consistent focus.
The lens is designed to minimize focus breathing and also has innovative glass construction that counteracts barrel expansion and contraction to avoid temperature-induced marking discrepancies. It has focus distance markings on both sides of the barrel, with the rear markings on an angled surface, making it readable from either side of the camera. It also has a dust and water resistant housing to minimize maintenance.
The CN-E 14mm and the other five CN-E lenses share the same 114m front barrel diameter, focus rotation, 36° iris rotation, and focus and iris gear positions, allowing for easier lens swaps. - Key Features
-
- Covers Full Frame and Super 35 sensors
- 11-blade iris
- Focus breathing minimized to virtually zero
- Distance markings on both sides of the barrel
- Rear markings on an angled surface
- Smooth, stepless 300° focus ring
- Geared manual iris ring
- Shares 114mm front barrel diameter, focus rotation, 36° iris rotation, and focus and iris gear positions with the rest of the CN-E line-up
- Glass construction counteracts temperature-induced marking discrepancies
- Dust and water resistant housing
- Focus markings can be switched to metric labeling if you send the lens to Canon for modification
UPC: 013803215649 - Canon CN-E 24mm T1.5 L F Cinema Prime Lens (EF Mount) The Canon CN-E 24mm T1.5 L F Cinema Prime Lens is a wide-angle, manual focus prime lens that covers Full Frame and Super 35 sensor formats.
The lens offers a maximum aperture of T1.5, useful when shooting in low light situations or when you want to capture that exceedingly shallow depth of field look. It has an 11-blade iris that provides round out of focus highlights for a natural looking bokeh. The lens barrel features 300° of stepless, smooth rotation from close focus to infinity, giving you a high degree of precision and consistent focus.
The lens is designed to minimize focus breathing and also has innovative glass construction that counteracts barrel expansion and contraction to avoid temperature-induced marking discrepancies. It's dual focus with markings on both sides of the barrel, with the rear markings on an angled surface, making it readable form either side of the camera. It also has a dust and water resistant housing to minimize maintenance during normal use.
The CN-E 14mm and the other five CN-E lenses share the same 114m front barrel diameter, focus rotation, 36° iris rotation, and focus and iris gear positions, allowing for easier swaps. - Key Features
-
- Covers Full Frame and Super 35 sensors
- 11-blade iris
- Focus breathing minimized to virtually zero
- Markings on both sides of the barrel
- Rear markings on an angled surface
- Smooth, stepless 300° focus ring
- Geared manual iris ring
- Shares 114mm front barrel diameter, focus rotation, 36° iris rotation, and focus and iris gear positions with the rest of the CN-E line-up
- Glass construction counteracts temperature induced marking discrepancies
- Dust and water resistant housing
- Focus markings can be switched to metric labeling if you send the lens to Canon for modification
UPC: 013803151152 - Canon CN-E 50mm T1.3 L F Cine Lens The Canon CN-E 50mm T1.3 L F Cine Lens is an EF-mount standard-width lens for Canon's C-series cinema cameras, for full-frame EOS DSLRs, and for any video-capable cameras that accept EF-mount lenses.
The aperture is a fast 1.3 and lets you get superior shots in low light. The diaphragm is made up of 11-blades and is as round as can be, and along with the fast aperture it can produce impressive bokeh and beautiful circular highlights. The diaphragm ring is stepless, is super-smooth, and is fully manual, even when used with a DSLR, offering evermore accurate handle.
The CN-E 50 was released with two complementary relatives -- the CN-E 24mm and CN-E 85mm. All three lenses share the same front diameter, form factor, optical design, placement of gear rings, and mechanical construction. Because of the identical characteristics, one lens can be swapped with another easily, even when geared accessories are involved. -
- A cinema lens with a precise 300˚ barrel rotation and a very rounded 11-blade diaphragm
- For Canon's C100, C300 and C500, for full-frame DSLRs, and for any video-capable cameras
- Features sharp optics capable of 4K-quality recording and a fast aperture that does great in low light
UPC: 013803151169 Canon CN-E 85mm T1.3 L F Cine Lens The Canon CN-E 85mm T1.3 L F Cine Lens is an EF-mount long lens for Canon's C-series cinema cameras, for full-frame EOS DSLRs, and for any video-capable cameras that accept EF-mount lenses.
The aperture is a fast 1.3 and lets you get superior shots in low light. The diaphragm is made up of 11-blades and is as round as can be, and along with the fast aperture it can produce impressive bokeh and beautiful circular highlights. The diaphragm ring is stepless, is super-smooth, and is fully manual, even when used with a DSLR, offering evermore accurate handle.
The CN-E 85 was released with two complementary relatives -- the CN-E 24mm and CN-E 50mm. All three lenses share the same front diameter, form factor, optical design, placement of gear rings, and mechanical construction. Because of the identical characteristics, one lens can be swapped with another easily, even when geared accessories are involved. -
- A cinema lens with a precise 300˚ barrel rotation and a very rounded 11-blade diaphragm
- For Canon's C100, C300 and C500, for full-frame DSLRs, and for any video-capable cameras
- Features sharp optics capable of 4K-quality recording and a fast aperture that does great in low light
UPC: 013803151176 Canon CN-E 135mm T2.2 L F Cinema Prime Lens (EF Mount) The Canon CN-E 135mm T2.2 L F Cinema Prime Lens is a telephoto prime lens for the full-frame sensor format, which makes it an ideal lens for the Cinema EOS series and all Canon DSLRs. The maximum aperture is T2.2, and the 11 blade iris ensures beautiful, rounded bokeh. The lens features markings on both sides of the barrel, making it easy to read settings from behind or on either side of the camera. In order to make lens changes quicker and easier, the 135mm T2.2 is designed to share similar dimensions with other CN-E lenses. - Full-frame imaging circle
- 11-blade aperture diaphragm
- Designed to fulfill 4K production standards
- Markings on angled surfaces on both sides of the barrel
- Focus markings can be switched from standard labeling to metric
- Control rings engineered to maintain consistent operating torque
- Glass construction counteracts temperature induced marking discrepancies
- Shares gear position, diameter, and rotation angle with other CN-E lenses
- 114mm front diameter matches other CN-E lenses
- Ideal for Cinema EOS cameras and all EOS DSLRs
UPC: 013803215663 In the Box - CN-E 14mm T3.1 L F Cinema Prime Lens (EF Mount) ywvtztbszeuududdvawtfrcwcatsxzsydr
- Front Lens Cap
- Rear Lens Cap
- Limited 1-Year Warranty
- CN-E 24mm T1.5 L F Cinema Prime Lens (EF Mount)
- CN-E 50mm T1.3 L F Cine Lens
- CN-E 85mm T1.3 L F Cine Lens
- CN-E 135mm T2.2 L F Cinema Prime Lens (EF Mount)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon Cinema Prime EF 5 Lens Promotion Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Canon CN-E 14mm T3.1 L F Cinema Prime Lens (EF Mount)
| Focal Length | 14mm | | Lens Mount | Canon EF | | Format | Full Frame | | Maximum T-Stop | T3.1 | | Diagonal Angle of View | Full Frame: 132.18° | | Iris Blades | 11 | | Front Diameter | 114 mm | | Dimensions (W x H) | 4.66 x 4.66" / 118.4 x 118.4 mm | | Length | 3.7" / 94 mm | | Weight | 2.6 lb / 1.2 kg | | | | Box Dimensions (LxWxH) | 10.3 x 8.9 x 8.8" | - Canon CN-E 24mm T1.5 L F Cinema Prime Lens (EF Mount)
| Focal Length | 24mm | | Lens Mount | Canon EF | | Format | Full Frame | | Maximum T-Stop | T1.5 | | Diagonal Angle of View | Super35: 90.8° | | Minimum Focus Distance from Image Plane | 12" / 31 cm | | Iris Blades | 11 | | Front Diameter | 114 mm | | Dimensions (W x H) | 4.66 x 4.66" / 118.4 x 118.4 mm | | Length | 4" / 10.2 cm | | Weight | 2.6 lb / 1.2 kg | | | | Box Dimensions (LxWxH) | 10.35 x 8.8 x 8.75" | - Canon CN-E 50mm T1.3 L F Cine Lens
| Focal Length | 50mm | | Lens Mount | Canon EF | | Format | Full Frame | | Maximum T-Stop | T1.3 | | Diagonal Angle of View | Super35: 47.9° | | Minimum Focus Distance from Image Plane | 18" / 45.7 cm | | Iris Blades | 11 | | Front Diameter | 114 mm | | Dimensions (W x H) | 4.66 x 4.66" / 118.4 x 118.4 mm | | Length | 4" / 10.2 cm | | Weight | 2.4 lb / 1.1 kg | | | | Box Dimensions (LxWxH) | 10.2 x 8.8 x 8.7" | - Canon CN-E 85mm T1.3 L F Cine Lens
| Focal Length | 85mm | | Lens Mount | Canon EF | | Format | Full Frame | | Maximum T-Stop | T1.3 | | Diagonal Angle of View | Super35: 28.8° | | Minimum Focus Distance from Image Plane | 3.16' / 96 cm | | Iris Blades | 11 | | Front Diameter | 114 mm | | Dimensions (W x H) | 4.66 x 4.66" / 118.4 x 118.4 mm | | Length | 4" / 10.2 cm | | Weight | 2.9 lb / 1.3 kg | | | | Box Dimensions (LxWxH) | 10.5 x 8.75 x 8.7" | - Canon CN-E 135mm T2.2 L F Cinema Prime Lens (EF Mount)
| Focal Length | 135mm | | Lens Mount | Canon EF | | Format | Full Frame | | Maximum T-Stop | T2.2 | | Diagonal Angle of View | Full Frame: 18.31° | | Iris Blades | 11 | | Front Diameter | 114 mm | | Dimensions (W x H) | 4.66 x 4.66" / 118.4 x 118.4 mm | | Length | 4.55" / 115.6 mm | | Weight | 3.1 lb / 1.4 kg | | | | Box Dimensions (LxWxH) | 10.4 x 8.9 x 8.6" |
