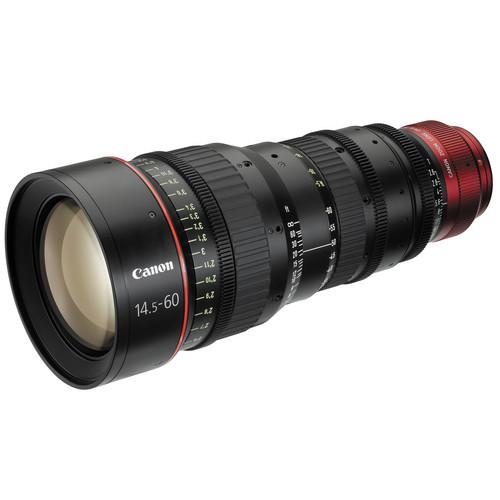

User Manual for Canon CN-E 14.5-60mm T2.6 L S Cinema Zoom Lens with EF Mount Click to enlarge the picture
Contents of the user manual for the Canon CN-E 14.5-60mm T2.6 L S
- Product category: Digital Cine Lenses Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Digital Cine Lenses
|
User manual for the Canon CN-E 14.5-60mm T2.6 L S contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description Cinema Lens Care and Maintenance Read More The Canon CN-E 14.5-60mm T2.6 L S Cinema Zoom Lens with EF Mount is designed expressly for digital cinematography with cameras that have an APS-C or Super 35-equivalent sensor and a EF mount, including Canon's EOS C300. Featuring advanced optical technology designed by Canon, the lens is suitable for any capturing any size HD image up to and including 4K resolution.With a focal length range of 14.5-60mm, the 4.1x cinema zoom lens is designed to cover the wider end of the focal lengths typically required by cinematic productions, and its wide-angle length of 14.5mm puts it among the best in its class. (The other zoom lens in the line, the CN-E 30-300mm T2.95-3.7 L S, covers the telephoto end.) Maximum aperture is a very fast T2.6 through the entire range, and the 11-blade iris enables a smooth bokeh for out-of-focus areas of the frame.The lens was designed with working professionals in mind, with easy-to-read focus, zoom, and iris markings engraved into angled surfaces on both sides of the lens, so you can read the setting from either side of a camera – or from behind it. Depending on the production's needs, focus markings can be switched from standard to metric. The lens facilitates manual operation that's subtle, smooth, precise, and repeatable. Control rings are designed to provide and maintain the proper amount of resistance so you can operate with a consistent torque. The focus rotation angle is about 300°; for zoom, it's approximately 160°.The CN-E 14.5-60mm T2.6 L S lens complements the other lens in the line in more ways than just focal length range: Their shared 136mm front diameter, gear positions, and rotation angle make them almost "hot-swappable" when they're used with a shared matte box or follow focus. - Internal Focus Design
- The internal geared focus design of the lens minimizes focus-induced changes, known as "breathing"
- Cinematic Blurring
- An 11-blade aperture diaphragm results in soft, cinematic blurring of out-of-focus areas
- Special Glass & Construction
- Designed to counteract barrel expansion and contraction, the special glass and the construction of the lens suppress temperature-induced marking discrepancies and flange-back changes
- Broad Focal Length Range
- The 14.5-60mm focal length range of the lens covers a great portion of the range most commonly used in cinema shooting
- Large Aspherical Lenses
- Fluorite and aspherical lens elements reduce distortion and give high optical performance
- Anti-Reflective Coating
- The anti-reflective coating of the lens helps reduce ghosting or flaring
- Switchable Unit for Focus Marking
- The outer piece of the marked focus rings can be switched from metric to non-metric labeling
- Marked on Both Sides
- Markings are visible from either side of the lens
- Better Marking Visibility
- Focus, zoom, and iris markings are printed on angled surfaces, making them easier to read from behind the camera
- Unified Front Lens Diameter, Gear Position
- A single front lens diameter and uniform gear positions across the line of lenses eliminate the need to move or adjust accessories when switching between lenses
- Flange-Back Adjustment Mechanism
- A covered flange-back mechanism is included for more accurate back-focus
- Supports Standard Accessories
- The lens can be used with standard accessories such as follow focus gears, marking disks, and matte boxes
- Ergonomic & Efficient
- Control rings offer the right amount of resistance and consistent operating torque
- Light & Compact
- Smaller and lighter than similar movie lenses of the same range, making them more comfortable to work with, hour after hour
UPC: 013803151121 In the Box Canon CN-E 14.5-60mm T2.6 L S Cinema Zoom Lens with EF Mount Limited 1-Year Warranty User Manual PDF 12.3mbfzywqbcrceadztwdswfxadqftsxfaxqaqy Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon CN-E 14.5-60mm T2.6 L S Cinema Zoom Lens with EF Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon Cinema Zoom CN-E 14.5-60mm T2.6 Specs | Focal Length | 14.5 to 60mm | | Lens Mount | Canon EF | | Format | Super35/APS-C | | Maximum T-Stop | T2.6 | | Diagonal Angle of View | Super35: 94.1 to 25.7° | | Minimum Focus Distance from Image Plane | 28" / 70 cm | | Iris Blades | 11 | | Front Diameter | 136 mm | | Zoom Ratio | 4.1x | | Dimensions (W x H) | 5.35 x 6.42" / 135.9 x 163.1 mm | | Length | 12.83" / 326 mm | | Weight | 9.9 lb / 4.5 kg | | | | Package Weight | 15.95 lb | | Box Dimensions (LxWxH) | 23.3 x 14.3 x 14.2" |
