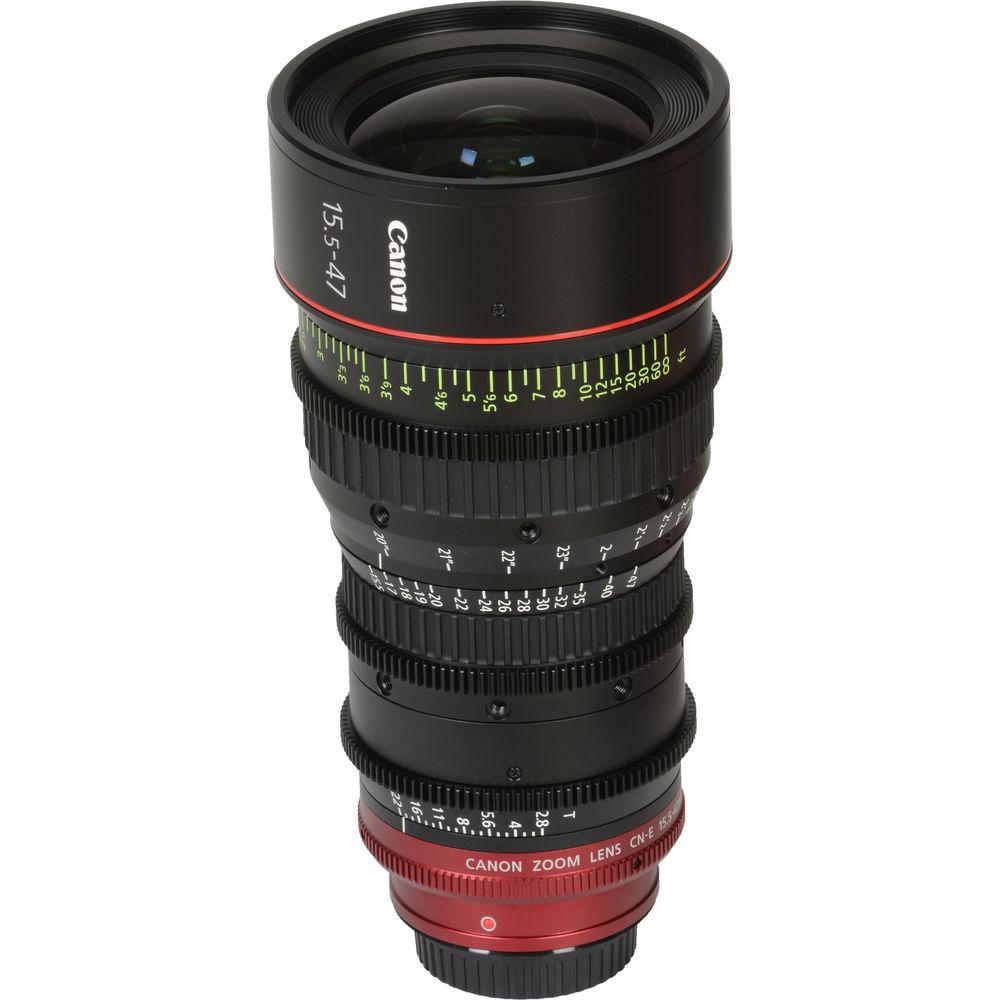

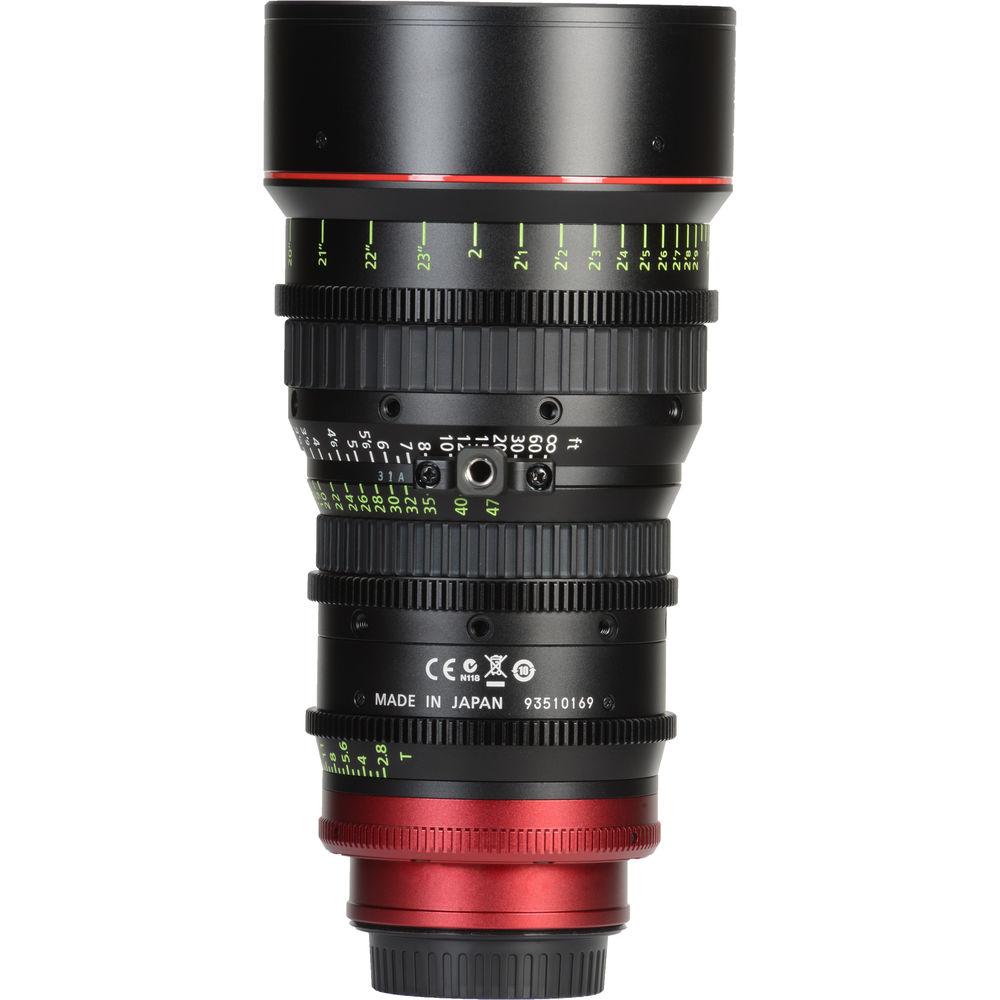

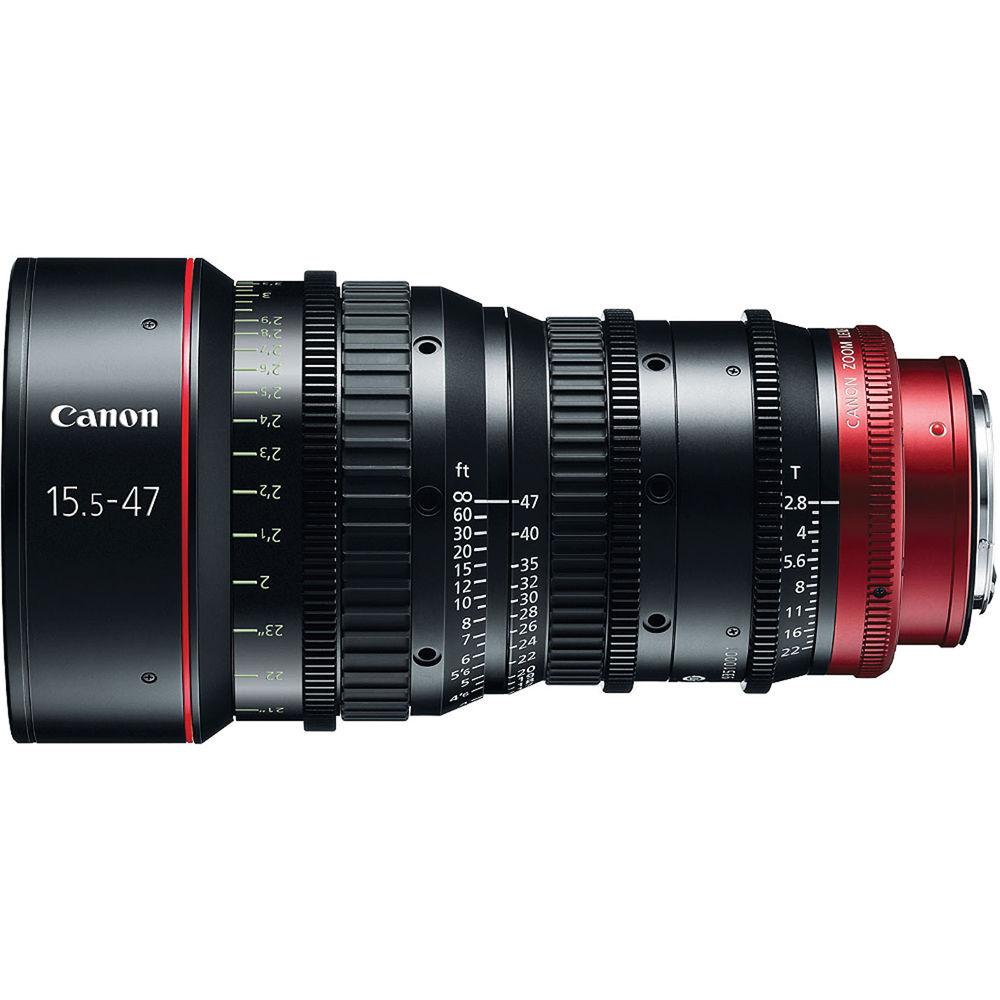

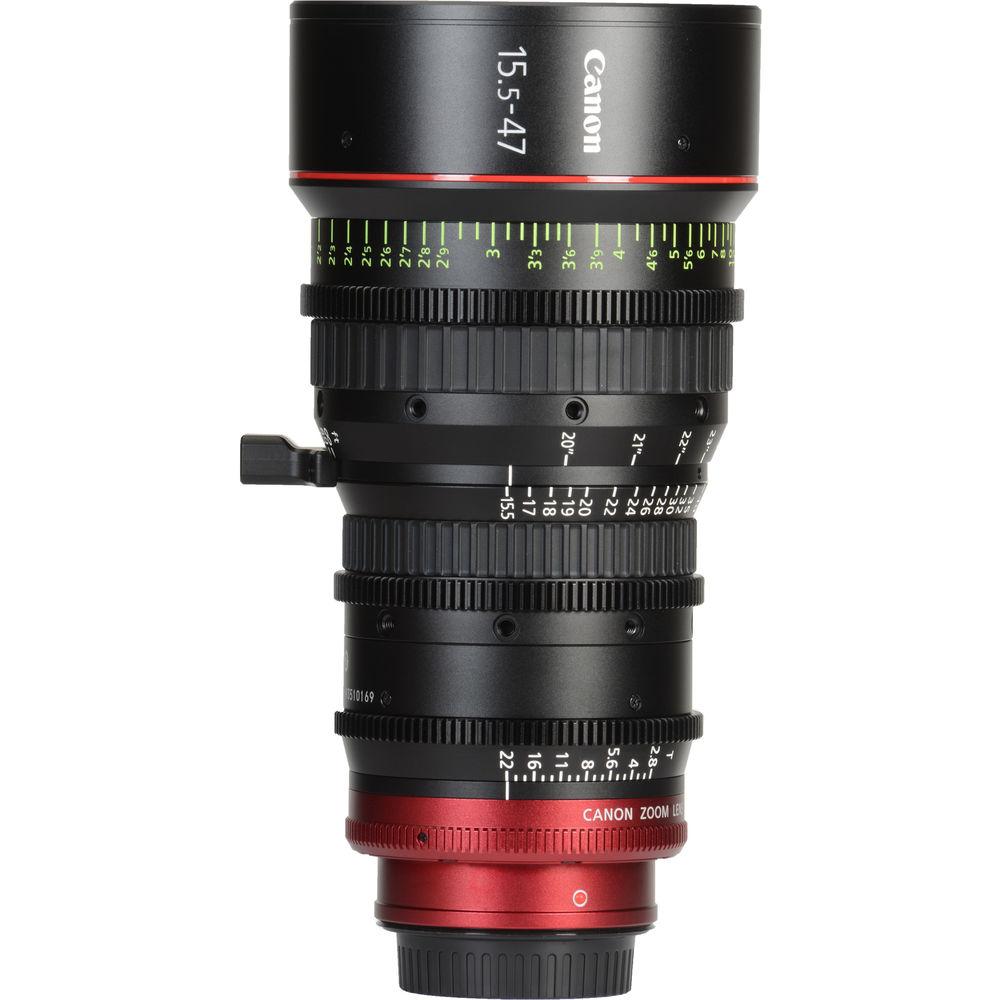

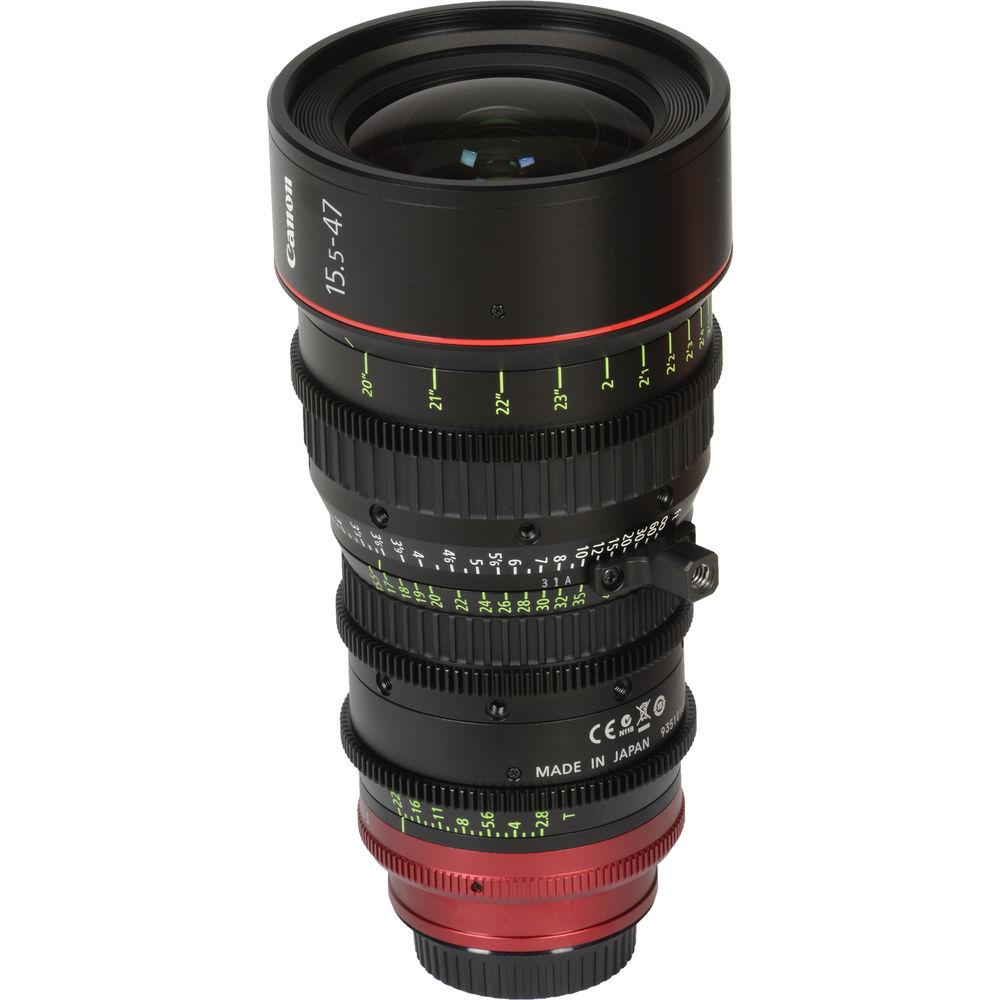

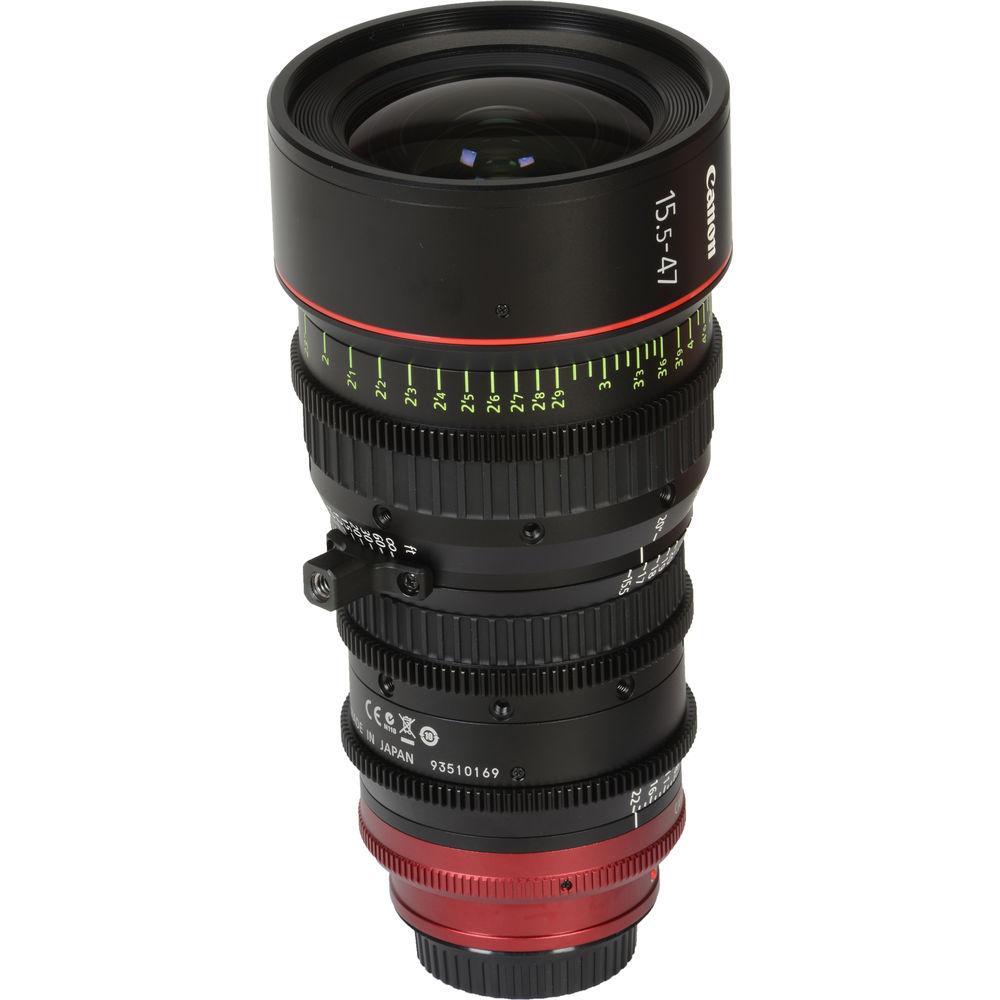

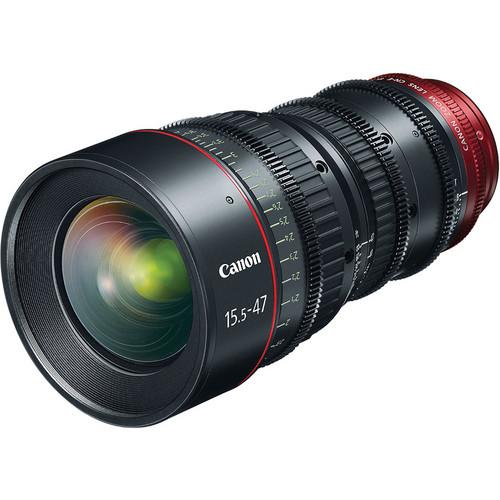

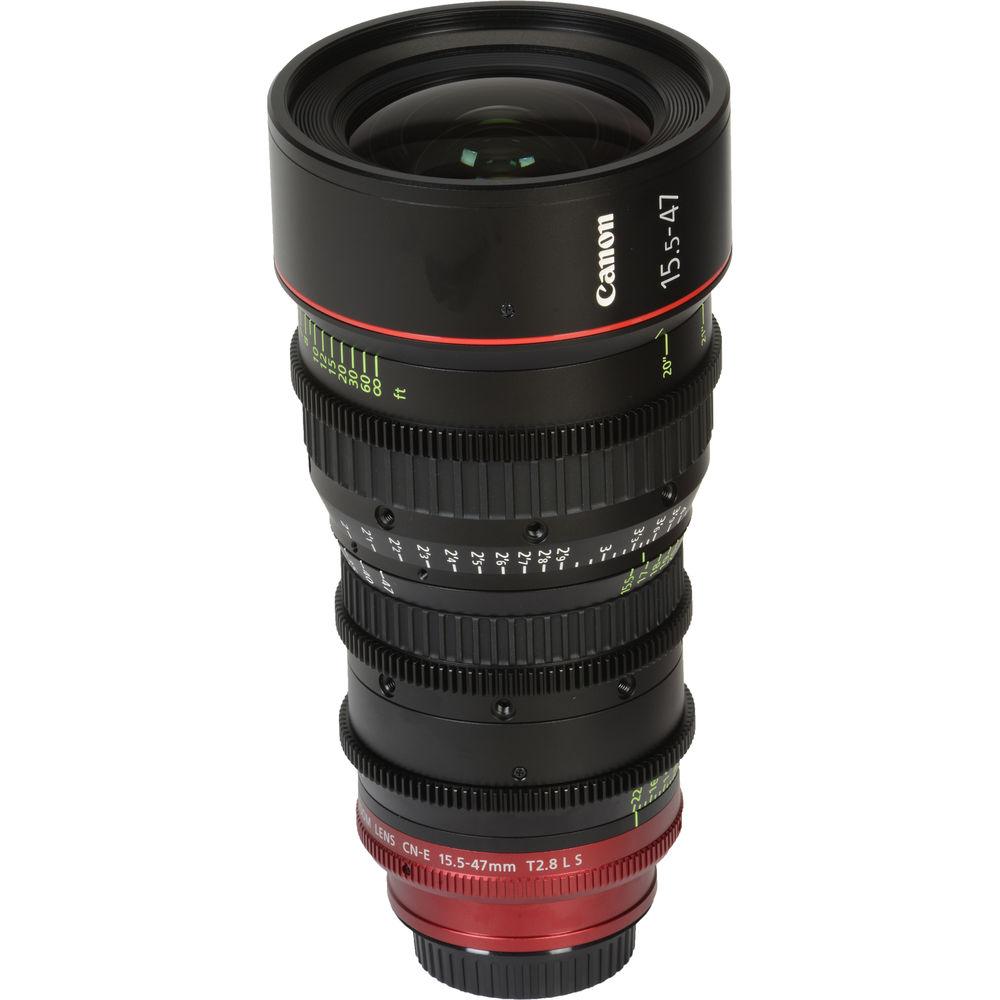

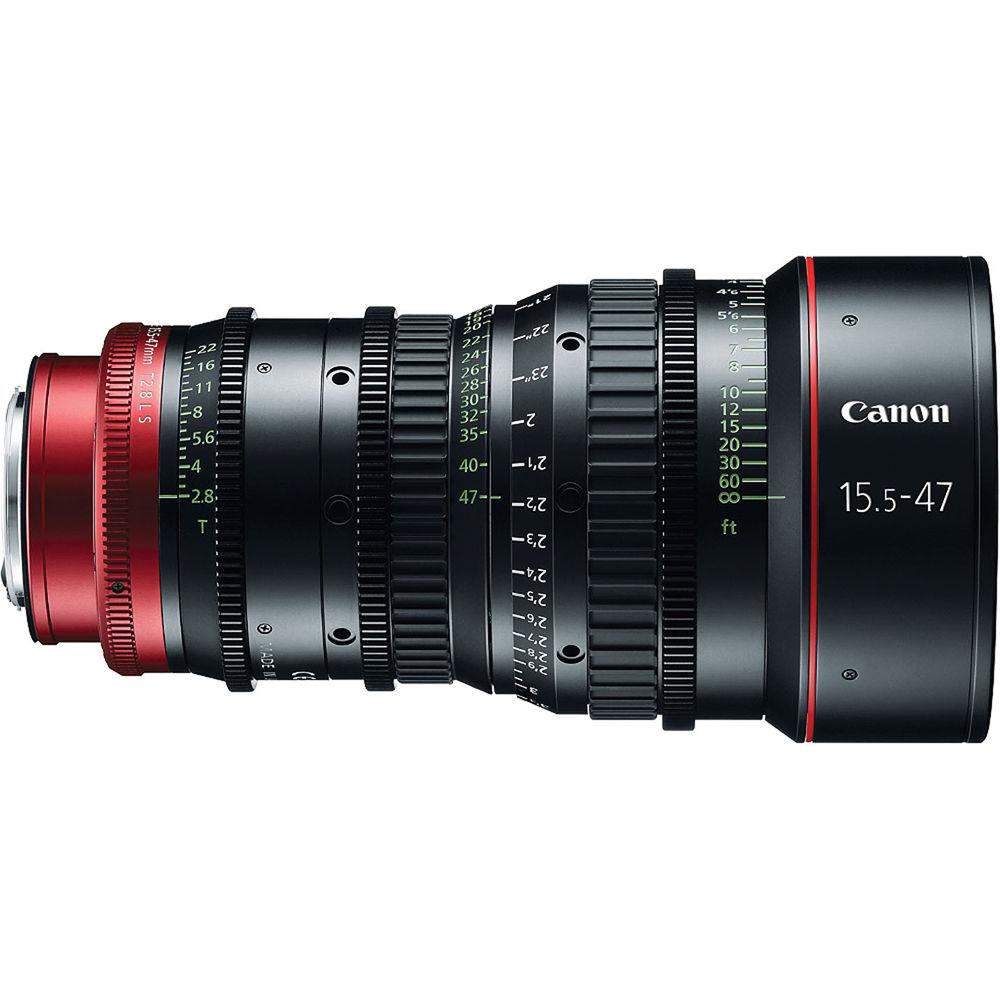

User Manual for Canon CN-E 15.5-47mm T2.8 L SP Wide-Angle Cinema Zoom Lens with PL Mount Click to enlarge the picture
Contents of the user manual for the Canon CN-E 15.5-47mm T2.8 L SP
- Product category: Digital Cine Lenses Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Digital Cine Lenses
 |
User manual for the Canon CN-E 15.5-47mm T2.8 L SP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description Cinema Lens Care and Maintenance Read More The Canon CN-E 15.5-47mm T2.8 L SP Wide-Angle Cinema Zoom Lens with PL Mount joins the ranks of other Canon Cinema lenses that are engineered to serve the high-performance demands of the production community. Designed to work with 4K-resolution (4096 x 2160 pixels) cameras this EF mount lens surpasses the performance requirements of any HD imaging system. The CN-E 15.5-47mm T2.8 L SP Wide-Angle Cinema Zoom Lens with PL Mount also offers compatibility with industry-standard Super 35mm-equivalent image format as well as APS-C-size sensors. Plus the versatility of the PL mount version provides great flexibility for a production, because it allows it to choose from several different motion picture cameras instead of being relegated to just one camera, options are always better.
The CN-E 15.5-47mm T2.8 L SP Wide-Angle Cinema Zoom Lens with PL Mount offers a bright f/2.8 maximum aperture allowing for use in even very low lit scenes. And with no changes in brightness during zooming, these lenses enable attractive bokeh (the way the lens renders out-of-focus points of light) when employing a shallow depth of field. And with a very low M.O.D. (minimum object distance) of 19.68" (0.5 m) this lens makes it possible for you to shoot tighter close-ups and assist in shooting in limited space environments. This makes this lens an attractive option for a production that will be shooting in various locations both in the field and on stage.
Additionally the CN-E 15.5-47mm T2.8 L SP Wide-Angle Cinema Zoom Lens with PL Mount features fluorite and large aspherical lens elements to achieve sharp, consistent images throughout its zoom range. This is beneficial because it offers peace of mind to the user that the image will stay consistent and sharp throughout, eliminating the need to as they say in the business, "we'll have to fix it in post". The lens also is equipped with control rings designed to maintain the proper amount of resistance with consistent operating torque, and a covered flange-back adjustment mechanism to meet numerous production application needs. The 11-blade aperture diaphragm also ensures smooth out-of-focus areas (attractive bokeh), while innovative glass construction counteracts barrel expansion and contraction to avoid temperature-induced marking discrepancies. This feature will be very beneficial to all those productions that shoot on stage under bright hot production lights. The CN-E 15.5-47mm T2.8 L SP Wide-Angle Cinema Zoom Lens with PL Mount also incorporates geared inner focusing to minimize focus-induced changes in the angle of view, reducing focus breathing virtually to zero. - Supports 4K Production Standards
- High optical performance for use with 4K-resolution cameras offers a level of resolution exceeding four times the resolution of Full HD.
- Min. f/2.8 Aperture
- This offers bright performance, and the flexibility to shoot in very low lit environments. And with no changes in brightness during zooming, enables attractive bokeh.
- Reduced M.O.D. of 19.7"
- The lens offers a reduced minimum object distance of 19.7" (0.5 m) which makes possible tighter close-ups and facilitates shooting in limited-space environments.
- Special Glass & Construction
- Innovative glass construction counteracts barrel expansion and contraction to avoid temperature-induced marking discrepancies.
- Better Marking Visibility

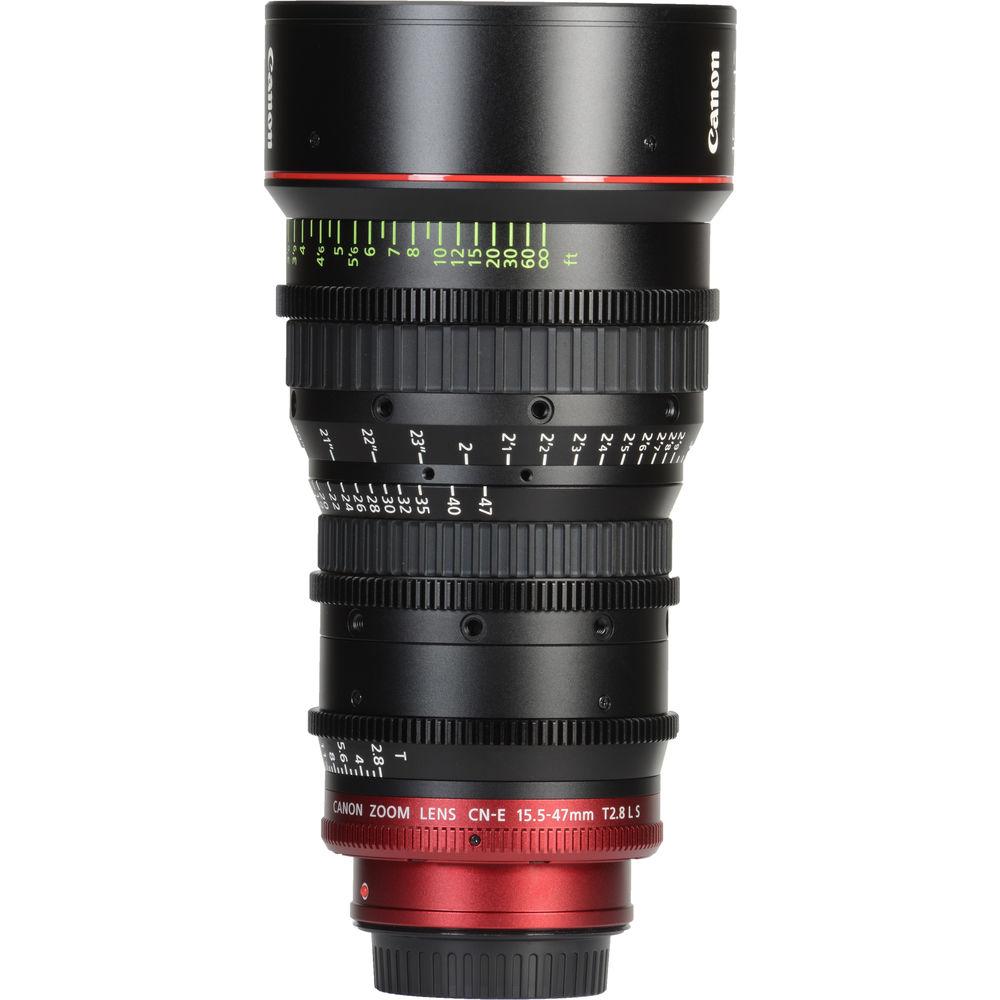

- Focus, zoom, and iris markings are printed on angled surfaces, making them easier to read from behind the camera.
- Cinematic Blurring
- The lens is equipped with an 11-blade aperture diaphragm for soft, attractive blur characteristics.
- Flange-Back Adjustment Mechanism
- A covered flange-back mechanism is included for more accurate back-focus.
- Internal Focus Design
- With a focus rotation angle of approximately 300 degrees, the lens facilitates precise focusing performance. And geared inner focusing is utilized to minimize focus-induced changes in the angle of view, reducing focus breathing virtually to zero.
- Supports Standard Accessories
- The lens can be used with matte boxes and other standard manual and electronic movie industry accessories widely used in the motion picture production.
- Advanced Optical Design and Large Aspherical Lens
- The lens also features advanced optical design with fluorite and large aspherical lens elements to achieve sharp, consistent images throughout their zoom range.
UPC: 013803161380 User Manual PDF 14mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon CN-E 15.5-47mm T2.8 L SP Wide-Angle Cinema Zoom Lens with PL Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon Cinema Zoom CN-E 15.5-47mm T2.8 Specs | Focal Length | 15.5 to 47mm | | Lens Mount | ARRI PL | | Format | Super35/APS-C | | Minimum Focus Distance from Image Plane | 19.7" / 50 cm | | Iris Blades | 11 | | Front Diameter | 114 mm | | Filter Thread | 105 mm | | Focus Rotation | 300° | | Zoom Ratio | 3x | | Dimensions (W x H) | 4.49 x 4.92" / 114.1 x 125 mm | | Length | 8.43" / 214 mm | | Weight | 4.8 lb / 2.2 kg | | | | Package Weight | 8.0 lb | | Box Dimensions (LxWxH) | 14.0 x 10.0 x 9.0" |
