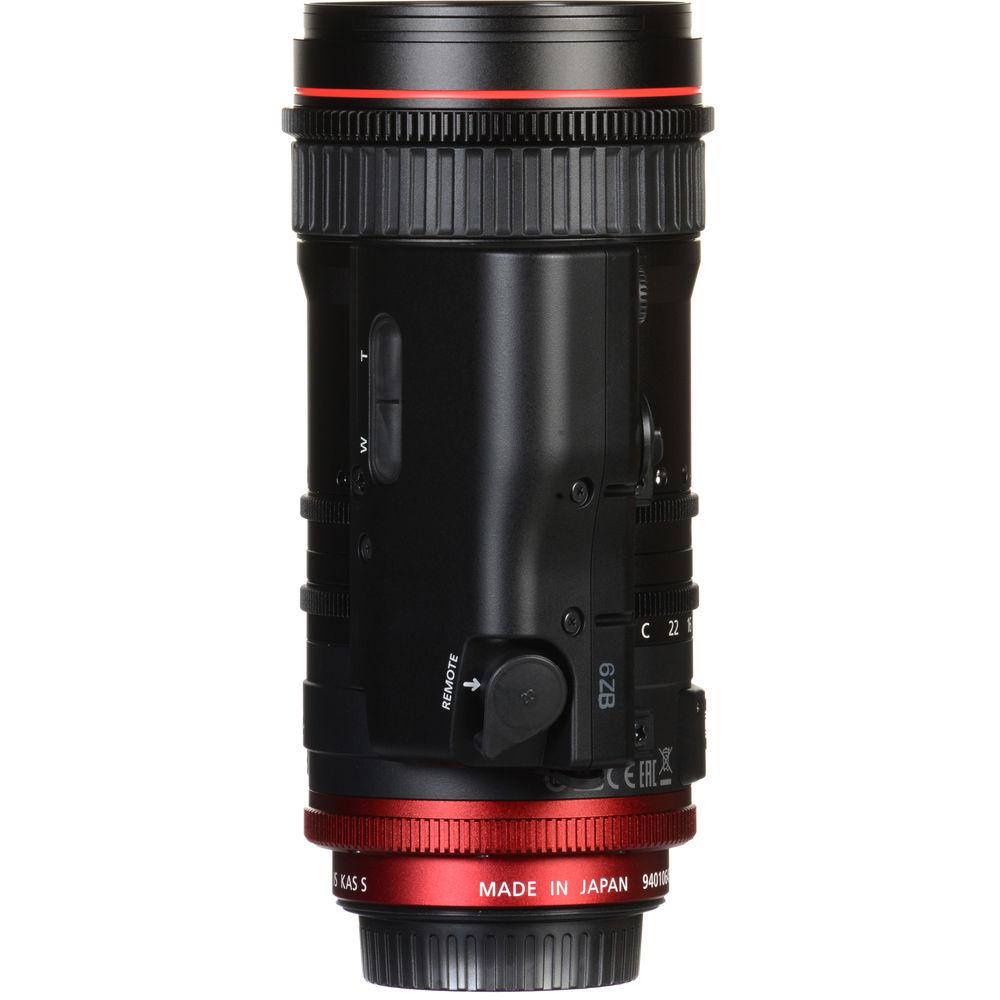

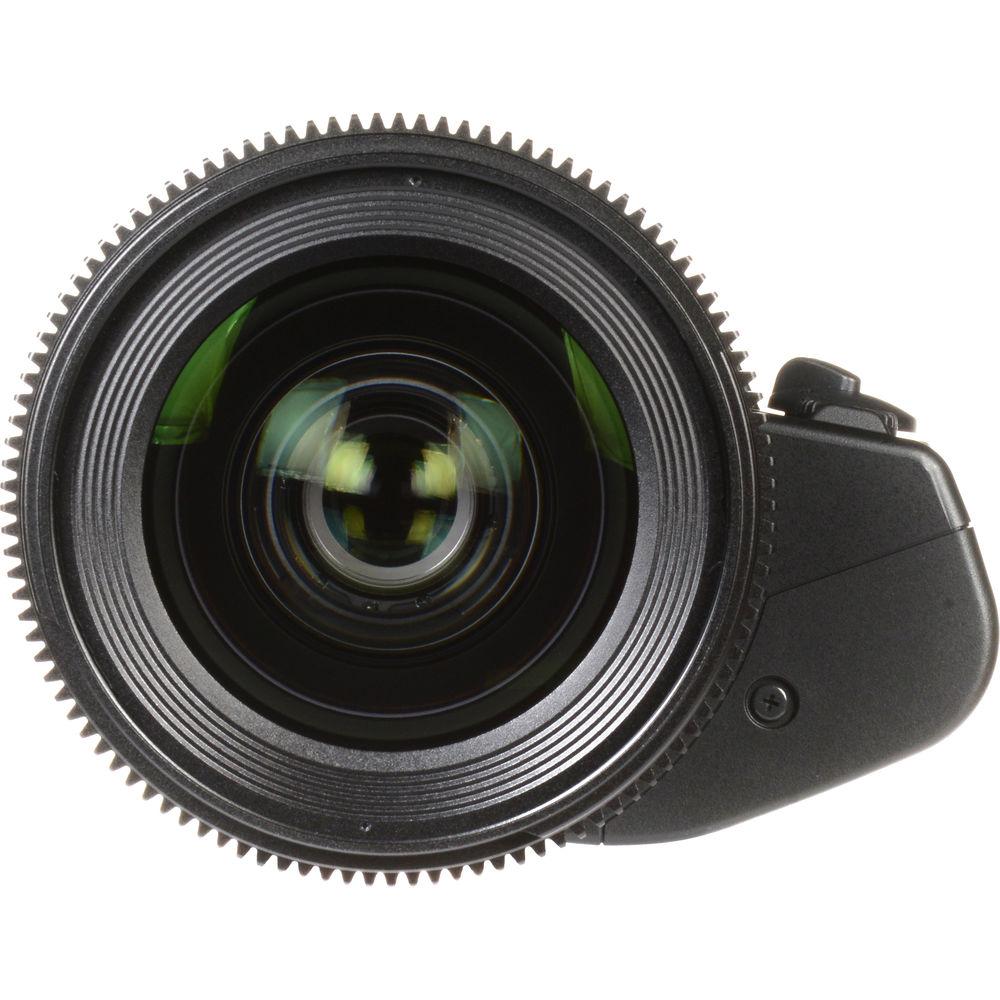

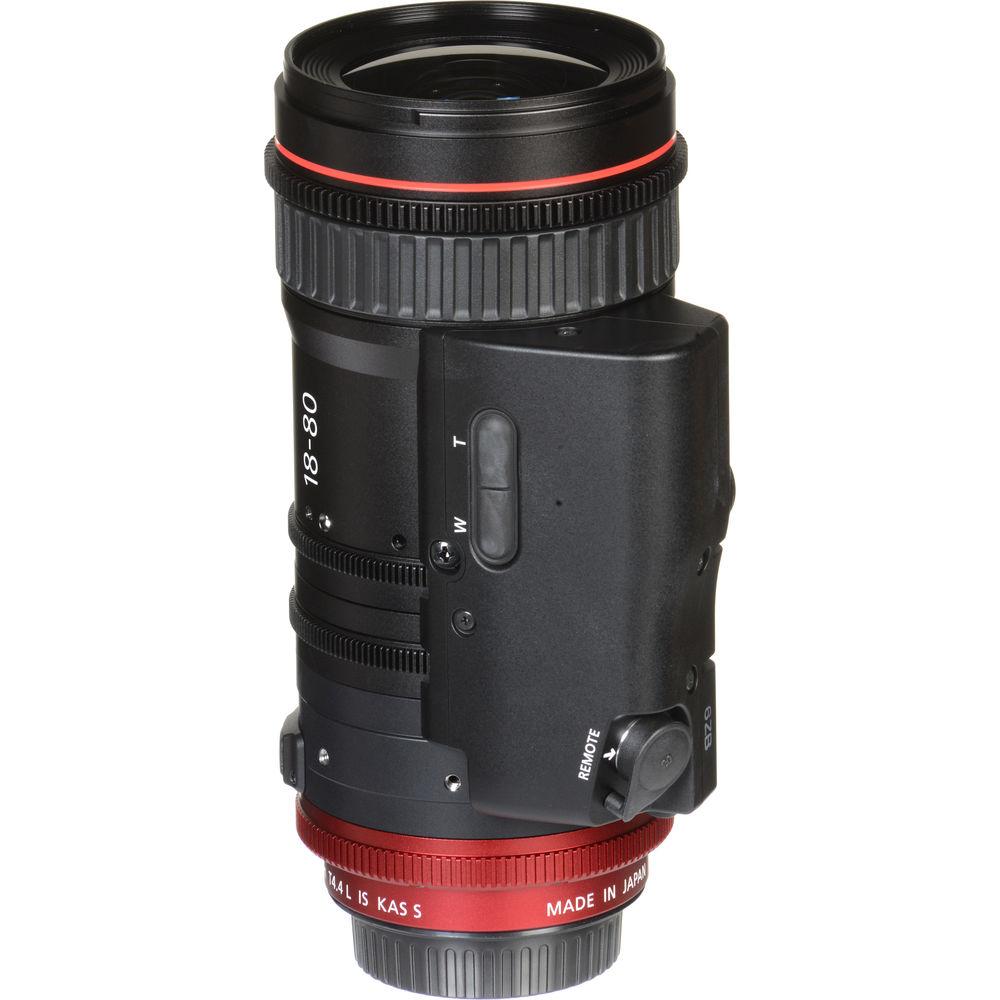

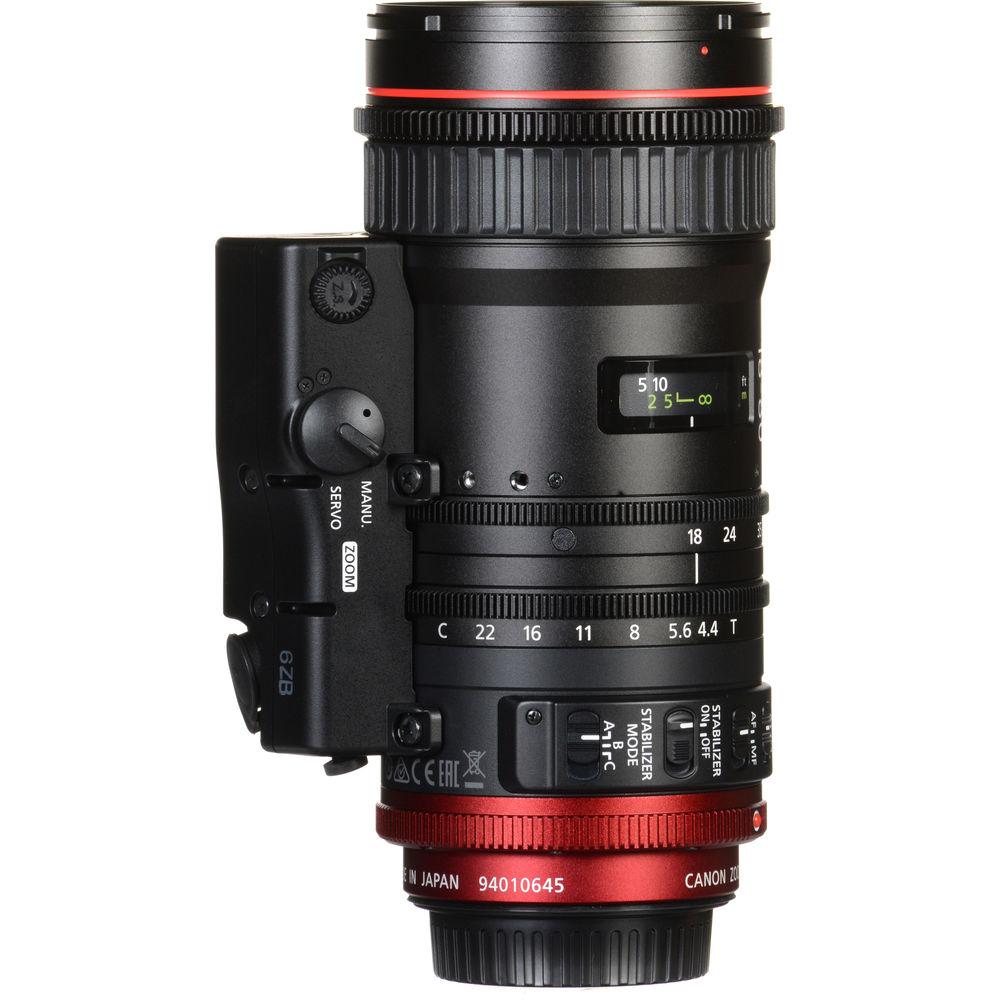

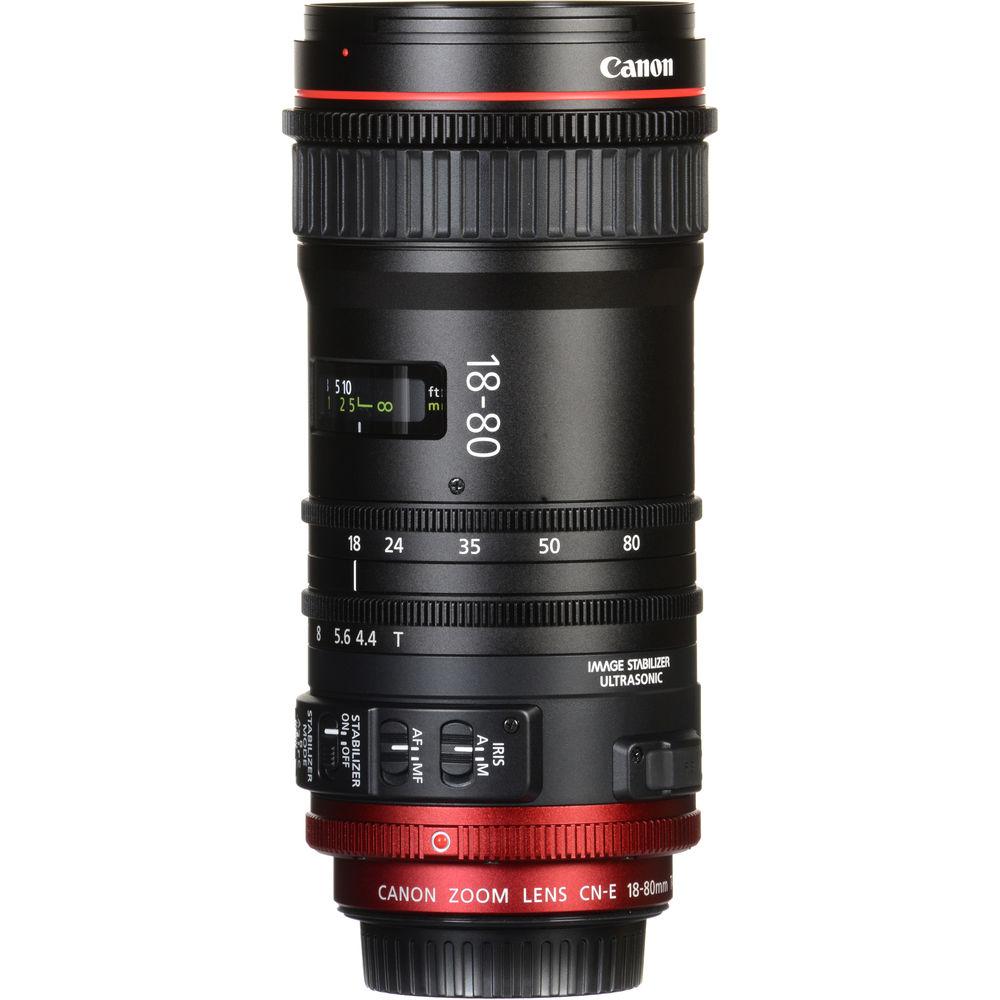

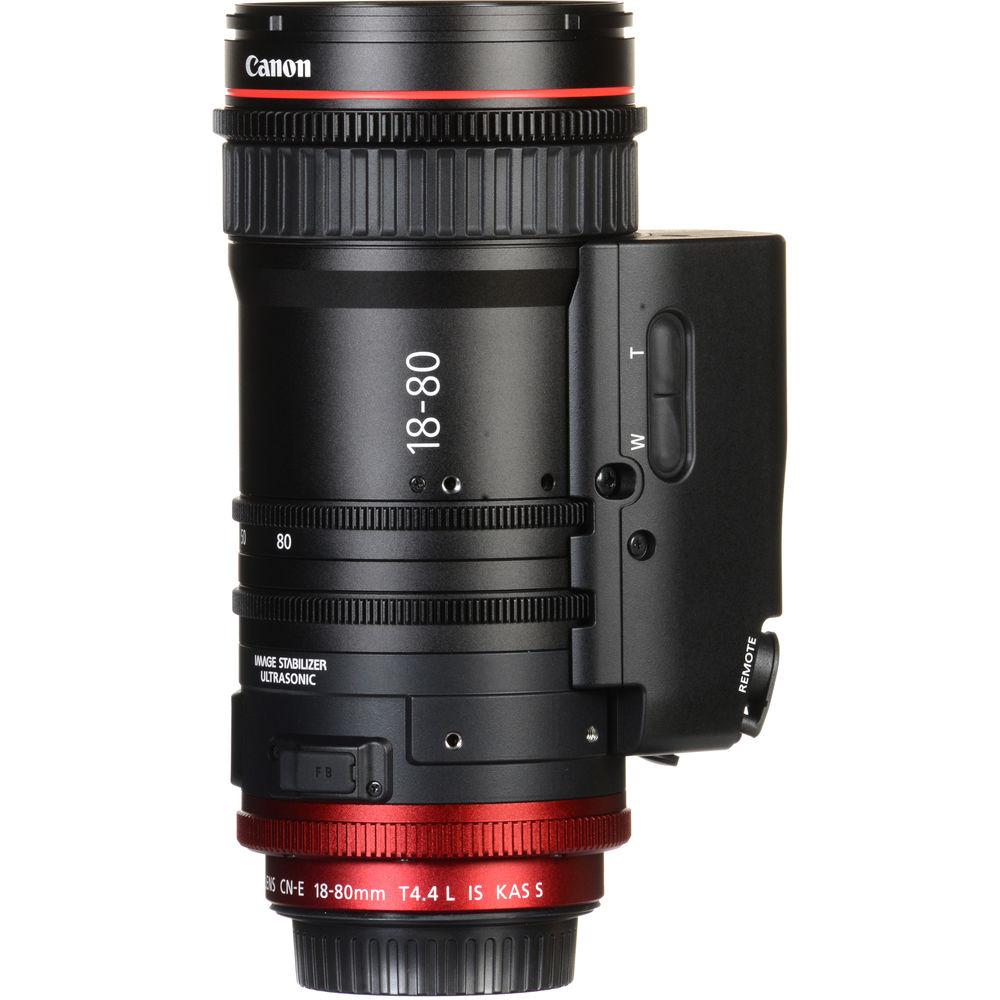

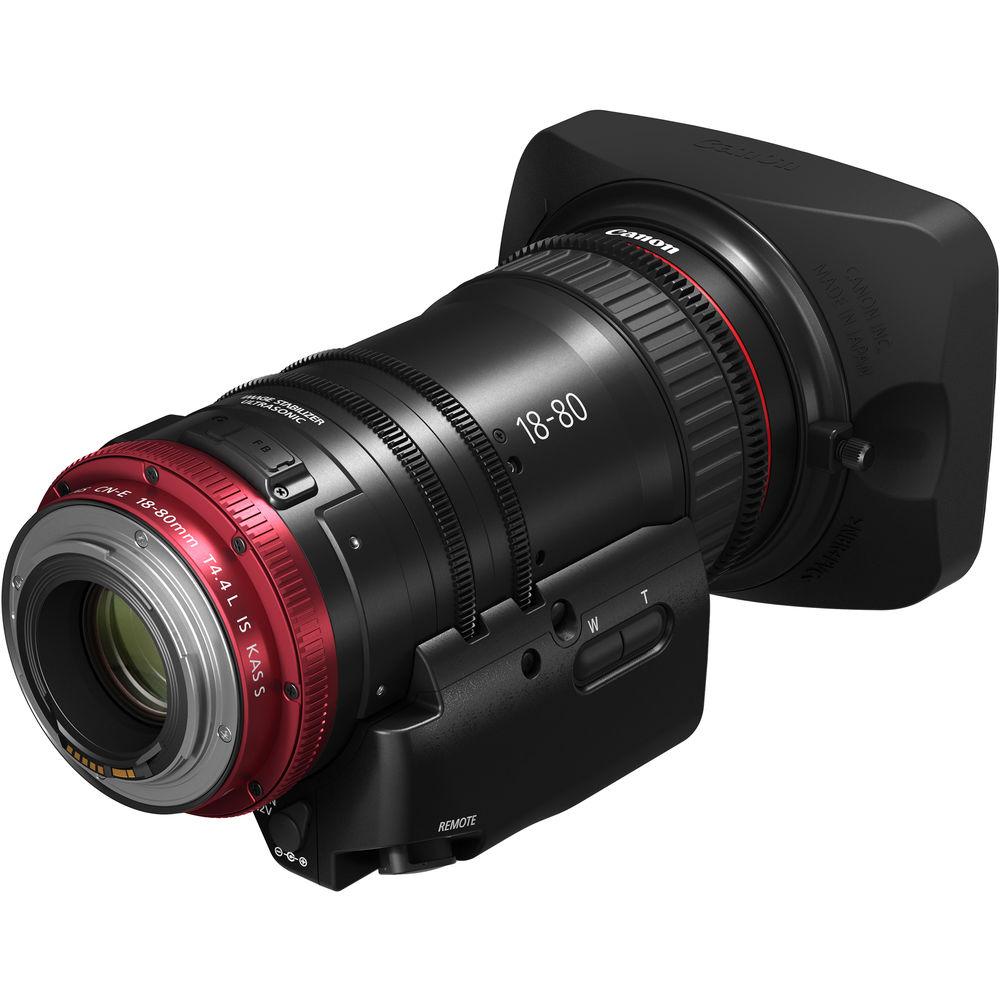

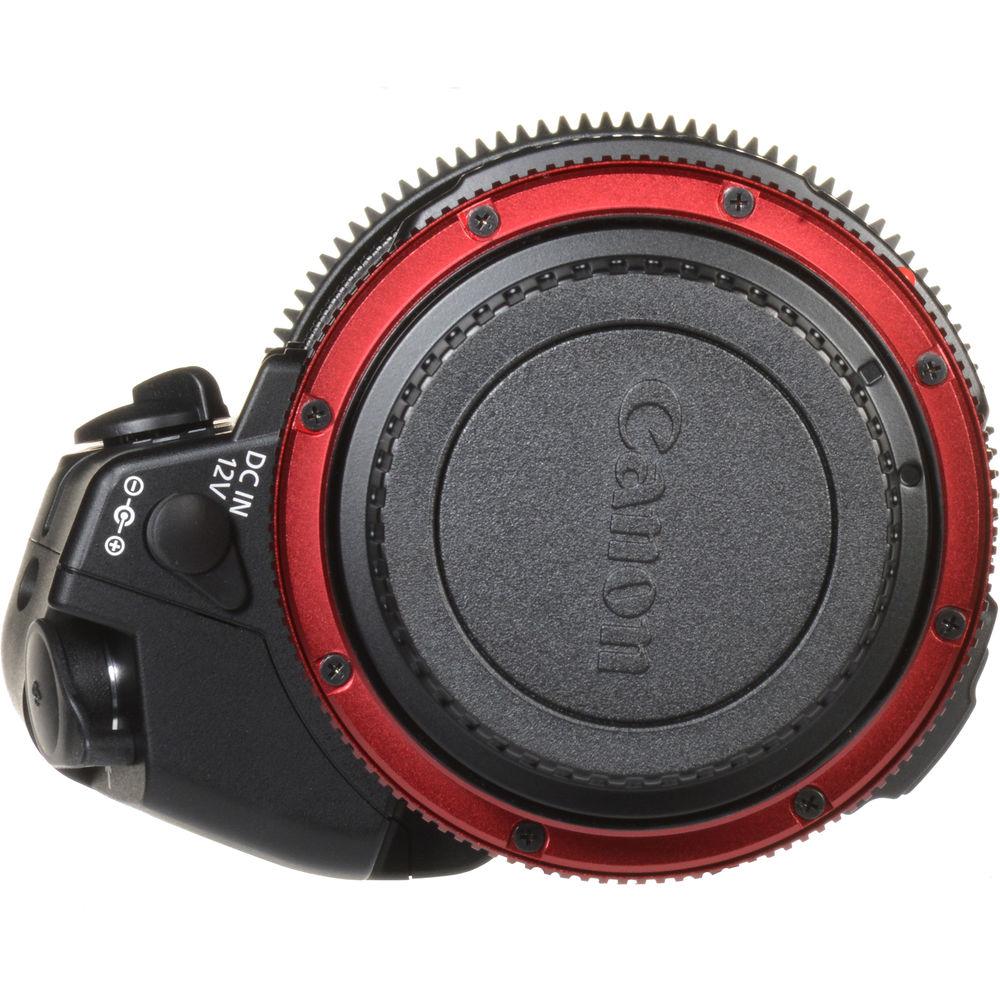

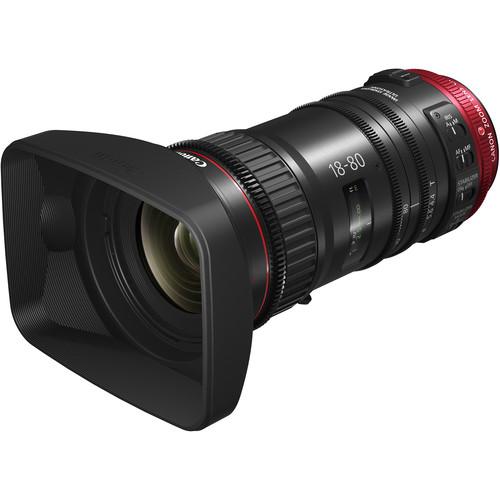

User Manual for Canon CN-E 18-80mm T4.4 COMPACT-SERVO Cinema Zoom Lens Click to enlarge the picture
Contents of the user manual for the Canon CN-E 18-80mm T4.4 COMPACT-SERVO Cinema
- Product category: Digital Cine Lenses Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Digital Cine Lenses
 |
User manual for the Canon CN-E 18-80mm T4.4 COMPACT-SERVO Cinema contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description Cinema Lens Care and Maintenance Read More - Canon Compact-Servo 18-80mm T4.4 EF 4K
- Canon COMPACT-SERVO 18-80mm Testimonial Review - Paul Santiago, Boffo Video
- Canon COMPACT-SERVO 18-80mm Testimonial Review - Nathan Golon, GoodFight Media
- CompactServo
The Canon CN-E 18-80mm T4.4 COMPACT-SERVO Lens combines the functionality of Canon's EF lenses with the features and performance of their CN-E lineup. Designed for use with EF-mount cameras featuring Super 35 or APS-C sized sensors, the lens covers an incredibly useful 18 to 80mm focal range while maintaining a constant T-stop of T4.4 (f/4) throughout. Measuring 7.2" long and weighing only 2.65 lb, the lens presents itself as a compact, lightweight option suitable for a variety of productions, from narrative work to run-and-gun documentaries. Notably, the lens is Canon's first cine-style option to incorporate image stabilization and auto focus functionality when paired with Cinema EOS cameras.
Further enhancing the versatility of this lens, Canon has equipped it with a servo drive unit compatible with industry-standard lens controllers, including Canon's broadcast ZSD-300D and FPD-400D, for full zoom, focus, and iris control. Alternatively, you can outfit the lens with the optional ZSG-C10 Control Grip for ENG-style lens control and operation. Power is provided to the grip from compatible cameras via the EF mount. For non-servo zoom control, the lens features cine-standard 0.8 mod gears, as well as a rubberized grip on the focus ring enabling comfortable manual operation. - Lens Design
-
- Covers Super 35 / APS-C formats
- 18 to 80mm focal range (4.4x zoom ratio)
- Constant T4.4 (f/4) aperture
- Parfocal design to maintain focus during zoom
- Minimized focus breathing
- Cine-standard 0.8 MOD focus gear ring
- 0.5 MOD iris and zoom gear rings
- Focus ring rotates 180°
- Matching color characteristics to existing CN-E lenses
- 9-blade iris
- Iris closing
- Compact and lightweight design
- Servo Control
-
- Servo Control Capability for all zoom, focus and iris
- Power provided via camera mount (from compatible cameras)
- Compatible with broadcast-style servo lens controllers, such as Canon ZSD-300D and FPD-400D

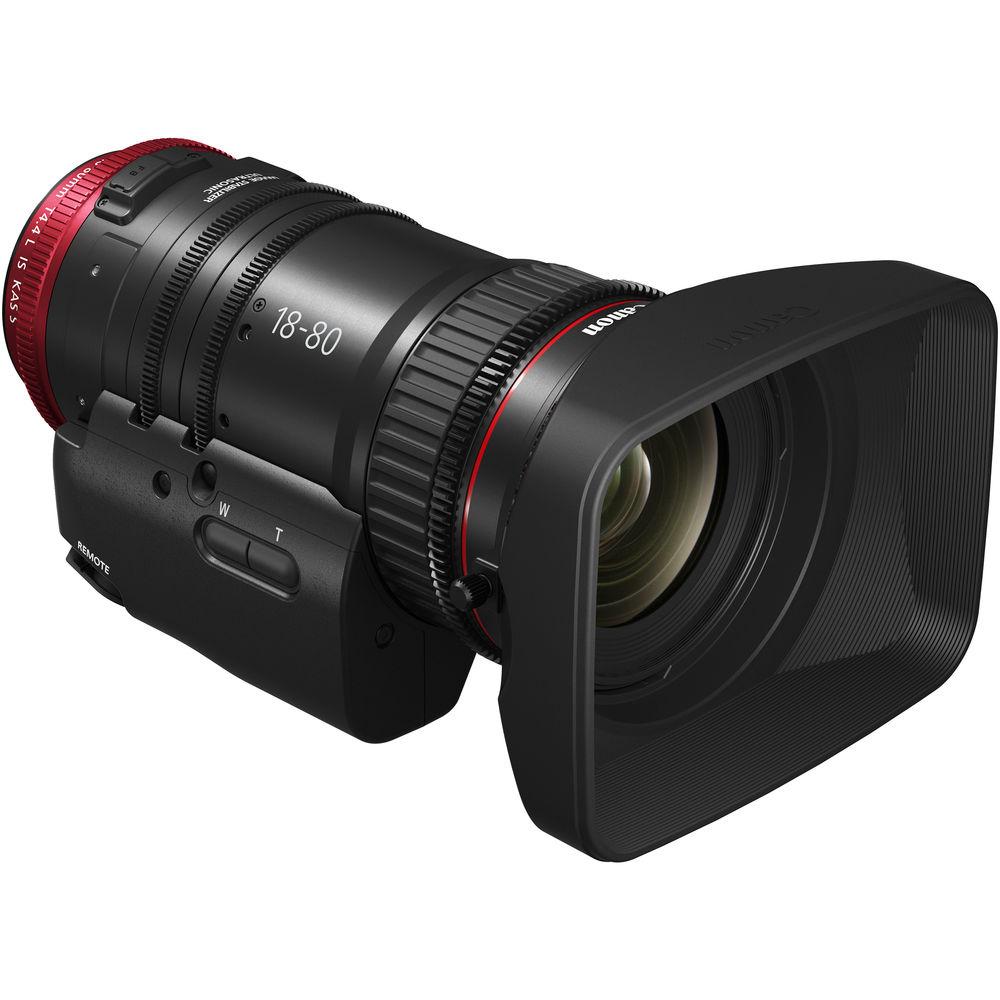

- Optional ZSG-C10 Grip for ENG-style control and shoulder mount applications
- Functionality with Cinema EOS Cameras
-
- Auto focus function (Continuous AF, One-Shot AF, Focus Guide)
- Image Stabilization
- Remote control of zoom, focus and iris via camera
- REC start/stop from ZSG-C10 Grip
- Peripheral illumination correction
- Chromatic aberration correction
- Lens metadata record
- T-stop/F-stop number display select
UPC: 013803282566 In the Box Canon CN-E 18-80mm T4.4 COMPACT-SERVO Cinema Zoom Lens (EF Mount) Limited 1-Year Warranty Brochure PDF 6.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon CN-E 18-80mm T4.4 COMPACT-SERVO Cinema Zoom Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon Compact-Servo CN-E 18-80mm T4.4 Specs | Focal Length | 18 to 80mm | | Lens Mount | Canon EF | | Format | Super35/APS-C | | Image Circle | 31.4 mm | | Maximum T-Stop | T4.4 | | Maximum F-Stop | f/4 | | Diagonal Angle of View | Super35: 80.5 to 21.1° | | Minimum Focus Distance from Image Plane | 1.6' / 0.5 m | | Iris Blades | 9 | | Front Diameter | 84 mm | | Filter Thread | 77 mm | | Zoom Ratio | 4.4x | | Dimensions (W x H) | 3.7 x 4.2" / 94 x 106.7 mm | | Length | 7.2" / 18.23 cm | | Weight | 2.6 lb / 1.2 kg | | | | Package Weight | 7.55 lb | | Box Dimensions (LxWxH) | 17.5 x 11.1 x 9.6" |
