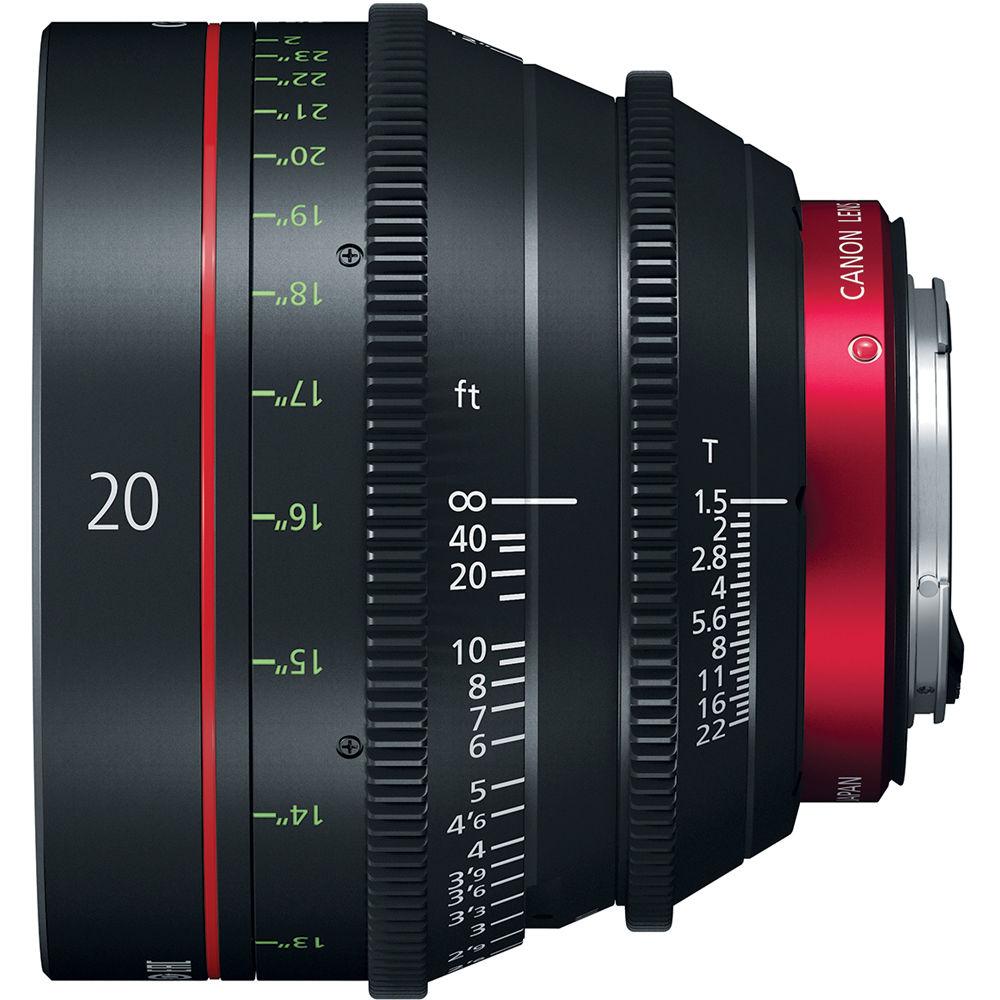

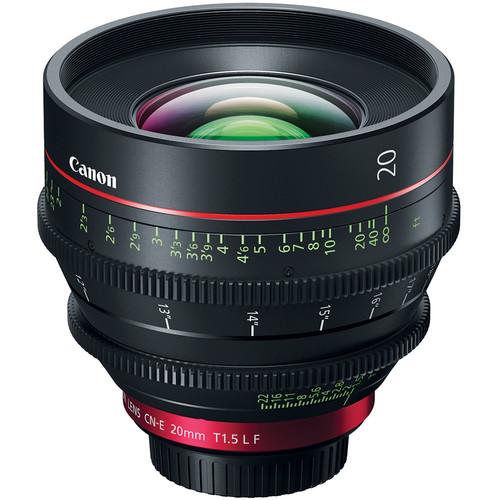

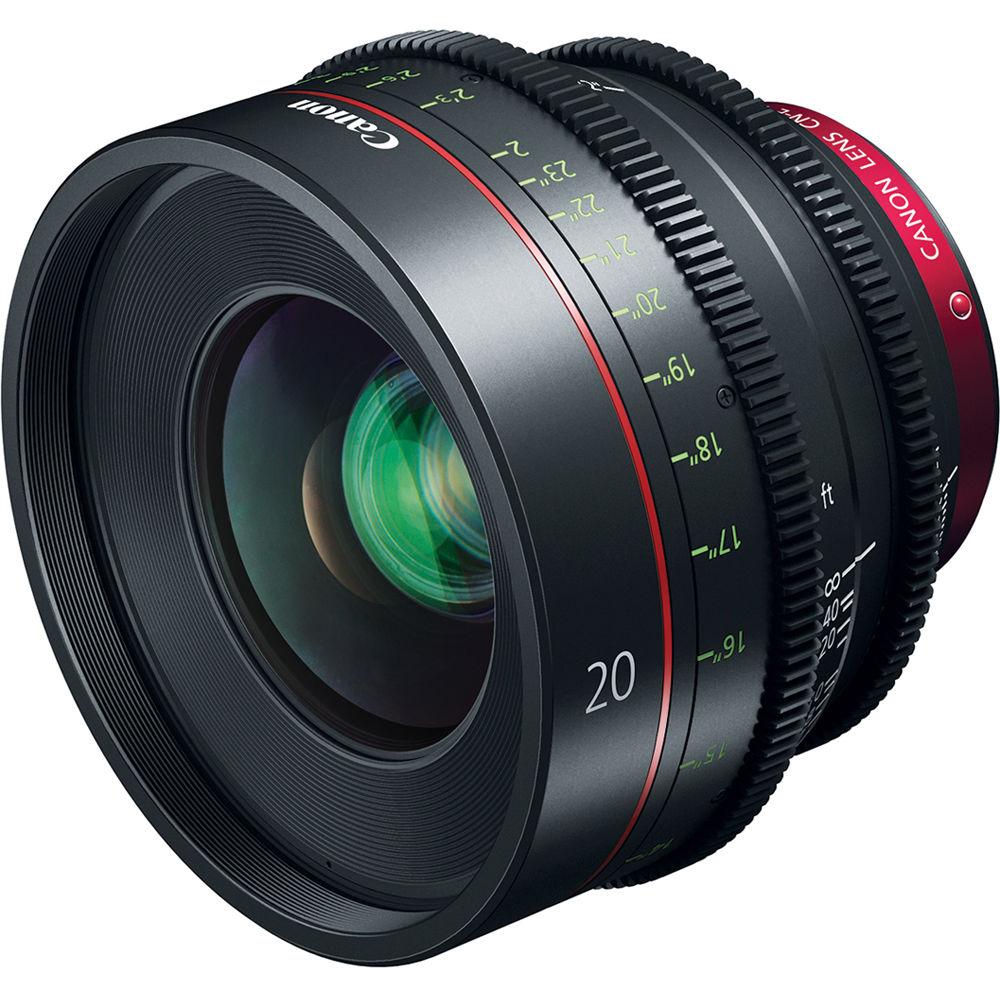

User Manual for Canon CN-E 20mm T1.5 L F Cinema Prime Lens Click to enlarge the picture
Contents of the user manual for the Canon CN-E 20mm T1.5 L F
- Product category: Digital Cine Lenses Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Digital Cine Lenses
 |
User manual for the Canon CN-E 20mm T1.5 L F contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description Cinema Lens Care and Maintenance Read More The Canon CN-E 20mm T1.5 L F Cinema Prime Lens is a manual focus prime lens that covers Full Frame and Super 35 sensor formats. The lens offers a maximum aperture of T1.5, useful when shooting in low light situations or when you want to capture that exceedingly shallow depth of field look. It has an 11-blade iris that provides round, out-of-focus highlights for a natural looking bokeh. The lens barrel features 300° of stepless, smooth rotation from close focus to infinity, giving you a high degree of precision and consistent focus.
The lens features standard cine lens gears and is designed to minimize focus breathing and also has innovative glass construction that counteracts barrel expansion and contraction to avoid temperature-induced marking discrepancies. It's dual focus, with markings on both sides of the barrel. The rear markings are on an angled surface, making it readable form either side of the camera. It also has a dust- and water-resistant housing to minimize maintenance during normal use. - Key Features
-
- Covers Full Frame and Super 35 sensors
- 11-blade iris
- Focus breathing minimized to virtually zero
- Markings on both sides of the barrel
- Rear markings on an angled surface
- Smooth, stepless 300° focus ring
- Geared manual iris ring
- Shares 114mm front barrel diameter, focus rotation, 36° iris rotation, and focus and iris gear positions with the rest of the CN-E line-up
- Glass construction counteracts temperature induced marking discrepancies
- Dust and water-resistant housing
- Focus markings can be switched to metric labeling if you send the lens to Canon for modification
UPC: 013803308617 In the Box Canon CN-E 20mm T1.5 L F Cinema Prime Lens (EF Mount) Lens Cap Rear Lens Cap Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon CN-E 20mm T1.5 L F Cinema Prime Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon Cinema Prime CN-E 20mm T1.5 Specs | Focal Length | 20mm | | Lens Mount | Canon EF | | Format | Full Frame | | Maximum T-Stop | T1.5 | | Diagonal Angle of View | Full Frame: 104.34°
Super35: 73.8° | | Horizontal Angle of View | Full Frame: 84°
Super35: 63.2° | | Minimum Focus Distance from Image Plane | 12" / 31 cm | | Iris Blades | 11 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch | | Front Diameter | 114 mm | | Filter Thread | 105 mm | | Focus Rotation | 300° | | Electronic Communication | Yes | | Dimensions (W x H) | 4.66 x 4.66" / 118.4 x 118.4 mm | | Length | 4" / 10.2 cm | | Weight | 2.6 lb / 1.2 kg | | | | Package Weight | 4.37 lb | | Box Dimensions (LxWxH) | 10.4 x 9.6 x 8.95" |
