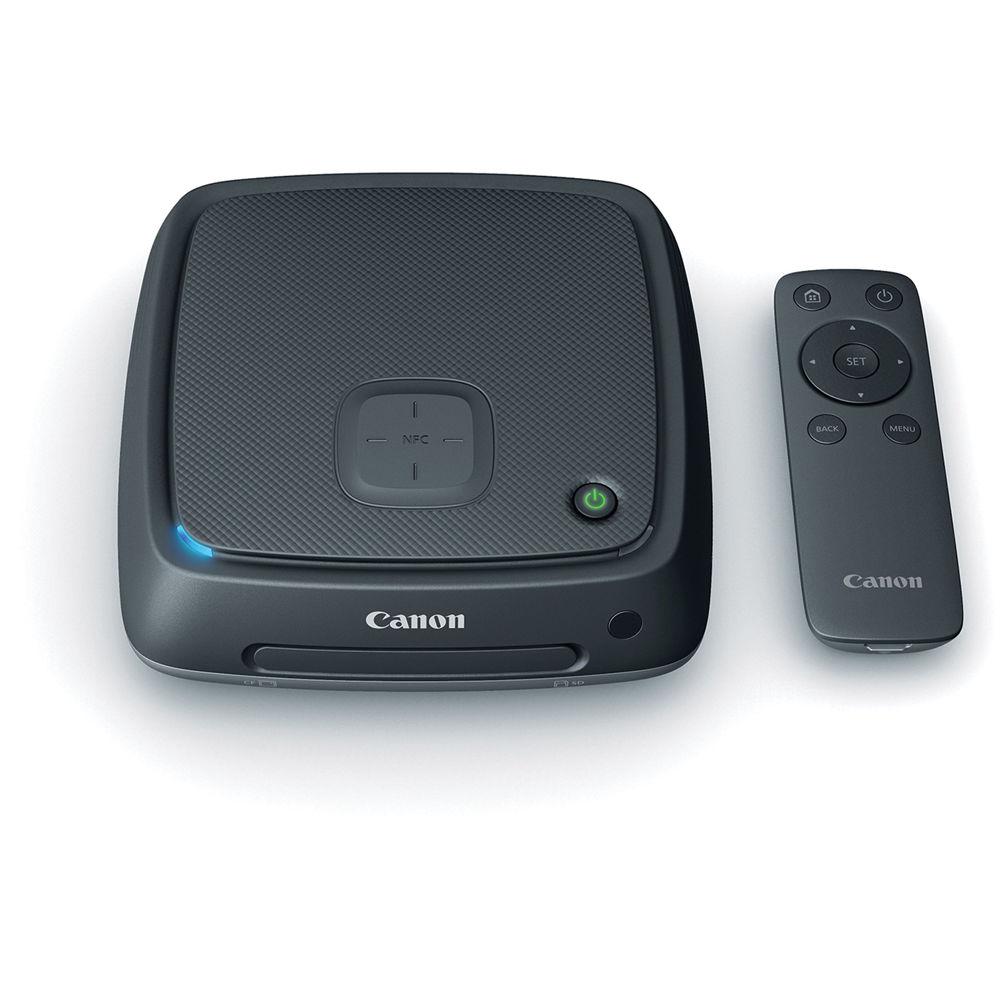

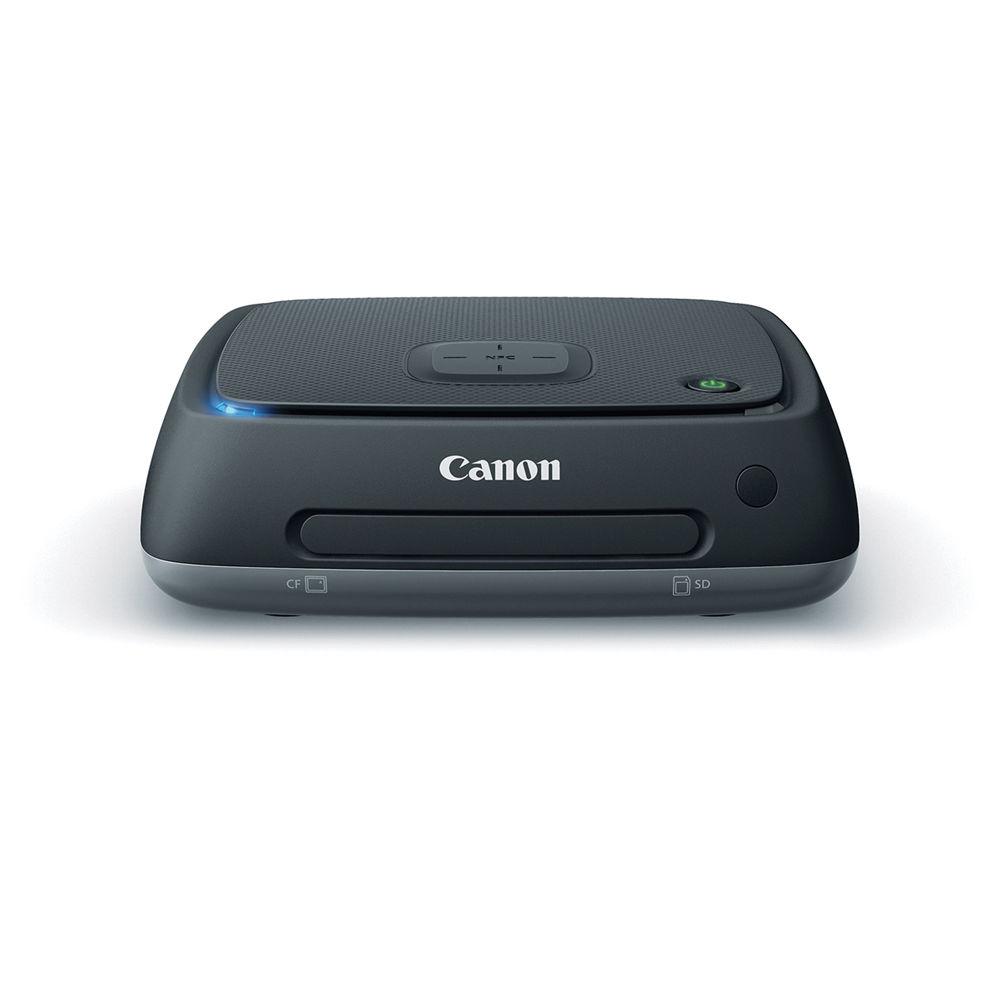

User Manual for Canon Connect Station CS100 1TB Storage Device Click to enlarge the picture
Contents of the user manual for the Canon Connect Station CS100 1TB Storage
- Product category: Memory Card Back-up Devices Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Memory Card Back-up Devices
 |
User manual for the Canon Connect Station CS100 1TB Storage contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description Hands-On Review: Canon Connect Station CS100 Read More Enabling wireless backing up of image and video files from Canon cameras and camcorders, the Connect Station CS100 is a media hub designed for storing, managing, and viewing your multimedia content. Featuring a built-in 1TB drive, this storage device is able to back-up approximately 150,000 photos or 70 hours of video from your camera, with the convenience of syncing your device via NFC or over Wi-Fi. Once the content has been loaded into the CS100, you can browse, manage, sort, and view your files using an intuitive menu system. Playback is supported via HDMI. Wireless printing is possible to compatible PIXMA/SELPHY printers, and imagery can be downloaded to PCs or smart devices via a web browser. The CS100 offers both convenience and practicality in how to import, view, and export your imagery. - The built-in 1TB of storage is able to hold approximately 150,000 photos or approximately 70 hours of video.
- NFC and Wi-Fi connectivity allow you to simply tap your NFC-enabled Canon camera to the device in order to automatically transfer photos and movies over Wi-Fi. For cameras without built-in Wi-Fi or NFC, a USB 2.0 port and both CF and SD card slots are also available for importing content.
- For large-scale playback on an HDTV or monitor, an HDMI out port can be used to preview your imagery. The photos' full resolution is maintained during playback as well as the smooth playback from high bitrate video formats. Additionally, the included remote control (CS-RC1) permits simple, wireless control over playback and file navigation.
- Files are automatically sorted by date (month/year) or by the specific shooting device. For further refinement, an easy-to-navigate menu structure allows you to create albums for more personalized sorting.
- Wireless printing is supported from the CS100, which is fully compatible with PictBridge and wireless LAN-enabled PIXMA, SELPHY, or other compatible printers.
- Accessible via a web browser on smartphones, tablets, or PCs, the contents of the CS100 can also be viewed or downloaded to other devices. Furthermore, imagery can be imported from smart devices, and compatible Android devices will automatically connect without the need to manually launch the web browser interface.
- Seamless and wireless file transferring between two Connect Stations is possible, as well as the ability to share directly to social networks via the Canon iMAGE GATEWAY.
- The following file formats are supported by the CS100:
- Photo: JPEG, CR2
- Video: MP4, MOV, AVCHD
- The contents of the CS100 can securely be offloaded to another external hard drive via USB connection for backing up your photo and video library.
UPC: 013803253740 In the Box Canon Connect Station CS100 1TB Storage Device Remote Control CS-RC1 AAA Battery AC Adapter CA-PS700 Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon Connect Station CS100 1TB Storage Device in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon CS100 Specs | | | Storage Capacity | Built-in 1 TB drive (actual capacity is less than 1 TB due to system requirements) | | | | Standard Compliance | IEEE802.11b/g/n | | Transmission Method | DS-SS modulation (IEEE 802.11b)
OFDM modulation (IEEE 802.11g / n) | | Transmission Range | Approx. 49.2' / 15 m | | Transmission Frequency | 2.412 - 2.462 GHz | | Security | WEP, WPA-PSK (TKIP), WPA-PSK (AES), WPA2-PSK (TKIP), WPA2-PSK (AES) | | | | Interface Type | 10BASE-T, 100BASE-TX, 1000BASE-T | | | | USB | Hi-Speed USB (USB 2.0) | | HDMI Out | Type A, CEC-compatible | | Card Slot | 1x CF (Type I or II compatible)
1x SD (SD, SDHC, SDXC; UHS-I is not compatible) | | | | Still Image | JPEG, RAW (CR2 only) | | Video | MP4, MOV, AVCHD | | | | Operating Environment | 32-104°F / 0-40°C
85% or less relative humidity | | Power Consumption | During operation: Approx. 10 W
During standby: Approx. 9.5 W | | Power Adapter | Compact Power Adapter CA-PS00
100-240 V AC
50/60 Hz
5.9' / 1.8 m DC cord | | Dimensions | CS100: 6.1 x 2.0 x 6.1" / 155.6 x 51.1 x 155.6 mm
Remote Controller CS-RC1: 1.6 x 0.6 x 4.9" / 41.3 x 15.1 x 125.5 mm
Compact Power Adapter CA-PS00: 4.4 x 1.1 x 1.8" / 112 x 29 x 45 mm (excluding power cord) | | Weight | CS100: 1.3 lb / 570 g
Remote Controller CS-RC1: 1.5 oz / 48 g
Compact Power Adapter CA-PS00: 6.5 oz / 185 g (excluding power cord) | | | | Package Weight | 3.62 lb | | Box Dimensions (LxWxH) | 10.2 x 8.9 x 3.8" |
