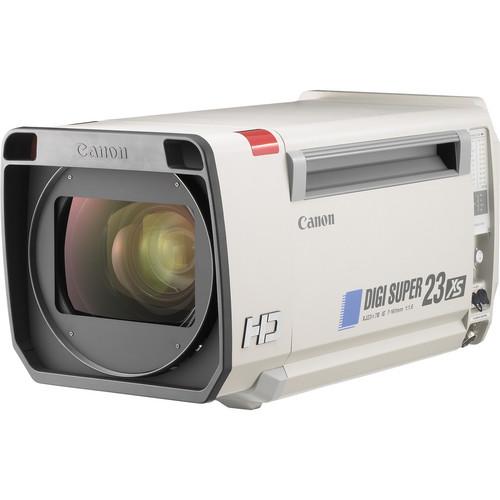

Product description The DIGISUPER 23 xs XJ23x7B IE-D 7 to 161mm Studio Lens from Canon utilizes the Power Optical System and is compact enough for use with a portable camera. The DIGISUPER 23 xs provides an excellent optical performance and ease of operation. The DIGISUPER 23 xs lens has zero zooming effect of focus throughout the whole zoom range, thanks to the Constant Angle Focusing System (CAFS). It offers a choice of detectable signals such as an encoder data signal, an analog data signal or a serial data signal. The lens achieves 13-bit zoom and focus repeatability and offers bi-directional serial data communication in order to facilitate highly accurate and smooth movements that are essential for robotics and virtual applications. The digital servo system is reliable, consistent, and is not affected by electric interference. The PC connection for remote control or diagnostics can be accomplished via a communication interface on the lens and personal computer with software (sold separately). - Wide angle with a focal length 7 mm with a 23x zoom ratio
- Anti-reflective paint and coating eliminates ghosting and flares
- 10-bit iris compatibility
- Minimized chromatic aberration during focusing
- Computer-aided design meets HDTV standards
- Minimized variation of the centre of gravity through focus movement
- Countermeasures against radio frequency, dust, and rain
- High resolution zoom and focus servo 13-bit repeatability
- Wide dynamic range of zoom and focus servo speed from ultra slow to high speed: 0.6 seconds (zoom), 0.8 seconds (focus)
- Anti-dust and anti-fog capability due to the airtight internal focusing system
In the Box Canon DIGISUPER 23 xs XJ23x7B IE-D 7 to 161mm Studio Lens Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon DIGISUPER 23 xs XJ23x7B IE-D 7 to 161mm Studio Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon 7-161mm Specs | Built-in Extender | Normal 4:3 or 16:9: 2.0x
Switchable 4:3: 1.2x or 2.4x | | Zoom Ratio | 22x | | Focal Length | Normal 4:3 or 16:9
1x: 7 to 161 mm
2.0x: 14 to 322 mm
Switchable 4:3
1x: 5.7 to 131 mm
1.2x: 7 to 161 mm
2.4x: 14 to 322 mm | | Maximum Relative Aperture | Normal 4:3 or 16:9
1x:
f/1.6 at 7 to 132.1 mm
f/1.95 at 161 mm
2.0x:
f/3.2 at 14 to 264.2 mm
f/3.9 at 322 mm
Switchable 4:3
1x:
f/1.6 at 5.7 to 131 mm
1.2x:
f/1.6 at 7.0 to 132.1 mm
f/1.95 at 161 mm
2.4x:
f/3.2 at 14 to 264.2 mm
f/3.9 at 322 mm | | Angular Field of View | Normal 4:3
1x:
64.3 x 50.5°
3.1 x 2.3°
2x:
34.9 x 26.5°
1.6 x 1.2°
16:9
1x:
68.8 x 42.1°
3.4 x 1.9°
2.0x:
37.8 x 21.8°
1.7 x 1.0°
Switchable 4:3
1x:
64.3 x 50.5°
3.1 x 2.3°
1.2x:
54.3 x 42.1°
2.5 x 1.9°
2.4x:
27.9 x 21.1°
1.3 x 1.0° | | Minimum Object Distance (M.O.D.) | 1.9 ft (0.6 m) from front lens vertex. With macro, M.O.D. 3.9 in (10 cm) | | Object Dimensions at M.O.D. | Normal 4:3
1x:
90.6 x 68.0 cm at 7 mm
3.8 x 2.9 cm at 161 mm
2x:
45.3 x 34.0 cm at 14 mm
1.9 x 1.5 cm at 322 mm
16:9
1x:
99.0 x 55.7 cm at 7 mm
4.2 x 2.4 cm at 161 mm
2.0x:
49.5 x 27.9 cm at 14 mm
2.1 x 1.2 cm at 322 mm
Switchable 4:3
1x:
90.6 x 68.0 cm at 5.7 mm
3.8 x 2.9 cm at 131 mm
1.2x:
70.3 x 55.7 cm at 7 mm
3.2 x 2.4 cm at 161 mm
2.4x:
36.6 x 27.9 cm at 14 mm
1.6 x 1.2 cm at 322 mm | | Dimensions (WxHxL) | 10.0 x 10.7 x 20.6" (254.6 x 272.0 x 525.0 mm) | | Weight | 43.0 lb (19.5 kg) |
