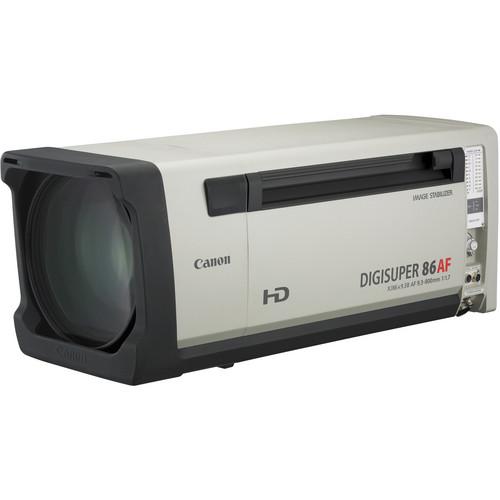

Product description In the Canon DIGISUPER 86AF Telephoto Field Lens the focus and the zoom servo systems are digitized using a 32-bit CPU. - Shuttle Shot
-
- Allows the operator to zoom back and forth instantly between any two positions at the maximum speed or at any desired speed memorized in the speed preset function in either direction
- Can be used to either zoom to the tele-side or widen the focal length from any starting point to check the picture, and then return instantly to the original focal length
- Allows you to shuttle between any two zoom positions as per your requirement
- Frame Preset
-
- Movement to a preset position can again be repeated multiple times
- Preset memory is not automatically cleared and the agreed-on framings from rehearsal can be duplicated over and over in an actual production at the maximum speed or at any desired speed memorized in the speed preset function
- Speed Preset
-
- A zoom speed agreed on during rehearsal can be reproduced accurately
- Preset memory is not automatically cleared and can be repeated as many times as needed
- Zoom Track
-
- Zoom control range can be restricted (both the tele and wide ends are within a limited area)
- With the ZDJ-D02 system (sold separately) the range can be virtually set at any position used in a production
- If desired, this function can be used to memorize an additional preset zoom position to be used during a production
- Zoom Servo Characteristics Selection
-
- Zoom Servo Characteristics can be selected from several groups of provided curvatures by setting the mode from the operation panel of the ZDJ-D02 system (sold separately)
- Within each group, one of three specific curvatures can be easily chosen by a toggle switch located near the zoom handle
- CAFS (Constant Angle Focusing System)
-
- A 32-bit CPU calculates and controls the zoom when you focus on an object to eliminate the zooming effect, so the picture size does not change because of focusing
- Has zero zooming effect of focus
- PC Connection
-
- By using the digital communication interface on the lens and the optional software (sold separately), a personal computer system can be connected to the lens and used for lens condition
- CPU Upgrade
-
- When new additional features are available through the updated software, the lens can be updated to the latest version by simply overwriting the software in the 32-bit CPU
In the Box Canon DIGISUPER 86AF Telephoto Field Lens Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon DIGISUPER 86AF Telephoto Field Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon 9.3-800mm Specs | Zoom Ratio | 86x | | Built-in Extender | 2x | | Focal Length Range | With Extender: 18.6-1,600 mm
Without Extender: 9.3-800 mm | | Maximum Relative Aperture | With Extender: 1:3.4 at 18.6-680 mm
1:8.0 at 1,600 mm
Without Extender: 1:1.7 at 9.3-340 mm
1:4.0 at 800 mm | | Angular Field of View | 4:3 Aspect Ratio:
With Extender:
26.6 x 20.1° at 18.6 mm
0.32 x 0.24° at 1,600 mm
Without Extender:
50.6 x 39.1° at 9.3 mm
0.63 x 0.47° at 800 mm
16:9 Aspect Ratio:
With Extender:
28.9 x 16.5° at 18.6 mm
0.34 x 0.19° at 1,600 mm
Without Extender:
54.6 x 32.4° at 9.3 mm
0.69 x 0.39° at 800 mm | | M.O.D. from Front of Lens | 9.84' (3.00 m) | | Object Dimensions at M.O.D. | 4:3 Aspect Ratio
With Extender:
50.0 x 37.5" (127.0 x 95.2 cm) at 18.6 mm
1.26 x 0.71" (3.20 x 1.80 cm) at 800 mm
Without Extender:
99.96 x 74.96" (253.90 x 190.40 cm) at 9.3 mm
1.1 x 0.8" (2.8 x 2.1 cm) at 800 mm
16:9 Aspect Ratio
With Extender:
54.4 x 30.6" (138.2 x 77.8 cm) at 18.6 mm
0.63 x 0.35" (1.60 x 0.90 cm) at 1,600 mm
Without Extender:
108.8 x 61.2" (276.4 x 155.5 cm) at 9.3 mm
1.26 x 0.71" (3.20 x 1.80 cm) at 800 mm | | Optical Image Stabilizer | Built-in | | Auto Focus System | Yes | | Dimensions (W x L x H) | Approximately 9.87 x 26.04 x 10.06" (250.60 x 661.50 x 255.50 mm) | | Weight | Approximately 59.3 lb (26.8 kg) |
