User Manual for Canon DM-E1 Directional Microphone Click to enlarge the picture
Contents of the user manual for the Canon DM-E1 Directional Microphone
- Product category: Shotgun Microphones Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Shotgun Microphones
 |
User manual for the Canon DM-E1 Directional Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|

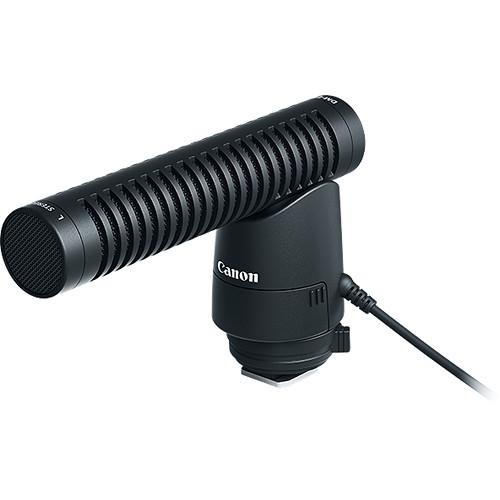

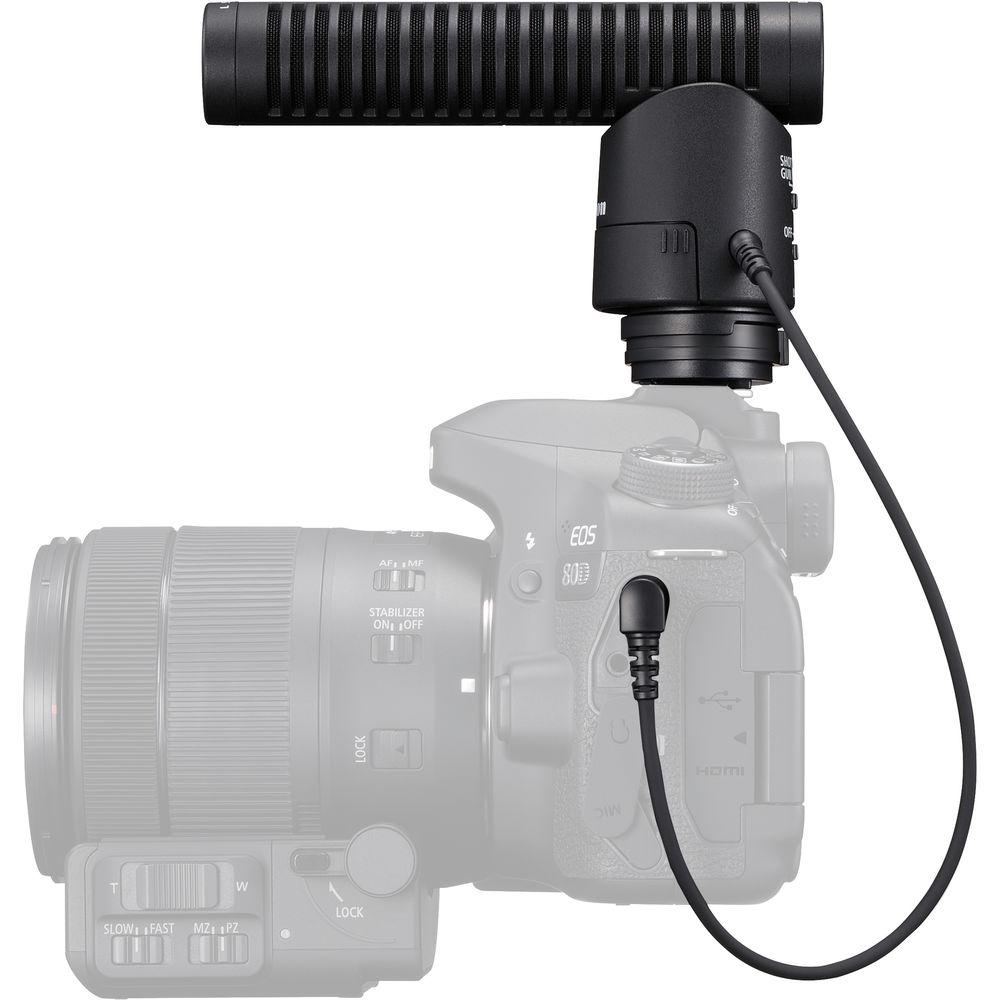

Product description Helping to enhance audio quality when recording video with your digital camera, the DM-E1 Directional Microphone from Canon is an external microphone offering a range of directional control, including a dedicated shotgun setting as well as switchable 90° and 120° stereo settings. It is compatible with digital cameras featuring a 3.5mm plug and offers a frequency response range of 50 Hz to 16 kHz. An included wind screen helps to reduce peripheral sound from wind or other ambient noises, and a shock mount is incorporated into the design to reduce camera and lens operation noise while recording. It is powered by an included CR2032 button-type lithium cell battery, and a power status indicator lamp lets you confirm the remaining life of the battery. - External microphone offers enhanced audio quality as well as greater recording control to render more dynamic video productions.
- Three separate pickup settings are available to suit a variety of shooting needs:
- Shotgun is a monaural recording mode that picks up a narrow band of sound in front of the camera, making it suitable for dialogues, single musical instruments, or other specific subjects.
- 90° stereo recording mode is suitable for a single subject and adds some audio context to the sides to suit recording small groups of people.
- 120° stereo recording mode offers a wider angle of sound that is ideal for recording larger groups in more expansive areas, such as a band on stage or an outdoor party.

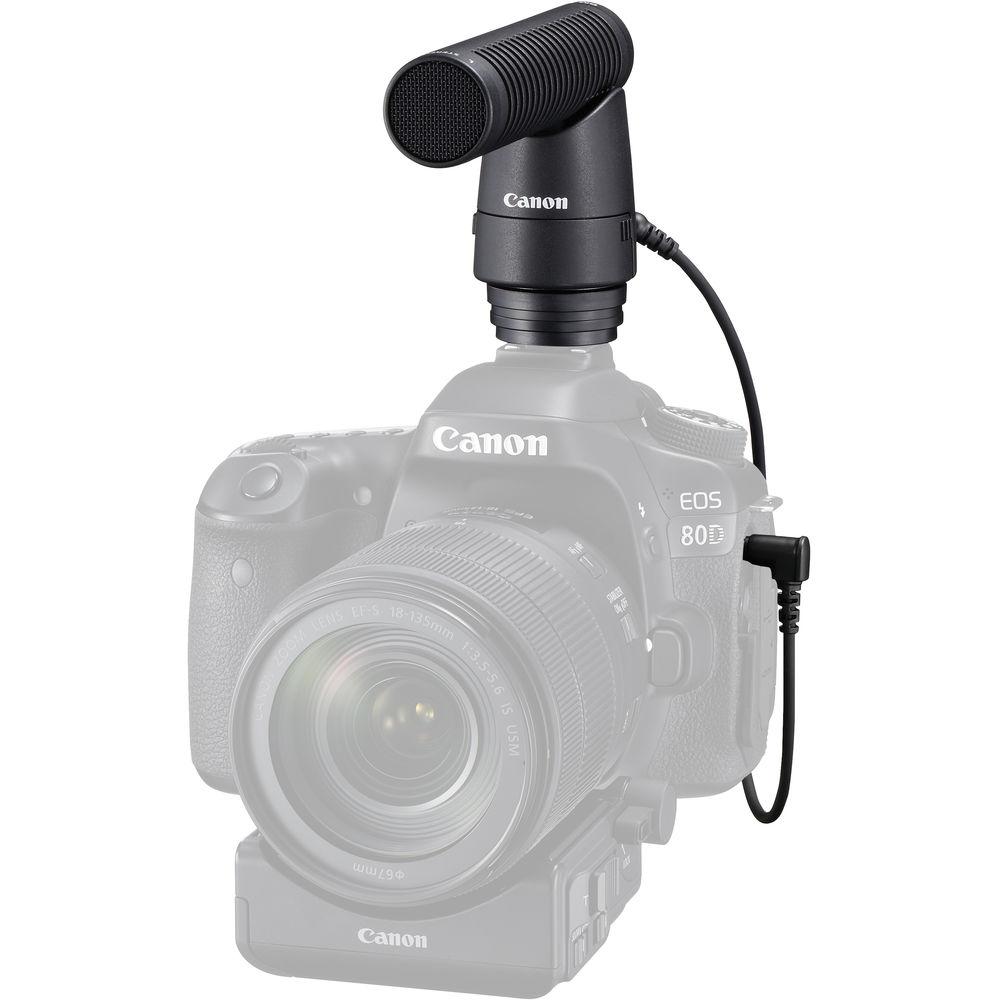

- This microphone is compatible with select EOS digital cameras that have a dedicated movie recording mode and an external mic jack.

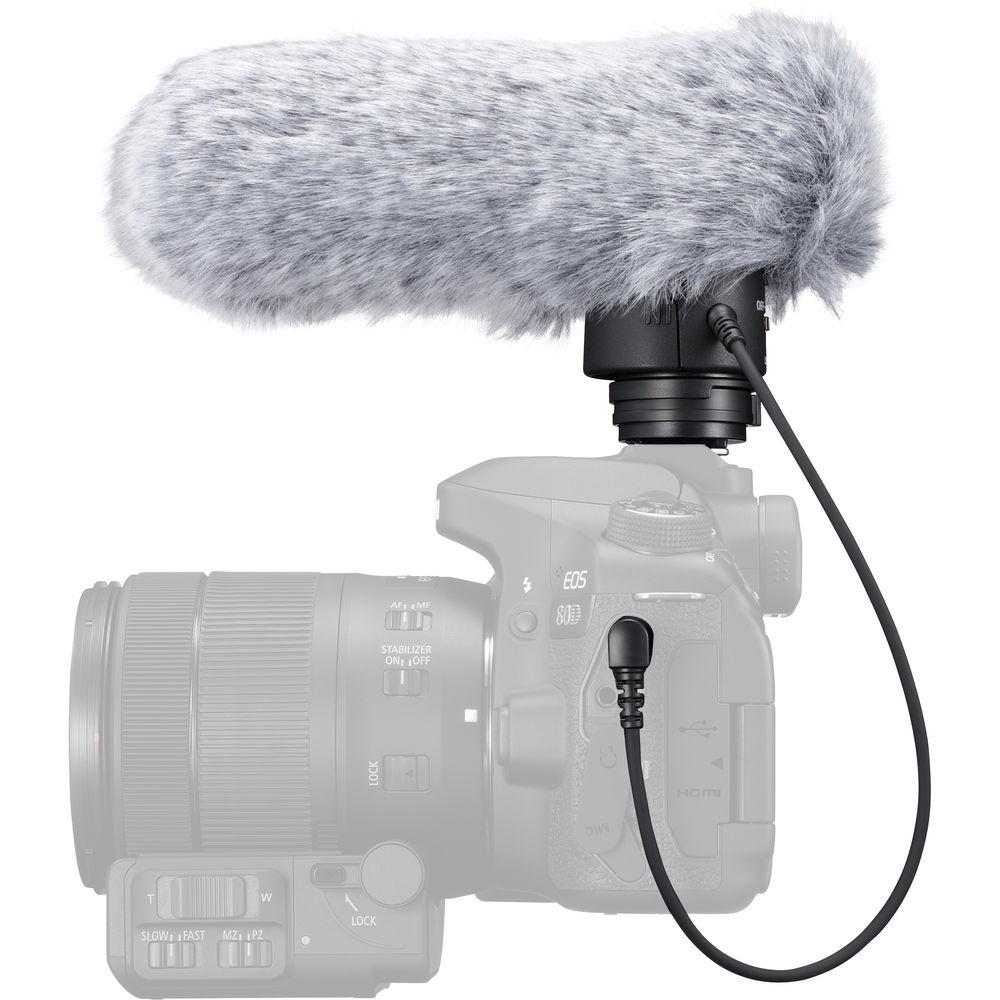

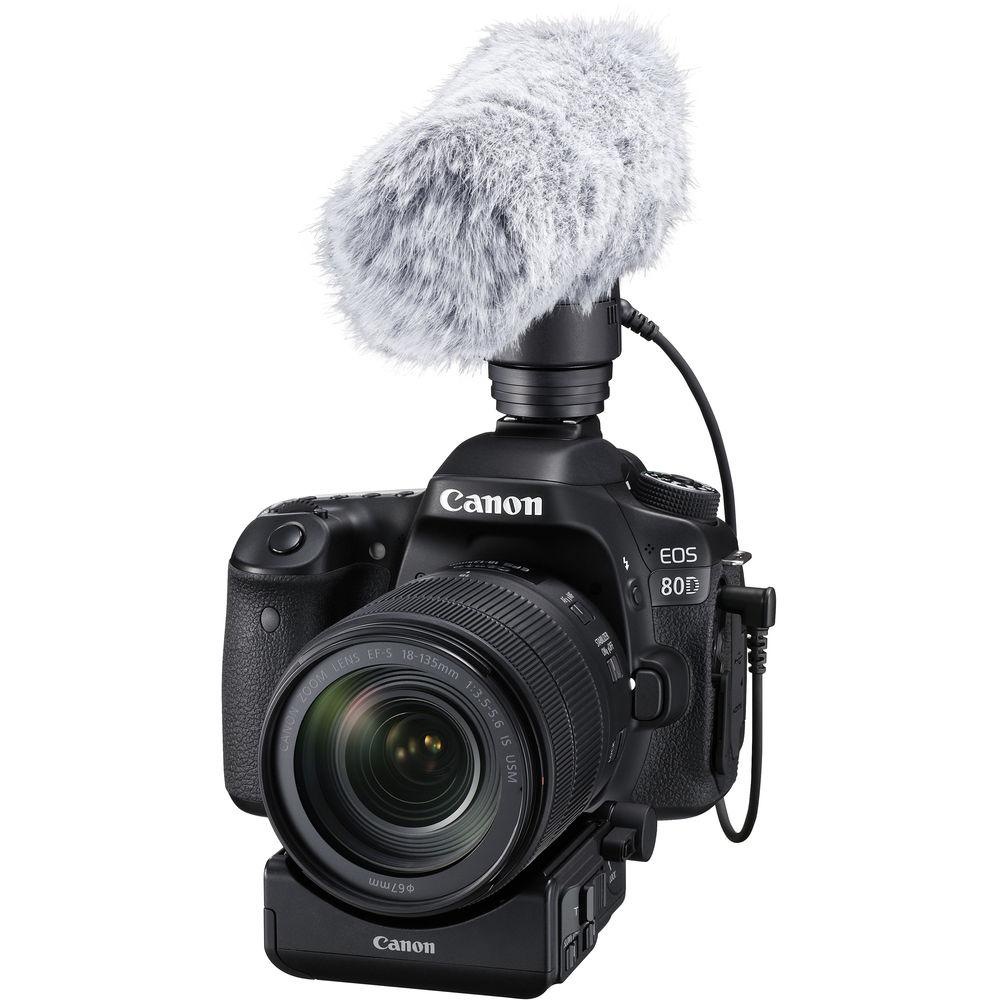

- The included wind screen helps to reduce peripheral sound from wind or other ambient sounds for cleaner, more focused playback. Additionally, the microphone has an integrated shock mount construction to reduce camera and lens operation noise.
- A frequency range of 50 Hz to 16 kHz can accurately capture a wide variety of sounds, including live music, nature sounds, and dialogues.
- Rather than using the camera's battery, this microphone incorporates its own power source to offer longer continuous recording times. The included CR2032 button-type lithium cell battery is easily replaceable and a power check lamp is featured on the mic body for checking battery level status. Additionally, when connected to a camera, the microphone will be automatically turned on or off in conjunction with the camera's own on/off switch.
UPC: 013803275346 In the Box Canon DM-E1 Directional Microphone Wind Screen CR2032 Button-Type Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon DM-E1 Directional Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon DM-E1 Specs | Type | Back electret stereo condenser microphone | | Directivity | Sharp - Shotgun (monaural)
Single - 90°/120° (stereo) | | Sensitivity | -42 dB (1 kHz, 0 dB = 1 V/Pa) | | Frequency Response | 50-16,000 Hz | | Output Impedance | 550 Ω | | Plug | 3.5 mm mini plug | | Power | 1x CR2032 button-type lithium cell battery | | Operating Environment | 32-104°F / 0-40°C
85% or less humidity | | Dimensions | 1.6 x 3.3 x 5.1" / 40 x 84 x 130 mm | | Weight | 3.9 oz / 110 g | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 7.8 x 5.4 x 3.3" |
