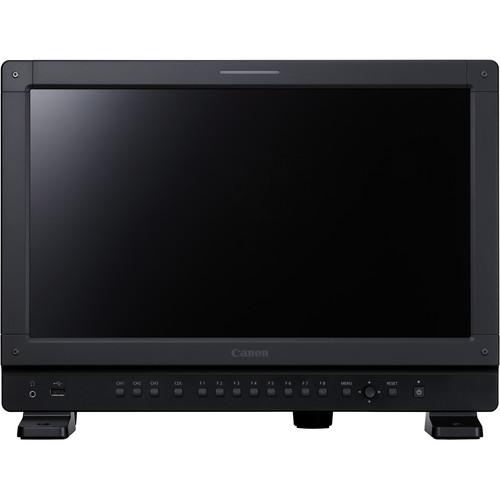

User Manual for Canon DP-V1711 17" UHD 4K Reference Display Click to enlarge the picture
Contents of the user manual for the Canon DP-V1711 17" UHD 4K Reference
- Product category: Production Monitors Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Production Monitors
|
User manual for the Canon DP-V1711 17" UHD 4K Reference contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description The 19" rack-mountable DP-V1711 UHD 4K Reference Display from Canon provides a portable, on set reference display for broadcast and cine-style UHD 4K video productions. Supporting resolutions up to 4K60p via 12G/HD/SD-SDI or HDMI, the DP-V1711 features an IPS screen for wide off-axis viewing and an aluminum chassis to withstand the rigors of daily production. The LED panel is uniformly bright, and consistent with other models in the Canon reference display line. HDR features include an HDR/SDR split-screen function, and support for Canon Log/2/3, HDR EOTFs, Hybrid Log-Gamma (BT.2100), SMPTE ST 2084, and ACES.
When processing raw footage from a Canon C300 Mark II or C700/500, the DP-V1711 performs the debayering function internally, eliminating the need of a debayering unit to display the raw footage. Support for up to eight 1D-LUTs enables you to see an approximation of how your graded footage will look. Additional features include Shape Tracing for artifact minimization, two-sample interleaving, 2/4 split-screen mode, 4x and 8x zoom, peaking, and fan shutdown during sound recording. Location shooting attributes include 7 RU/19" rack-mounting, serial and parallel remote control, 3-color tally, and a 12V DC power option. - Features
-
- UHD 4K (3840 x 2160) resolution in a 17" display suited for mobile or studio use
- Supports Canon Log/2/3, HDR EOTFs, HLG/BT.2100, and SMPTE ST 2084/Dolby PQ
- ARRI ALEXA SXT linkup feature
- Fits 19" rack (7 RU) mount
- Serial and parallel remote control
- Has a look consistent with other models in the Canon reference display line
- 12G/HD/SD-SDI ports enable support of 4K60p over a single cable
- Durable aluminum construction with a weight of <18 lb
In the Box Canon DP-V1711 17" UHD 4K Reference Display AC Power Cord with Clamp Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon DP-V1711 17" UHD 4K Reference Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon DP-V1711 Specs | | | Supported Video Formats | SDI: 3840 x 2160 up to 60p
HDMI: 3840 x 2160 60/50/30
HD/SD: 30p | | Color Support | SDI:
12G-SDI: SMPTE 2084/2082
6G-SDI: SMPTE 2081
3G-SDI: SMPTE 2048-2/274M/296/372/425-5/425-3/425-1/428-19/428-9
HD-SDI: SMPTE 2048-2/274M/292-1/296/428-19/428-9
HDMI:
YCbCr 4:2:0, 12-/10-/8-bit
YCbCr 4:2:2, 12-bit
YCbCr 4:4:4, 8-bit
RGB 4:4:4, 8-bit | | Panel Type | IPS LCD | | Screen Size (Diagonal) | 17.3" / 43.8 cm | | Aspect Ratio | 17:9 | | Resolution | 3840 x 2160 | | Active Display Area | Approximately 15.0 x 8.5" / 381.9 x 214.8 mm | | Pixel Pitch | 99 μm, 225 ppi | | Driver | 8-bit for each RGB color | | | | Brightness | 100 cd/m² | | Viewing Angle (CR≥10) | L/R, U/D: 89° | | Surface Treatment | Anti-glare coating | | | | Input | 12G/HD/SD-SDI: 4 x BNC
HDMI: 1 x Type A (4K 60p support, copy protection: HDCP 2.2) | | Output | 12G/HD/SD-SDI: 4 x BNC
Headphone: 1 x Stereo mini-jack, 32 to 64 Ohms impedance | | Other I/O | USB: 1 x USB 2.0
LAN: 1 x RJ45
Remote (Parallel): 1 x RJ45, 8-pin GPI | | | | Power Requirements | 100 to 240 VAC, 50/60 Hz
24 VDC, maximum 10 A, XLR | | Power Consumption (Approximate) | At Maximum Load: 140 W
At Factory Shipment: 85 W | | Operating Conditions | Temperature: 32 to 104°F / 0 to 40°C
Recommended: 59 to 86°F / 15 to 30°C
Relative Humidity: 20-85% (non-condensing)
Pressure: 700 to 1060 hPa | | Storage Conditions | Temperature: -4 to 104°F / -20 to 40°C
Relative Humidity: 20 to 85% (non-condensing)
Pressure: 700 to 1060 hPa | | VESA Standard | 3.9 x 3.9" / 100 x 100 mm | | Dimensions (WxHxD) | With Stand & Handle: 17.1 x 14 x 7.6" / 43.5 x 35.6 x 19.4 cm
Display Unit Only: 17.1 x 12.1 x 6.1" / 43.5 x 30.8 x 15.4 cm | | Weight | 17 lb / 8 kg |
