Product description

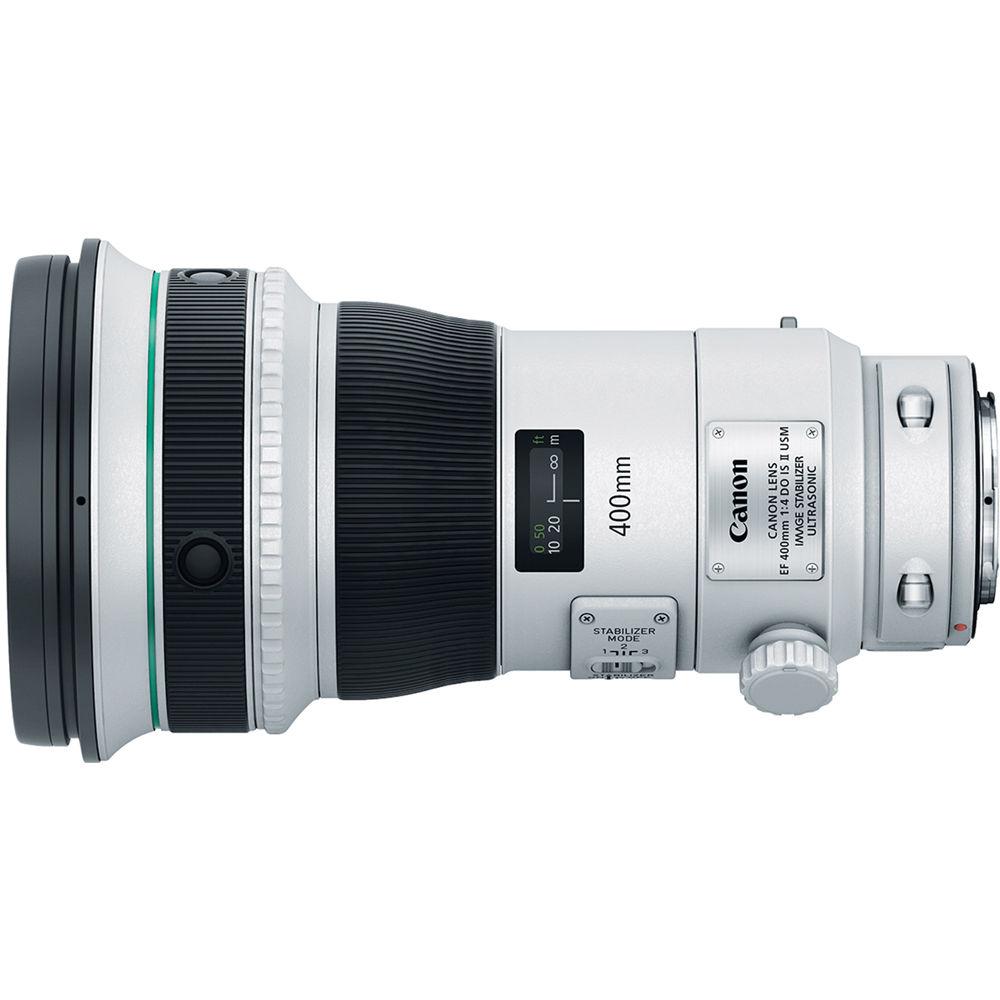

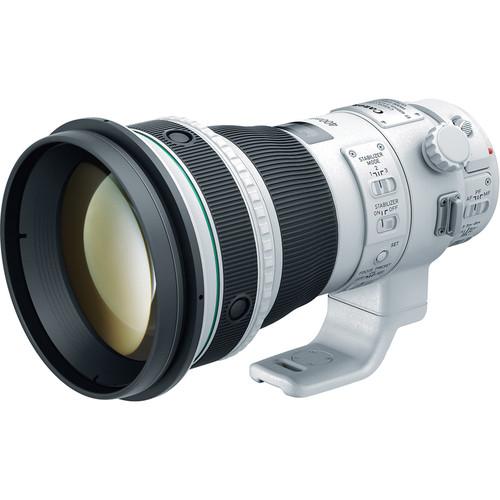

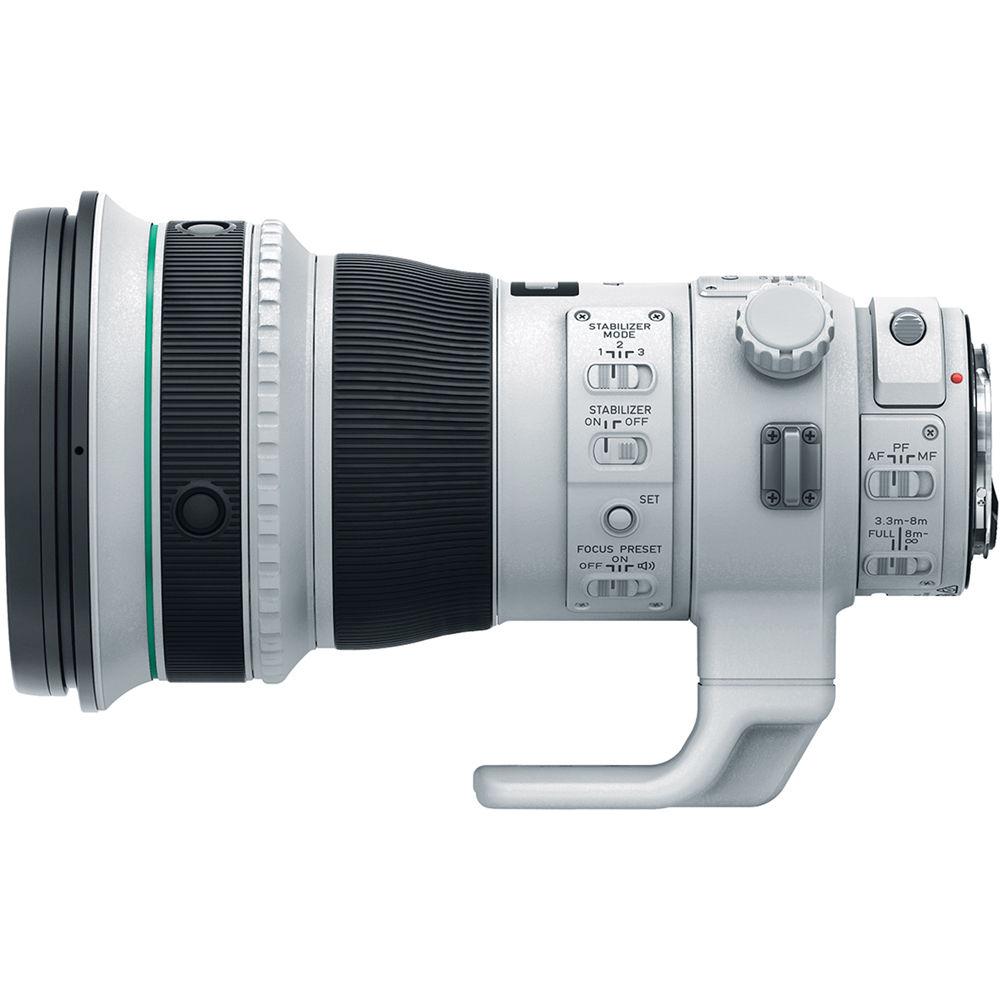

• Canon - EF 400mm f/4 Demo

• Super telephoto 400mm f/4 lens is compatible with full-frame EF-mount DSLR cameras, as well as APS-C-sized sensors where it will provide a 640mm equivalent focal length.

• Gapless dual-layer diffractive optics contribute to a marked reduction in chromatic and spherical aberrations as well as benefit the design of a relatively compact and lightweight lens.

• One large diameter ground aspherical element and one ultra-low dispersion UD element minimize aberrations and distortions while also contributing to greater sharpness and clarity.

• A Sub Wavelength Coating has been applied to individual elements to control lens flare and ghosting for greater contrast and color fidelity when working in strong lighting conditions.

• An Optical Image Stabilizer helps to minimize the appearance of camera shake by up to four shutter speed stops to better enable working in low-light conditions and with slower shutter speeds. Three distinct IS modes are available: standard single-shot mode, a panning-optimized mode, and a mode that only activates the Image Stabilizer during the exposure.

• A ring-type Ultrasonic Motor (USM), along with optimized focusing algorithms and a high-speed CPU, is employed to deliver fast, precise, and quiet autofocus performance as well as full-time manual focus override.

• Focus Preset function is available to quickly recall a programmed focusing position.

• Focus Limiter switch lets you constrain the focusing to three different ranges to suit different applications: 10.8-26.2', 10.8'-infinity, or 26.2'-infinity.

• A Power Focus setting is available, and allows you to electronically and smoothly adjust your focus position to suit video recording. This setting utilizes a dedicated ring in front of the main focusing ring and allows you to use one of two different focusing speeds.

• A weather-resistant design protects the lens from dust and moisture to enable its use in inclement conditions. Additionally, fluorine coatings have also been applied to the front and rear lens elements for further protection against fingerprints and smudging.

• Rounded nine-blade diaphragm contributes to a pleasing out of focus quality that benefits the use of shallow depth of field and selective focus techniques.

• Fixed rotating tripod collar benefits working with the lens atop a tripod or monopod.

• Compatible with optional EF 1.4X and EF 2X teleconverters.

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Canon EF 400mm f/4 DO IS II USM Specs

Focal Length	400mm
Maximum Aperture	f/4
Minimum Aperture	f/32
Lens Mount	Canon EF
Format Compatibility	Full-Frame
Angle of View	6 Rating 96% users recommend this product to others. And what about you? This product has already been rated by 25 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
