Product description

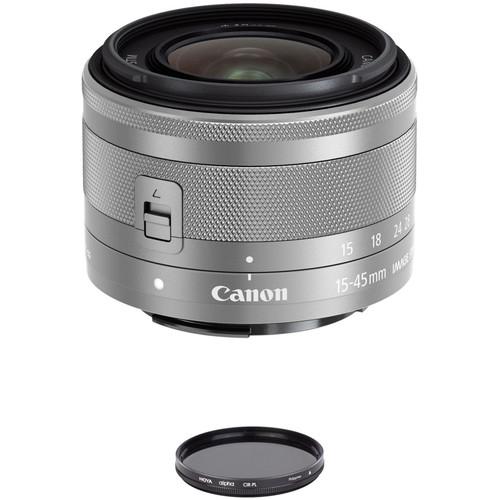

• Canon EF-M 15-45mm f/3.5-6.3 IS STM Lens (Silver)
  • Breaking News: Canon Announces New Mirrorless and Two New G Series Cameras
  A standard zoom covering wide-angle to short telephoto perspectives, the silver EF-M 15-45mm f/3.5-6.3 IS STM Lens from Canon offers a 24-72mm equivalent focal length range when used with APS-C-format EOS M-series mirrorless cameras. The optical design incorporates three aspherical elements, one of which is glass-molded and the other two are precision molded, in order to control chromatic aberrations and distortions throughout the zoom range. The lens placement has also been optimized, and coatings have been applied, to reduce flare and ghosting for increased contrast and clarity when photographing in difficult lighting conditions.

  Benefitting handheld shooting with slower shutter speeds, an Optical Image Stabilizer has been incorporated into the lens design to minimize the appearance of camera shake by up to 3.5 stops. A lead-screw-type STM stepping motor is also featured, which produces fast, smooth and near-silent autofocus performance to support both stills and video applications. For increased control, full-time manual focus operation is also available for making fine-tuned focus adjustments. Additionally, pairing well with the compact form factor of the EOS M-series of cameras, this lens also features a retracting design to shorten its overall length to just 1.75" long during travel and storage.
  • Standard wide-to-short tele zoom lens for EF-M mount APS-C format mirrorless cameras provides a 24-72mm equivalent focal length range.
  • One glass-molded (GMo) aspherical element and two precision-molded (PMo) aspherical elements are featured in the optical design, and help to reduce chromatic aberrations and distortions for greater sharpness and clarity.
  • Optimized lens placement and coatings help to control lens flare and ghosting for increased contrast and color neutrality.
  • Optical Image Stabilizer technology compensates for up to 3.5 stops of camera shake to better enable taking sharp handheld photos in difficult lighting conditions.
  • Lead-screw-type STM stepping motor offers fast, quiet, smooth, and accurate autofocus performance that is ideal for video recording as well as still shooting.
  • Full-time manual focus mode (AF+MF) lets you instantly switch to manual focus control in AF mode for making fine-tuned adjustments.
  UPC: 013803257397
• Hoya 49mm alpha Circular Polarizer Filter
  • Breaking News: Canon Announces New Mirrorless and Two New G Series Cameras
  The Hoya 49mm alpha Circular Polarizer Filter helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface. The light from the sun naturally becomes partially polarized due to reflecting off electrons in air molecules, causing the light to scatter into what appears as haze. A polarizing filter arranges, and filters, this directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of this light. This results in a noticeable reduction of glare and reflections from non-metallic surfaces and an increase in the saturation of skies and foliage.

  A circular polarizer only differs from a linear polarizer in that it contains a quarter wave plane in addition to the linear polarizing filter. The addition of this quarter wave plane is to circularly polarize the linearly polarized light for the use of auto focus and exposure functions. Due to how the light is broken down and filtered with a linear polarizer, auto focus and exposure accuracy become skewed during use. When the light becomes circularly polarized, it permits the use of these functions.

  This filter is non-coated and has approximately 96% average light transmission. It is constructed from optical glass and precision milled aluminum frames.
  • Helps to reduce reflections and glare by filtering out light that has become polarized due to reflection from a non-metallic surface.
  • Polarizing filters arrange, and filter, directionally polarized light perpendicularly to the reflected light, allowing for the absorption of much of the light.
  • Clears up haze in distant landscapes and provides more saturated, vivid colors.
  • Strongest effect when used at a 90° angle from the sun.
  • Circular polarizers are ideal for use with digital cameras and autofocus lenses where a linear polarizer will often disrupt auto exposure and focus features.
  • Non-coated.
  • Approximately 96% average light transmission.
  • 3 to 4x filter factor reduces exposure by 1.6 to 2 stops.
  • Constructed from optical glass and precision milled aluminum frames.
  • Plastic filter case for storage and transport.
  UPC: 024066056146

• EF-M 15-45mm f/3.5-6.3 IS STM Lens (Silver) eqzdvrrtwettzszvcxtvewuf
• E-49 49mm Lens Cap
• EB Lens Dust Cap for EF-M Lenses
• Limited 1-Year Warranty

• Hoya - 49mm alpha Circular Polarizer Filter

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Canon EF-M 15-45mm f/3.5-6.3 IS STM Lens (Silver)

  Focal Length	15 to 45mm (35mm Equivalent Focal Length: 24 to 72mm)
  Maximum Aperture	f/3.5 to 6.3
  Minimum Aperture	Not Specified by Manufacturer
  Lens Mount	Canon EF-M
  Format Compatibility	APS-C
  Angle of View	84 Rating 100% users recommend this product to others. And what about you? This product has already been rated by 05 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
