Canon EOS-1D X Mark II DSLR

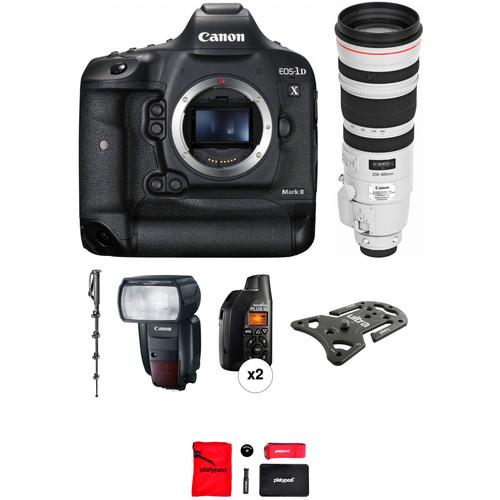

User Manual for Canon EOS-1D X Mark II DSLR Camera with 200-400mm Lens Sports Kit

• Product category: DSLR Cameras Canon
• Brand: Canon
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Canon DSLR Cameras

Product description

• Canon EOS-1D X Mark II DSLR Camera (Body Only)
  • Canon EOS-1D X Mark II: First Look
  • Canon EOS-1D X Mark II Features
  • Canon EOS-1DX Mark II DSLR Camera: The Mark of Legends
  • Introducing the Canon EOS-1D X Mark II: Video Features
  • Stepping Up to a Canon EOS-1D X Digital SLR Camera
  Bringing the shooting speed and video capabilities required by professional multimedia image-makers, the EOS-1D X Mark II is the flagship model within Canon's DSLR lineup, and is characterized by its robust processing capabilities and ability to enable a high-end multimedia workflow. At the heart of the imaging system is a full-frame 20.2MP CMOS sensor and dual DIGIC 6+ image processors, which contribute to fast continuous shooting rates up to 16 fps in live view, 14 fps with full-time AF and AE, and an expanded sensitivity range from ISO 50-409600. The sensor and processor combination also avails DCI 4K video recording at 60 fps and Full HD 1080p recording at 120 fps, along with the ability to record on-board to a CFast 2.0 memory card, or uncompressed Full HD video can be saved via HDMI to an optional external recorder. Benefitting stills shooting is an apt 61-point High Density Reticular AF II system, which includes 41 cross-type points for a high degree of precision in varying light conditions, and video shooting is enhanced by Dual Pixel CMOS AF, which makes its first appearance in a full-frame sensor for smooth, quick, and controllable AF in live view. With a versatile set of imaging traits, the Canon EOS-1D X Mark II takes its place as a high-performance tool for professional photographers and videographers alike.

  Complementing the robust set of imaging specs is an equally robust physical design based on a magnesium alloy body construction that is both dust- and weather-sealed for use in harsh environments. Integrated within the body is a large 3.2" 1.62m-dot touchscreen LCD for bright, high-resolution live view monitoring and image review, and a large 0.76x Intelligent Viewfinder II is offered for clear eye-level shooting. For versatility in file handling, both CFast and CompactFlash memory card slots are available, and the 1D X Mark II also supports sharing imagery over Wi-Fi, as well as wireless remote camera control, via the optional WFT-E8A Wireless File Transmitter. Additionally, a built-in GPS module permits in-camera geotagging of photos and videos, and also allows for auto time syncing with the Universal Time Code for more efficient file sharing and organization.
  20.2MP Full-Frame CMOS Sensor and Dual DIGIC 6+ Image Processors
  • A redeveloped full-frame 20.2MP CMOS sensor pairs with dual DIGIC 6+ image processors to avail notable image quality and accuracy, as well as fast performance throughout the camera system. The sensor itself integrates a gapless structure with micro lenses to provide enhanced low-light performance and reduced noise levels, and when coupled with the processors an expanded sensitivity range of ISO 50-409600 is available.

    The sensor and processors also work together to avail quick shooting performance, with continuous rates up to 16 fps when working in live view. When working with the viewfinder, shooting up to 14 fps is possible along with the ability to record up to 170 raw files in a single burst if using a CFast 2.0 memory card. If shooting JPEG files, an unlimited number of frames can be recorded in a burst, even at full-resolution. If working with a CompactFlash card, the buffer is rated at up to 73 raw frames in a burst, or infinite JPEGs.

    In addition to the stills attributes afforded by the sensor, it is also used for recording DCI 4K video at up to 60 fps, and it is the first full-frame sensor to incorporate Dual Pixel CMOS AF technology for precise, controllable, and fast live view focusing performance.
  High Density Reticular AF II and Dual Pixel CMOS AF Systems
  • Benefitting accurate focusing and fast tracking performance, a 61-point High Density Reticular AF II system is employed, which incorporates 41 cross-type points for increased precision as well as a center point that is sensitive to -3 EV. All 61 phase-detection points support metering at effective apertures of f/8 or larger, which benefits the use of teleconverters and telephoto lenses. Additionally, a separate, dedicated DIGIC 6 processor is used for the AF and metering systems in order to maintain quick performance while recording 4K video or shooting at fast continuous speeds. As a whole, the AF system has gained approximately 8.6% in coverage in the center, and 24% in the periphery, for enhanced subject tracking across the image frame, and an AI Servo AF III+ algorithm is used to intelligently and precisely acquire focus in single-point, Large Zone AF, or any other focusing mode.

    When working with live view during stills shooting or video recording, a Dual Pixel CMOS AF system is employed that provides incredibly quick and accurate focusing performance in a similar manner to how a camcorder acquires focus. This system integrates two separate photodiodes within each pixel to provide a broad and dense network of phase-detection gathering elements across a majority of the image sensor to reduce focus hunting for faster, more direct control of focus placement. When working with still imagery, this focusing system works to acquire focus quickly and accurately, making it ideally suited to shooting and tracking moving subjects so that critical focus is attained with each shot. When shooting video, a Movie Servo AF mode offers smooth and natural focusing when changing from different subjects or different distances within the scene, as well as the ability to specify tracking sensitivity, AF speed, and Face Tracking priority. Benefited by the Touch AF system, rack focus is possible simply by touching elements within the scene on the touchscreen in order to change focus in an intuitive manner. Subject tracking in movies is also heightened due to the Dual Pixel CMOS AF system's ability to recognize subjects and maintain focus when working within changing or cluttered scenery.
  DCI 4K Video Recording
  • Designed for both professional stills shooting and video recording, the 1D X Mark II supports DCI 4K (4096 x 2160) resolution recording at up to 60 fps at 800 Mbps, along with Full HD 1080p shooting at 120 fps at 360 Mbps for slow motion playback. When recording in-camera, 4K video has 4:2:2 sampling and 8-bit color depth, while Full HD 1080p footage has 4:2:0 sampling. Uncompressed Full HD 1080p video can also be saved via HDMI to an optional external recorder with 4:2:2 color sampling. 4K video is recorded using a central 4096 x 2160 area of the sensor, while Full HD recording makes use of the entire full frame, and a top sensitivity of ISO 12800 is available with 4K or ISO 25600 with Full HD.

    Audio can be recorded using the on-board stereo microphone or an optional external mic can also be used via the 3.5mm mic jack. Real time audio monitoring is possible, too, via the 3.5mm headphone jack. The 4K video recording also avails the ability to take 8.8MP still frame grabs during playback and save them as single images.
  Body Design
  • • A large 3.2" 1.62m-dot Clear View II LCD monitor is available and features an anti-reflective design for bright, vivid image playback and live view shooting, and its touchscreen interface can be used for intuitive touch-to-focus control.
    • Dual CFast and CompactFlash memory card slots allow you to extend your file saving capabilities by permitting overflow recording or in-camera file type separation while shooting. The CFast card slot is compatible with CFast 2.0 memory cards.
    • An Intelligent Viewfinder II uses a pentaprism design and offers a bright means for viewing, along with a 0.76x magnification and 100% frame coverage. When using the viewfinder, AF points are highlighted in red for greater visibility in low-light conditions, and the finder can also be configured to display a range of other shooting aids, such as an electronic level, grid, flicker detection, white balance, metering mode, AF information, and other settings.
    • A robust magnesium alloy body design is both dust- and weather-sealed to permit working in harsh environments.
    • An integrated vertical grip allows for comfortable, intuitive, and efficient handling when working in either vertical or horizontal shooting orientations.
    • The included LP-E19 rechargeable lithium-ion battery is rated to provide up to 1210 shots per charge when shooting with the optical viewfinder. The 1D X Mark II is also compatible with LP-E4N and LP-E4 rechargeable lithium-ion batteries, however the top continuous shooting rate will be slightly reduced to 14 fps in live view and 12 fps with AE and AF.
    • A redesigned mirror mechanism helps to minimize mechanical vibrations in order to better ensure sharpness during long exposures or fast continuous shooting bursts.
    • The high-performance shutter utilizes lightweight carbon fiber blades for quick shooting speeds and is tested for up to 400,000 cycles.
    • Extensive connectivity ports allow for the attachment of various accessories, including the optional WFT-E8A Wireless File Transmitter for remotely controlling the camera from a smartphone or sharing files over Wi-Fi with support for the 5 GHz 802.11ac standard.
  EOS Intelligent Tracking and Recognition AF
  • An advanced 360,000-pixel RGB+IR metering sensor works in tandem with the EOS Intelligent Tracking and Recognition AF system in order to maintain accurate and consistent metering results from subject to subject. High resolution, infrared sensitivity, and a refined detection algorithm all contribute to precise color and shape recognition, using the iSA (Intelligent Scene Analysis) system that quickens both exposure metering and autofocus performance. iTR (Intelligent Tracking and Recognition) AF also uses this exposure and subject recognition technology for improved moving subject tracking.
  Other Camera Features
  • • A built-in GPS module allows you to geotag imagery in-camera as well as auto time sync with the Universal Time Code via satellites. This module is compatible with American GPS, Russian GLONASS, and Japanese quasi-zenith Michibiki satellites for a wide coverage of support.
    • Digital Lens Optimizer technology compensates for a range of optical defects from various lenses, including chromatic aberration, distortion, peripheral brightness, and diffraction, and the camera can store lens data in order to avoid having to re-register lenses prior to each use.
    • In addition to full-resolution recording, files can also be recorded at reduced resolutions, including M-RAW and S-RAW sizes to save file size and memory card capacity.
    • Picture Style settings: Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, and User Defined 1-3.
    • Language support: English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukraine, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, and Japanese.
  UPC: 013803271621
• Canon EF 200-400mm f/4L IS USM Extender 1.4x Lens
  • Canon EOS-1D X Mark II: First Look
  • Canon EOS-1D X Mark II Features
  • Canon EOS-1DX Mark II DSLR Camera: The Mark of Legends
  • Introducing the Canon EOS-1D X Mark II: Video Features
  • Stepping Up to a Canon EOS-1D X Digital SLR Camera
  A long-reaching zoom characterized by its versatility, the EF 200-400mm f/4L IS USM Extender 1.4x from Canon is a medium to super-telephoto distinguished by its unique optical design and fast performance. Featuring a built-in 1.4x extender, you can quickly and intuitively switch between the native 200-400mm f/4 setting and an effective 280-560mm f/5.6 for greater reach. Benefitting this unique design is a sophisticated optical layout, which includes one fluorite element and four ultra-low dispersion elements to control chromatic aberrations and color fringing for increased clarity. A Super Spectra coating has also been applied to individual elements to reduce lens flare and ghosting for greater color accuracy and contrast when working in bright or backlit conditions.

  Beyond the optical attributes, this 200-400mm f/4 is also characterized by its advanced four stop-effective Image Stabilizer system, which has three separate stabilization modes to suit various shooting applications. Also complementing handling is a sophisticated ring-type USM, which provides quick, quiet, and accurate autofocus performance along with full-time manual focus override. Additionally, this lens is weather-sealed for use in trying environmental conditions and it has a removable rotating tripod collar to benefit working atop a tripod or monopod.
  • Super telephoto zoom is designed for full-frame Canon EF-mount DSLRs, however can also be used with APS-C models where it provides a 320-640mm equivalent focal length.
  • Built-in 1.4x extender allows you to instantly extend your reach to 280-560mm (or 448-896mm equivalent with APS-C cameras) simply by flipping the left-hand switch. Since the extender is integrated within the lens housing, it is optically matched to the lens for improved imaging performance and also fully maintains the lens's weather sealing.
  • Constant f/4 maximum aperture, without the teleconverter in position, offers consistent illumination throughout the zoom range. When the 1.4x teleconverter is engaged, the maximum aperture is effectively f/5.6.
  • One fluorite element and four ultra-low dispersion elements are used to greatly reduce color fringing and chromatic aberrations in order to achieve greater clarity and color accuracy.
  • Super Spectra coating has been applied to individual elements to minimize ghosting and flare for greater contrast and color neutrality when working in strong lighting conditions.
  • An Optical Image Stabilizer helps to minimize the appearance of camera shake by up to four shutter speed stops to better enable working in low-light conditions and with slower shutter speeds. Three distinct IS modes are available: standard single-shot mode, a panning-optimized mode, and a mode that only activates the Image Stabilizer during the exposure.
  • A ring-type Ultrasonic Motor (USM), along with optimized focusing algorithms and a high-speed CPU, is employed to deliver fast, precise, and quiet autofocus performance as well as full-time manual focus override.
  • Focus Preset function is available to quickly recall a programmed focusing position.
  • Focus Limiter switch lets you constrain the focusing to different ranges for faster performance to suit different applications.
  • A Power Focus setting is available, and allows you to electronically and smoothly adjust your focus position to suit video recording. This setting utilizes a dedicated ring in front of the main focusing ring and allows you to use one of two different focusing speeds.
  • Rounded nine-blade diaphragm contributes to a pleasing out of focus quality that benefits the use of shallow depth of field and selective focus techniques.
  • As a member of the esteemed L-series, this lens is sealed against dust and moisture for working in inclement environmental conditions.
  • Fluorine-coating on exposed elements affords protection to the optical system, resists smudging and fingerprints, and is easier to clean.
  • Removable rotating tripod collar is included and benefits working with the lens atop a tripod or monopod.
  • Compatible with optional EF 1.4X and EF 2X teleconverters.
  UPC: 013803134179
• Manfrotto MPMXPROC5US Carbon Fiber XPRO Monopod+
  • Canon EOS-1D X Mark II: First Look
  • Canon EOS-1D X Mark II Features
  • Canon EOS-1DX Mark II DSLR Camera: The Mark of Legends
  • Introducing the Canon EOS-1D X Mark II: Video Features
  • Stepping Up to a Canon EOS-1D X Digital SLR Camera
  The MPMXPROC5US XPRO Monopod+ from Manfrotto is a versatile carbon fiber support designed for use with DSLR, mirrorless, compact, and video cameras.

  A handy tool for nearly any visual artist, professional, or content creator, a monopod can often travel places tripods cannot, providing additional stability and supporting heavy equipment when required. The MPMXPROC5US features a 5-section design which, when paired with its carbon fiber construction, results in an easy-to-transport design weighing just 1.4 lb. With a maximum height of 69.3" and a minimum height of just 19.3", the MPMXPROC5US can be adjusted to suit users of varying heights and for various different tasks.

  While the design of a monopod is relatively simple the Manfrotto Monopod+ line utilizes some innovative features which make using the MPMXPROC5US fast and easy. The primary feature of the line is the inclusion of Manfrotto's patented Power-Lock flip locks which snap open and closed to ensure fast operation and a tight, unyielding lock. The D-shaped leg sections have been designed not only to compliment the Power-Locks but also to prevent unwanted twisting between leg sections and increase the stability of the monopod.

  Additionally, the Monopod+ line also features Manfrotto's standard rubber leg warmer for an improved grip and an adjustable hand strap for extra security. A 1/4"-20 and 3/8"-16 mounting thread is placed at the top of the monopod in the center of the baseplate, allowing users to either, direct mount a camera or lens, or use an articulating head if required. UPC: 719821412410
• Canon Speedlite 600EX II-RT
  • Canon EOS-1D X Mark II: First Look
  • Canon EOS-1D X Mark II Features
  • Canon EOS-1DX Mark II DSLR Camera: The Mark of Legends
  • Introducing the Canon EOS-1D X Mark II: Video Features
  • Stepping Up to a Canon EOS-1D X Digital SLR Camera
  Complete with built-in radio transmission wireless functionality, the Speedlite 600EX II-RT sits at the top of Canon's on-camera E-TTL / E-TTL II compatible flash lineup with a powerful guide number of 197' at ISO 100 and 200mm. This revision improves continuous flash performance by 1.1-1.5x, or up to 2.0x with optional battery pack, simplifies the menu system for faster operation, and includes a specially designed bounce adapter, a hard color filter, and an updated soft case. The two-way 2.4 GHz radio system provides added reliability and a range up to 98.4' among up to 5 groups with a total of 15 individual Speedlites. This system also does not need direct line-of-site like traditional optical-based transmission and will work through obstacles.

  For added coverage and functionality, the flash's zoom head can reach from 20-200mm, with the option for wide 14mm coverage when the built-in diffusion panel is used. Also, the unit can tilt from -7 to +90° and rotate 180° either left or right for complete bounce capabilities. On the back of the 600EX II-RT is a backlit dot-matrix LCD panel that displays the status and allows users to easily access and change settings. Additionally, the flash is durable with a redesigned contact construction and improved dust and water resistant sealing.

  Other capabilities of the 600EX II-RT include a stroboscopic mode as well as high-speed, first and second curtain sync settings for more control over your image's final look. The flash is powered by 4 AA batteries and has a port for an optional external power pack. The rated recycle time is 0.1-5.5 seconds, but can be sped up to 0.1-3.3 seconds in Quick Flash mode. It comes with a bounce adapter, a hard CTO filter set, a mini stand, and an updated soft case that holds the flash and accessories.
  • AF assist beam works with up to 61-point High Density Reticular AF system
  • There are 15 custom functions and 6 personal functions for maximum customization
  • Optical transmission is available in addition to radio transmission
  • Quick Flash settings speeds up recycle time and flash duration
  • Manual power settings from 1/1 to 1/128 power in 1/3-stop increments
  • Flash color temperature information is automatically transmitted to the camera
  • Automatic power off function
  • Flash exposure compensation from -3 to +3 EV in 1/2 or 1/3 EV steps
  • PC sync port and remote release terminal for off-camera triggering
  • Flash duration of 1.8 ms or less, or 2.3 ms or less in Quick Flash mode
  • Stroboscopic setting from 1-500 Hz, or 1-199 Hz during optical transmission wireless shooting
  • Wireless flash ratio control from 1:8 to 1:1 to 8:1 in ½-stop increments
  • Compatible with ST-E3 Speedlite Transmitter
  • Approximately 100-700 flashes with AA alkaline batteries
  • Locking metal foot
  • Bracket mounting hole
  • Built-in retractable bounce card
  UPC: 013803270891
• 2 x PocketWizard Plus III Transceiver (Black)
  • Canon EOS-1D X Mark II: First Look
  • Canon EOS-1D X Mark II Features
  • Canon EOS-1DX Mark II DSLR Camera: The Mark of Legends
  • Introducing the Canon EOS-1D X Mark II: Video Features
  • Stepping Up to a Canon EOS-1D X Digital SLR Camera
  The black PocketWizard Plus III Transceiver is a highly versatile and robust radio trigger that is compatible with all prior FCC-version PocketWizards, as well as most flash and camera systems. Featuring 32 channels to choose from, this transceiver is simple to use in even the busiest of situations. Wireless remote control is possible through the use of Quad-Zone Triggering, which allows you to manage up to 4 zones of remote PocketWizard-enabled cameras or flashes from one position. Without having to leave camera position, you can activate and deactivate groups of flashes quickly and easily. This transceiver also employ's PocketWizard's Auto-Sensing technology, which instantly allows your device to fluctuate from transmitter to receiver. This technology works directly in line with the Auto-Relay function for a completely remote workflow.

  The efficiency of this transceiver is further extended by allowing up to 1640' transmissions in normal mode, and nearly double with Long Range mode. High speed, continuous shooting is made possible with the High Speed Receive mode, permitting up to 14.5 fps firing at up to 1/250 sec. for focal plane shutter and 1/500 sec. for leaf shutters.

  The design of the Plus III incorporates a side-view LCD screen and touch pad interface for switching between modes, zones, and settings. It connects to any camera featuring a hot shoe and is also compatible with a variety of cables for linking to lighting and other remote systems.
  32 Channels
  • Featuring 16 standard and 16 Quad-Zone Triggering channels, finding an open channel to use is simplified and efficient. Switching between channels is accomplished with one-touch operation.
  Quad-Zone Triggering
  • You can program up to 4 working zones for remote control of flashes. This allows you the ability to wirelessly activate and deactivate your flashes, enabling you to remain in camera position without having to manually adjust lighting setups. This is ideal for using multiple lighting setups and managing remote cameras as needed.
  Auto-Sensing Transceiver
  • When set in TxRx mode, the transceiver is able to instantly switch between transmitter and receiver modes for the greatest amount of flexibility. You can also manually override this and choose to have it act as a dedicated transmitter or receiver.
  Auto-Relay Mode
  • When using 3 PocketWizard radios; you can remotely trigger a camera to fire and trigger a flash simultaneously. Utilizing the Auto-Sensing technology, the transceiver mounted to the camera can instantly receive a signal from an auxiliary transceiver, and then instantly convey the transmission to a remote flash. This provides a simplistic and highly efficient remote workflow.
  Long Range Capability
  • When used in ideal conditions, this transceiver is capable of producing and receiving a signal up to 1640' / 500m away. When conditions are not ideal for a long range transmission, Long Range mode can be used to nearly double the effective range of the signal. There is also Repeater mode, which will repeat the signal several times, increasing the possibility of a successful transmission at long range.
  High Speed Capability
  • When in High Speed Receive mode, this transceiver is capable of triggering cameras or flashes up to 14.5 fps. Normal performance also permits triggering up to 12 fps. It is also capable of sync speeds up to 1/250 sec. for focal plane shutters and 1/500 sec. for leaf shutters.
  Simplified User Interface and Design
  • Clearly displayed on a 1" / 2.5cm backlit LCD, all of the channels, zones, and modes can be configured using a soft-touch keypad. The design of the transceiver also incorporates a side-view LCD for easier viewing and an internal antenna for a less obtrusive appearance.
  Wide Compatibility and Connectability
  • The transceiver is easily attached to most cameras through the hot shoe, with no extraneous cables required. For attaching to remotes and lights, there is an all-in-one sync port for wide compatibility. Cables are included for attaching from miniphone to miniphone, miniphone to phono, and miniphone to PC sync for cameras without a hot shoe. It is also compatible with all PocketWizard transmitters and receivers (of the same frequency) as well as PocketWizard-enabled lighting and metering equipment. The Plus III is powered by 2 x AA batteries and can be kept up to date with firmware updates utilizing the USB port.
  Important Information
  • Units sold in USA use 344.0 MHz for channels 1-16, and 346.5-354.0 MHz for channels 17-32
  • Units sold in Europe use 433.62 MHz for channels 1-16, and 434.22 for channels 17-32
  • USA and Euro models cannot converse with each other
  • USA models may interfere with devices in Europe
  UPC: 893577001811
• Platypod Ultra Plate Camera Support
  • Canon EOS-1D X Mark II: First Look
  • Canon EOS-1D X Mark II Features
  • Canon EOS-1DX Mark II DSLR Camera: The Mark of Legends
  • Introducing the Canon EOS-1D X Mark II: Video Features
  • Stepping Up to a Canon EOS-1D X Digital SLR Camera
  The Ultra Plate Camera Support from Platypod is a 6061-T6 aluminum tripod platform that has a weight capacity of 100 lb and designed for mirrorless or mid-sized cameras. The compact and portable Ultra has a 3/8"-16 male stud for any type of tripod head. Five 3/8"-16 threaded holes can have four stainless-steel spiked feet screwed through the top in any combination to accommodate uneven terrain. Threading through the bottom of the platform utilizes the rubber feet on the opposite side of the spiked feet. Therefore, you're able to place the tripod platform on smooth surfaces and not have the platform slide off or scratch the surface. The Ultra Plate Camera Support also has three countersunk holes to drive nails into a wooden surface and permanently attach the platform for special applications. Additionally, there are three open spaces that the included carabiner can clip into for attaching to a belt or bag. Another means of carrying the Ultra is by running an accessory belt or backpack strap through the slotted belt loops. Meanwhile, the slotted belt loops can also accommodate the 20" cinch strap, so it can attach onto a tree or pole and shoot from an elevated height. UPC: 714983535533
• Platypod Multi Accessory Kit
  • Canon EOS-1D X Mark II: First Look
  • Canon EOS-1D X Mark II Features
  • Canon EOS-1DX Mark II DSLR Camera: The Mark of Legends
  • Introducing the Canon EOS-1D X Mark II: Video Features
  • Stepping Up to a Canon EOS-1D X Digital SLR Camera
  The Multi Accessory Kit from Platypod contains accessories that will help you stabilize and create photographs in combination with compatible Pro, Max, and Ultra tripod kits. In certain lighting situations, a side light is necessary to fill-in the shadows, and create the shot. The 3" long spigot adapter enables you to attach monolights or umbrella adapters to the spigot and onto a Platypod tripod. Moreover, sometimes a smooth surface may not be the ideal spot to place a tripod, but the 4 x 6", 2mm-thick silicone pad prevents the Platypod from slipping off the surface or even scratching it. The 1/2" tall riser with a 1/4"-20 male stud enables you to mount a camera or other device to the tripod without the use of a head. In addition, the anodized aluminum riser gives clearance to smaller tripods heads that would otherwise have its knobs bump into the bottom platform of a Platypod tripod. Also included is a 36" long and 1.5" wide tension strap that has a weight capacity of 100 lb, can loop through a compatible tripod kit, and can wrap and secure the tripod to any tree or pole. Therefore, you gain height instead of photographing from the ground. When the Multi Accessory Kit is not in use, the drawstring pouch keeps all your accessories secure and in one place.
  • The spigot adapter enables you to attach a speedlight or monolight to the Platypod tripods
  • 4 x 6" silicone pad lays under any of the Platypod tripods to prevent slipping or scratching on smooth surfaces
  • 1/2" tall riser lets you attach a camera or other devices directly to a Platypod tripod. The riser also helps to give height, which prevents the head's knobs from bumping into the tripod's platform
  • The 36" long Tension strap allows you to strap any of the Platypod tripods to a freestanding object, such as a tree or pole
  UPC: 714983535526

• EOS-1D X Mark II DSLR Camera (Body Only) vxdvvatqatdyvbxzdvvzuvudawuybdyywvsae
• LP-E19 Battery Pack (2750mAh)
• LC-E19 Battery Charger
• Plug for North America
• EC-C6 Focusing Screen
• Eyecup Eg
• Camera Cover R-F-3
• Packing Cover
• Wide Strap L7
• Connect Cover for LP-E4
• IFC-150U II USB 3.1 Gen 1 Interface Cable for DSLRs
• Canon Digital Solution Disk
• Limited 1-Year Warranty

• EF 200-400mm f/4L IS USM Extender 1.4x Lens

• Manfrotto - MPMXPROC5US Carbon Fiber XPRO Monopod+

• Speedlite 600EX II-RT

• 2 x PocketWizard - Plus III Transceiver (Black)

• Platypod - Ultra Plate Camera Support

• Platypod - Multi Accessory Kit

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Canon EOS-1D X Mark II DSLR Camera (Body Only)

  Lens Mount	Canon EF
  Camera Format	Full-Frame (1x Crop Factor)
  Pixels	Actual: 21.5 Megapixel Effective: 20.2 Megapixel
  Maximum Resolution	5472 x 3648
  Aspect Ratio	3:2
  Sensor Type	CMOS
  Sensor Size	36 x 24 mm
  Image File Format	JPEG, RAW
  Bit Depth	14-Bit
  Image Stabilization	None

  ISO Sensitivity	Auto, 100 to 51200 (Extended: 50 to 409600)
  Shutter Speed	Electronic Front Curtain Shutter 1/8000 to 30 Seconds Bulb Mode
  Metering Method	Evaluative, Partial, Spot
  Exposure Modes	Aperture Priority, Manual, Program, Shutter Priority
  Exposure Compensation	-5 to +5 EV (1/3, 1/2 EV Steps)
  Metering Range	0 to 20 EV
  White Balance	Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten
  Continuous Shooting	Up to 14 fps at 20.2 MP for up to 170 Exposures (Raw Format)
  Interval Recording	None
  Self Timer	2/10-Second Delay
  Mirror Lock-Up	Yes

  Recording Modes	MOV/M-JPEG DCI 4K (4096 x 2160) at 50p/59.94p [800 Mb/s] DCI 4K (4096 x 2160) [500 Mb/s] MOV Full HD (1920 x 1080) at 100p/120p [360 Mb/s] Full HD (1920 x 1080) at 50p/59.94p [180 Mb/s] Full HD (1920 x 1080) at 23.976p/24p/25p/29.97p [90 Mb/s] Full HD (1920 x 1080) at 50p/59.94p [60 Mb/s] Full HD (1920 x 1080) at 23.976p/24p/25p/29.97p [30 Mb/s] MP4 Full HD (1920 x 1080) at 50p/59.94p [60 Mb/s] Full HD (1920 x 1080) at 23.976p/24p/25p/29.97p [30 Mb/s] Full HD (1920 x 1080) at 25p/29.97p [12 Mb/s]
  External Recording Modes	Full HD (1920 x 1080) at 100p/120p Full HD (1920 x 1080) at 50p/59.94p Full HD (1920 x 1080) at 23.976p/24.00p/25p/29.97p Full HD (1920 x 1080) at 25p/29.97p
  Recording Limit	Up to 29 Minutes, 59 Seconds for DCI 4K (4096 x 2160)
  Video Encoding	NTSC/PAL
  ISO Sensitivity	Auto/Manual: 100 to 25600
  Audio Recording	Built-In Microphone (Mono) External Microphone Input
  Audio File Format	AAC, Linear PCM (Stereo)

  Focus Type	Auto and Manual Focus
  Focus Mode	Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	Phase Detection: 61 (41 Cross-Type)
  Autofocus Sensitivity	-3 to +18 EV

  Viewfinder Type	Optical (Pentaprism)
  Viewfinder Eye Point	20 mm
  Viewfinder Coverage	100%
  Viewfinder Magnification	Approx. 0.76x
  Diopter Adjustment	-3 to +1 m
  Monitor Size	3.2"
  Monitor Resolution	1,620,000 Dot
  Monitor Type	Touchscreen LCD

  Built-in Flash	None
  Maximum Sync Speed	1/250 Second
  Flash Compensation	-3 to +3 EV (1/3, 1/2 EV Steps)
  Dedicated Flash System	eTTL
  External Flash Connection	Hot Shoe, PC Terminal

  Memory Card Slot	1 x CompactFlash 1 x CFast
  Connectivity	3.5mm Headphone, 3.5mm Microphone, Canon N3, HDMI C (Mini), USB 3.0
  Wireless	Wi-Fi (Via Adapter)
  GPS	None

  Operating Temperature	23 to 113°F / -5 to 45°C
  Operating Humidity	0 to 85%

  Battery	1 x LP-E19 Rechargeable Lithium-Ion, 11.1 VDC, 2750 mAh (Approx. 1210 Shots) or 1 x LP-E4N Rechargeable Lithium-Ion, 11.1 VDC, 2450 mAh or 1 x LP-E4 Rechargeable Lithium-Ion, 11.1 VDC, 2300 mAh
  Dimensions (W x H x D)	6.2 x 6.6 x 3.3" / 158.0 x 167.6 x 82.6 mm
  Weight	3.37 lb / 1530 g (Body with Battery and Memory)

  Box Dimensions (LxWxH)	9.5 x 8.0 x 7.9"

• Canon EF 200-400mm f/4L IS USM Extender 1.4x Lens

  Focal Length	200 to 400mm
  Maximum Aperture	f/4
  Minimum Aperture	f/32
  Lens Mount	Canon EF
  Format Compatibility	Full-Frame
  Angle of View	12 Rating 50% users recommend this product to others. And what about you? This product has already been rated by 70 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
