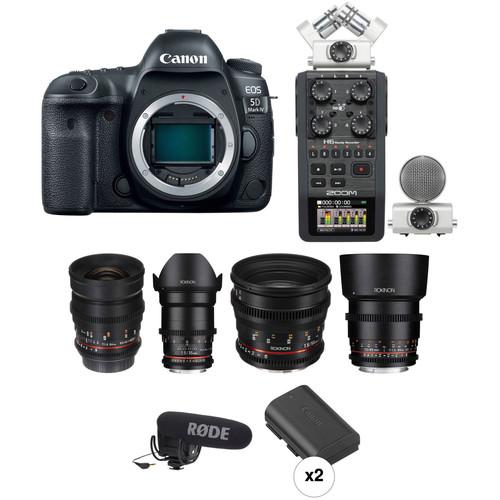

User Manual for Canon EOS 5D Mark IV DSLR Camera with Rokinon Cine Lenses Bundle

• Product category: DSLR Cameras Canon
• Brand: Canon
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Canon DSLR Cameras

Product description

• Canon EOS 5D Mark IV DSLR Camera with Canon Log
  • Official Canon EOS 5D Mark IV Introduction
  • Introducing the Canon EOS 5D Mark IV
  • EOS 5D Mark IV Canon Log Upgrade Details
  • Introducing the Still Features of the Canon EOS 5D Mark IV
  • Canon EOS 5D Mark IV: New AWB Options
  Continuing on in their legacy of powerful workhorse cameras, Canon has released the 5D Mark IV DSLR which is an outstanding still photography option and an able 4K-capable video machine. Appealing to filmmakers is Canon Log, which is offered pre-installed on this model. This gamma setting helps users capture images with an expanded dynamic range of 800%, or 12 stops. Also, it provides latitude for working with the footage in post-production during color grading. Along with this function is a View Assist setting, which helps users see a more accurate representation of the footage when viewing on the rear LCD or an external display.

  This multimedia maven offers a newly developed 30.4MP full-frame CMOS sensor paired with the DIGIC 6+ image processor in order to balance fine detail and resolution with low-light performance and sensitivity. It is able to work within a native range of ISO 100-32000, which can then be expanded to an impressive ISO 50-102400, for sharp, low-noise images in a variety of conditions. Along with these improvements to image quality, users will enjoy a performance boost across the board with an enhanced AF system, built-in Wi-Fi, NFC, and GPS, and much more.

  In order to deliver detailed images quickly and effectively the 5D Mark IV leverages the power of the DIGIC 6+ image processor, which can handle up to 7 frames per second during continuous shooting. It also uses a 150,000-pixel RGB+IR metering sensor to evaluate the scene and subjects for accurate exposures under a variety of different lighting conditions. An improved 61-point High Density Reticular AF furthers the camera's speed by tracking and locking onto subjects quickly and accurately for tack sharp photos. A new AF area select button is now available as well for near immediate access to this setting.

  Video benefits from the addition of Dual Pixel CMOS AF and Movie Servo AF to smoothly rack focus during a shot. Shooters can even make use of the 3.2" 1.62m-dot touchscreen LCD to simply tap to adjust the focus point. Furthermore, now that the camera has DCI 4K (4096 x 2160) video recording at up to 30 fps, users can snag 8.8MP stills from the video for an even faster capture option. Tied into the Dual Pixel sensor architecture is a brand-new feature for Canon: Dual Pixel RAW, which allows for fine tuning of certain image parameters, including bokeh shift and focus micro adjustment, after the image is taken.

  The body has been further refined for comfort and ease of access, as well as durability and weather resistance. The Canon N3 remote port has been relocated to the front of the camera body and they have added both GPS and Wi-Fi with NFC to make this model a connected camera.
  30.4MP Full-Frame CMOS Sensor and DIGIC 6+ Image Processor
  • In line with previous members of the main 5D series, the Mark IV attempts to balance high resolution with low-light performance with a newly developed 30.4MP full-frame CMOS sensor. This provides a beneficial increase in overall resolution without compromising on sensitivity. Additionally, thanks to the DIGIC 6+ image processor it is paired with, it offers impressive performance within a native range of ISO 100-32000, which can be expanded to ISO 50-102400.

    Versatility is key with the 5D, as it needs to be able to tackle landscapes and weddings with equal ease. By using a 150,000-pixel RGB+IR metering sensor shooters will be able to more comfortably rely on the camera to capture difficult scenes. This sensor also has face detection as well as flicker detection which can ensure proper exposure in less-than-ideal lighting situations. Along with this, the camera offers an improved continuous shooting rate of 7 fps, making it a great option for events and action.
  High Density Reticular AF and Dual Pixel CMOS AF Systems
  • Ensuring your subject is tack sharp, the 5D Mark IV incorporates an enhanced High Density Reticular AF system, which offers 61 phase-detect points, with all points sensitive to f/8 and 41 of which are cross-type. The center point can function down to -3 EV for working in extremely dim lighting. Compared to previous versions, this sensor has expanded vertical coverage of 24% on the peripherals and 8% in the center in order to better track and locate subjects in the frame.

    In addition to advanced tracking and focusing while using the optical finder for stills, Live View and video can now use Dual Pixel CMOS AF on the actual imaging sensor. This offers about 80% coverage of phase-detection autofocus for faster and more accurate focusing in these modes. It is ideal for video as users will enjoy smoother rack focusing without the downsides normally encountered with contrast-based systems. Also, this works well with the touchscreen functions, allowing shooters to just tap to adjust focus.
  DCI 4K Video Recording and Canon Log Gamma
  • Designed for both professional stills shooting and video recording, the 5D Mark IV supports DCI 4K (4096 x 2160) resolution recording at up to 30 fps at 500 Mbps, along with Full HD 1080p shooting at 60 fps and HD 720p at 120 fps for slow motion playback. When recording in-camera, 4K video has 4:2:2 sampling and 8-bit color depth, while Full HD 1080p footage has 4:2:0 sampling. Uncompressed Full HD 1080p video can also be saved via HDMI to an optional external recorder with 4:2:2 color sampling. 4K video is recorded using a central 4096 x 2160 area of the sensor at a 1.74x crop in order to record video with an ideal 1:1-pixel sampling ratio, while Full HD recording makes use of the entire full frame.

    This version of the 5D offers Canon Log pre-installed, allowing users to capture flat images with an improved dynamic range of 800%, or 12 stops. This function makes it easier to match cameras in post-production as well as provides the most latitude and potential for color grading. For monitoring, a View Assist function is available, which emulates a graded look for more accurate viewing on the camera's LCD. Canon does provide LUTs to make post-production easier with options for Canon Log 10 to Wide DR that converts the footage to Wide Dynamic Range Gamma or Canon Log 10 to ITU-R BT.709, which converts the image to a more conventional Rec. 709 color space.

    Audio can be recorded using the on-board stereo microphone or an optional external mic can also be used via the 3.5mm mic jack. Real time audio monitoring is possible, too, via the 3.5mm headphone jack. The 4K video recording also avails the ability to take 8.8MP still frame grabs during playback on the rear touchscreen and save them as single images.
  Dual Pixel RAW
  • First implemented here on the 5D Mark IV, Dual Pixel RAW allows photographers to record all the information the sensor's unique pixel architecture can deliver, providing a way for fine adjustments to be made after the image is taken. These adjustments include focus fine tuning that can help you ever-so-slightly adjust the focus point to bring out extra details, shift bokeh around for improved composition, and reduce the impact of ghosting on your photos. This requires the use of Canon's Digital Photo Professional 4.5 software.
  Body Design
  • • A large 3.2" 1.62m-dot Clear View II LCD monitor is available and features an anti-reflective design for bright, vivid image playback and live view shooting, and its touchscreen interface can be used for intuitive touch-to-focus control and adjusting settings in the menus.
    • A dedicated AF mode selection button located beneath the rear joystick offers another avenue for accessing settings, allowing for fast, intuitive access to commonly changed options.
    • Dual CompactFlash and SD memory card slots allow you to extend your file saving capabilities by permitting overflow recording or in-camera file type separation while shooting.
    • An Intelligent Viewfinder II uses a pentaprism design and offers a bright means for viewing. When using the viewfinder, AF points are highlighted in red for greater visibility in low-light conditions, and the finder can also be configured to display a range of other shooting aids, such as an electronic level, grid, flicker detection, white balance, metering mode, AF information, and other settings.
    • A Mirror Vibration Control System helps to minimize mechanical vibrations in order to better ensure sharpness during long exposures or fast continuous shooting bursts.
    • A robust magnesium alloy body design is both dust- and weather-sealed to permit working in harsh environments.
  Other Camera Features
  • • A built-in GPS module allows you to geotag imagery in-camera as well as auto time sync with the Universal Time Code via satellites. This module is compatible with American GPS, Russian GLONASS, and Japanese quasi-zenith Michibiki satellites for a wide coverage of support.
    • Digital Lens Optimizer technology compensates for a range of optical defects from various lenses, including chromatic aberration, distortion, peripheral brightness, and diffraction, and the camera can store lens data in order to avoid having to re-register lenses prior to each use. The camera can handle this process in real time, delivering JPEGs with the corrections already applied.
    • A built-in intervalometer permits the creation of time-lapse imagery and supports recording 1-99 consecutive frames in pre-selected intervals from 1 second to 99 hours 59 minutes and 59 seconds. Users can also choose to set the camera to unlimited frames.
    • Built-in Wi-Fi and NFC connectivity enable wireless sharing, control, and image transfer with a compatible smart device as well as the CS100 Connect Station.
  UPC: 660685172982
• Rokinon 24mm T1.5 Cine DS Lens for Canon EF Mount
  • Official Canon EOS 5D Mark IV Introduction
  • Introducing the Canon EOS 5D Mark IV
  • EOS 5D Mark IV Canon Log Upgrade Details
  • Introducing the Still Features of the Canon EOS 5D Mark IV
  • Canon EOS 5D Mark IV: New AWB Options
  Utilizing a multi-layer coating process for consistent color rendition from lens to lens the Rokinon 24mm T1.5 Cine DS Lens answers the challenge of assembling a set of lenses over time. The lens comes in a Canon EF Mount and features industry standard geared focus and iris rings that share common position with other Rokinon Cine DS lenses. To aid focus pullers who have to work both sides of the lens, the aperture and focus scales are marked on both sides of the lens.

  This 24mm lens produces a 84.1° FOV when used with full-frame cameras. Hybrid aspherical lenses render sharply defined images with a minimum of distortion and chromatic aberrations, with a minimum focus distance of just under 10" from the lens. A removable petal shaped lens hood provides flare protection when shooting without a matte box, the lenses threaded front accepts a 77mm filter ring.

  Please note that some cameras may require that Shutter Lock be disengaged when using this lens.
  • 24mm lens with approximate angle of view of:
    Full-Frame: 84.1°
    APS-C: 57.6°
  • Ultra Multi Coated lenses minimize flare and ghosting, and the lenses are color matched to a standard eliminating the need to acquire an entire set of lenses at the same time.
  • ED, extra-low dispersion glass, helps reduce chromatic aberration and can improve contrast and color saturation.
  • Industry-standard gearing for focus and aperture rings. Each lens in the Rokinon DS series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.
  • "De-clicked" aperture ring for smooth iris pulls.
  • A minimum focusing distance of 9.8" allows you to get up close to your subject.
  • A removable petal-type lens hood provides flare protection without a matte box.
  UPC: 084438763225
• Rokinon 35mm T1.5 Cine DS Lens for Canon EF Mount
  • Official Canon EOS 5D Mark IV Introduction
  • Introducing the Canon EOS 5D Mark IV
  • EOS 5D Mark IV Canon Log Upgrade Details
  • Introducing the Still Features of the Canon EOS 5D Mark IV
  • Canon EOS 5D Mark IV: New AWB Options
  Utilizing a multi-layer coating process for consistent color rendition from lens to lens the Rokinon 35mm T1.5 Cine DS Lens answers the challenge of assembling a set of lenses over time. The lens comes in Canon EF Mount and features industry standard geared focus and iris rings that share common position with other Rokinon Cine DS lenses. To aid focus pullers who have to work both sides of the lens, the aperture and focus scales are marked on both sides of the lens.

  This 35mm lens produces a 63.1° angle-of-view when used with a full-frame sensor camera or a 35mm SLR. Hybrid aspherical lenses render sharply defined images with a minimum of distortion and chromatic aberrations, with a minimum focus distance of just under 12" from the lens. A removable petal shaped lens hood provides flare protection when shooting without a matte box, the lenses threaded front accepts a 77mm filter ring.

  Please note that some cameras may require that Shutter Lock be disengaged when using this lens.
  • Ultra Multi Coated lenses minimize flare and ghosting, and the lenses are color matched to a standard eliminating the need to acquire an entire set of lenses at the same time.
  • Industry-standard gearing for focus and aperture rings. Each lens in the Rokinon DS series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.
  • "Declicked" aperture ring for smooth iris pulls.
  • A minimum focusing distance of 12" allows you to get up close to your subject.
  • A removable petal-type lens hood provides flare protection without a matte box.
  • The lens opens up to T1.5, providing the capability for low light shooting or creating extremely shallow depth of field.
  UPC: 084438763270
• Rokinon 50mm T1.5 AS UMC Cine DS Lens for Canon EF Mount
  • Official Canon EOS 5D Mark IV Introduction
  • Introducing the Canon EOS 5D Mark IV
  • EOS 5D Mark IV Canon Log Upgrade Details
  • Introducing the Still Features of the Canon EOS 5D Mark IV
  • Canon EOS 5D Mark IV: New AWB Options
  The 50mm T1.5 AS UMC Cine DS Lens for Canon EF Mount from Rokinon is a fast manual focus prime lens. It provides a very fast maximum aperture of T1.5 for effective low light capture and shallow depth of field control and an 8 blade iris for attractive bokeh. Optimized for cinema and video applications, the focus and aperture control rings are outfitted with industry standard gearing, which provides an interface for working with a traditional follow focus. The aperture control ring has also been de-clicked, which enables smooth iris pulls. In addition, bright aperture and distance markings are printed on the lens barrel facing laterally to facilitate easier control by a focus puller.The 50mm has a minimum focus distance of 1.5'. Internal focusing minimizes the effects of lens breathing, which insures a more consistent angle-of-view when adjusting focus. The lens is composed of 9 elements in 6 groups, including one aspherical element and one hybrid aspherical element to reduce aberrations. In addition, a lens multi-coating helps to improve light transmission reducing flare and ghosting. The filter thread diameter is 77mm.With this 50mm lens, Rokinon introduces the DS series of cinema lenses, unifying their cine lenses in more than just name. Each of the DS branded lenses will offer the same alignment of their geared focus and aperture rings so that follow focus and other rig accessories won't need re-adjustment when swapping lenses. Also, each DS lens is tested to be color matched with the other lenses in the series and provide the same color and contrast when shooting video. Lastly, the lenses are marked with focusing scales on each side of the barrel for easier adjustment from either side of the camera.
  • Standard length manual focus prime lens for EF mount cameras.
  • Functional as still photo lens but optimized for cinema and video shooting with geared aperture and focus rings, de-clicked aperture for smooth exposure transitions and laterally printed aperture and distance markings. The 50mm T1.5 is part of the DS series of cine lenses, sharing characteristics and features that unify the series and make it easier for users to swap out lenses when shooting video. Each DS lens provides aligned focus and aperture rings so that readjustment of the follow focus is not necessary when switching lenses. Also each lens has been tested to match color and contrast for a consistent look and less potential post-processing. Finally, all DS lenses print focus scales on each side of the lens barrel for ease of use from both sides of the camera.
  • Very fast T1.5 maximum aperture for effective low light capture and shallow depth of field.
  • Internal focusing system with 9 lens elements in 6 groups.
  • One aspherical and one hybrid aspherical lens element control aberrations and improve sharpness throughout the frame.
  • Lens multi-coating improves light transmission and reduces flare and ghosting.
  • Minimum focus distance of 1.5'
  • Filter thread diameter of 77mm
  UPC: 084438763324
• Rokinon 85mm T1.5 Cine DS Lens for Canon EF Mount
  • Official Canon EOS 5D Mark IV Introduction
  • Introducing the Canon EOS 5D Mark IV
  • EOS 5D Mark IV Canon Log Upgrade Details
  • Introducing the Still Features of the Canon EOS 5D Mark IV
  • Canon EOS 5D Mark IV: New AWB Options
  Utilizing a multi-layer coating process for consistent color rendition from lens to lens the Rokinon 85mm T1.5 Cine DS Lens answers the challenge of assembling a set of lenses over time. The lens comes in Canon EF Mount and it features industry standard geared focus and iris rings that share common position with other Rokinon Cine DS lenses. To aid focus pullers who have to work both sides of the lens, the aperture and focus scales are marked on both sides of the lens.

  This 85mm lens produces a 28.3° angle-of-view when used with a full-frame sensor camera or a 35mm SLR. Hybrid aspherical lenses render sharply defined images with a minimum of distortion and chromatic aberrations, with a minimum focus distance of 3'6" from the lens. A removable lens hood provides flare protection when shooting without a matte box and the lens's threaded front accepts 72mm filter rings.
  • Ultra Multi Coated lenses minimize flare and ghosting, and the lenses are color matched to a standard eliminating the need to acquire an entire set of lenses at the same time.
  • Industry-standard gearing for focus and aperture rings. Each lens in the Rokinon DS series share common focus and iris gear ring positions, which speeds up lens changes as accessories such as follow focus units or iris motors don't have to be re-positioned.
  • "Declicked" aperture ring for smooth iris pulls.
  • A removable lens hood provides flare protection without a matte box.
  • The lens opens up to T1.5, providing the capability for low light shooting or creating extremely shallow depth of field.
  UPC: 084438763379
• Rode VideoMic Pro with Rycote Lyre Shockmount
  • Official Canon EOS 5D Mark IV Introduction
  • Introducing the Canon EOS 5D Mark IV
  • EOS 5D Mark IV Canon Log Upgrade Details
  • Introducing the Still Features of the Canon EOS 5D Mark IV
  • Canon EOS 5D Mark IV: New AWB Options
  The VideoMic Pro with Rycote Lyre Shockmount from Rode is a supercardioid condenser shotgun microphone that terminates in a 1/8" stereo mini-jack (dual mono), includes an integrated shockmount, and an integrated foam windscreen. It can be used to capture audio for camcorders, DSLR, and portable recorders as a source of primary and reference audio. The VideoMic Pro has been upgraded from earlier models with a 1/2" condenser capsule that provides broadcast-quality audio. Its 1/8" stereo mini-jack connector (outputting the mono signal to both left and right channels) delivers low self-noise of just 14 dB. A supercardioid polar pattern ensures that surrounding audio is minimized, and your recording is focused on the subject in front of the camera. In addition, the Rycote Lyre-based shockmount is built from a single piece of hard-wearing thermoplastic. It separates the VideoMic Pro capsule and electronics from its mount, providing isolation from external physical factors that may cause unwanted rumble and vibrations in the microphone. This suspension will never wear out, sag or snap. Easily accessible on the rear face of the microphone are the power, the filter, the level controls and a selectable high-pass filter at 80 Hz. The filter will prevent low-end noise such as air conditioners and traffic from being recorded. Furthermore, the -10 dB (or pad) is suitable when recording loud sound sources such as live music, motorsports, or interviews, where the subject is very close to the camera. There is a +20 dB level boost designed for use with DSLR cameras, so the user can reduce the camera's preamp level, effectively reducing the amount of noise generated by the camera's audio circuitry. The Rode VideoMic Pro uses a standard sized shoe-mount for on-camera use and features a 3/8" thread in the base of the mount for easy boom-pole mounting. The VideoMic Pro is battery powered and provides over 70-hours recording from a single 9V battery.
  • 9V battery powered with over 70 hours use (alkaline)
  • Camera shoe mount with 3/8" thread for easy boom-pole mounting
  • Compact form factor is only 6.7" length
  • Limited 10-year warranty with online registration
  UPC: 698813004195
• 2 x Canon LP-E6N Lithium-Ion Battery Pack (7.2V, 1865mAh)
  • Official Canon EOS 5D Mark IV Introduction
  • Introducing the Canon EOS 5D Mark IV
  • EOS 5D Mark IV Canon Log Upgrade Details
  • Introducing the Still Features of the Canon EOS 5D Mark IV
  • Canon EOS 5D Mark IV: New AWB Options
  Power your EOS DSLR Camera with this LP-E6N Lithium-Ion Battery Pack from Canon. It is compatible with the LC-E6 and LC-E6E chargers and offers a capacity of 1865mAh with an output voltage of 7.2V. The battery is supplied with select cameras and is offered here as a spare or replacement part.
  Compatible Cameras
  • EOS 7D Mark II
    EOS 7D
    EOS 5DS
    EOS 5DS R
    EOS 5D Mark IV
    EOS 5D Mark III
    EOS 5D Mark II
    EOS 60D
    EOS 60Da
    EOS 70D
    EOS 80D
    EOS 6D
    EOS 6D Mark II
  UPC: 013803240054
• Zoom H6 Handy Recorder with Interchangeable Microphone System
  • Official Canon EOS 5D Mark IV Introduction
  • Introducing the Canon EOS 5D Mark IV
  • EOS 5D Mark IV Canon Log Upgrade Details
  • Introducing the Still Features of the Canon EOS 5D Mark IV
  • Canon EOS 5D Mark IV: New AWB Options
  The H6 Handy from Zoom is a portable handheld recorder and USB audio interface that features an interchangeable microphone system. The recorder ships with both XY and mid-side microphone modules, foam windscreen, four AA batteries, USB cable, Cubase LE and a hard carrying case. Optional module attachments can be purchased for expanded functionality.The H6 Handy allows for versatile recording techniques, giving you several options right out of the box. The included XYH-6 XY microphone module is made up of two matched unidirectional condenser microphones and is intended for capturing accurate, phase-correct stereo audio. The module allows you to adjust the angle of the two mics to either 90 degrees, or for a wider stereo image, 120 degrees.For situations that call for audio that allows for width control over your stereo image after it has been recorded, the XY module can be switched out for the MSH-6 mid-side stereo microphone module. Contrary to the appearance of the capsule, the mid-side module actually contains two elements positioned on top of one another: a unidirectional mic which faces forward (mid), and a bi-directional mic set perpendicular to it (side). In addition to providing you the ability to adjust the width of your stereo audio after it has been recorded, MS recording also provides true mono compatibility, a factor that comes into play in situations such as television production.In addition, the H6 is equipped with four XLR/TRS combo inputs for connecting external mic/line sources such as microphones or mixers. All four inputs and each of the mic modules are equipped with their own preamps with dedicated gain knobs that are easily accessible whether you have the unit mounted to your camera, or strapped over your shoulder. Also, each of the four combo inputs has its own -20dB pad.The recorder allows you to record up to six channels at once and stores them to SDXC memory cards up to 128GB in size. It also features a backup-record option that tracks a duplicate of the left and right channels with -12db input gain. This means that if you find that you have tracked your main audio too loud and that distortion has occurred in your audio, you will have a backup stereo mix with 12 db more headroom as a fail-safe. The unit also doubles as a 6-in/2-out USB audio interface and it can be used with your computer running the included Cubase LE or other DAW software.

  Main Features

  • Large full-color angled LCD display that allows visibility whether mounted on a camera or strapped over shoulder
  • XYH-6 X/Y capsule also provides a secondary input for connecting an external mic or line level signal via stereo 1/8" mini jack
  • Optional wired controllers for remote transport controls
  • Optional hairy windscreen offers improved wind diffusion
  • Built-in speaker, located on the underside of the unit, for fast monophonic monitoring of the recorded signal without the need to make any connections
  • Interchangeable input capsules that can be swapped out as easily as the lens of a camera
  • Six-track simultaneous recording
  • Four mic/line inputs with XLR/TRS combo connectors
  • Physical gain control knobs and -20dB pads for each input
  • Phantom power for all main inputs: +12/+24/+48V
  • Records directly to SD, SDHC and SDXC cards up to 128GB
  • Up to 24-bit/96kHz audio in BWF-compliant WAV or a variety of MP3 formats
  • Auto-record, pre-record and backup-record functions
  • Multitrack to stereo internal mixdown
  • Independent monitor and playback mixes
  • Graphical VU meters
  • Voice memo and up to 99 marks per recording
  • Overdubbing, up to 99 takes
  • Built-in effects, including low-cut filtering, compression and limiting
  • Onboard MS decoding
  • Normalize, Divide and Trim editing
  • Chromatic tuner and metronome
  • Loop Playback with user-defined start and stop points
  • Variable playback speed, from 50% to 150%
  • Variable pitch per track without affecting playback speed
  • USB port for data exchange to and from computer
  • Multichannel and stereo USB audio interface for PC/Mac/iPad
  • Camera strap mounts
  • Mounts directly to DSLR or camcorder with optional HS-01 Hot Shoe Mount adapter
  • Accepts standard AA alkaline or NiMH rechargeable batteries
  • Over 20 hours of operation with 4 AA alkaline batteries
  UPC: 884354012175

• EOS 5D Mark IV DSLR Camera with Canon Log rutuuybztubuezde
• LP-E6N Lithium-Ion Battery Pack (7.2V, 1865mAh)
• LC-E6 Charger for LP-E6 Battery Pack
• Eyecup Eg
• RF-3 Body Cap for Canon EOS Cameras
• IFC-150U II USB 3.1 Gen 1 Interface Cable for DSLRs
• Cable Protector
• Wide Neck Strap
• Software CD-ROM
• Limited 1-Year Warranty

• Rokinon - 24mm T1.5 Cine DS Lens for Canon EF Mount

• Rokinon - 35mm T1.5 Cine DS Lens for Canon EF Mount

• Rokinon - 50mm T1.5 AS UMC Cine DS Lens for Canon EF Mount

• Rokinon - 85mm T1.5 Cine DS Lens for Canon EF Mount

• Rode - VideoMic Pro with Rycote Lyre Shockmount

• 2 x LP-E6N Lithium-Ion Battery Pack (7.2V, 1865mAh)

• Zoom - H6 Handy Recorder with Interchangeable Microphone System

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Canon EOS 5D Mark IV DSLR Camera with Canon Log

  Lens Mount	Canon EF
  Camera Format	Full-Frame (1x Crop Factor)
  Pixels	Actual: 31.7 Megapixel Effective: 30.4 Megapixel
  Maximum Resolution	6720 x 4480
  Aspect Ratio	1:1, 3:2, 4:3, 16:9
  Sensor Type	CMOS
  Sensor Size	36 x 24 mm
  Image File Format	JPEG, RAW
  Bit Depth	14-Bit
  Image Stabilization	None

  ISO Sensitivity	Auto, 100 to 32000 (Extended: 50 to 102400)
  Shutter Speed	Electronic Front Curtain Shutter 1/8000 to 30 Seconds Bulb Mode
  Metering Method	Evaluative, Partial, Spot
  Exposure Modes	Aperture Priority, Auto, Manual, Shutter Priority
  Exposure Compensation	-5 to +5 EV (1/3 EV Steps)
  Metering Range	0 to 20 EV
  White Balance	Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten
  Continuous Shooting	Up to 7 fps at 30 MP for up to 21 Exposures (Raw Format) Up to 7 fps at 30 MP for Unlimited Exposures
  Interval Recording	Yes
  Self Timer	2/10-Second Delay
  Mirror Lock-Up	Yes

  Recording Modes	M-JPEG 4:2:2 8-Bit DCI 4K (4096 x 2160) at 23.976p/24p/29.97p [500 Mb/s] MOV Full HD (1920 x 1080) at 59.94p [180 Mb/s] Full HD (1920 x 1080) at 23.976p/24p/29.97p [90 Mb/s] Full HD (1920 x 1080) at 59.94p [60 Mb/s] Full HD (1920 x 1080) at 23.976p/24p/29.97p [30 Mb/s] HD (1280 x 720) at 120p [160 Mb/s] MP4 Full HD (1920 x 1080) at 59.94p [60 Mb/s] Full HD (1920 x 1080) at 23.976p/24p/29.97p [30 Mb/s] Full HD (1920 x 1080) at 29.97p [12 Mb/s]
  External Recording Modes	Full HD (1920 x 1080) at 59.94p Full HD (1920 x 1080) at 23.976p/24.00p/29.97p Full HD (1920 x 1080) at 29.97p HD (1280 x 720) at 120p
  Recording Limit	Up to 29 Minutes, 59 Seconds for DCI 4K (4096 x 2160)
  Video Encoding	NTSC/PAL
  ISO Sensitivity	Auto: 100 to 32000
  Audio Recording	Built-In Microphone (Mono) External Microphone Input
  Audio File Format	AAC, Linear PCM (Stereo)

  Focus Type	Auto and Manual Focus
  Focus Mode	Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	Phase Detection: 61 (41 Cross-Type)
  Autofocus Sensitivity	-3 to +18 EV

  Viewfinder Type	Optical (Pentaprism)
  Viewfinder Eye Point	21 mm
  Viewfinder Coverage	100%
  Viewfinder Magnification	Approx. 0.71x
  Diopter Adjustment	-3 to +1 m
  Monitor Size	3.2"
  Monitor Resolution	1,620,000 Dot
  Monitor Type	Touchscreen LCD

  Built-in Flash	None
  Maximum Sync Speed	1/200 Second
  Flash Compensation	-3 to +3 EV (1/3, 1/2 EV Steps)
  Dedicated Flash System	eTTL
  External Flash Connection	Hot Shoe, PC Terminal

  Memory Card Slot	1 x SD/SDHC/SDXC 1 x CompactFlash
  Connectivity	3.5mm Headphone, 3.5mm Microphone, Canon N3, HDMI C (Mini), USB 3.0
  Wireless	Wi-Fi
  GPS	Yes

  Operating Temperature	32 to 104°F / 0 to 40°C
  Operating Humidity	0 to 85%

  Battery	1 x LP-E6N Rechargeable Lithium-Ion, 7.2 VDC, 1865 mAh
  Dimensions (W x H x D)	5.9 x 4.6 x 3.0" / 150.7 x 116.4 x 75.9 mm
  Weight	1.76 lb / 800 g (Body Only)

  Box Dimensions (LxWxH)	9.8 x 7.3 x 5.9"

• Rokinon 24mm T1.5 Cine DS Lens for Canon EF Mount

  Focal Length	24mm
  Lens Mount	Canon EF
  Format	Full Frame
  Maximum T-Stop	T1.5
  Minimum T-Stop	T22
  Diagonal Angle of View	Super35: 61.8° Full Frame: 84.1°
  Minimum Focus Distance from Image Plane	9.8" / 25 cm
  Optical Design	13 Elements in 12 Groups
  Iris Blades	8
  Dimensions (W x H)	3.27 x 3.27" / 83.1 x 83.1 mm
  Length	3.84" / 97.5 mm
  Weight	21.7 oz / 615.0 g

  Box Dimensions (LxWxH)	7.2 x 5.2 x 5.2"

• Rokinon 35mm T1.5 Cine DS Lens for Canon EF Mount

  Focal Length	35mm
  Lens Mount	Canon EF
  Format	Full Frame
  Maximum T-Stop	T1.5
  Minimum T-Stop	T22
  Diagonal Angle of View	Super35: 40.8° Full Frame: 63.1°
  Minimum Focus Distance from Image Plane	12" / 31 cm
  Optical Design	12 Elements in 10 Groups
  Iris Blades	8
  Length	4.38" / 111.5 mm
  Weight	24.7 oz / 700.0 g

  Box Dimensions (LxWxH)	7.6 x 5.2 x 5.1"

• Rokinon 50mm T1.5 AS UMC Cine DS Lens for Canon EF Mount

  Focal Length	50mm
  Lens Mount	Canon EF
  Format	Full Frame
  Maximum T-Stop	T1.5
  Minimum T-Stop	T22
  Diagonal Angle of View	Full Frame: 46.2°
  Minimum Focus Distance from Image Plane	1.5' / 0.45 m
  Optical Design	9 Elements in 6 Groups
  Iris Blades	8
  Gear MOD & Pitch	Focus: 0.8 MOD / 32 Pitch Iris: 0.8 MOD / 32 Pitch
  Filter Thread	77 mm
  Dimensions (W x H)	3.2 x 3.2" / 81.3 x 81.3 mm
  Length	2.9" / 74.7 mm
  Weight	20.3 oz / 575.0 g

  Box Dimensions (LxWxH)	6.2 x 5.2 x 5.1"

• Rokinon 85mm T1.5 Cine DS Lens for Canon EF Mount

  Focal Length	85mm
  Lens Mount	Canon EF
  Format	Full Frame
  Maximum T-Stop	T1.5
  Minimum T-Stop	T22
  Diagonal Angle of View	Super35: 17.7° Full Frame: 28.3°
  Minimum Focus Distance from Image Plane	42" / 106.7 cm
  Optical Design	9 Elements in 7 Groups
  Iris Blades	8
  Length	2.94" / 74.7 mm
  Weight	20.5 oz / 580.0 g

  Box Dimensions (LxWxH)	6.3 x 5.2 x 5.2"

• Rode VideoMic Pro with Rycote Lyre Shockmount

  Acoustic Principle	Line Gradient Condenser
  Directional Pattern	Supercardioid
  Frequency Response	40 Hz - 20 kHz (selectable HPF @80 Hz)
  Sensitivity	-32 dB re 1 V/Pa (20 mV @ 94 dB SPL) ± 2 dB @ 1 kHz
  Output Impedance	200 Ohms
  Equivalent Noise	14 dB
  Maximum Output	+6.9 dBu (@ 1% THD into 1 kOhms)
  Dynamic Range	120 dB (as per IEC 651)
  Maximum SPL	134 dB (@ 1 kHz, 1% THD into 1 kOhms load)
  Signal-to-Noise Ratio	80 dB
  Battery Type	1 x 9 V alkaline battery (current 7.8 mA)
  Level Control	Three-position (-10 dB, 0, +20 dB)
  High Pass Filter	Two-step (flat, 80 Hz)
  Output Connectors	1 x 1/8" (3.5 mm) stereo mini-jack (dual mono)
  Low Frequency Roll-Off	80 Hz High Pass Filter
  Dimensions (HxWxL)	2.95 x 3.93 x 6.69" (75 x 100 x 170 mm)
  Weight	3 oz (85g)

  Box Dimensions (LxWxH)	8.425 x 5.118 x 2.992"

• 2 x Canon LP-E6N Lithium-Ion Battery Pack (7.2V, 1865mAh)

  Amp-Hours	1865 mAh
  Chemistry	Lithium-Ion
  Output Voltage	7.2 VDC
  Dimensions (W x H x D)	2.2 x 0.8 x 1.5" / 5.6 x 2.0 x 3.8 cm
  Weight	2.8 oz / 79.4 g

  Box Dimensions (LxWxH)	6.9 x 2.3 x 1.0"

• Zoom H6 Handy Recorder with Interchangeable Microphone System

  Number of Tracks	WAV: 6 MP3: 2
  Max Sample Rate/Resolution	96 kHz / 24-Bit
  Microphone	Interchangeable Cardioid Condenser Stereo Pair, X/Y Configuration Interchangeable Cardioid Condenser Stereo Pair, Mid/Side Configuration
  Built-In Speaker	Yes, 400 mW Mono
  Display	Color LCD
  Memory Card Support	SD (16 MB to 2 GB) SDHC (4 to 32 GB) SDXC (64 to 128 GB)

  Audio File Formats	MP3, WAV
  Sample Rates	WAV: 44.1 / 48 / 96 kHz MP3: 44.1 kHz
  Bit Depth	16/24-Bit
  Bit Rates	48 to 320 kb/s
  Timecode	No

  Analog I/O	4 x Combo XLR / 1/4" TRS Input 1 x 1/8" / 3.5 mm TRS Line/Mic Input 1 x 1/8" / 3.5 mm TRS Line Output 1 x 1/8" / 3.5 mm TRS Headphone Output
  Phantom Power	+12 / 24 / 48 V (Selectable on Individual Inputs)
  Plug-In Power	Yes, 2.5 V On XYH-6 Mic/Line In
  Host Connection	1 x Mini-USB (USB 2.0)

  Gain Range	Up to 55.5 dB X/Y Mic Capsule: Up to 46.5 dB Mid-Side Mic Capsule: Up to 42.5 dB
  Max Input Level	Inputs: +22 dBu (Pad On)
  Headphone Output Power	20 mW per Channel into 32 Ohms
  Impedance	Inputs: 6.8 kOhms Mic/Line Inputs: 2 kOhms
  EIN	≤-120 dBu
  Microphone Sensitivity	-41 dB/Pa (X/Y) -37 dB/Pa (Mid/Side-Unidirectional) -39 dB/Pa (Mid/Side-Bidirectional)
  Microphone Max SPL	136 dB SPL (X/Y) 120 dB SPL (Shotgun-Unidirectional) 122 dB SPL (Shotgun-Bidirectional)

  Power Options	Batteries, USB Bus Power, AC/DC Power Adapter
  Battery Type	4 x AA
  Approximate Battery Life	20 Hours (Alkaline)
  AC/DC Power Adapter	5 VDC at 1 A (Not Included) Zoom AD-17

  Dimensions	3.0 x 6.0 x 1.9" / 77.8 x 152.8 x 47.8 mm (Recorder) 3.1 x 2.4 x 1.8" / 78.9 x 60.2 x 45.2 mm (X/Y Mic) 2.3 x 2.6 x 1.6" / 58.0 x 67.6 x 42.1 mm (Shotgun Mic)
  Weight	9.9 oz / 280.0 g (Recorder) 4.6 oz / 130.0 g (X/Y Mic) 3.0 oz / 85.0 g (Shotgun Mic)

  Box Dimensions (LxWxH)	10.7 x 8.25 x 3.4"

Rating

Discussion
