User manual
Canon EOS 5D Mark IV with

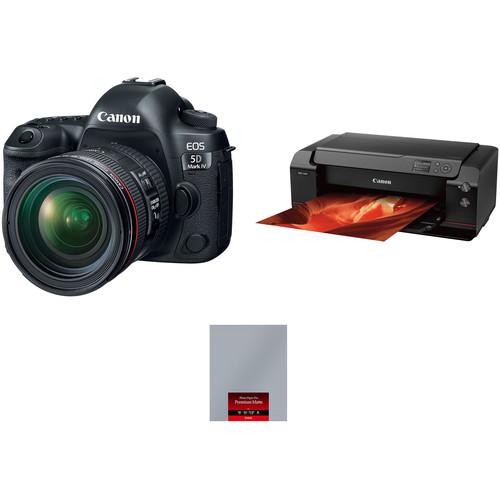

User Manual for Canon EOS 5D Mark IV with 24-70mm f 4L Lens and Inkjet Printer Kit

• Product category: DSLR Cameras Canon
• Brand: Canon
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Canon DSLR Cameras

Product description

• Canon EOS 5D Mark IV DSLR Camera with 24-70mm f/4L Lens
  • First Look: Canon EOS 5D Mark IV
  • Official Canon EOS 5D Mark IV Introduction
  • Introducing the Canon EOS 5D Mark IV
  • EOS 5D Mark IV Canon Log Upgrade Details
  • Introducing the Still Features of the Canon EOS 5D Mark IV
  • Canon EOS 5D Mark IV: New AWB Options
  Continuing on in their legacy of powerful workhorse cameras, Canon has released the 5D Mark IV DSLR with 24-70mm f/4L Lens which is an outstanding still photography option and an able 4K-capable video machine. This multimedia maven offers a newly developed 30.4MP full-frame CMOS sensor paired with the DIGIC 6+ image processor in order to balance fine detail and resolution with low-light performance and sensitivity. It is able to work within a native range of ISO 100-32000, which can then be expanded to an impressive ISO 50-102400, for sharp, low-noise images in a variety of conditions. Along with these improvements to image quality, users will enjoy a performance boost across the board with an enhanced AF system, built-in Wi-Fi, NFC, and GPS, and much more.

  In order to deliver detailed images quickly and effectively the 5D Mark IV leverages the power of the DIGIC 6+ image processor, which can handle up to 7 frames per second during continuous shooting. It also uses a 150,000-pixel RGB+IR metering sensor to evaluate the scene and subjects for accurate exposures under a variety of different lighting conditions. An improved 61-point High Density Reticular AF furthers the camera's speed by tracking and locking onto subjects quickly and accurately for tack sharp photos. A new AF area select button is now available as well for near immediate access to this setting.

  Video benefits from the addition of Dual Pixel CMOS AF and Movie Servo AF to smoothly rack focus during a shot. Shooters can even make use of the 3.2" 1.62m-dot touchscreen LCD to simply tap to adjust the focus point. Furthermore, now that the camera has DCI 4K (4096 x 2160) video recording at up to 30 fps, users can snag 8.8MP stills from the video for an even faster capture option. Tied into the Dual Pixel sensor architecture is a brand new feature for Canon: Dual Pixel RAW, which allows for fine tuning of certain image parameters, including bokeh shift and focus micro adjustment, after the image is taken.

  The body has been further refined for comfort and ease of access, as well as durability and weather resistance. The Canon N3 remote port has been relocated to the front of the camera body and they have added both GPS and Wi-Fi with NFC to make this model a connected camera. This kit bundles the camera with the EF 24-70mm f/4L IS USM lens, which provide a near ideal mid-range zoom range in a compact form. As part of Canon's L-series, this optic is built with professionals in mind and uses numerous special elements and coatings to ensure maximum image quality.
  30.4MP Full-Frame CMOS Sensor and DIGIC 6+ Image Processor
  • In line with previous members of the main 5D series, the Mark IV attempts to balance high resolution with low-light performance with a newly developed 30.4MP full-frame CMOS sensor. This provides a beneficial increase in overall resolution without compromising on sensitivity. Additionally, thanks to the DIGIC 6+ image processor it is paired with, it offers impressive performance within a native range of ISO 100-32000, which can be expanded to ISO 50-102400.

    Versatility is key with the 5D, as it needs to be able to tackle landscapes and weddings with equal ease. By using a 150,000-pixel RGB+IR metering sensor shooters will be able to more comfortably rely on the camera to capture difficult scenes. This sensor also has face detection as well as flicker detection which can ensure proper exposure in less-than-ideal lighting situations. Along with this, the camera offers an improved continuous shooting rate of 7 fps, making it a great option for events and action.
  High Density Reticular AF and Dual Pixel CMOS AF Systems
  • Ensuring your subject is tack sharp, the 5D Mark IV incorporates an enhanced High Density Reticular AF system, which offers 61 phase-detect points, with all points sensitive to f/8 and 41 of which are cross-type. The center point can function down to -3 EV for working in extremely dim lighting. Compared to previous versions, this sensor has expanded vertical coverage of 24% on the peripherals and 8% in the center in order to better track and locate subjects in the frame.

    In addition to advanced tracking and focusing while using the optical finder for stills, Live View and video can now use Dual Pixel CMOS AF on the actual imaging sensor. This offers about 80% coverage of phase-detection autofocus for faster and more accurate focusing in these modes. It is ideal for video as users will enjoy smoother rack focusing without the downsides normally encountered with contrast-based systems. Also, this works well with the touchscreen functions, allowing shooters to just tap to adjust focus.
  DCI 4K Video Recording
  • Designed for both professional stills shooting and video recording, the 5D Mark IV supports DCI 4K (4096 x 2160) resolution recording at up to 30 fps at 500 Mbps, along with Full HD 1080p shooting at 60 fps at 180 Mbps for slow motion playback. When recording in-camera, 4K video has 4:2:2 sampling and 8-bit color depth, while Full HD 1080p footage has 4:2:0 sampling. Uncompressed Full HD 1080p video can also be saved via HDMI to an optional external recorder with 4:2:2 color sampling. 4K video is recorded using a central 4096 x 2160 area of the sensor at a 1.74x crop in order to record video with an ideal 1:1 pixel sampling ratio, while Full HD recording makes use of the entire full frame.

    Audio can be recorded using the on-board stereo microphone or an optional external mic can also be used via the 3.5mm mic jack. Real time audio monitoring is possible, too, via the 3.5mm headphone jack. The 4K video recording also avails the ability to take 8.8MP still frame grabs during playback on the rear touchscreen and save them as single images.
  Dual Pixel RAW
  • First implemented here on the 5D Mark IV, Dual Pixel RAW allows photographers to record all the information the sensor's unique pixel architecture can deliver, providing a way for fine adjustments to be made after the image is taken. These adjustments include focus fine tuning that can help you ever-so-slightly adjust the focus point to bring out extra details, shift bokeh around for improved composition, and reduce the impact of ghosting on your photos. This requires the use of Canon's Digital Photo Professional 4.5 software.
  Body Design
  • • A large 3.2" 1.62m-dot Clear View II LCD monitor is available and features an anti-reflective design for bright, vivid image playback and live view shooting, and its touchscreen interface can be used for intuitive touch-to-focus control and adjusting settings in the menus.
    • A dedicated AF mode selection button located beneath the rear joystick offers another avenue for accessing settings, allowing for fast, intuitive access to commonly changed options.
    • Dual CompactFlash and SD memory card slots allow you to extend your file saving capabilities by permitting overflow recording or in-camera file type separation while shooting.
    • An Intelligent Viewfinder II uses a pentaprism design and offers a bright means for viewing. When using the viewfinder, AF points are highlighted in red for greater visibility in low-light conditions, and the finder can also be configured to display a range of other shooting aids, such as an electronic level, grid, flicker detection, white balance, metering mode, AF information, and other settings.
    • A Mirror Vibration Control System helps to minimize mechanical vibrations in order to better ensure sharpness during long exposures or fast continuous shooting bursts.
    • A robust magnesium alloy body design is both dust- and weather-sealed to permit working in harsh environments.
  Other Camera Features
  • • A built-in GPS module allows you to geotag imagery in-camera as well as auto time sync with the Universal Time Code via satellites. This module is compatible with American GPS, Russian GLONASS, and Japanese quasi-zenith Michibiki satellites for a wide coverage of support.
    • Digital Lens Optimizer technology compensates for a range of optical defects from various lenses, including chromatic aberration, distortion, peripheral brightness, and diffraction, and the camera can store lens data in order to avoid having to re-register lenses prior to each use. The camera can handle this process in real time, delivering JPEGs with the corrections already applied.
    • A built-in intervalometer permits the creation of time-lapse imagery and supports recording 1-99 consecutive frames in pre-selected intervals from 1 second to 99 hours 59 minutes and 59 seconds. Users can also choose to set the camera to unlimited frames.
    • Built-in Wi-Fi and NFC connectivity enable wireless sharing, control, and image transfer with a compatible smart device as well as the CS100 Connect Station.
  UPC: 013803281361
• Canon imagePROGRAF PRO-1000 17" Professional Photographic Inkjet Printer
  • First Look: Canon EOS 5D Mark IV
  • Official Canon EOS 5D Mark IV Introduction
  • Introducing the Canon EOS 5D Mark IV
  • EOS 5D Mark IV Canon Log Upgrade Details
  • Introducing the Still Features of the Canon EOS 5D Mark IV
  • Canon EOS 5D Mark IV: New AWB Options
  Marked with the distinctive red line normally found on Canon's professional lenses, the imagePROGRAF PRO-1000 17" Professional Photographic Inkjet Printer is designed to offer users large-format print sizes with exceptional image quality. This printer leverages the outstanding FINE (Full-Photolithography Inkjet Nozzle Engineering) technology with a 50% larger print head than previous offerings and the 11-color LUCIA PRO pigment-based ink set and Chroma Optimizer to create prints with fine detail and a wide, accurate color gamut. The PRO-1000 also offers the largest print size in the imagePROGRAF line, up to 17" wide, and can print borderless at up to 17 x 22" as well as work with thick 27.6 mil fine art media.

  Equipped with the L-COA PRO Image Processing Engine, the PRO-1000 can quickly and accurately determine printing paths and patterns in order to work as quickly and efficiently as possible. This enables bordered 17 x 22" photos to be created in just 4 minutes 10 seconds while a two-way vacuum feeder keeps media flat and quickly, accurately feeds the media. Also, to expand on the capabilities of the LUCIA PRO ink set, it offers four monochrome inks that reduce bronzing, increase black density, and expand dynamic range in the shadows for excellent grayscale prints. Additionally, the Chroma Optimizer cartridge improves color consistency on coated papers and reduces the difference in ink droplet height to ensure a smooth ink layer and less metamerism.

  A 3.0" color LCD is available on the front of the unit for easily viewing settings and making adjustments. Also, connectivity is a highlight of this model with USB 2.0, Ethernet, and Wi-Fi options available. Wireless printing furthers the printer's overall capabilities by adding compatibility with Canon's PRINT App and PIXMA Cloud Link. The mobile app is available for iOS and Android devices and allows users to quickly transfer images and files for print as well as monitor the printer's settings. PIXMA Cloud Link provides access to Google Cloud Print for printing documents directly from cloud-based servers.
  • FINE (Full-Photolithography Inkjet Nozzle Engineering) printing technology works with 1,536 nozzles for each color to produce impressively detailed prints on a variety of fine-art papers with deep blacks, and accurate quality colors
  • Two-way vacuum feeder keeps media flat and even while accurately and quickly moving media through the printer
  • Prints a color bordered 17 x 22" photo in 4 minutes 10 seconds or a color bordered 13 x 19" photo in 2 minutes 30 seconds
  • The Chroma Optimizer improves color consistency on coated papers and reduces the difference in ink droplet height to ensure a smooth ink layer, reducing metamerism
  • Four monochrome inks work to create images with deep blacks for dramatic grayscale prints as well as reduce the effect of bronzing for photographs with a wide dynamic range, most notably in the dark or shadow areas of the image
  • Minimum droplet size of 4pl for finely detailed imagery
  • Pigment-based LUCIA PRO ink tanks hold 80ml
  • Built-in Wi-Fi connectivity enables use with the Canon PRINT app for wirelessly sending files from a mobile device as well as remote monitoring of ink levels and printer status
  • Wireless PictBridge, Apple AirPrint, and Canon PIXMA Cloud Link for accessing cameras, mobile devices, and cloud files directly
  • 1GB of standard memory for handling large files with ease
  • Support for fine art media up to 27.6 mil using the manual feed slot
  • Rated EPEAT Silver, ENERGY STAR qualified, and RoHS Directive Certified to guarantee efficient power consumption
  • Print Studio Pro v2.0 is plug-in for Adobe Photoshop and Lightroom with 16-bit processing will help you easily send high quality large-format files to the printer for making vivid, detailed photographic prints
  • Media Configuration Tool enables customization of the media settings in both the driver and printer and can make adjustments such as print head height and vacuum strength
  • Accounting Manager will help users track use and cost of consumables such as ink and media in order to determine print costs, and it can manage a number of users in a multi-unit environment
  • Device Management Console can manage multiple PRO-1000 printer and monitor activity such as error messages and printer information
  UPC: 013803257601
• Canon PM-101 Photo Paper Pro Premium Matte (17 x 22", 20 Sheets)
  • First Look: Canon EOS 5D Mark IV
  • Official Canon EOS 5D Mark IV Introduction
  • Introducing the Canon EOS 5D Mark IV
  • EOS 5D Mark IV Canon Log Upgrade Details
  • Introducing the Still Features of the Canon EOS 5D Mark IV
  • Canon EOS 5D Mark IV: New AWB Options
  With a smooth matte surface finish that will ensure images look great in a wide range of lighting conditions, Canon's PM-101 Photo Paper Pro Premium Matte, available here in a 20-pack of 17 x 22" sheets, is a great option for fine art printing. It offers a basis weight of 210 gsm that is highly manageable and a thickness of 12.2 mil for supporting the image when hung, as well as a brightness of 92% for a natural white base. UPC: 013803258912

• EOS 5D Mark IV DSLR Camera with 24-70mm f/4L Lens ydebtqauvutfrbadsecyauztaadeyttdwt
• EF 24-70mm f/4L IS USM Lens
• LP-E6N Lithium-Ion Battery Pack (7.2V, 1865mAh)
• LC-E6 Charger for LP-E6 Battery Pack
• Eyecup Eg
• RF-3 Body Cap for Canon EOS Cameras
• IFC-150U II USB 3.1 Gen 1 Interface Cable for DSLRs
• Cable Protector
• Wide Neck Strap
• Software CD-ROM
• Limited 1-Year Warranty

• imagePROGRAF PRO-1000 17" Professional Photographic Inkjet Printer ydebtqauvutfrbadsecyauztaadeyttdwt

Includes Free

• PM-101 Photo Paper Pro Premium Matte (17 x 22", 20 Sheets)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Canon EOS 5D Mark IV DSLR Camera with 24-70mm f/4L Lens

  Lens Mount	Canon EF
  Camera Format	Full-Frame (1x Crop Factor)
  Pixels	Actual: 31.7 Megapixel Effective: 30.4 Megapixel
  Maximum Resolution	6720 x 4480
  Aspect Ratio	1:1, 3:2, 4:3, 16:9
  Sensor Type	CMOS
  Sensor Size	36 x 24 mm
  Image File Format	JPEG, RAW
  Bit Depth	14-Bit
  Image Stabilization	None

  ISO Sensitivity	Auto, 100 to 32000 (Extended: 50 to 102400)
  Shutter Speed	Electronic Front Curtain Shutter 1/8000 to 30 Seconds Bulb Mode
  Metering Method	Evaluative, Partial, Spot
  Exposure Modes	Aperture Priority, Auto, Manual, Shutter Priority
  Exposure Compensation	-5 to +5 EV (1/3 EV Steps)
  Metering Range	0 to 20 EV
  White Balance	Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten
  Continuous Shooting	Up to 7 fps at 30 MP for up to 21 Exposures (Raw Format) Up to 7 fps at 30 MP for Unlimited Exposures
  Interval Recording	Yes
  Self Timer	2/10-Second Delay
  Mirror Lock-Up	Yes

  Recording Modes	M-JPEG 4:2:2 8-Bit DCI 4K (4096 x 2160) at 23.976p/24p/29.97p [500 Mb/s] MOV Full HD (1920 x 1080) at 59.94p [180 Mb/s] Full HD (1920 x 1080) at 23.976p/24p/29.97p [90 Mb/s] Full HD (1920 x 1080) at 59.94p [60 Mb/s] Full HD (1920 x 1080) at 23.976p/24p/29.97p [30 Mb/s] HD (1280 x 720) at 120p [160 Mb/s] MP4 Full HD (1920 x 1080) at 59.94p [60 Mb/s] Full HD (1920 x 1080) at 23.976p/24p/29.97p [30 Mb/s] Full HD (1920 x 1080) at 29.97p [12 Mb/s]
  External Recording Modes	Full HD (1920 x 1080) at 59.94p Full HD (1920 x 1080) at 23.976p/24.00p/29.97p Full HD (1920 x 1080) at 29.97p HD (1280 x 720) at 120p
  Recording Limit	Up to 29 Minutes, 59 Seconds for DCI 4K (4096 x 2160)
  Video Encoding	NTSC/PAL
  ISO Sensitivity	Auto: 100 to 32000
  Audio Recording	Built-In Microphone (Mono) External Microphone Input
  Audio File Format	AAC, Linear PCM (Stereo)

  Focus Type	Auto and Manual Focus
  Focus Mode	Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	Phase Detection: 61 (41 Cross-Type)
  Autofocus Sensitivity	-3 to +18 EV

  Viewfinder Type	Optical (Pentaprism)
  Viewfinder Eye Point	21 mm
  Viewfinder Coverage	100%
  Viewfinder Magnification	Approx. 0.71x
  Diopter Adjustment	-3 to +1 m
  Monitor Size	3.2"
  Monitor Resolution	1,620,000 Dot
  Monitor Type	Touchscreen LCD

  Built-in Flash	None
  Maximum Sync Speed	1/200 Second
  Flash Compensation	-3 to +3 EV (1/3, 1/2 EV Steps)
  Dedicated Flash System	eTTL
  External Flash Connection	Hot Shoe, PC Terminal

  Memory Card Slot	1 x SD/SDHC/SDXC 1 x CompactFlash
  Connectivity	3.5mm Headphone, 3.5mm Microphone, Canon N3, HDMI C (Mini), USB 3.0
  Wireless	Wi-Fi
  GPS	Yes

  Operating Temperature	32 to 104°F / 0 to 40°C
  Operating Humidity	0 to 85%

  Battery	1 x LP-E6N Rechargeable Lithium-Ion, 7.2 VDC, 1865 mAh
  Dimensions (W x H x D)	5.9 x 4.6 x 3.0" / 150.7 x 116.4 x 75.9 mm
  Weight	1.76 lb / 800 g (Body Only)

  Focal Length	24 to 70mm
  Maximum Aperture	f/4
  Minimum Aperture	f/22
  Angle of View	84 Rating 96% users recommend this product to others. And what about you? This product has already been rated by 90 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
