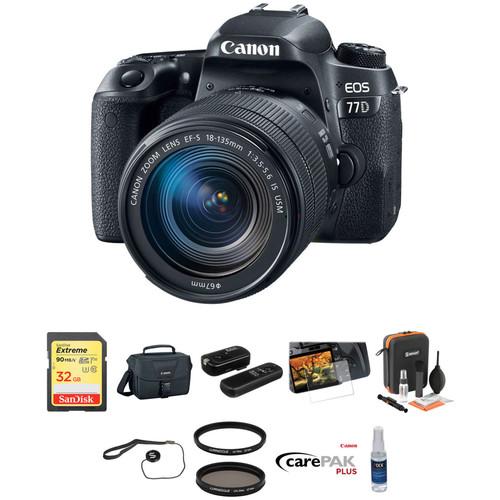

User Manual for Canon EOS 77D DSLR Camera with 18-135mm Lens Deluxe Kit Click to enlarge the picture
Contents of the user manual for the Canon EOS 77D DSLR Camera with
- Product category: DSLR Cameras Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon DSLR Cameras
|
User manual for the Canon EOS 77D DSLR Camera with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description Comprising everything needed to begin shooting, the Canon EOS 77D DSLR Camera with 18-135mm Lens Deluxe Kit from bundles the compact, lightweight camera and wide-to-tele zoom with a memory card, a camera bag, a wireless remote shutter release, an LCD screen protector, a lens cleaning kit, lens cleaning fluid, a lens cap holder, and 67mm circular polarizer and UV filters. Additionally, a Canon CarePAK PLUS 2-year service plan is also included for further protection to your equipment. - Canon EOS 77D DSLR Camera with 18-135mm USM Lens
- First Look: Canon EOS 77D
- Introducing the EOS 77D Digital Camera
- Canon EOS 77D: HD Video
- Canon EOS 77D: Built In Wi-Fi
|
Upload User Manual
Have you got an user manual for the Canon EOS 77D DSLR Camera with 18-135mm Lens Deluxe Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Canon EOS 77D DSLR Camera with 18-135mm USM Lens
| | | Lens Mount | Canon EF-S | | Camera Format | APS-C (1.6x Crop Factor) | | Pixels | Actual: 25.8 Megapixel
Effective: 24.2 Megapixel | | Maximum Resolution | 6000 x 4000 | | Aspect Ratio | 1:1, 3:2, 4:3, 16:9 | | Sensor Type | CMOS | | Sensor Size | 22.3 x 14.9 mm | | Image File Format | JPEG, RAW | | Bit Depth | 14-Bit | | Image Stabilization | Digital, 5-Axis (Video Only) | | | | ISO Sensitivity | Auto, 100 to 25600 (Extended: 100 to 51200) | | Shutter Speed | 1/4000 to 30 Seconds
Bulb Mode | | Metering Method | Center-Weighted Average, Evaluative, Partial, Spot | | Exposure Modes | Aperture Priority, Manual, Program, Shutter Priority | | Exposure Compensation | -5 to +5 EV (1/3, 1/2 EV Steps) | | Metering Range | 1 to 20 EV | | White Balance | Auto, Cloudy, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten | | Continuous Shooting | Up to 6 fps at 24.2 MP for up to 190 Exposures (JPEG Format)
Up to 6 fps at 24.2 MP for up to 21 Exposures (Raw Format)
Up to 3 fps at 24.2 MP for up to 190 Exposures (JPEG Format)
Up to 3 fps at 24.2 MP for up to 21 Exposures (Raw Format) | | Interval Recording | Yes | | Self Timer | 2/10-Second Delay | | | | Recording Modes | MP4/H.264
Full HD (1920 x 1080) at 59.94p [60 Mb/s]
Full HD (1920 x 1080) at 23.976p/29.97p [30 Mb/s]
Full HD (1920 x 1080) at 29.97p [12 Mb/s]
HD (1280 x 720) at 59.94p [26 Mb/s]
HD (1280 x 720) at 29.97p [4 Mb/s]
SD (640 x 480) at 29.97p [9 Mb/s]
SD (640 x 480) at 29.97p [3 Mb/s]
MOV/iFrame
Full HD (1920 x 1080) at 29.97p [90 Mb/s] | | External Recording Modes | Full HD (1920 x 1080) at 23.976p/29.97p/59.94p
HD (1280 x 720) at 29.97p/59.94p
SD (640 x 480) at 29.97p | | Recording Limit | Up to 29 Minutes, 59 Seconds for Full HD (1920 x 1080) | | Video Encoding | NTSC/PAL | | ISO Sensitivity | Auto/Manual: 100 to 12800 (Extended: 25600) | | Audio Recording | Built-In Microphone (Stereo)
External Microphone Input | | Audio File Format | AAC | | | | Focus Type | Auto and Manual Focus | | Focus Mode | Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S) | | Autofocus Points | Phase Detection: 45 (45 Cross-Type) | | Autofocus Sensitivity | -3 to +18 EV | | | | Viewfinder Type | Optical (Pentamirror) | | Viewfinder Eye Point | 19 mm | | Viewfinder Coverage | 95% | | Viewfinder Magnification | Approx. 0.82x | | Diopter Adjustment | -3 to +1 m | | Monitor Size | 3" | | Monitor Resolution | 1,040,000 Dot | | Monitor Type | Articulating Touchscreen LCD | | | | Built-in Flash | Yes | | Guide Number | 39.37' / 12 m at ISO 100 | | Maximum Sync Speed | 1/200 Second | | Flash Compensation | -2 to +2 EV (1/3, 1/2 EV Steps) | | Dedicated Flash System | eTTL | | External Flash Connection | Hot Shoe | | | | Memory Card Slot | 1 x SD/SDHC/SDXC | | Connectivity | 3.5mm Microphone, HDMI C (Mini), Mini-USB, USB 2.0 | | Wireless | Wi-Fi
Bluetooth | | GPS | None | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 85% | | | | Battery | 1 x LP-E17 Rechargeable Lithium-Ion, 7.2 VDC, 1040 mAh | | Dimensions (W x H x D) | 5.2 x 3.9 x 3.0" / 131.0 x 99.9 x 76.2 mm | | Weight | 1.19 lb / 540 g | | | | Focal Length | 18 to 135mm (35mm Equivalent Focal Length: 28.8 to 216mm) | | Maximum Aperture | f/3.5 to 5.6 | | Minimum Aperture | f/22 to 38 | | Angle of View | 74
