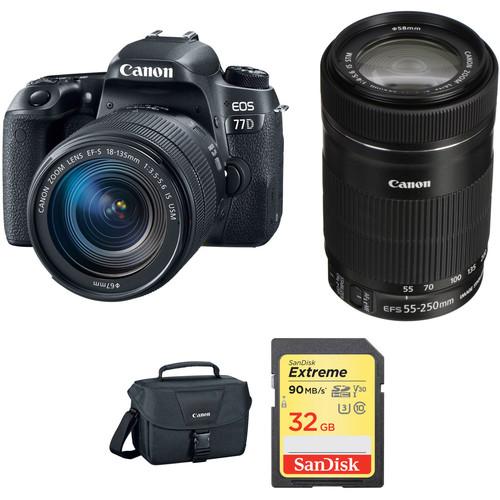

User Manual for Canon EOS 77D DSLR Camera with 18-135mm USM and 55-250mm Lenses

• Product category: DSLR Cameras Canon
• Brand: Canon
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Canon DSLR Cameras

Product description

• Canon EOS 77D DSLR Camera with 18-135mm USM Lens
  • First Look: Canon EOS 77D
  • Introducing the EOS 77D Digital Camera
  • Canon EOS 77D: HD Video
  • Canon EOS 77D: Built In Wi-Fi

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Canon EOS 77D DSLR Camera with 18-135mm USM Lens

  Lens Mount	Canon EF-S
  Camera Format	APS-C (1.6x Crop Factor)
  Pixels	Actual: 25.8 Megapixel Effective: 24.2 Megapixel
  Maximum Resolution	6000 x 4000
  Aspect Ratio	1:1, 3:2, 4:3, 16:9
  Sensor Type	CMOS
  Sensor Size	22.3 x 14.9 mm
  Image File Format	JPEG, RAW
  Bit Depth	14-Bit
  Image Stabilization	Digital, 5-Axis (Video Only)

  ISO Sensitivity	Auto, 100 to 25600 (Extended: 100 to 51200)
  Shutter Speed	1/4000 to 30 Seconds Bulb Mode
  Metering Method	Center-Weighted Average, Evaluative, Partial, Spot
  Exposure Modes	Aperture Priority, Manual, Program, Shutter Priority
  Exposure Compensation	-5 to +5 EV (1/3, 1/2 EV Steps)
  Metering Range	1 to 20 EV
  White Balance	Auto, Cloudy, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten
  Continuous Shooting	Up to 6 fps at 24.2 MP for up to 190 Exposures (JPEG Format) Up to 6 fps at 24.2 MP for up to 21 Exposures (Raw Format) Up to 3 fps at 24.2 MP for up to 190 Exposures (JPEG Format) Up to 3 fps at 24.2 MP for up to 21 Exposures (Raw Format)
  Interval Recording	Yes
  Self Timer	2/10-Second Delay

  Recording Modes	MP4/H.264 Full HD (1920 x 1080) at 59.94p [60 Mb/s] Full HD (1920 x 1080) at 23.976p/29.97p [30 Mb/s] Full HD (1920 x 1080) at 29.97p [12 Mb/s] HD (1280 x 720) at 59.94p [26 Mb/s] HD (1280 x 720) at 29.97p [4 Mb/s] SD (640 x 480) at 29.97p [9 Mb/s] SD (640 x 480) at 29.97p [3 Mb/s] MOV/iFrame Full HD (1920 x 1080) at 29.97p [90 Mb/s]
  External Recording Modes	Full HD (1920 x 1080) at 23.976p/29.97p/59.94p HD (1280 x 720) at 29.97p/59.94p SD (640 x 480) at 29.97p
  Recording Limit	Up to 29 Minutes, 59 Seconds for Full HD (1920 x 1080)
  Video Encoding	NTSC/PAL
  ISO Sensitivity	Auto/Manual: 100 to 12800 (Extended: 25600)
  Audio Recording	Built-In Microphone (Stereo) External Microphone Input
  Audio File Format	AAC

  Focus Type	Auto and Manual Focus
  Focus Mode	Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	Phase Detection: 45 (45 Cross-Type)
  Autofocus Sensitivity	-3 to +18 EV

  Viewfinder Type	Optical (Pentamirror)
  Viewfinder Eye Point	19 mm
  Viewfinder Coverage	95%
  Viewfinder Magnification	Approx. 0.82x
  Diopter Adjustment	-3 to +1 m
  Monitor Size	3"
  Monitor Resolution	1,040,000 Dot
  Monitor Type	Articulating Touchscreen LCD

  Built-in Flash	Yes
  Guide Number	39.37' / 12 m at ISO 100
  Maximum Sync Speed	1/200 Second
  Flash Compensation	-2 to +2 EV (1/3, 1/2 EV Steps)
  Dedicated Flash System	eTTL
  External Flash Connection	Hot Shoe

  Memory Card Slot	1 x SD/SDHC/SDXC
  Connectivity	3.5mm Microphone, HDMI C (Mini), Mini-USB, USB 2.0
  Wireless	Wi-Fi Bluetooth
  GPS	None

  Operating Temperature	32 to 104°F / 0 to 40°C
  Operating Humidity	0 to 85%

  Battery	1 x LP-E17 Rechargeable Lithium-Ion, 7.2 VDC, 1040 mAh
  Dimensions (W x H x D)	5.2 x 3.9 x 3.0" / 131.0 x 99.9 x 76.2 mm
  Weight	1.19 lb / 540 g

  Focal Length	18 to 135mm (35mm Equivalent Focal Length: 28.8 to 216mm)
  Maximum Aperture	f/3.5 to 5.6
  Minimum Aperture	f/22 to 38
  Angle of View	74 Rating 96% users recommend this product to others. And what about you? This product has already been rated by 44 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
