Product description - Mid-Level DSLR Roundup
- Canon EOS 7D Demo
- Prosumer DSLR Roundup
- Lens Adapters and Z-Finder Demo
- Features of DSLR
Designed for pros and semi-pros alike, the Canon EOS 7D is a high-performance DSLR, that features the resolving power of an 18-megapixel APS-C format CMOS sensor and dual DIGIC 4 image processors that enable 8 frames-per-second capture of high-definition, low-noise imaging at sensitivity levels up to ISO 12800. It accepts lenses with EF or EF-S mounts. In addition to high-definition still images the Canon EOS 7D can also capture true HD 1080p video at 30 frames per second. Video clips can be up to 12 minutes in length or 4GB in size, and you can make full use of all Canon EF and EF-S-mount lenses, which enables an exceptional range of creative visual possibilities. And to ensure clean, blemish-free image files, the 7D employs a dual dust-reduction system. The EOS 7D's Intelligent Viewfinder enables 100% viewing of the total image area, and features a transparent LCD overlay option that enables advanced data display within the optical viewfinder including user-selected AF modes, a spot metering circle, and on-demand grid lines. In addition to the 7D's optical viewfinder a Live View mode enables you to compose, review, and edit images using the camera's 3", 920,000-dot TFT LCD. The 7D also features a Dual Axis Electronic Level and tilt display that enables you to adjust the roll and pitch of the camera in 1° increments, using the viewfinder or LCD. For continuous shooting sequences, the 7D can capture bursts of up to 126 JPEGs (large) when using UDMA CF memory cards, or 15 when shooting RAW files. An enhanced all cross-type 19-point autofocus system enables extremely accurate AI Servo AF subject tracking and user-selectable AF modes for precise focusing. For metering stills and video, the 7D features a new 63-zone iFCL metering system that takes focus and color data into consideration when establishing exposure times. The Canon EOS 7D is constructed out of rugged magnesium-alloy and is sealed against dust and weather. The 7D's shutter is equally rugged and tested for up to 150,000 exposure cycles. Images can be recorded to Type I and II, UDMA-compliant CompactFlash cards in either sRGB or Adobe RGB, and you can expect up to 800 exposures per charge using the camera's rechargeable lithium-ion battery. - 18.0 Megapixel CMOS Sensor and Dual DIGIC 4 Image Processors
- The EOS 7D features a Canon-designed 18.0 Megapixel APS-C size CMOS sensor that captures such a high level of resolution it's easy to crop images for enlargement without concern of losing detail. A major factor in reducing noise, the CMOS sensor assures that images shot at highest sensitivity will be remarkably smooth. Dual DIGIC 4 Image Processors ensure that images are captured, processed and saved with remarkable speed. The EOS 7D's ability to capture and process data of images shot at 18.0 Megapixels at 8 fps, as well as Face Detection Live Mode, Full HD video recording, Auto Lighting Optimizer and Lens Peripheral optimization are all possible thanks to the Dual DIGIC 4 Image Processors.
- ISO 100-6400 (expandable to 12800)
- With a broad range of ISO settings, the EOS 7D enables shooting from dawn through dusk and ensures capture of the finest detail. With enhanced, low-noise high-sensitivity optimization, shooting in situations previously possible only with flash are easier than ever before.
- Advanced Movie Mode with Manual Exposure Control and Selectable Frame Rates
- The EOS 7D offers the enhanced image quality, smooth frame rates and adaptive exposure compensation necessary in a professional movie-making tool. By shooting video with a large sensor camera, it's simple to take advantage of the image characteristics intrinsic to SLR photography and not necessarily to video cameras. In addition to a number of different recording size and frame rate modes, the EOS 7D enables easy manual control of exposure, focus and Live View features and even allows for in-camera editing. The large CMOS sensor and compatibility with over 60 lenses provide a wealth of depth-of-field options. And it's all as easy as the press of a button - the EOS 7D has a dedicated Live View/Movie Recording lever with a start/stop button that gets the shooting started fast. Full HD Video is captured at 1920 x 1080 resolution at 30p (29.97), 24p (23.976) or 25p frames per second, for up to 4GB per clip. Movies are saved as .MOV files and can be viewed in Full HD with HDMI output. Other recording sizes include HD at 1280 x 720 (50p / 60p (59.94) fps) or SD/VGA at 640 x 480 (50p / 60p (59.94) fps).
- Intelligent Viewfinder
- The EOS 7D features a phenomenal redesigned viewfinder that not only offers 100 percent coverage, 1x magnification, a 29.4° angle of view and user-controlled dioptric adjustment; it also features a newly-designed transparent LCD display which enables a number of viewfinder displays to be overlaid at the touch of a button. Whereas with other cameras the representation of AF points and metering areas are static, with the EOS 7D, they can be displayed, adjusted and hidden, in camera, with ease. This means less distraction and more clarity to view the image in its entirety. Display options include: grid, spot metering, AF points display, hide all, zone AF, spot (single-point) AF, AF point expansion and Dual Axis Electronic Level display. The EOS 7D also features a brilliant new Dual Axis Electronic Level and tilt display that aids in achieving perfectly level shots, displaying both roll and pitch in 1° increments, either in the viewfinder or on the LCD.
- New 19-Point, All Cross-Type AF System
- Canon packed its most advanced technologies into the EOS 7D's AF system. With 19 high precision, cross-type AF sensors, any of which can be selected automatically or manually, the EOS 7D is equipped to handle even the trickiest of focus situations with ease. The high-speed microcomputers in the EOS 7D use advanced algorithms that help ensure the fastest, most accurate AF performance under the widest variety of conditions. In addition, Canon's Light Source detection AF automatically compensates the focus by taking into account artificial lighting sources and making appropriate adjustments and the EOS 7D's new Intelligent Macro focusing tracks the object or the cameras movement when shooting close-up, to ensure focus is never lost. AF modes can be customized to suit the situation, ensuring reliable focus, every time.
- iFCL Metering with 63-Zone Dual-Layer Metering Sensor
- The EOS 7D features a new, 63-zone dual-layer sensor designed to complement the 19-point AF system. By taking into account the color and luminosity surrounding chosen AF points, this new system delivers an entirely new level of accuracy for better results even in difficult lighting situations. Since the metering sensor has a color measurement function, exposure errors and focus errors caused by different light sources are minimized; the EOS 7D gives stable exposure from shot to shot in situations where light changes, such as in a theater or concert hall. This makes the EOS 7D ideal for scenes with extreme difference in brightness such as brightly lit scenes or backlit scenes; the camera balances exposure of the main subject at the background, and exposures are not overly influenced by bright areas in the shot.
- Rugged, Durable, Dust and Weather Resistant Construction
- The EOS 7D is constructed of the highest quality materials, to exacting standards to ensure unfettered performance at all times. For example, the shutter can shoot at speeds up to 1/8000 sec for 150,000 cycles; the chassis is built of lightweight and rigid magnesium, and the camera's seals are built to resist water and dust.
- Interface Languages
- English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukraine, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Japanese

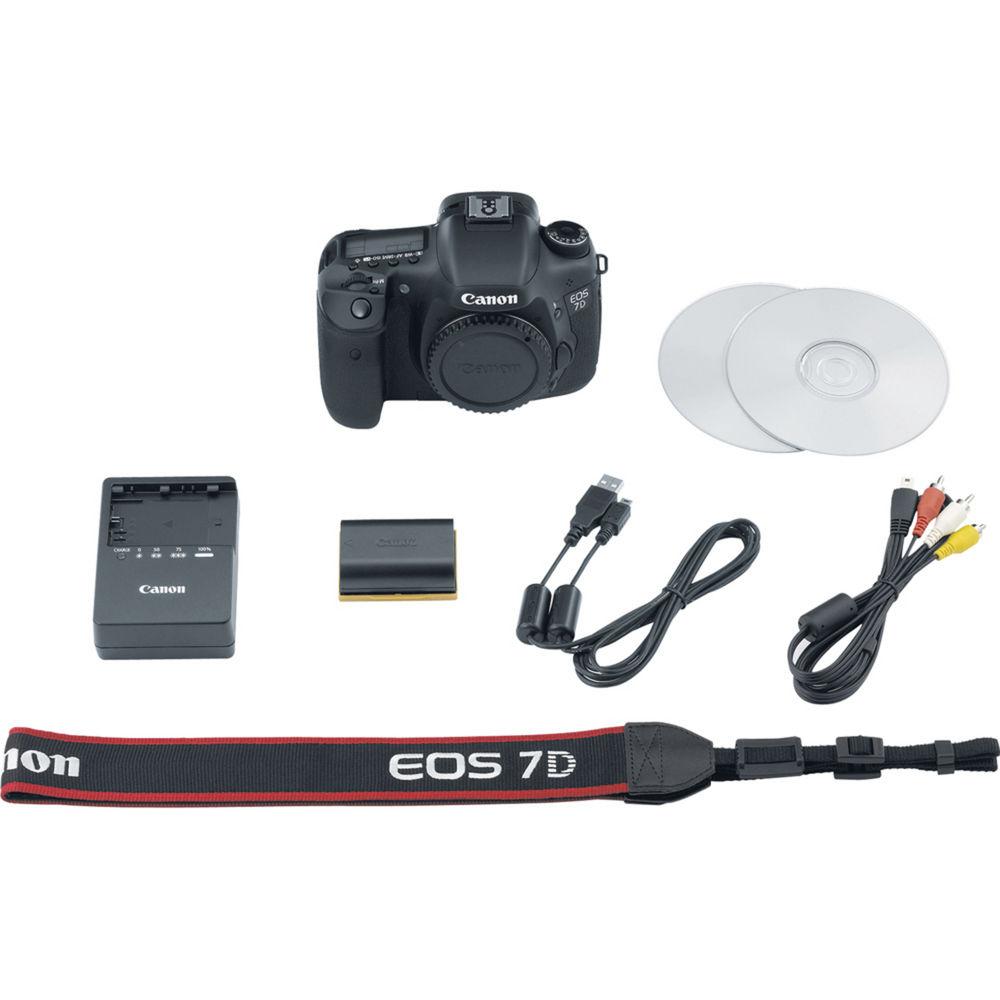

In the Box Canon EOS 7D DSLR Camera (Body Only) LP-E6 Rechargeable Lithium-Ion Battery Pack (7.2V, 1800mAh) bfsxzxxwvcuddvtuevsttbfyrcuzrddva LC-E6 Charger for LP-E6 Battery Pack USB Interface Cable Stereo A/V Cable Wide Neck Strap Eyecup Eg bfsxzxxwvcuddvtuevsttbfyrcuzrddva Software CD-ROM Instruction Manual 1-Year Canon U.S.A. Limited Warranty User Manual PDF 17.7mbbfsxzxxwvcuddvtuevsttbfyrcuzrddva More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon EOS 7D DSLR Camera - Refurbished in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon 3814B056AA Specs | | | Pixels | Actual: 19.0 Megapixel
Effective: 18.0 Megapixel | | Aspect Ratio | 3:2 | | Bit Depth | 14-Bit | | Image Stabilization | None | | | | Focus Mode | Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S) | | Autofocus Points | 19 | | | | Viewfinder Coverage | 100% | | Viewfinder Magnification | Approx. 1x | | Diopter Adjustment | -3 to +1 m | | | | Mirror Lock-Up | Yes | | Metering Method | Average, Center-Weighted Average, Spot | | White Balance | Auto, Cloudy, Custom, Daylight, Flash, Fluorescent (White), Kelvin, Manual, Shade, Tungsten | | | | External Flash Connection | Hot Shoe, PC Terminal | | | | Battery | 1 x LP-E6 Rechargeable Lithium-Ion, 7.2 VDC, 1800 mAh | | | | Package Weight | 4.2 lb | | Box Dimensions (LxWxH) | 10.7 x 9.3 x 6.0" |
