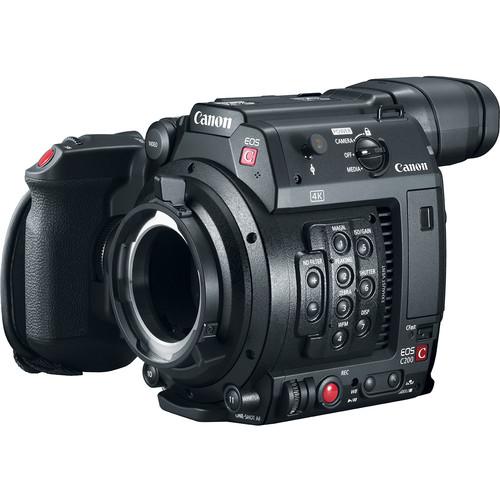

User Manual for Canon EOS C200 Cinema Camera Click to enlarge the picture
Contents of the user manual for the Canon EOS C200 Cinema Camera
- Product category: Digital Cine Cameras Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Digital Cine Cameras
 |
User manual for the Canon EOS C200 Cinema Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description - The Canon Cinema EOS C200 and C200B Video Training Series: Shooting with the Camera
- From Dock to Dish - Canon EOS C200
- The Canon Cinema EOS C200 and C200B Video Training Series: Dual Pixel CMOS Autofocus Features

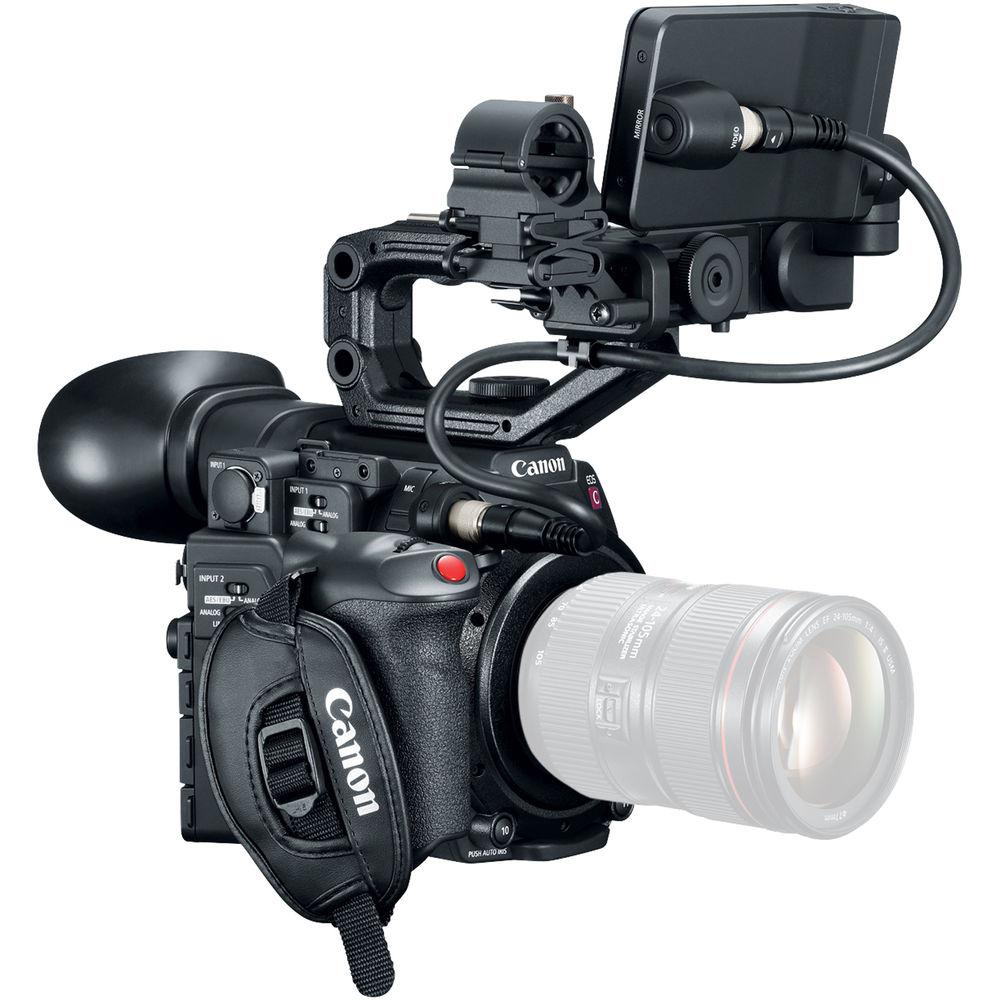

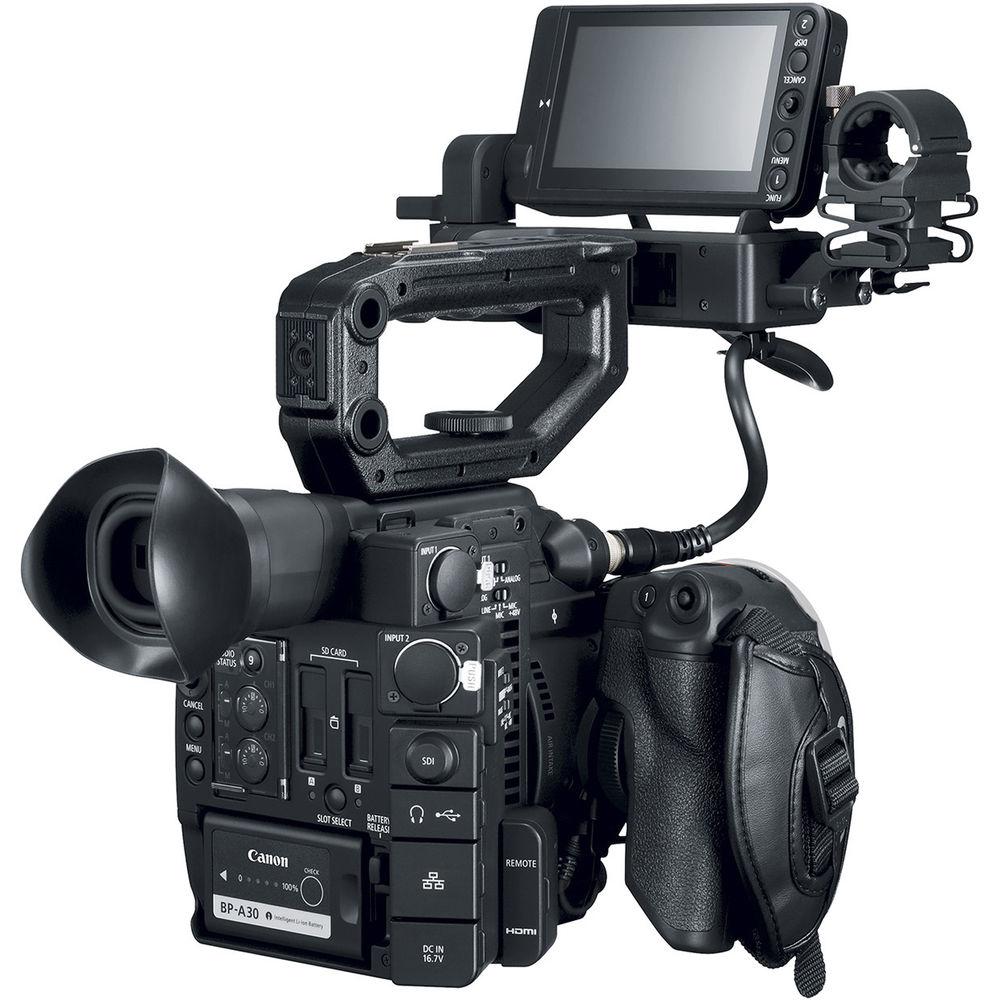

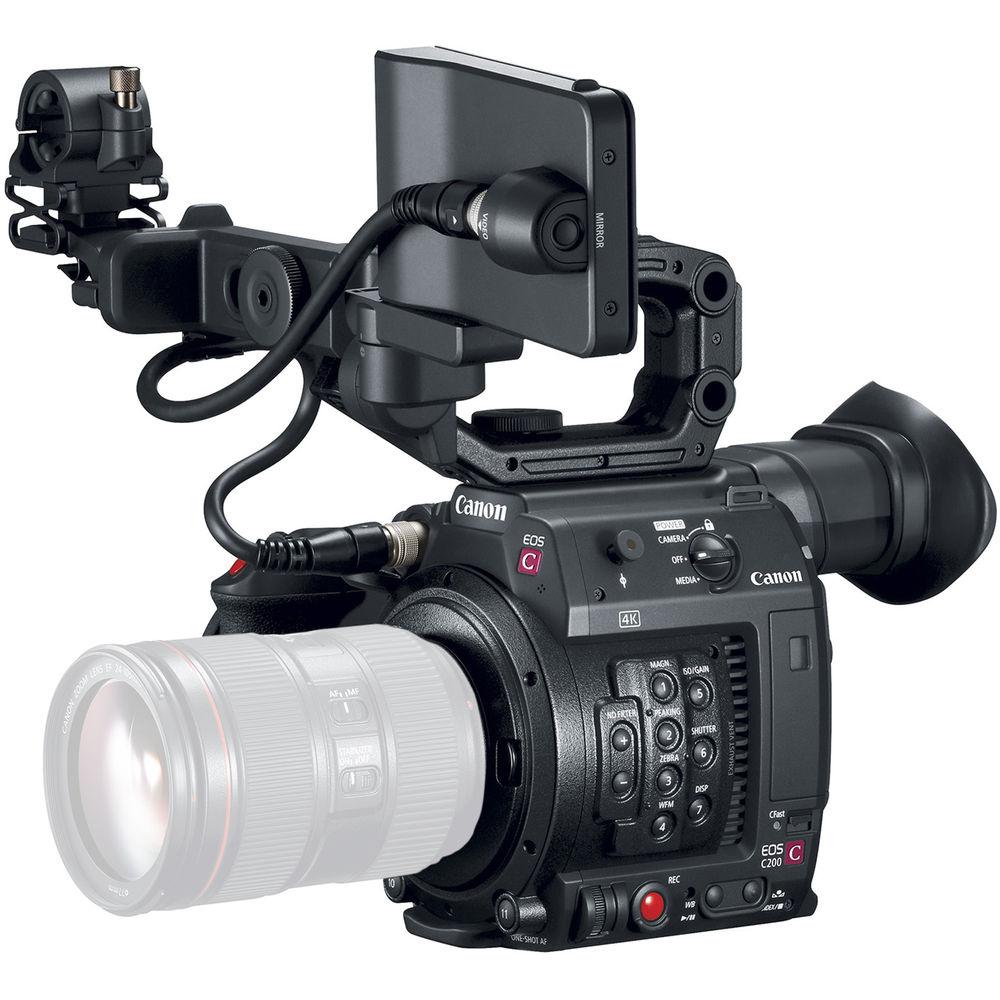

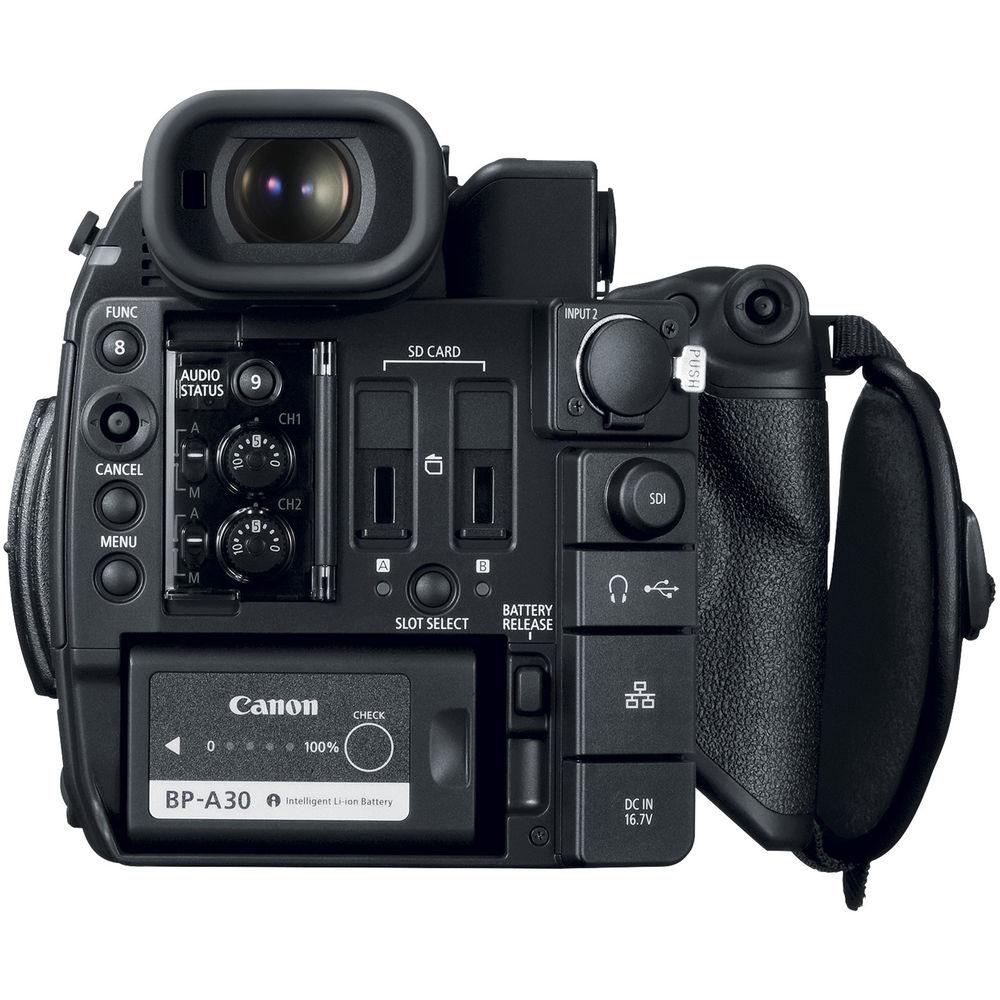

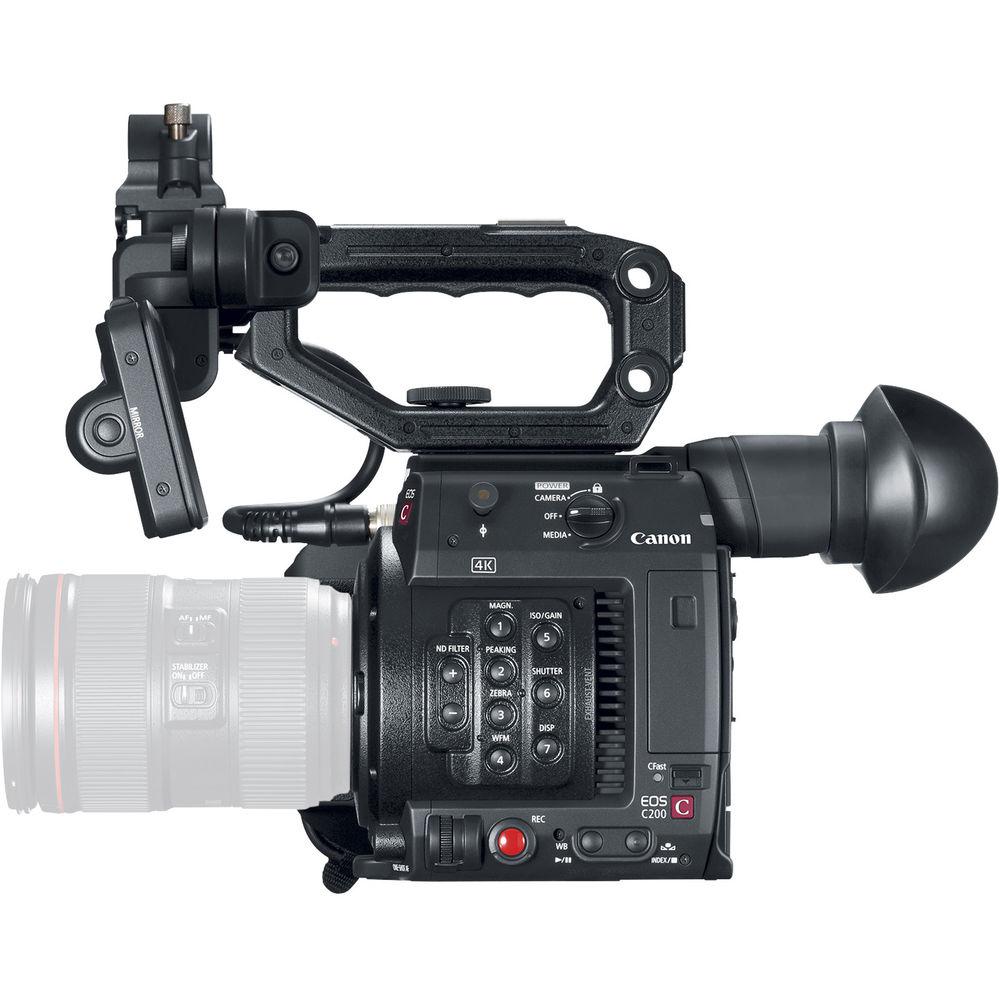

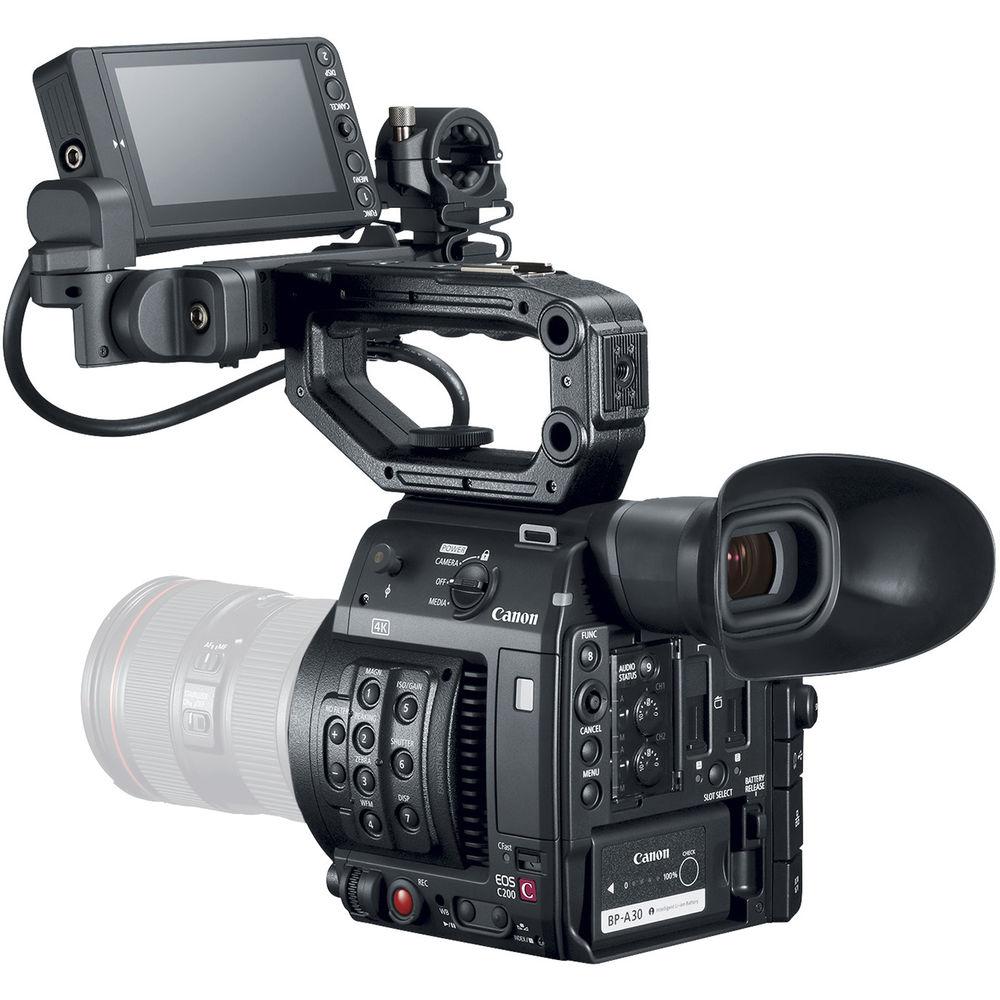

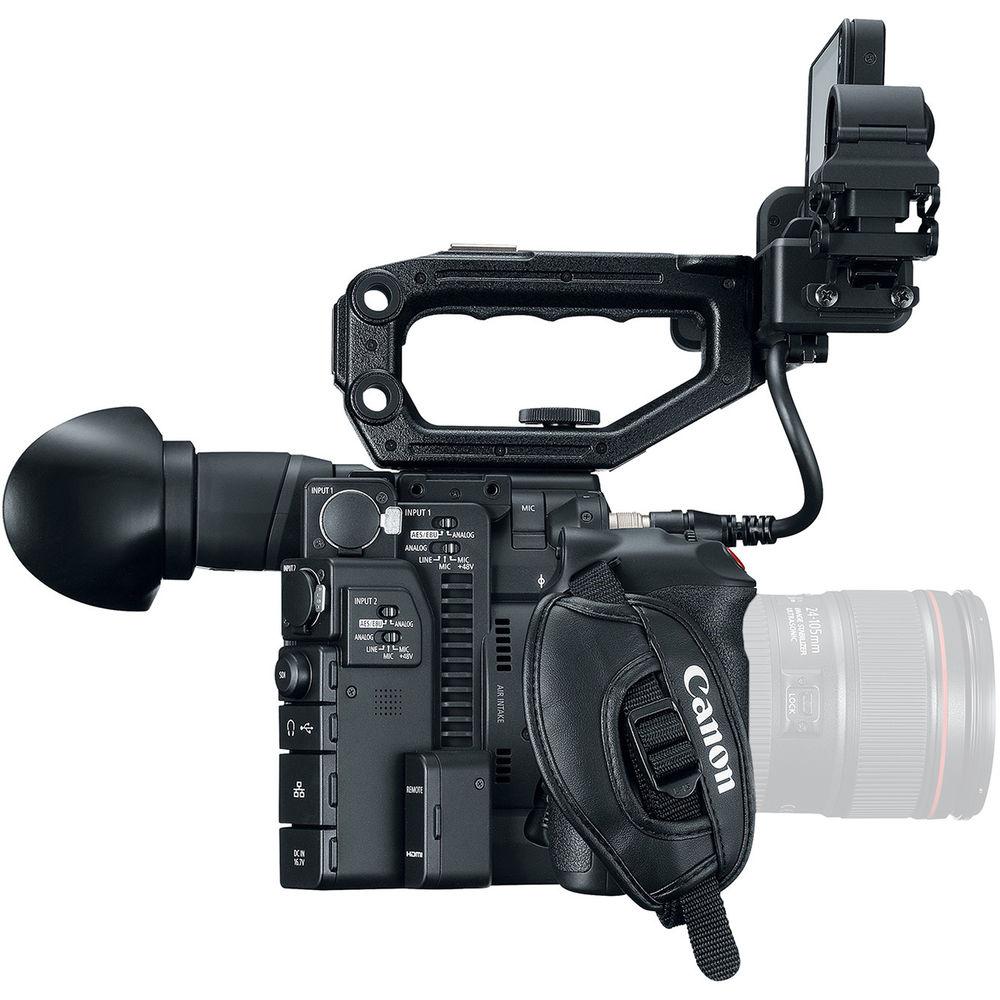

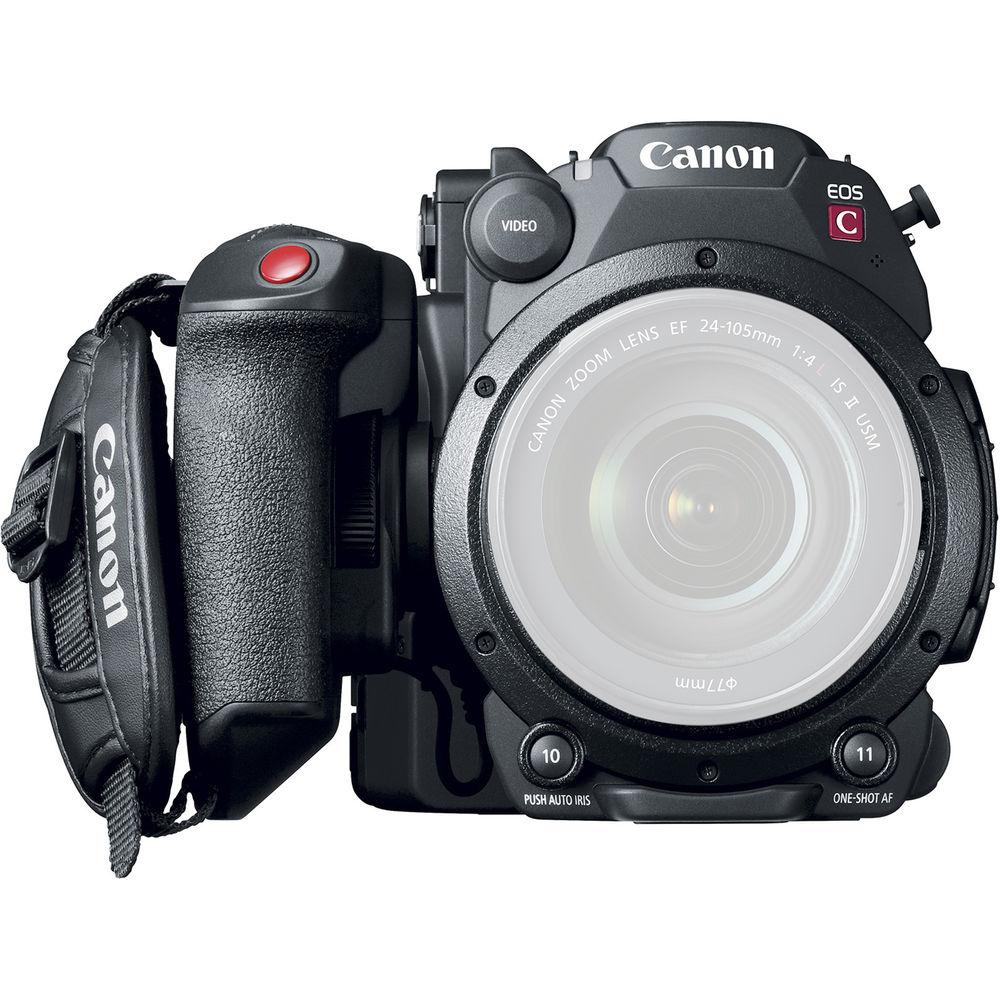

Canon's EOS C200 Cinema Camera features a built-in EVF, 4" LCD screen, top handle, and a Super 35mm CMOS sensor. The PL lens mount on the EOS C200 offers compatibility with virtually all 35mm PL-mount lenses, both vintage and modern, although it does not incorporate pins for electronic communication with or control of the lens. The Super 35mm sensor is paired with Canon's Dual DIGIC DV 6 image processor, allowing it to capture and record up to DCI 4K resolution.
The C200 can also record Canon's Cinema Raw Light internally via its single CFast card slot. The camera incorporates two SD card slots for recording UHD 4K and HD MP4 video. A built-in EVF enables the camera to maintain a small footprint when you shoot. However, the included removable 4" LCD screen, top handle, and camera grip make the C200 versatile for larger shoots. You can output video via the camera's SDI output, and the built-in XLR connectors provide two channels of audio at line, mic, and mic +48V level. A built-in Ethernet connector provides input/output control. Main Features - Canon Super 35mm CMOS Sensor
- Modeled on the Super 35mm motion picture film standard, the Canon CMOS sensor has an active image size of 24.4 x 13.5mm. It features 4096 x 2160 resolution to deliver Cine 4K images, as well as supporting Ultra HD (3840 x 2160), and Full HD (1920 x 1080).
- Dynamic Range, ISO Range
- The C200 features a dynamic range of approximately 13 stops, and an ISO range of 160 to 25,600. You can also select an expanded ISO range of 100 to 102,400. It supports Wide DR Gamma, Canon Log, and Canon Log 3.
- Dual Canon DIGIC DV 6 Image Processor
- The camera features Dual DIGIC DV 6 processors to handle the internal data processing.
- Ultra-High-Resolution EVF
- The EOS C200 features a built-in 0.46", 1.23MP color EVF and 100% field of view coverage for comfortable viewing and accurate judgment of composition, focus, and color. The angle of the viewfinder is adjustable for additional user comfort.
- 4" LCD Touchscreen Camera Grip and Top Handle

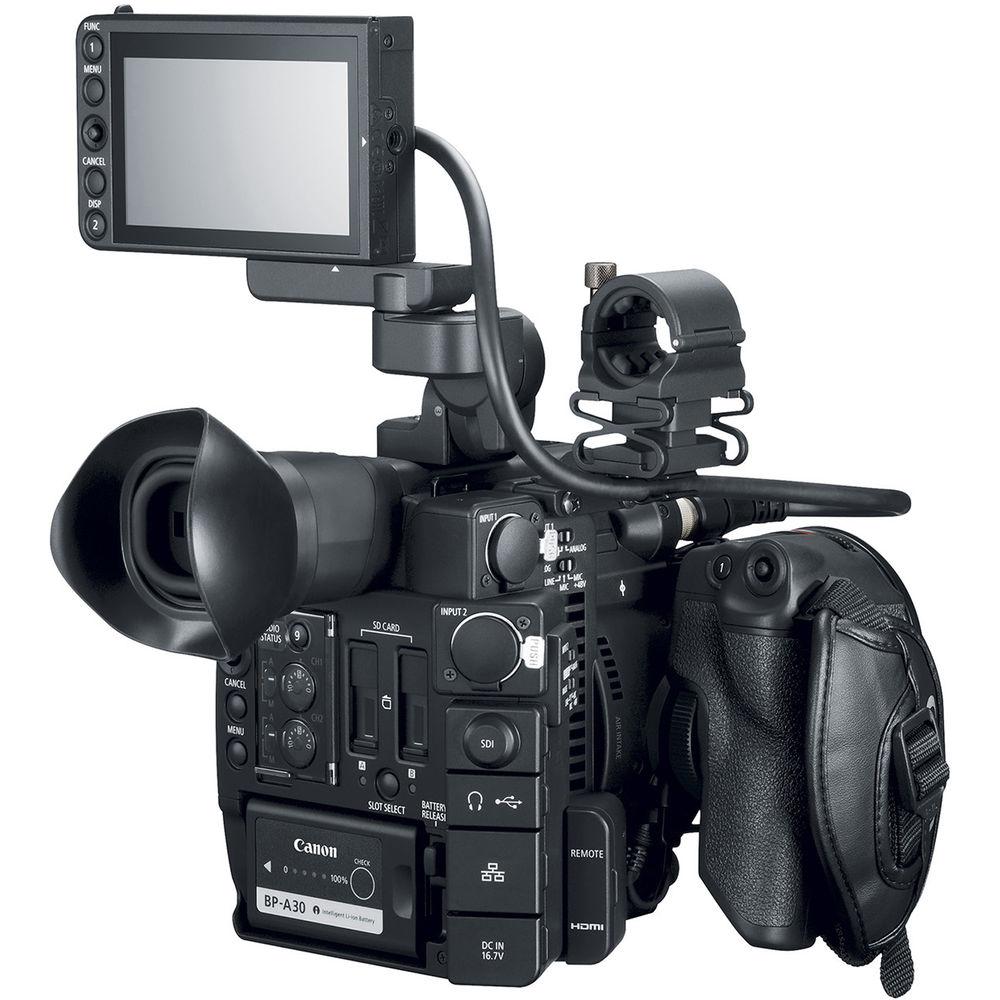

- Included with the C200 is a removable 4" touchscreen LCD viewfinder. Also included is a camera control handgrip and a removable top handle.
- Rich Audio Controls
- Built directly into the C200 are two XLR audio inputs with +48V phantom power, and a 3.5mm microphone terminal. Audio is recorded uncompressed in 16-bit PCM format at 48 kHz for high fidelity sound. Both XLR inputs, as well as the mic terminal, offer the option of automatic or manual gain control.
- Canon Cinema Raw Light
- This codec allows you to record raw data internally to a CFast 2.0 card via the camera's single CFast card slot. The CFast card slot enables capturing 4K DCI in Canon's Cinema Raw Light format.
- MP4 Recording
-
- UHD 4K and Full HD recording onto SD cards available via both SD card slots
- Slow motion recording, pre-recording, frame recording, interval recording
- Recording Functions
- Relay recording and double-slot recording.
- High-Speed Shooting
- You can choose to record at 120/100p when recording in Full HD.
- White Balance
-
- AWB
- Kelvin setting (2000 to 15,000K / -20 to +20 cc)
- Daylight
- Tungsten
- Set A
- Set B
- Other Recording Functions
-
- Custom picture setting
- Black balance adjustments
- Color bars
- Peaking display
- Zebra display
- My Menu setting
- Waveform monitor display
- Assignable buttons (1–17)
- Key lock
- Marker display
- Enlarged display
- Custom display
- Peripheral illumination correction
- GPS support (GP-E2)
- Monaural microphone
- Playback Operations
- Normal playback, fast-forward (at speeds of 5x, 15x, 60x), fast-reverse (at speeds of 5x, 15x, 60x), frame forward, frame reverse, rec review.
- Clip Display
- 3x4 (clip) index screen (raw/MP4/photo)
UPC: 660685185517 In the Box Canon EOS C200 Cinema Camera (PL-Mount) LM-V1 4" LCD Monitor for Canon C200 & C300 Mk II LA-V1 LCD Attachment Unit for EOS C200 HDU-2 Handle Unit for EOS C200/C200B GR-V1 Camera Grip for EOS C200 CA-A10 Compact Power Adapter for EOS C300 Mark II, C200, and C200B Camcorders Single Battery Charger for EOS C300 Mark II, C200, and C200B Batteries Compact Power Adapter Shoulder Strap UN-5 Unit Cable for Canon EOS C200, C300 Mark II, C700, and XC15 (20"') Eyecup BP-A30 Battery Pack For EOS C300 Mark II, C200, and C200B Mic Holder Unit Tape Measure Hook Thumb Rest Body Cap Limited 1-Year Warranty User Manual PDF 14.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon EOS C200 Cinema Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon C200 PL Specs | Image Sensor Size | 24.6 x 13.8 mm (Super35) | | Sensor Type | CMOS | | Sensor Resolution | 4206 x 2340 | | Effective Sensor Resolution | 4096 x 2160 (8.85 MP) | | Pixel Pitch | 6.4 µm | | Color Filter | Bayer | | Shutter Type | Rolling Shutter | | ISO | 160 to 25,600 (Native)
100 to 102,400 (Expanded) | | Gain | -2 to 42 dB (Native)
-6 to 54 dB (Expanded) | | Lens Mount | PL Mount | | Lens Communication | No | | Built-In ND Filter | Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters | | Recording Media | 1 x CFast 2.0 Card Slot (VPG-130 or faster cards recommended)
2 x SD (Unspecified Type) Card Slots | | | | Raw Recording | Cinema RAW Light 10-Bit:
4096 x 2160 at 50/59.94 fps (1 Gb/s)
Cinema RAW Light 12-Bit:
4096 x 2160 at 23.98/24/25/29.97 fps (1 Gb/s) | | Recording Modes | H.264 4:2:0 8-Bit:
3840 x 2160
2048 x 1080
1920 x 1080 | | Audio Recording | 4-Channel 16-Bit 48 kHz | | Video Connectors | 1 x BNC (SDI) Output
1 x HDMI Output | | Audio Connectors | 2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input
1 x 1/8" (3.5 mm) Stereo Headphone Output | | Other I/O | 1 x RJ45 | | | | Display Type | LCD | | Screen Size | 4" | | Touchscreen | Yes | | Screen Resolution | 1,230,000 Dots | | | | EVF Display Type | OLED | | Screen Size | .46" | | EVF Resolution | 1,770,000 Dots | | | | Battery Type | Canon BP-A Series | | | | Package Weight | 16.2 lb | | Box Dimensions (LxWxH) | 18.3 x 14.4 x 12.7" |
