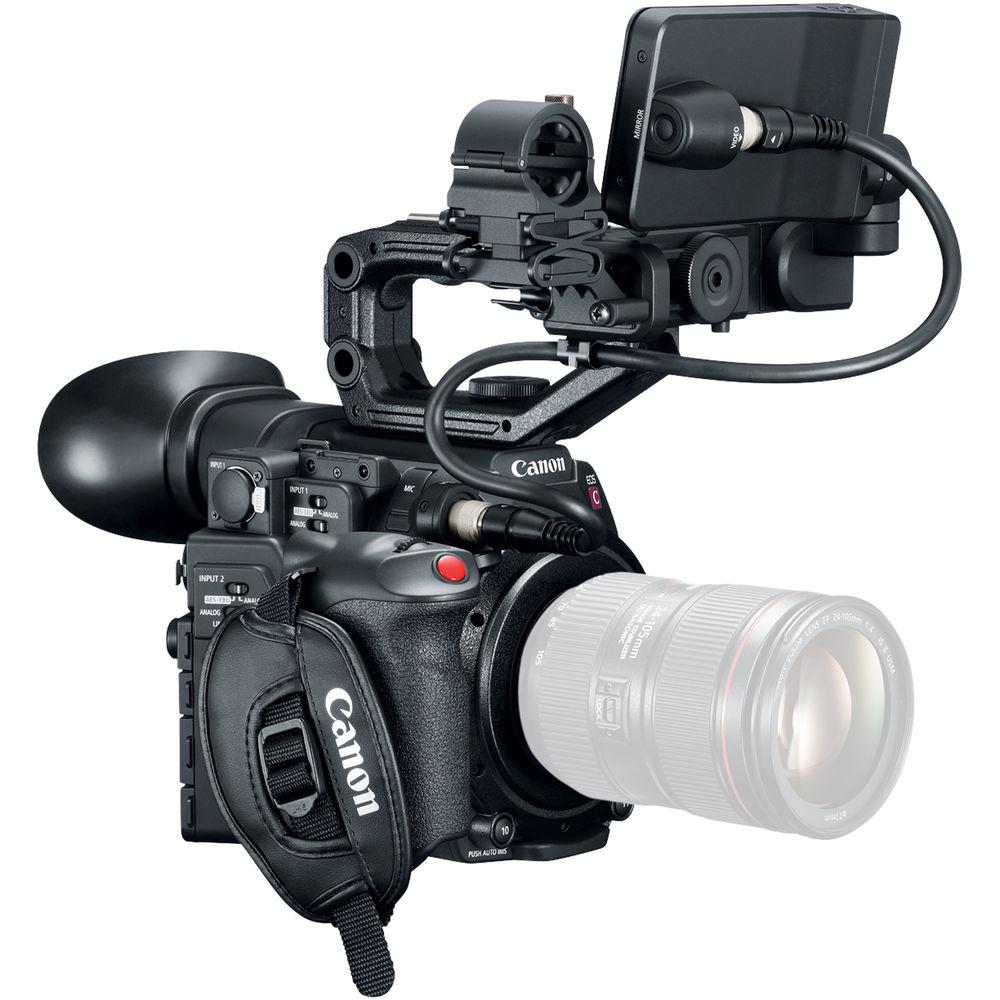

User Manual for Canon EOS C200 Cinema Camera and Triple Lens Kit Click to enlarge the picture
Contents of the user manual for the Canon EOS C200 Cinema Camera and
- Product category: Digital Cine Cameras Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Digital Cine Cameras
|
User manual for the Canon EOS C200 Cinema Camera and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|

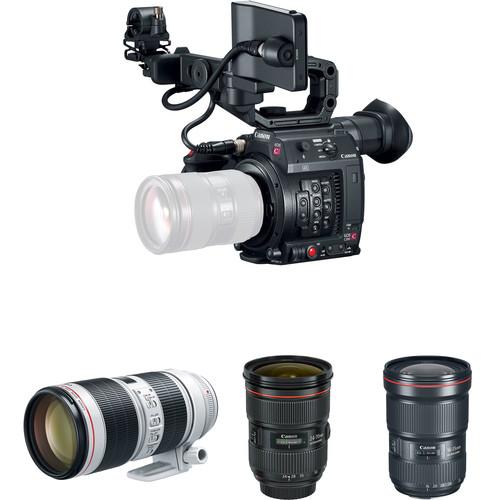

Product description This Canon EOS C200 Cinema Camera and Triple Lens Kit includes the Canon C200 camera body and three Canon EF USM lenses, to create a versatile digital cinema production kit. The three lenses included are the EF 16-35mm f/2.8L III, EF 24-70mm f/2.8L II, and EF 70-200mm f/2.8L IS III. - EOS C200 Cinema Camera (EF-Mount)
- The Canon Cinema EOS C200 and C200B Video Training Series: Shooting with the Camera
- From Dock to Dish - Canon EOS C200
- The Canon Cinema EOS C200 and C200B Video Training Series: Dual Pixel CMOS Autofocus Features

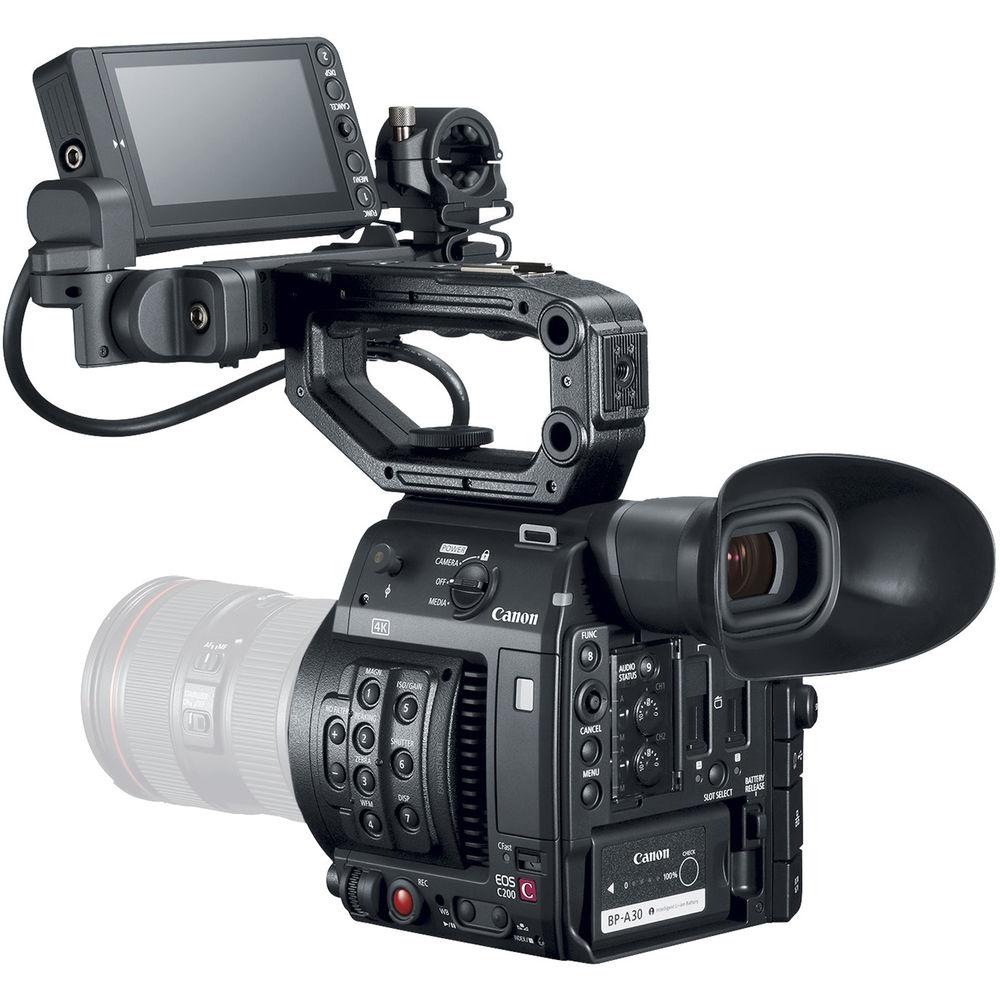

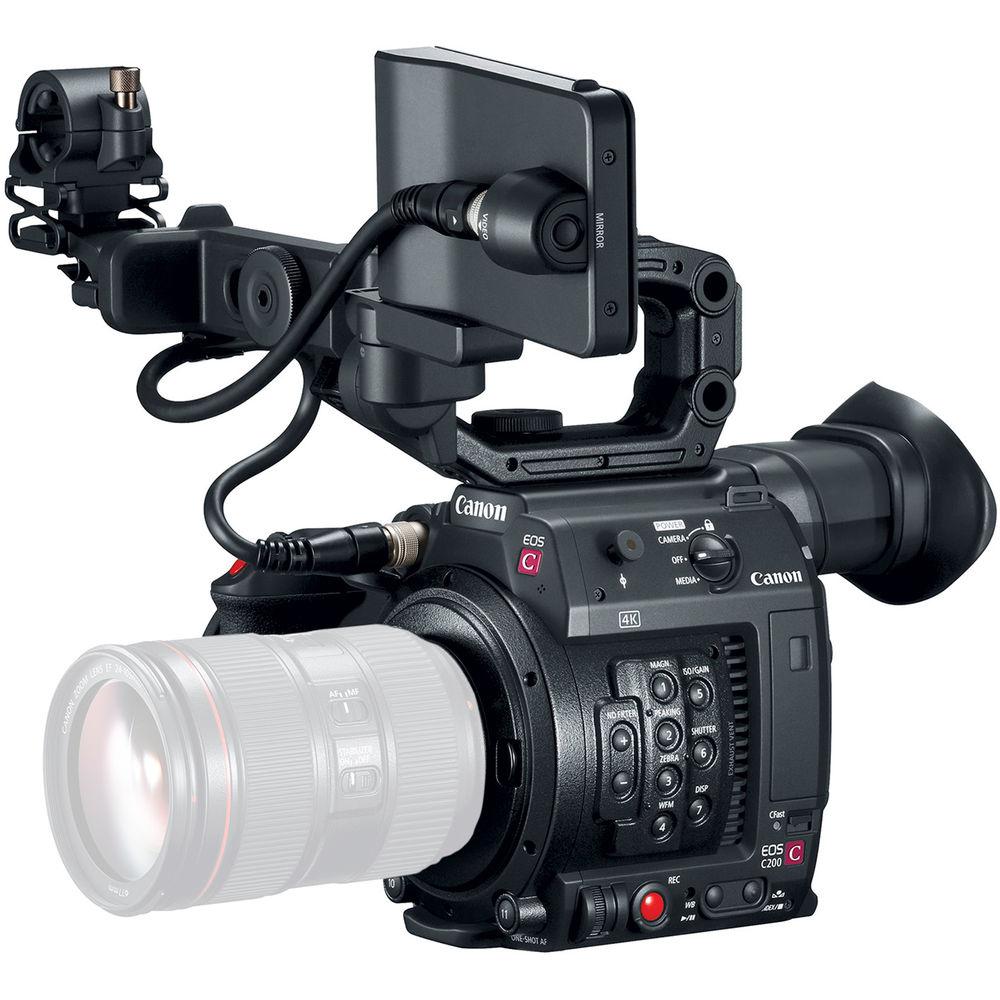

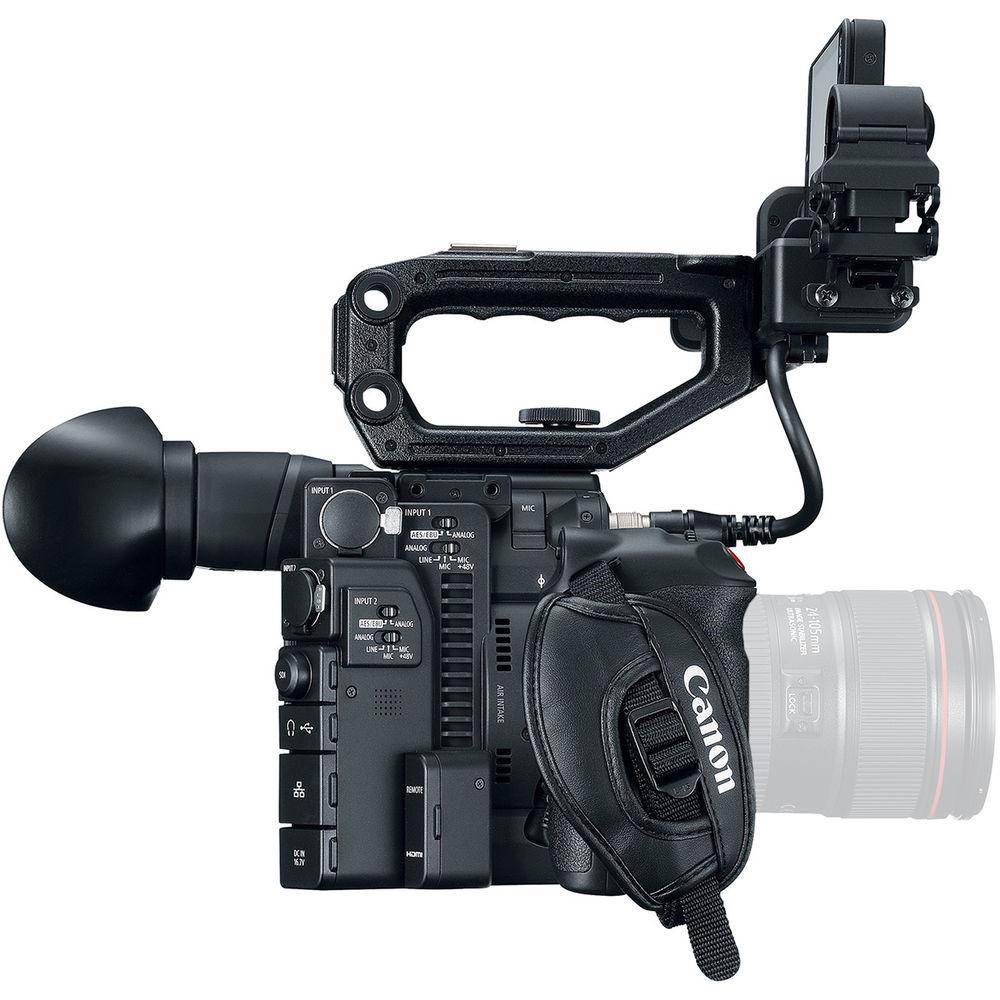

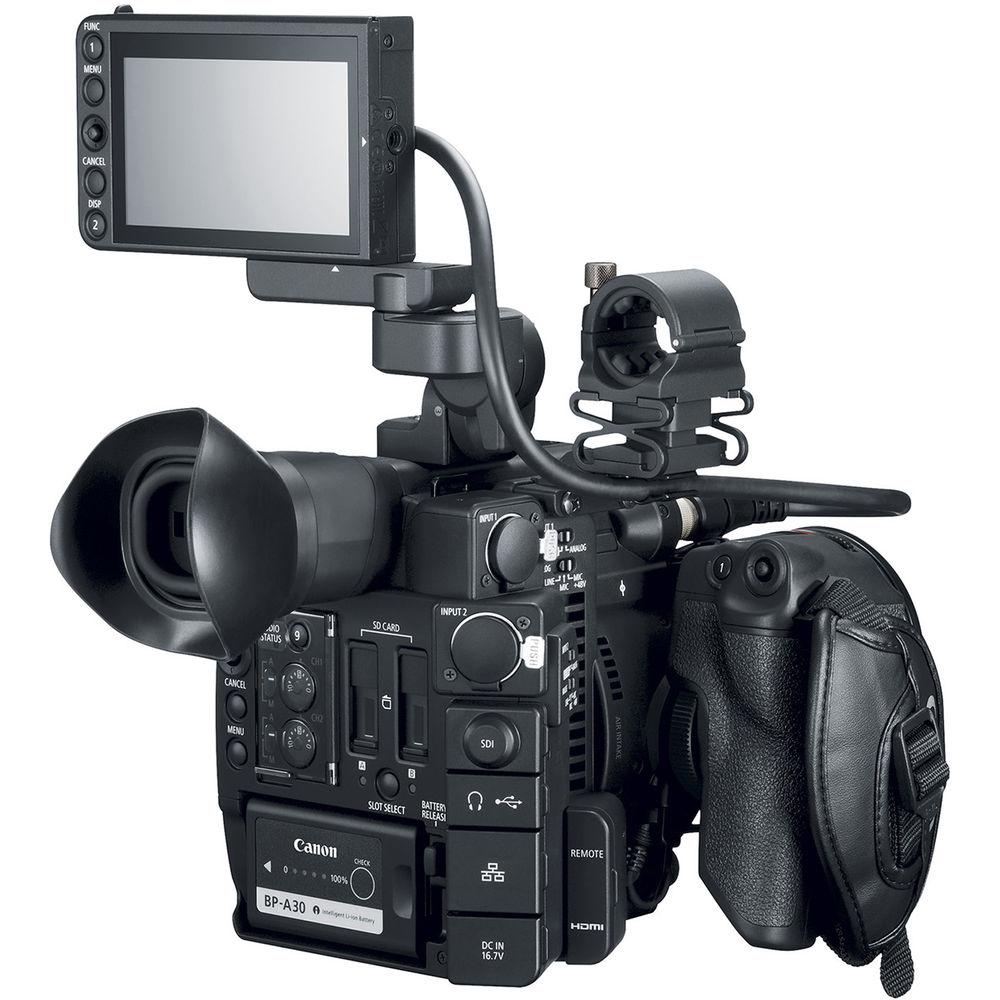

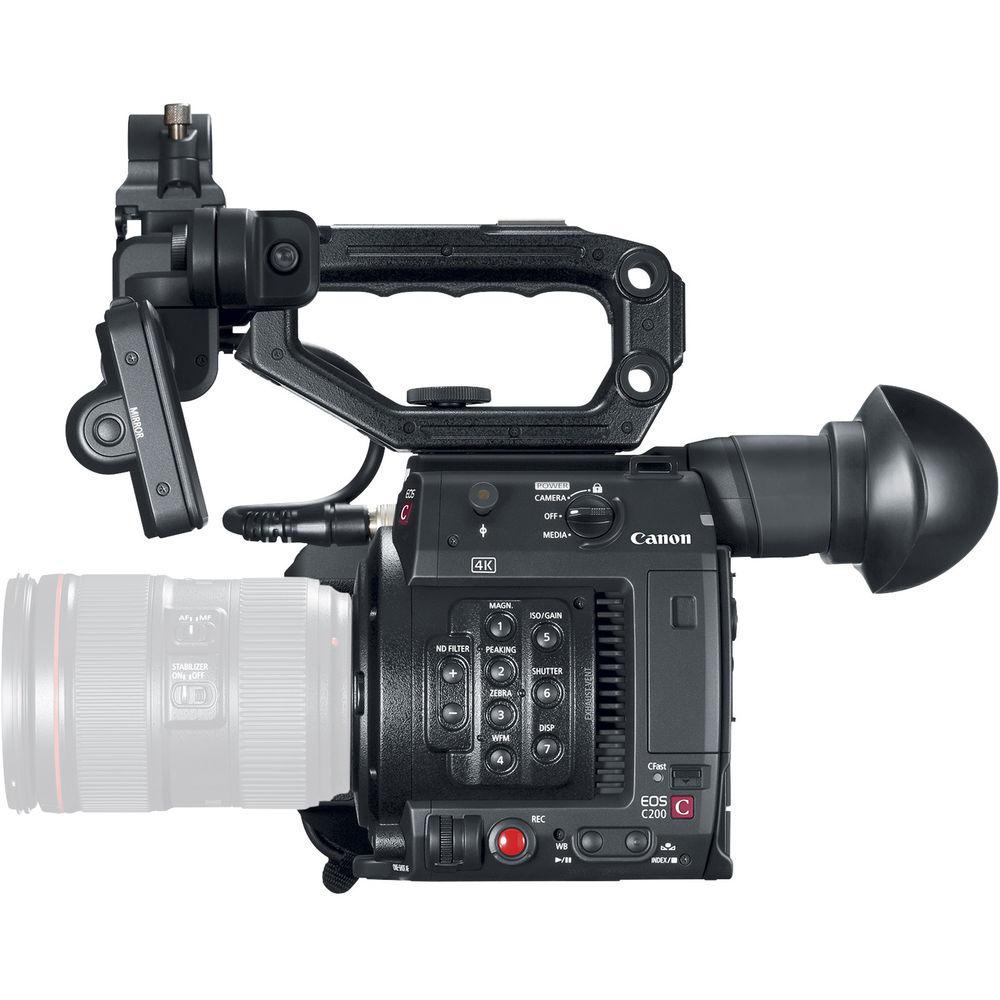

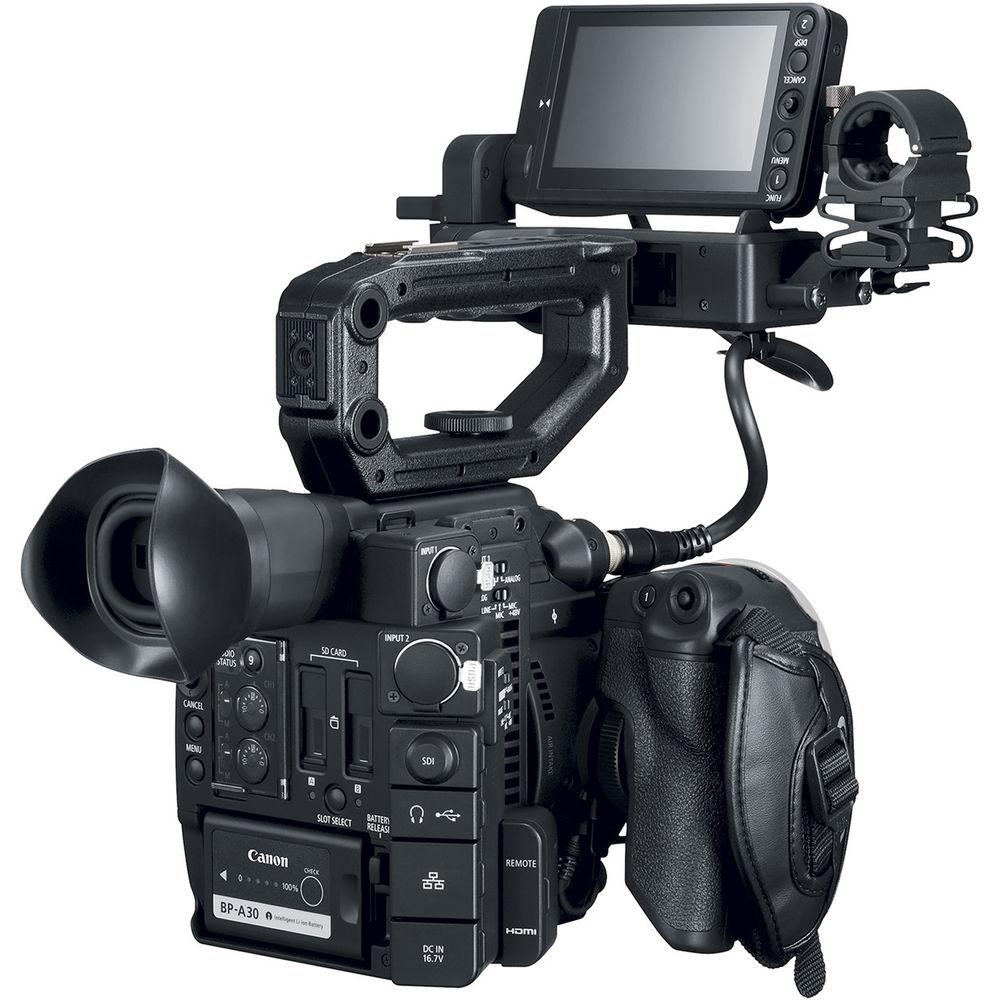

Canon's EOS C200 EF Cinema Camera features a built-in EVF, 4" LCD screen, top handle, Super 35mm CMOS sensor, and Dual Pixel Autofocus. The EF lens mount on the EOS C200 offers compatibility not only with Canon's existing broad range of DSLR lenses but also with their line of EF-mount CN-E cinema prime and zoom lenses. The Super 35mm sensor is paired with Canon's Dual DIGIC DV 6 image processor, allowing it to capture and record up to DCI 4K resolution. The C200 can also record Canon's Cinema RAW Light internally via its single CFast card slot. The camera also incorporates two SD card slots for recording UHD 4K/HD MP4 video. A built-in EVF enables the camera to maintain a small footprint when you shoot. However, the included removable 4" LCD screen as well as the included top handle and camera grip make this camera versatile for larger shoots. You can output video via the camera's SDI output, and the built-in XLR connectors provide two channels of audio at line, mic, and mic+48V level. A built-in Ethernet connector provides input/output control. Main Features - Canon Super 35mm CMOS Sensor
- Modeled on the Super 35mm motion picture film standard, the Canon CMOS sensor has an active image size of 24.4 x 13.5mm. It features 4096 x 2160 resolution to deliver Cine 4K images, as well as supporting Ultra HD (3840 x 2160), and Full HD (1920 x 1080).
- Dual Pixel CMOS AF Technology
- Provides continuous AF (Autofocus) function for all autofocus lenses, using Dual Pixel CMOS AF technology. A new AF Lock setting also lets you change the image framing while holding the desired focus. This feature is ideal for users who regularly shoot with smaller crews, who shoot moving subjects, or who want smoother, more natural-looking autofocus.
Dual Pixel CMOS AF technology features a CMOS sensor that consists of an array of pixels that each feature two separate photodiodes. By continuously comparing their outputs during AF mode, phase-difference autofocus helps ensure non-blurred images and smooth focus transitions even when the talent and/or camera are moving. The new feature places a high priority on maintaining sharp focus while providing a natural, smooth autofocus movement with select Canon EF lenses - including newer-generation STM lenses - which offer even smoother and quieter operation. - Dynamic Range, ISO Range
- The C200 features a dynamic range of approximately 13 stops, and an ISO range of 160 to 25,600. You can also select an expanded ISO range of 100 to 102,400. It supports Wide DR Gamma, Canon Log and Canon Log 3.
- Dual Canon DIGIC DV 6 Image Processor
- The camera features Dual DIGIC DV 6 processors to handle the internal data processing.
- Ultra High-Resolution EVF
- The EOS C200 features a built-in 0.46", 1.23MP color EVF and 100% field of view coverage for comfortable viewing and accurate judgment of composition, focus, and color. The angle of the viewfinder is adjustable for additional user comfort.
- 4" LCD Touchscreen Camera Grip and Top Handle
- Included with the C200 is a removable 4" Touchscreen LCD viewfinder. Also included with the C200 is a camera control handgrip as well as a removable top handle.
- Rich Audio Controls
- Built directly into the C200 are two XLR audio inputs with +48V phantom power, and a 3.5mm microphone terminal is also built into the camera. Audio is recorded uncompressed in 16-bit PCM format at 48 kHz for high fidelity sound. Both XLR inputs as well as the mic terminal have the option for automatic as well as manual gain control.
- Canon Cinema RAW Light
- This codec allows you to record raw data internally to a CFast 2.0 card via the camera's single CFast card slot. The CFast card slot enables capturing DCI 4K in Canon's Cinema RAW Light format.
- MP4 Recording
-
- UHD 4K and Full HD recording onto SD cards is available via the two SD card slots.
- Slow-motion recording, pre-recording, frame recording, interval recording
- Recording Functions
- Relay recording, double slot recording
- High-Speed Shooting
- You can choose to record at 120/100p when recording in Full HD.
- White Balance
- AWB
Kelvin setting (setting range: 2000K to 15000K/-20CC to +20CC) Daylight Tungsten Set A Set B - Other Recording Functions
- Custom picture setting
Black balance adjustments Color bars Peaking display Zebra display My Menu setting Waveform monitor display Assignable buttons (1-17) Key lock Marker display Enlarged display Custom display Peripheral illumination correction GPS support (GP-E2) Monaural microphone - Playback Operations
- Normal playback, fast forward (at speeds of ×5, ×15, ×60), fast reverse (at speeds of ×5, ×15, ×60), frame forward, frame reverse, rec review
- Clip Display
- 3 x 4 (clip) index screen (raw/MP4/Photo)
UPC: 013803290035 - EF 16-35mm f/2.8L III USM Lens Characterized by a revamped optical design, the EF 16-35mm f/2.8L III USM from Canon is a workhorse wide-angle zoom and member of the well-regarded L-series of lenses. Featuring a series of specialized elements, this lens utilizes a trio of aspherical elements and two ultra-low dispersion glass elements to control a variety of aberrations for high sharpness and clarity. Both SWC and ASC coatings have also been applied to the elements in order to reduce lens flare and ghosting for increased contrast and color accuracy.
Complementing its optical prowess, a ring-type Ultrasonic Motor offers fast, smooth, and near-silent autofocus performance, which is further benefitted by full-time manual focus operation and an internal focusing design. The lens is both water and dust-resistant, and fluorine coatings have also been applied to the front and rear elements to protect against fingerprints and smudges from affecting image quality. - Wide-angle zoom 16-35mm lens is compatible with full-frame Canon EF-mount DSLRs, as well as APS-C-sized models where it will provide a 25.6-56mm equivalent focal length range.
- Constant f/2.8 maximum aperture offers consistent performance and excellent light transmission throughout the zoom range.
- Two large-diameter glass-molded dual-surface aspherical elements and one ground aspherical element help to minimize distortions and spherical aberrations throughout the zoom range in order to maintain edge-to-edge sharpness and illumination.
- Two ultra-low dispersion elements are used to minimize chromatic aberrations as well as eliminate color blurring around the edges of subjects.
- Both a Subwavelength Coating (SWC) and an Air Sphere Coating (ASC) have been applied to lens elements to reduce backlit flaring and ghosting for maintained light transmission and high contrast in strong lighting conditions.
- A ring-type Ultrasonic Motor (USM), along with an internal focusing system, high-speed CPU, and optimized AF algorithms, are employed to deliver fast, precise, and near-silent autofocus performance as well as full-time manual focus override.
- As a member of the esteemed L-series, this lens is sealed against dust and moisture for working in inclement environmental conditions.
- Protective fluorine coating has been applied to the front bulbous element to resist fingerprints and smudges and to make cleaning significantly easier.
- Rounded nine-blade diaphragm contributes to a pleasing out of focus quality that benefits the use of shallow depth of field and selective focus techniques.

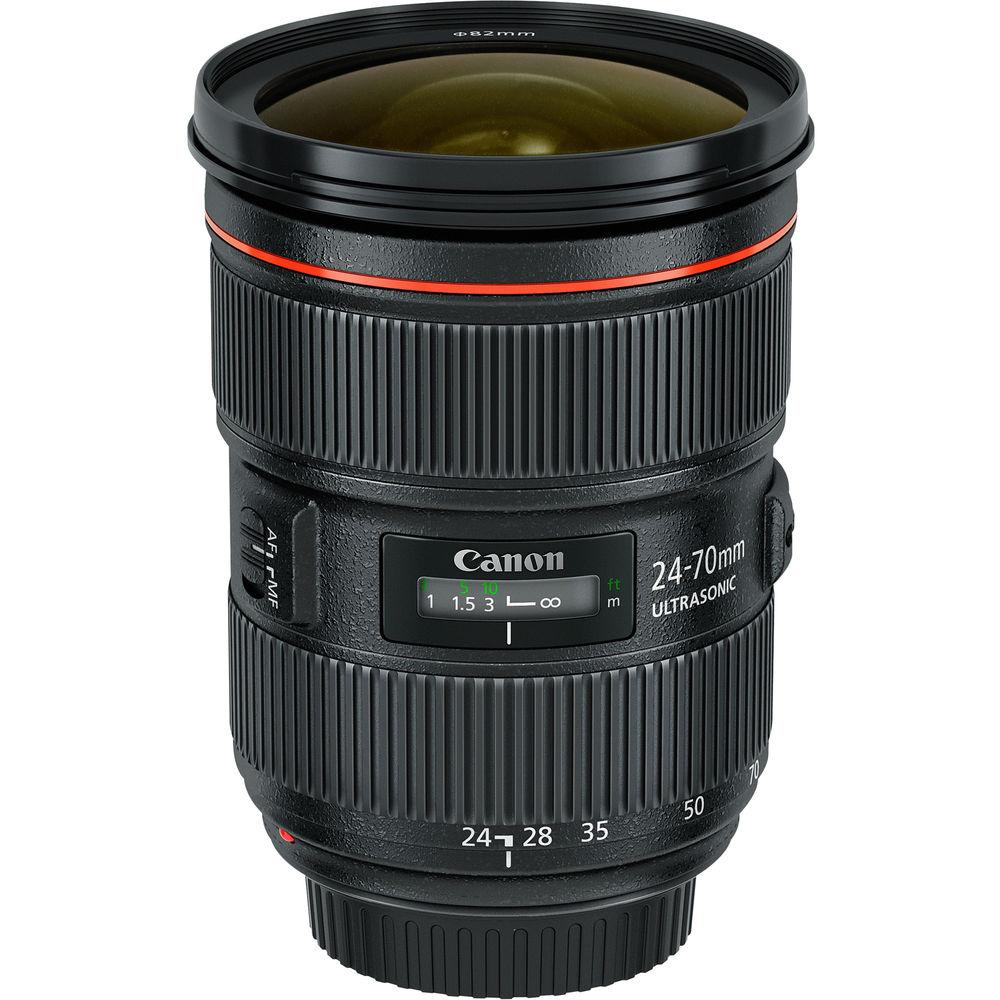

UPC: 013803256901 - EF 24-70mm f/2.8L II USM Lens Spanning a popular and versatile range of focal lengths, the EF 24-70mm f/2.8L II USM is a Canon L-series zoom commonly thought of as the workhorse of lenses. Ranging from wide-angle to portrait length, this lens is also distinguished by its constant f/2.8 maximum aperture to benefit working in difficult lighting conditions and to afford greater control over depth of field. The lens is also characterized by its sophisticated optical design, which includes one Super UD element and two UD elements, which reduce color fringing and chromatic aberrations in order to realize a high degree of color accuracy and clarity. Three aspherical elements are also featured, and minimize distortion and spherical aberrations for improved sharpness. Additionally, a Super Spectra coating has been applied to individual elements to control flare and ghosting for high contrast and neutral color fidelity.
Balancing the refined optics, this 24-70mm f/2.8 also sports a ring-type USM and internal focusing mechanism to enable quick, quiet, and accurate autofocus performance, as well as full-time manual focus override. Additionally, this lens is weather-sealed and has a protective fluorine coating on the exposed elements for use in trying environmental conditions. - Standard zoom is designed for full-frame Canon EF-mount DSLRs, however can also be used with APS-C models where it provides a 38.4-112mm equivalent focal length range.
- Bright constant f/2.8 maximum aperture affords consistent illumination throughout the zoom range and also affords greater control over depth of field for working with selective focus techniques.
- One Super Ultra-Low Dispersion element and two ultra-low dispersion glass elements noticeably reduce color fringing and chromatic aberrations for high clarity and color fidelity.
- Three aspherical elements minimize spherical aberrations and distortions for improved sharpness and accurate rendering.
- Super Spectra coating has been applied to individual elements to minimize ghosting and flare for greater contrast and color neutrality when working in strong lighting conditions.
- A ring-type Ultrasonic Motor (USM), along with an internal focusing design, optimized focusing algorithms, and a high-speed CPU, is employed to deliver fast, precise, and quiet autofocus performance as well as full-time manual focus override.
- Rounded nine-blade diaphragm contributes to a pleasing out of focus quality that benefits the use of shallow depth of field and selective focus techniques.
- Protective fluorine coating has been applied to the front and rear element to resist fingerprints and smudges and to make cleaning these elements significantly easier.
- As a member of the esteemed L-series, this lens is sealed against dust and moisture for working in inclement environmental conditions.
- Zoom lock lever secures the zoom position at the wide end to maintain a compact form factor and protect the lens when not in use.
- EF 70-200mm f/2.8L IS III USM Lens One of the most versatile lenses available, the EF 70-200mm f/2.8L IS III USM from Canon is an L-series telephoto zoom distinguished by its bright design and advanced optics. Ideal for a variety of subjects ranging from portraiture to sports, the fast constant f/2.8 maximum aperture excels in difficult lighting conditions and also offers increased control over depth of field for isolating subjects. The optical layout makes use of one fluorite element and five UD elements to suppress chromatic aberrations and color fringing in order to realize a high degree of clarity throughout the zoom range. An Air Sphere Coating is also featured, and works to reduce flare and ghosting for greater color fidelity and contrast in all conditions.
Complementing the speed and optics is an Optical Image Stabilizer, which compensates for 3.5 stops of camera shake to better enable working handheld and in low-light situations. A ring-type USM and internal focusing mechanism also afford quick, quiet, and accurate autofocus performance, as well as full-time manual focus override. Additionally, this lens is weather-sealed for use in trying environmental conditions. - Versatile telephoto zoom is designed for full-frame Canon EF-mount DSLRs, however can also be used with APS-C models where it provides a 112-320mm equivalent focal length range.
- Bright constant f/2.8 maximum aperture affords consistent performance throughout the zoom range and offers notable control over depth of field for working with selective focus techniques.
- One fluorite element and five ultra-low dispersion glass elements noticeably reduce color fringing and chromatic aberrations for high clarity and color fidelity.
- An Air Sphere Coating (ASC) has been applied to lens elements to reduce backlit flaring and ghosting for maintained light transmission and high contrast in strong lighting conditions.
- An Optical Image Stabilizer helps to minimize the appearance of camera shake by up to 3.5 shutter speed stops to better enable working in low-light conditions and with slower shutter speeds. In addition to the single-shot standard IS mode, a second mode is also available that it optimized for panning.
- A ring-type Ultrasonic Motor (USM), along with an internal focusing system, is employed to deliver fast, precise, and quiet autofocus performance as well as full-time manual focus override.
- Focus Limiter switch lets you constrain the focusing to two different ranges to suit different applications: 3.9'-infinity or 8.2'-infinity.
- Rounded eight-blade diaphragm contributes to a pleasing out of focus quality that benefits the use of shallow depth of field and selective focus techniques.
- A weather-resistant design protects the lens from dust and moisture to enable its use in inclement conditions. Additionally, fluorine coatings have also been applied to the front and rear lens elements for further protection against fingerprints and smudging.
- Removable rotating tripod collar is included and benefits working with the lens atop a tripod or monopod.
- Compatible with optional EF 1.4X and EF 2X teleconverters.
UPC: 013803306019 In the Box Bundle Items EOS C200 Cinema Camera (EF-Mount) zedsbvyyfearzvtu - LM-V1 4" LCD Monitor for Canon C200 & C300 Mk II
- LA-V1 LCD Attachment Unit for EOS C200
- HDU-2 Handle Unit for EOS C200/C200B
- GR-V1 Camera Grip for EOS C200
- CA-A10 Compact Power Adapter for EOS C300 Mark II, C200, and C200B Camcorders
- Single Battery Charger for EOS C300 Mark II, C200, and C200B Batteries
- UN-5 Unit Cable for Canon EOS C200, C300 Mark II, C700, and XC15 (20"')
- BP-A30 Battery Pack For EOS C300 Mark II, C200, and C200B
EF 16-35mm f/2.8L III USM Lens EF 24-70mm f/2.8L II USM Lens - EW-88C Tulip Lens Hood for EF 24-70mm f/2.8L II USM Lens
EF 70-200mm f/2.8L IS III USM Lens zedsbvyyfearzvtu User Manual- for Camera PDF 14.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon EOS C200 Cinema Camera and Triple Lens Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - EOS C200 Cinema Camera (EF-Mount)
| Image Sensor Size | 24.6 x 13.8 mm (Super35) | Sensor Type | CMOS | Sensor Resolution | 4206 x 2340 (9.84 MP) | Effective Sensor Resolution | 4096 x 2160 (8.85 MP) | Pixel Pitch | 6.4 µm | Color Filter | Bayer | ISO | 160 to 25,600 (Native) 100 to 102,400 (Expanded) | Gain | -2 to 42 dB (Native) -6 to 54 dB (Expanded) | | Lens Mount | Canon EF | Lens Communication | Yes, with Autofocus Support | Built-In ND Filter | Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters | Built-In Microphone Type | Mono | Recording Media | 1 x CFast 2.0 Card Slots 2 x SDXC Card Slots | | Raw Recording | Cinema RAW Light 12-Bit: 4096 x 2160 at 24/30 fps (1 Gb/s) 4096 x 2160 at 60 fps (1 Gb/s) | Recording Modes | MP4 4:2:0 8-Bit: 3840 x 2160p at 24/30/60 fps (150 MB/s) 1920 x 1080p at 30/60/120 fps (35 MB/s) | Audio Recording | 4-Channel 16-Bit 48 kHz | | Video Connectors | 1 x BNC (SDI) Output 1 x HDMI (HDMI 2.0) Output | Audio Connectors | 2 x 3-Pin XLR Mic Level (+48 V Phantom Power) Input 1 x 1/8" / 3.5 mm Stereo Mic Level Input 1 x 1/8" / 3.5 mm Stereo Headphone Output | Other I/O | 1 x 2.5 mm LANC Control Input 1 x RJ45 LAN | | Display Type | LCD | Screen Size | 4" | Touchscreen | Yes | Screen Resolution | 1,230,000 Dots | | Screen Size | .46" | EVF Resolution | 1,770,000 Dots | | Battery Type | Canon BP-A Series | Power Connectors | 1 x 4-Pin LEMO Input | | Accessory Mount | 1 x 1/4"-20 Female 1 x Cold Shoe Mount | Dimensions | 5.7 x 6 x 7" / 14.48 x 15.24 x 17.78 cm (Without Grip) 7 x 6 x 8" / 17.78 x 15.24 x 20.32 cm (With Grip) | Weight | 3.2 lb / 1.5 kg | | Box Dimensions (LxWxH) | 18.4 x 14.4 x 12.8" | - EF 16-35mm f/2.8L III USM Lens
Focal Length | 16 to 35mm | Maximum Aperture | f/2.8 | Minimum Aperture | f/22 | Lens Mount | Canon EF | Format Compatibility | Full-Frame | Angle of View | 108
