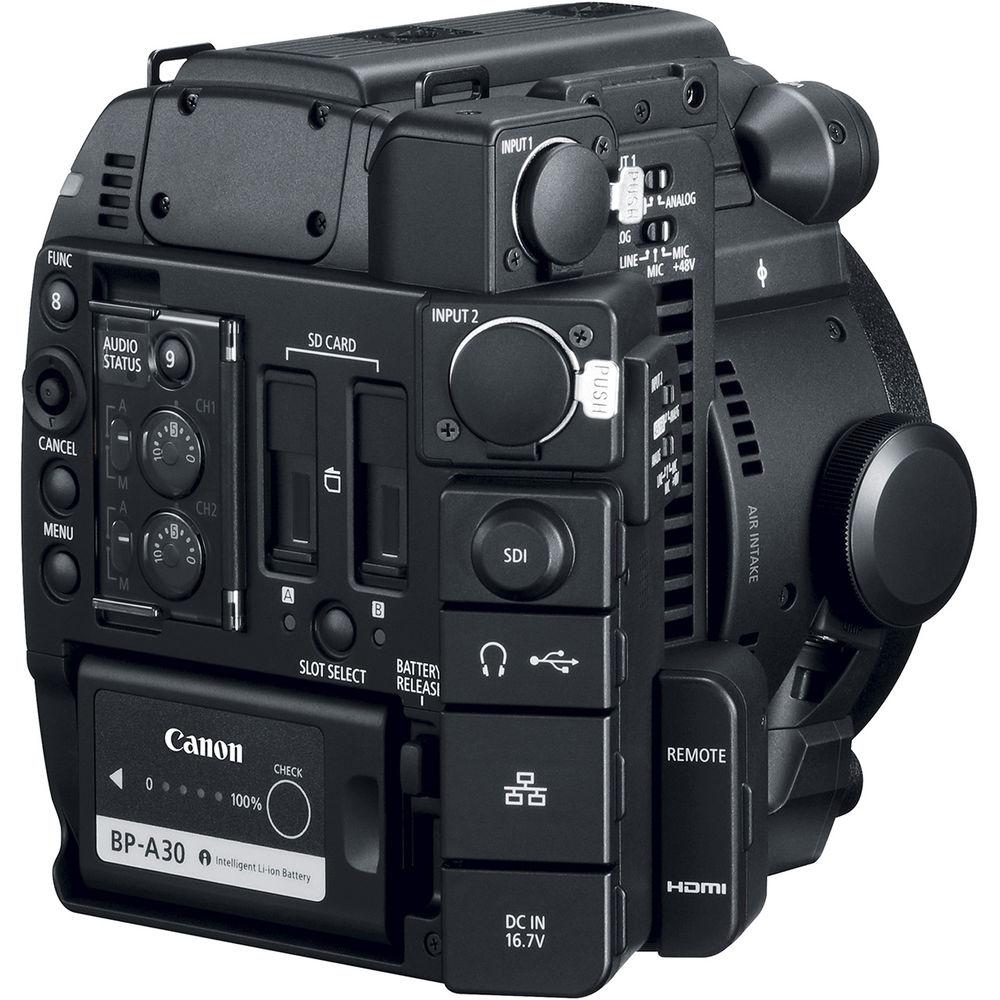

User Manual for Canon EOS C200B Cinema Camera Click to enlarge the picture
Contents of the user manual for the Canon EOS C200B Cinema Camera
- Product category: Digital Cine Cameras Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Digital Cine Cameras
 |
User manual for the Canon EOS C200B Cinema Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description Canon's Latest EOS Option: the C200/200B Read More - First Look:Canon Cinema EOS C200
- The Canon Cinema EOS C200 and C200B Video Training Series: Shooting with the Camera
- From Dock to Dish - Canon EOS C200
- The Canon Cinema EOS C200 and C200B Video Training Series: Dual Pixel CMOS Autofocus Features

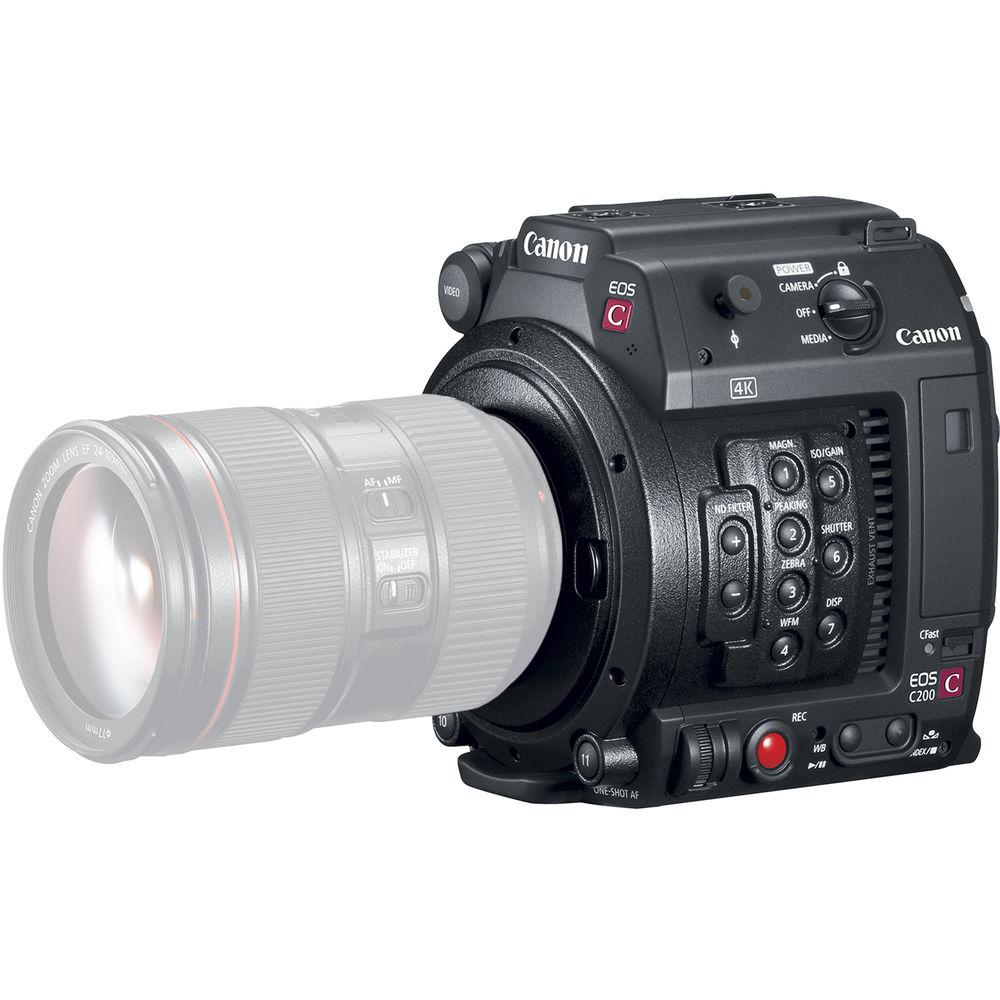

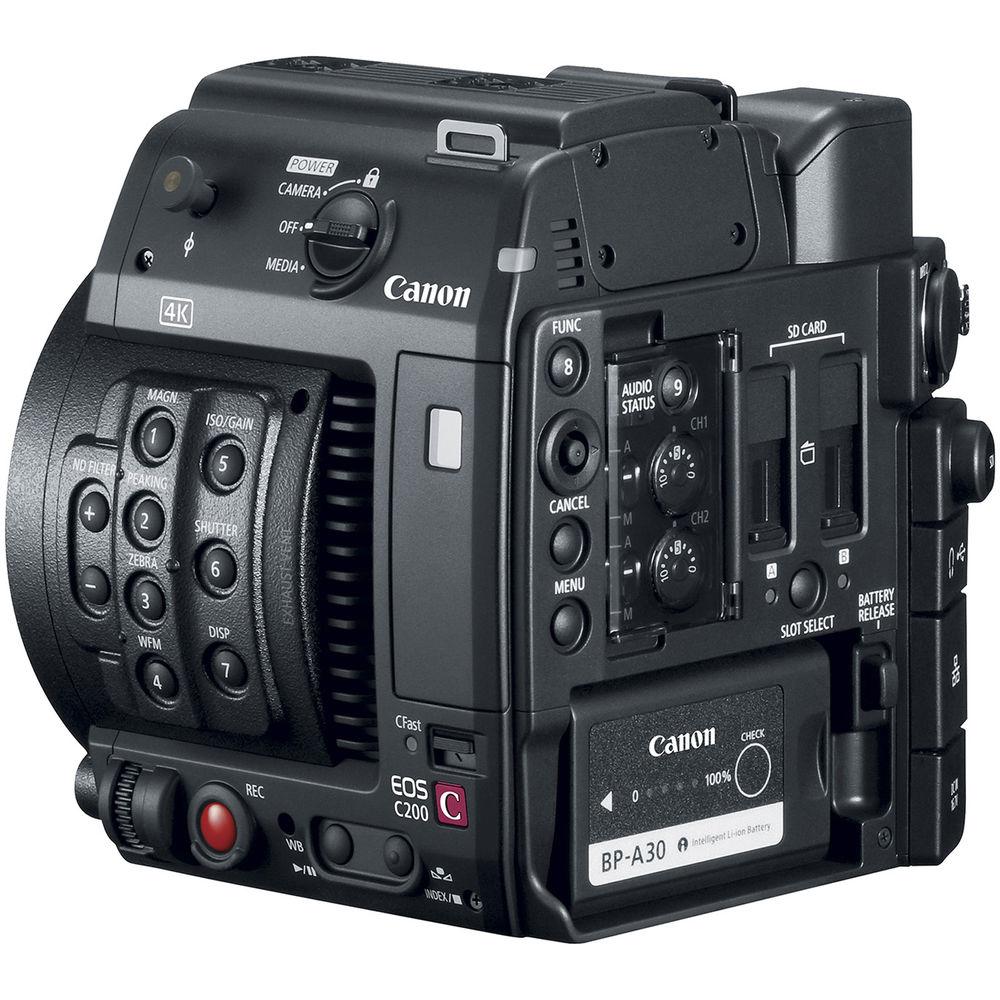

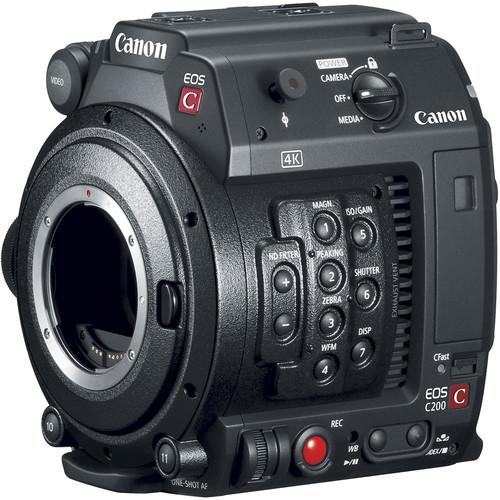

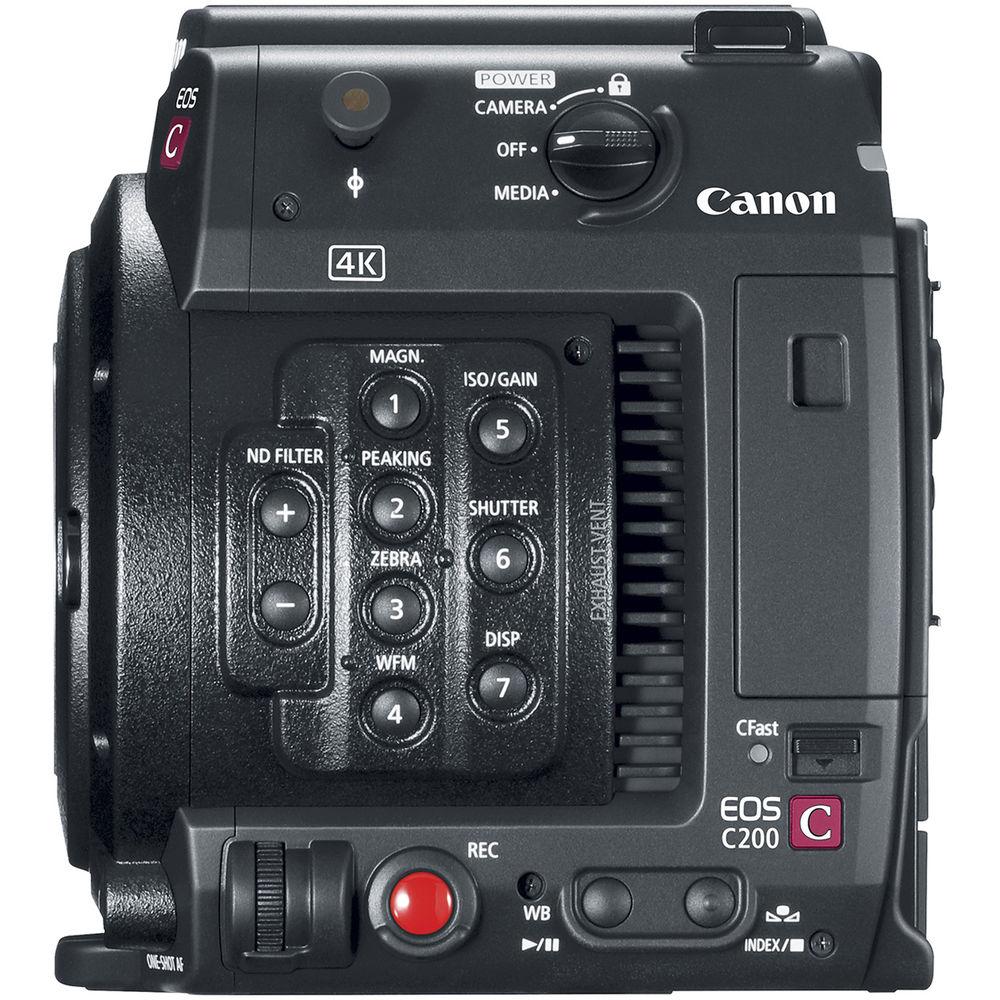

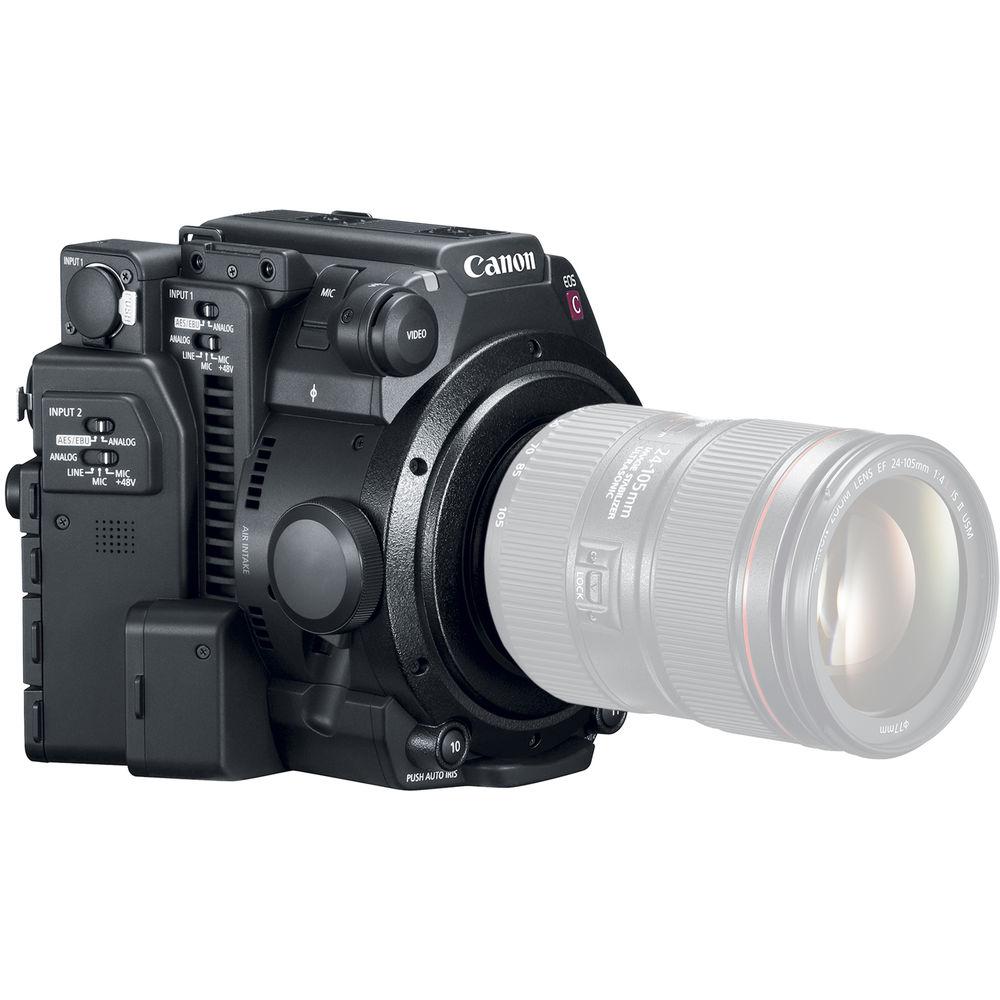

Canon's EOS C200B EF Cinema Camera features a Super 35mm CMOS sensor, and Dual Pixel Autofocus. The EF lens mount on the EOS C200B offers compatibility not only with Canon's existing broad range of DSLR lenses but also with their line of EF-mount CN-E cinema prime and zoom lenses. The Super 35mm sensor is paired with Canon's Dual DIGIC DV 6 image processor, allowing it to capture and record up to DCI 4K resolution.
The C200B can also record Canon's Cinema RAW Light internally via its single CFast card slot. The camera also incorporates two SD card slots for recording UHD 4K/HD MP4 video. You can output video via the camera's SDI output, and the built-in XLR connectors provide two channels of audio at line, mic, and mic+48V level. A built-in Ethernet connector provides input/output control. Main Features - Canon Super 35mm CMOS Sensor
- Modeled on the Super 35mm motion picture film standard, the Canon CMOS sensor has an active image size of 24.4 x 13.5mm. It features 4096 x 2160 resolution to deliver Cine 4K images, as well as supporting Ultra HD (3840 x 2160), and Full HD (1920 x 1080).
- Dual Pixel CMOS AF Technology
- Provides continuous AF (Autofocus) function for all autofocus lenses, using Dual Pixel CMOS AF technology. A new AF Lock setting also lets you change the image framing while holding the desired focus. This feature is ideal for users who regularly shoot with smaller crews, who shoot moving subjects, or who want smoother, more natural-looking autofocus.
Dual Pixel CMOS AF technology features a CMOS sensor that consists of an array of pixels that each feature two separate photodiodes. By continuously comparing their outputs during AF mode, phase-difference autofocus helps ensure non-blurred images and smooth focus transitions even when the talent and/or camera are moving. The new feature places a high priority on maintaining sharp focus while providing a natural, smooth autofocus movement with select Canon EF lenses - including newer-generation STM lenses - which offer even smoother and quieter operation. - Dynamic Range, ISO Range
- The C200B features a dynamic range of approximately 13 stops, and an ISO range of 160 to 25,600. You can also select an expanded ISO range of 100 to 102,400. It supports Wide DR Gamma, Canon Log and Canon Log 3.
- Dual Canon DIGIC DV 6 Image Processor
- The camera features Dual DIGIC DV 6 processors to handle the internal data processing.
- Rich Audio Controls

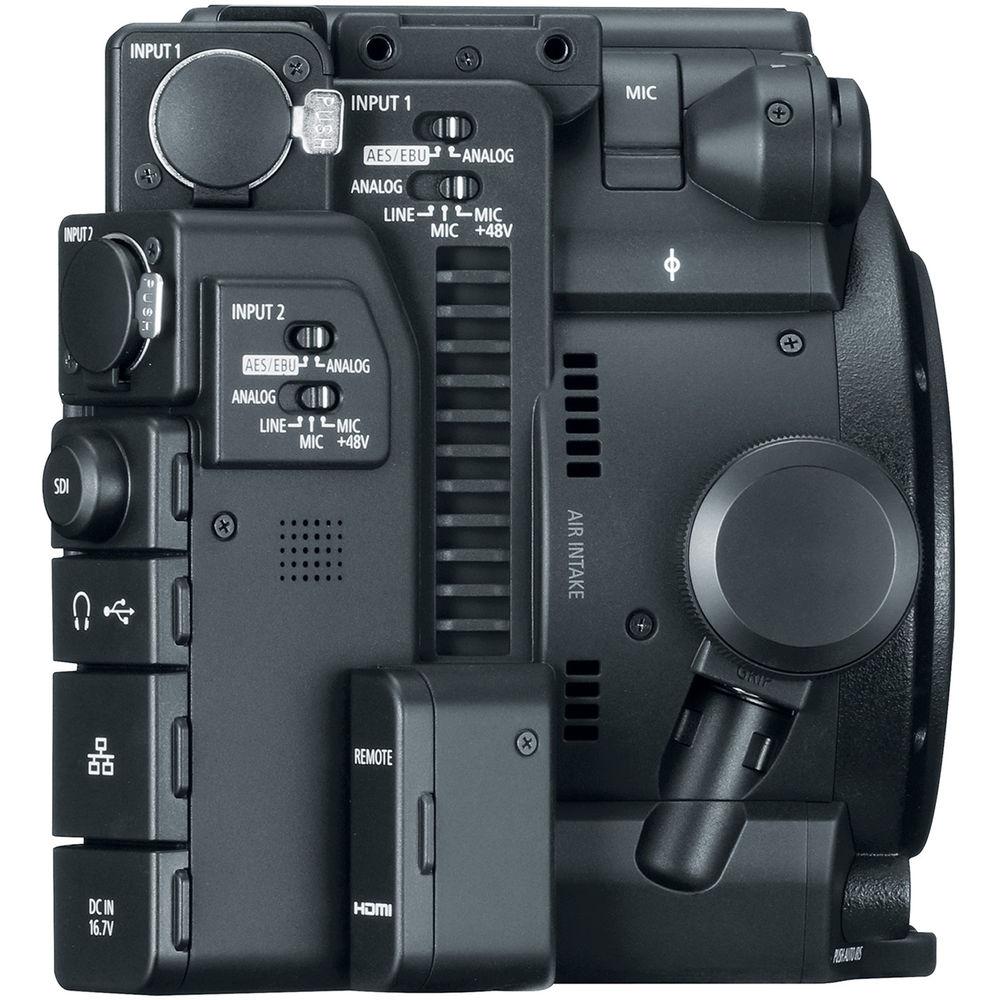

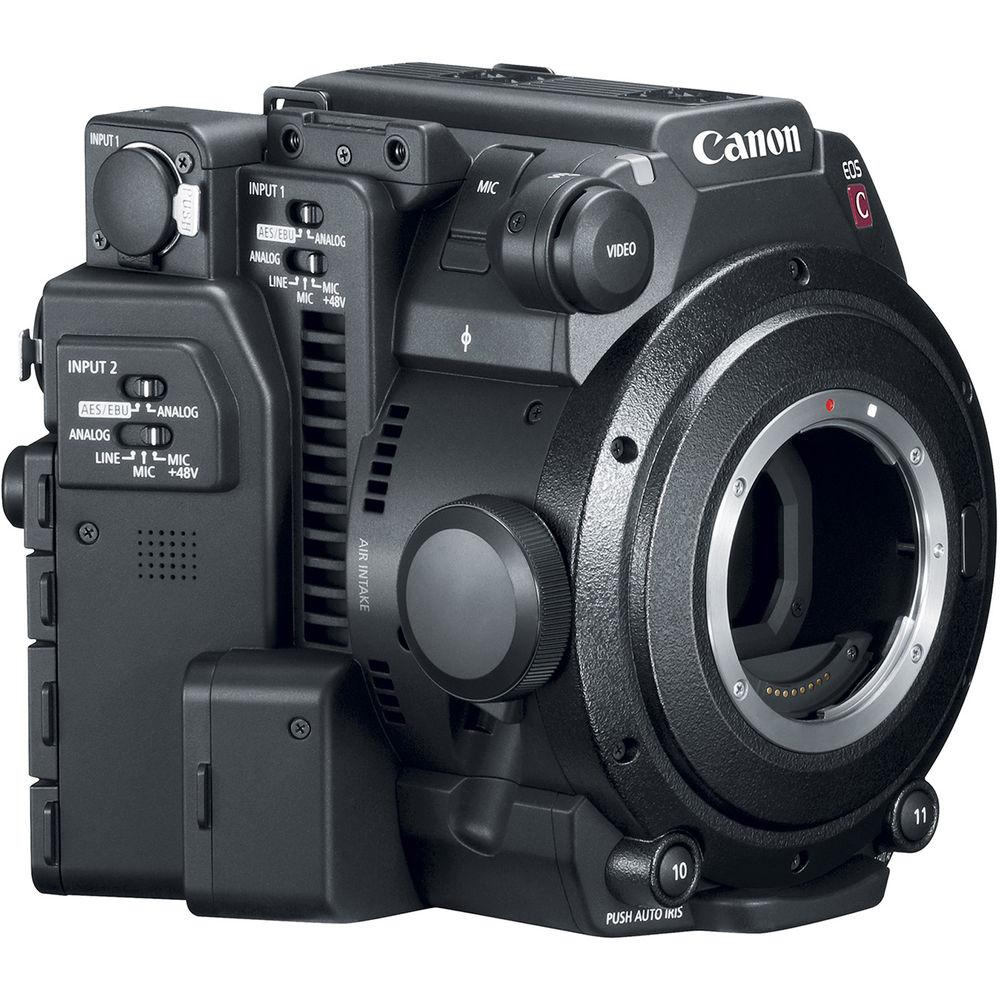

- Built directly into the C200B are two XLR audio inputs with +48V phantom power, and a 3.5mm microphone terminal is also built into the camera. Audio is recorded uncompressed in 16-bit PCM format at 48 kHz for high fidelity sound. Both XLR inputs as well as the mic terminal have the option for automatic as well as manual gain control.
- Canon Cinema RAW Light
- This codec allows you to record raw data internally to a CFast 2.0 card via the camera's single CFast card slot. The CFast card slot enables capturing DCI 4K in Canon's Cinema RAW Light format.
- MP4 Recording
-

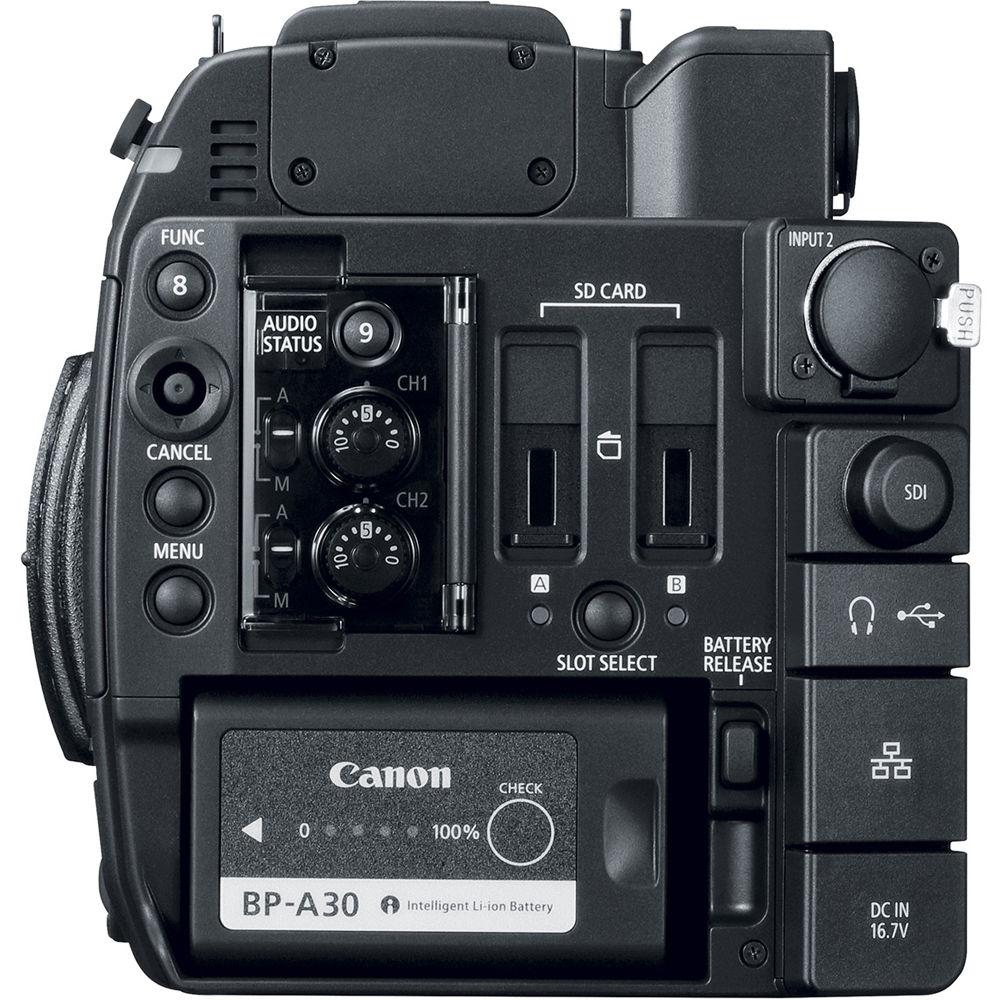

- UHD 4K and Full HD recording onto SD cards is available via the two SD card slots.
- Slow-motion recording, pre-recording, frame recording, interval recording
- Recording Functions
- Relay recording, double slot recording
- High-Speed Shooting
- You can choose to record at 120/100p when recording in Full HD.
- White Balance
- AWB
Kelvin setting (setting range: 2000K to 15000K/-20CC to +20CC)
Daylight
Tungsten
Set A
Set B - Other Recording Functions
- Custom picture setting
Black balance adjustments
Color bars
Peaking display
Zebra display
My Menu setting
Waveform monitor display
Assignable buttons (1-17)
Key lock
Marker display
Enlarged display
Custom display
Peripheral illumination correction
GPS support (GP-E2)
Monaural microphone - Playback Operations
- Normal playback, fast forward (at speeds of ×5, ×15, ×60), fast reverse (at speeds of ×5, ×15, ×60), frame forward, frame reverse, rec review
- Clip Display
- 3 x 4 (clip) index screen (raw/MP4/Photo)
UPC: 013803290059 In the Box Canon EOS C200B Cinema Camera (Body Only) (EF-Mount) CA-A10 Compact Power Adapter for EOS C300 Mark II, C200, and C200B Camcorders Single Battery Charger for EOS C300 Mark II, C200, and C200B Batteries Compact Power Adapter BP-A30 Battery Pack For EOS C300 Mark II, C200, and C200B Tape Measure Hook Thumb Rest Body Cap Limited 1-Year Warranty User Manual PDF 14.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon EOS C200B Cinema Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon C200B Specs | | | Image Sensor Size | 24.6 x 13.8 mm (Super35) | | Sensor Type | CMOS | | Sensor Resolution | 4206 x 2340 (9.84 MP) | | Effective Sensor Resolution | 4096 x 2160 (8.85 MP) | | Pixel Pitch | 6.4 µm | | Color Filter | Bayer | | ISO | 160 to 25,600 (Native)
100 to 102,400 (Expanded) | | Gain | -2 to 42 dB (Native)
-6 to 54 dB (Expanded) | | | | Lens Mount | Canon EF | | Lens Communication | Yes, with Autofocus Support | | Built-In ND Filter | Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters | | Built-In Microphone Type | Mono | | Recording Media | 1 x CFast 2.0 Card Slots
2 x SDXC Card Slots | | | | Raw Recording | Cinema RAW Light 12-Bit:
4096 x 2160 at 24/30 fps (1 Gb/s)
4096 x 2160 at 60 fps (1 Gb/s) | | Recording Modes | MP4 4:2:0 8-Bit:
3840 x 2160p at 24/30/60 fps (150 MB/s)
1920 x 1080p at 30/60/120 fps (35 MB/s) | | Audio Recording | 4-Channel 16-Bit 48 kHz | | | | Video Connectors | 1 x BNC (SDI) Output
1 x HDMI (HDMI 2.0) Output | | Audio Connectors | 2 x 3-Pin XLR Mic Level (+48 V Phantom Power) Input
1 x 1/8" / 3.5 mm Stereo Mic Level Input
1 x 1/8" / 3.5 mm Stereo Headphone Output | | Other I/O | 1 x 2.5 mm LANC Control Input
1 x RJ45 LAN | | | | Screen Size | 4" | | Touchscreen | Yes | | | | Battery Type | Canon BP-A Series | | Power Connectors | 1 x 4-Pin LEMO Input | | | | Accessory Mount | 1 x Cold Shoe Mount
1 x 1/4"-20 Female | | Dimensions | 5.7 x 5.7 x 5.4" / 14.48 x 14.48 x 13.72 cm (Without Protrusions)
6.7 x 8.2 x 5.4" / 17.02 x 20.83 x 13.72 cm (With Protrusions) | | Weight | 2.9 lb / 1.3 kg | | | | Package Weight | 12.25 lb | | Box Dimensions (LxWxH) | 18.4 x 14.4 x 12.8" |
