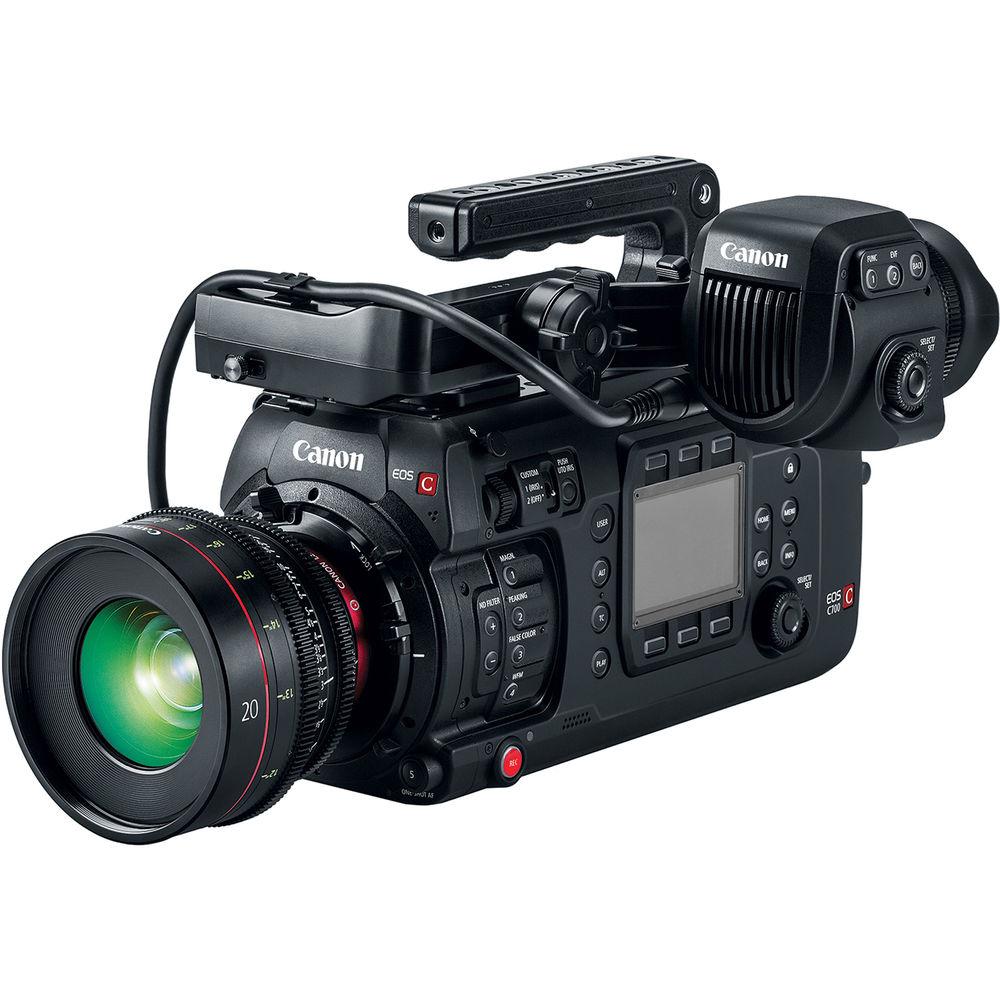

User Manual for Canon EOS C700 Full-Frame Cinema Camera Click to enlarge the picture
Contents of the user manual for the Canon EOS C700 Full-Frame Cinema Camera
- Product category: Digital Cine Cameras Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Digital Cine Cameras
 |
User manual for the Canon EOS C700 Full-Frame Cinema Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description NAB 2018: New Canon Full-Frame C700 & 20mm L F Prime Read More - First Look | Canon EOS C700 FF Cinema Camera

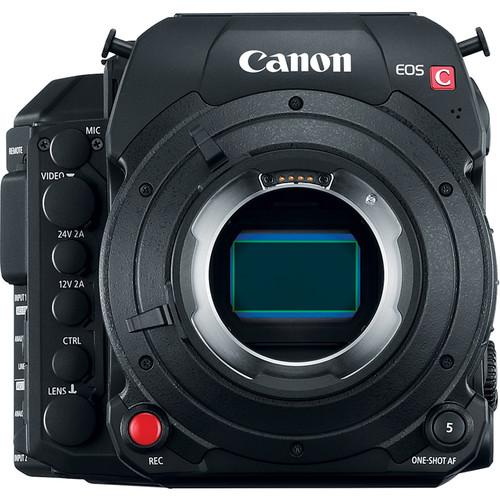

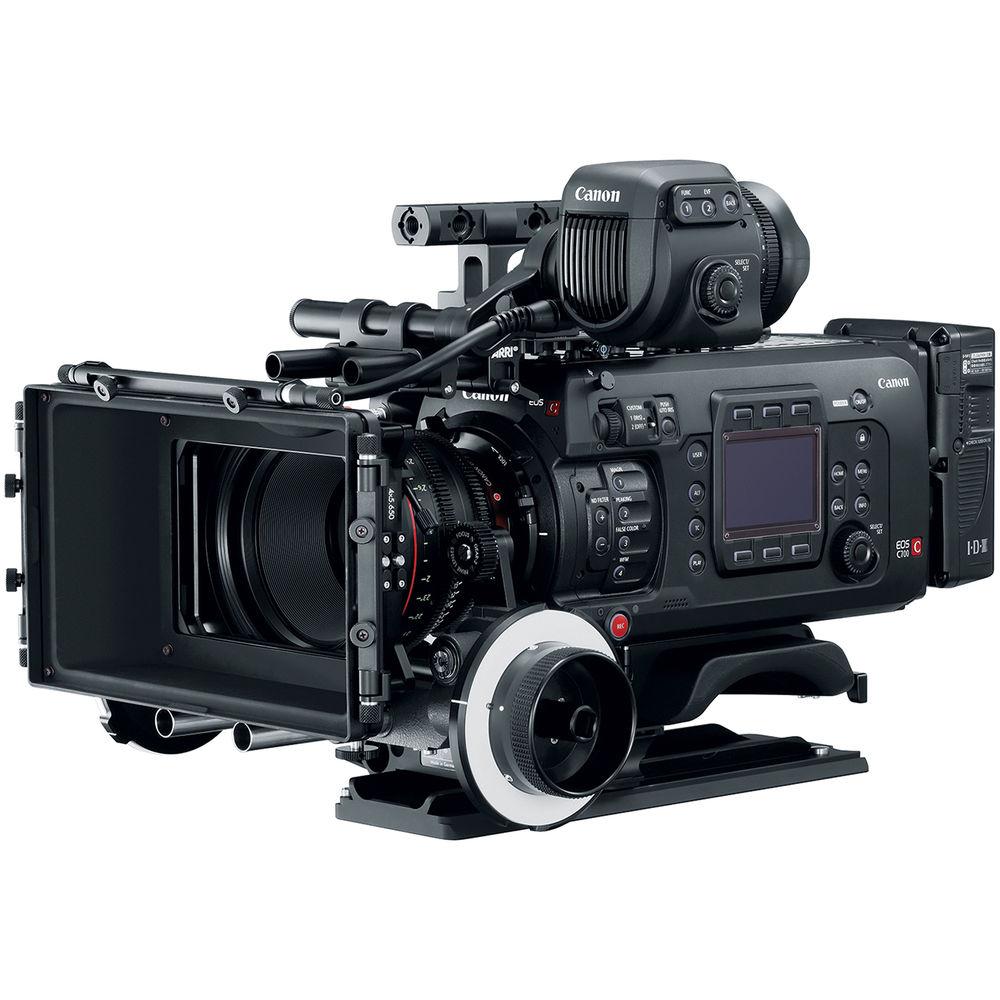

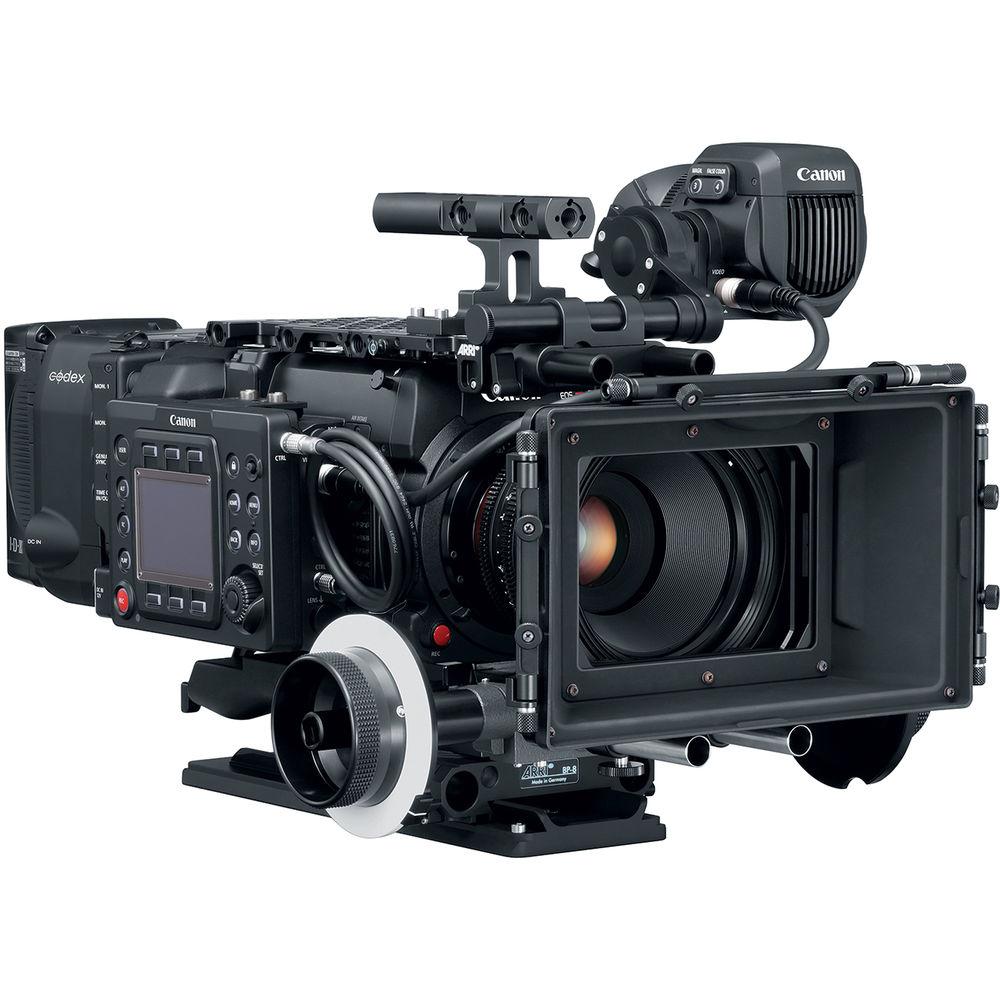

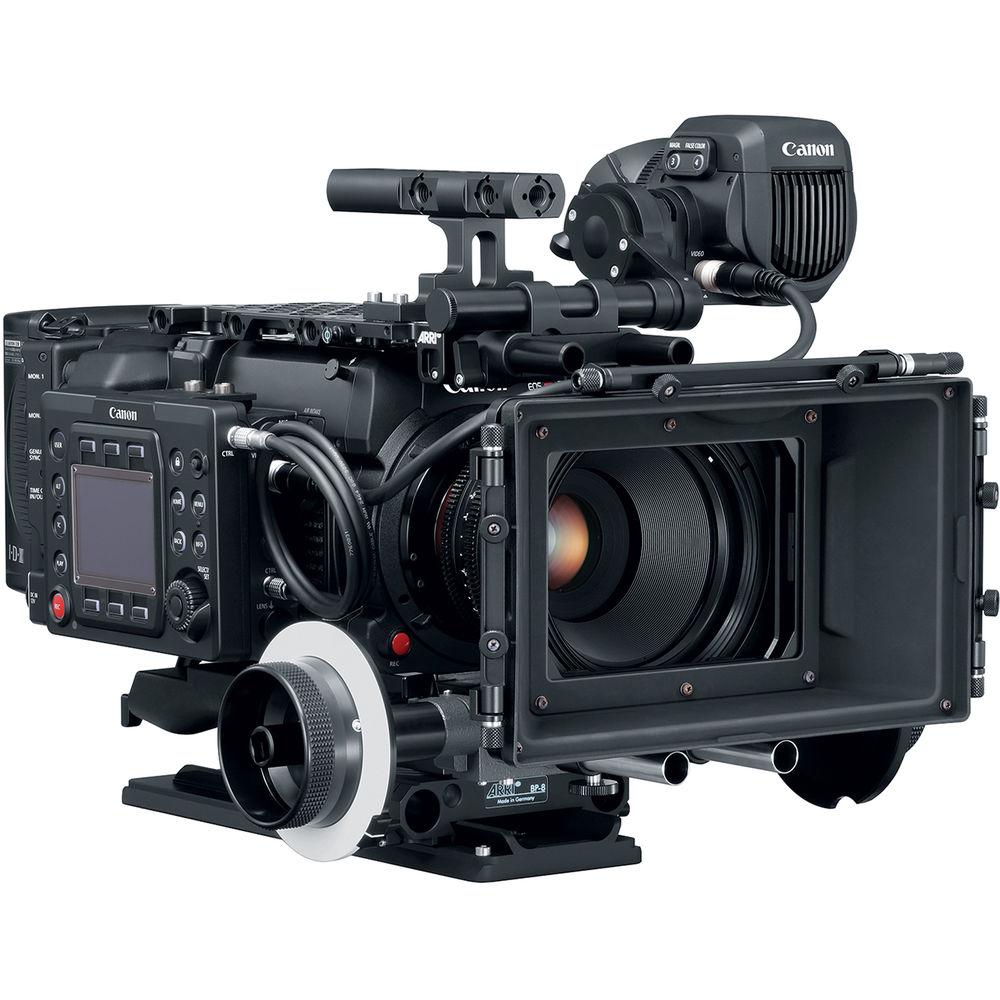

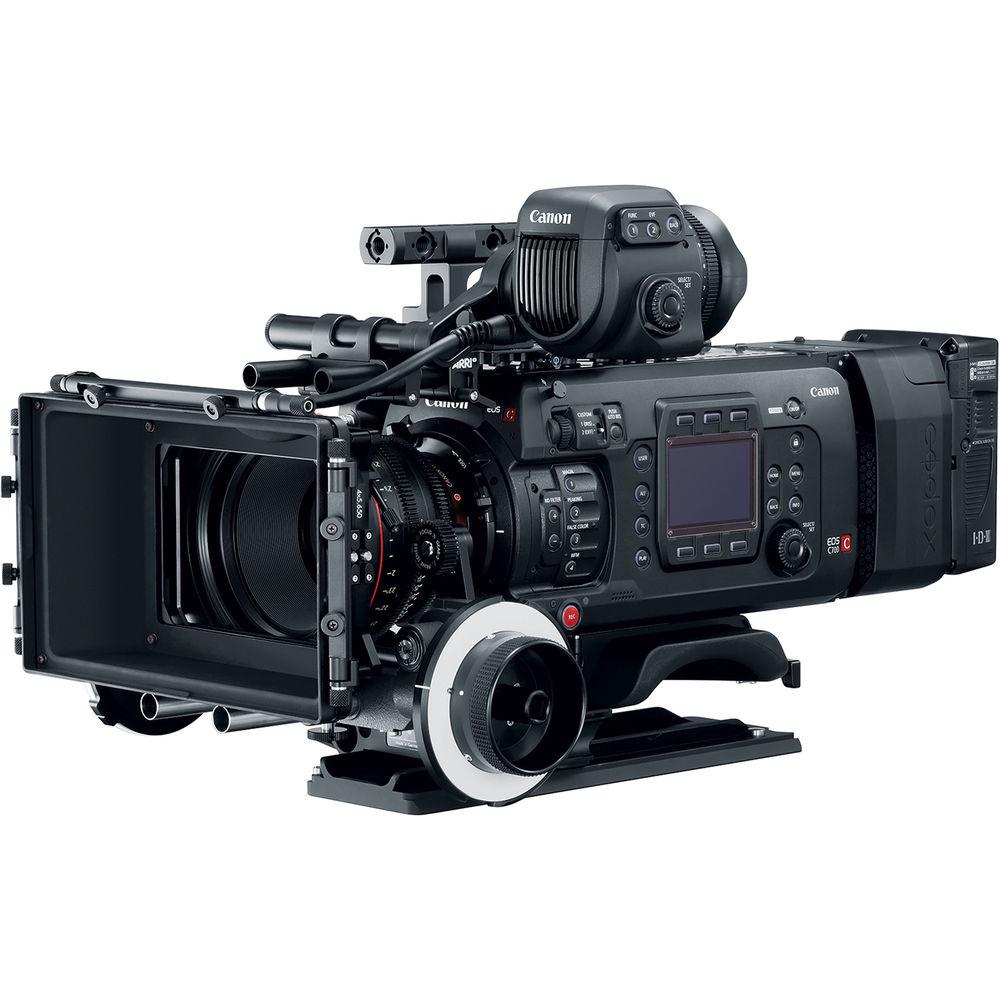

This Canon EOS C700 Full-Frame Cinema Camera features a full-frame sensor that allows you to capture images with up to 5.9K resolution. This version of the EOS C700 FF Digital Cinema Camera comes with Canon's EF lens mount with a positive-locking mechanism, minimizing play found in traditional spring-loaded, bayonet-style mounts. With a physical resolution exceeding that of DCI 4K and a dynamic range of approximately 15 stops, the EOS C700 FF Digital Cinema Camera is ready for today's 4K and HDR productions. The full-frame sensor and triple DIGIC DV 5 image processors enables full-frame capture at 30p and 4K cropped capture at up to 72 fps to the CFast 2.0 card slots using the XF-AVC codec. Both relay and simultaneous recording is possible, and you can even record in ProRes on one CFast card, while simultaneously recording to XF-AVC on another CFast card. Raw recording is also possible in full frame at up to 60 fps, 4K Super35 crop up to 72 fps, and 2K Super16 crop up to 168 fps using an optional clip-on Codex Digital Recorder.
While the EOS C700 FF Digital Cinema Camera is a fairly advanced piece of equipment, Canon has implemented a familiar user interface. Most basic functions can be accessed through the six buttons surrounding the screen. More advanced settings can be found using the simple selection dial and set buttons. I/O options for nearly any application can be found on the camera's side panel. Video, audio, control, and power inputs and outputs are available for implementations ranging from ENG-style run-and-gun to high-budget cinema productions. The camera supports ACES, and features selectable gamma and log shooting modes. While the camera is a production powerhouse all on its own, its modular design lets the user customize the form factor to fit their use case. The rectangular body has enough real estate to be shoulder-mounted for handheld shooting or secured to a dovetail on professional grip equipment with ease. Recording Features - High Frame Rate Support
- Slow down the action with high frame rates. Crop in on the sensor for 2K frame rates up to 168 fps. With the separately available Codex Digital raw recorder, frame rates of up to 60 fps full frame can be captured using the entire sensor in Raw.
- Internal ProRes Recording
- The inclusion of Apple's ProRes codec inside the EOS C700 FF Digital Cinema Camera enables shooters who require a quick turnaround to go direct-to-edit on many NLEs without any transcoding necessary. In 4K, the 422 HQ flavor is implemented and is supported up to 30 fps. In 2K mode, 10-bit 422, 10-bit 422 HQ, and 12-bit 4444 can be used. High frame rate recording is supported up to 168 fps using the 10-bit 422 flavor combined with the 2K center crop. All formats are conveniently recorded directly to the CFast 2.0 cards.
- Internal XF-AVC Recording
- Recording to CFast 2.0 cards using the XF-AVC-coded enables capturing at 4K full frame at up to 60 fps. You can also capture 2K/FHD at up to 60 fps. Switching to a Super35 crop enables 4K capture at up to 72 fps, and if you select a Super16 crop you can capture at up to 168 fps to CFast 2.0 cards. For Proxy file recording you can record proxy files in XF-AVC from 1.5 to 9 Mb/s to a built-in SD card slot.
- Raw Recording

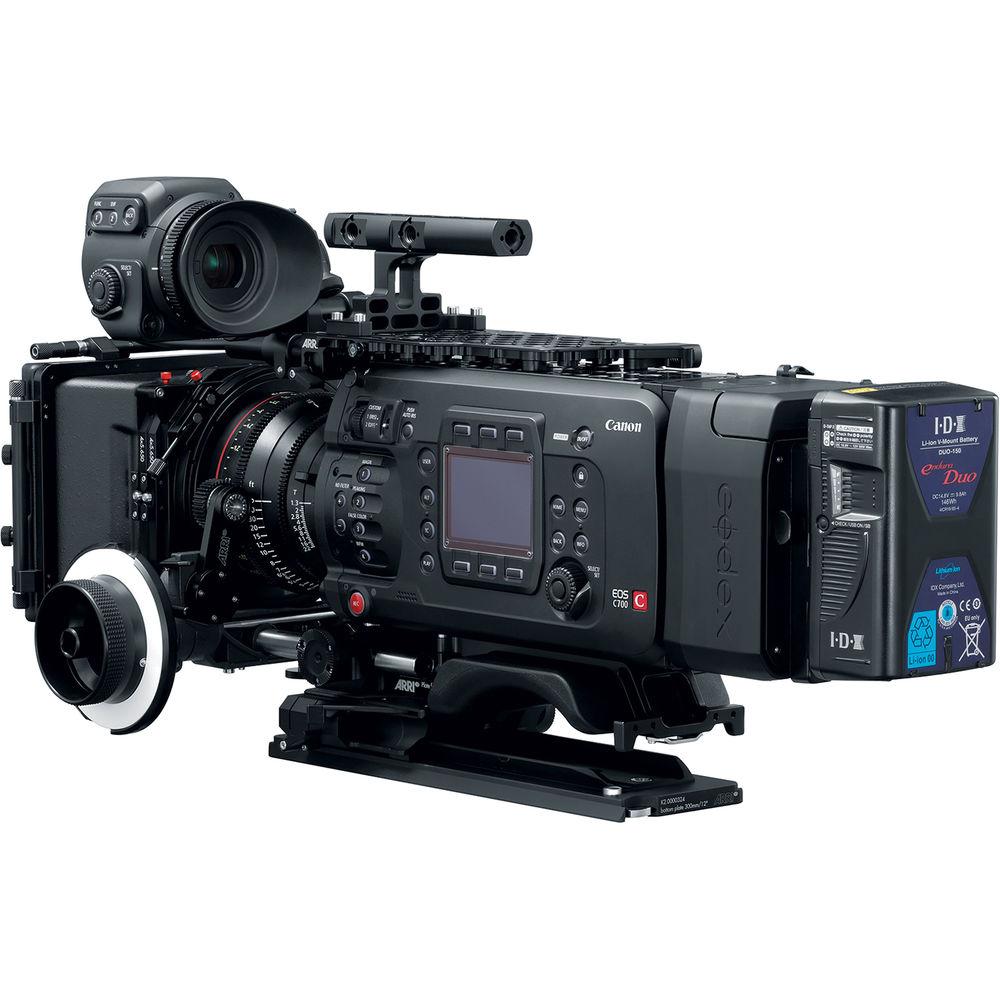

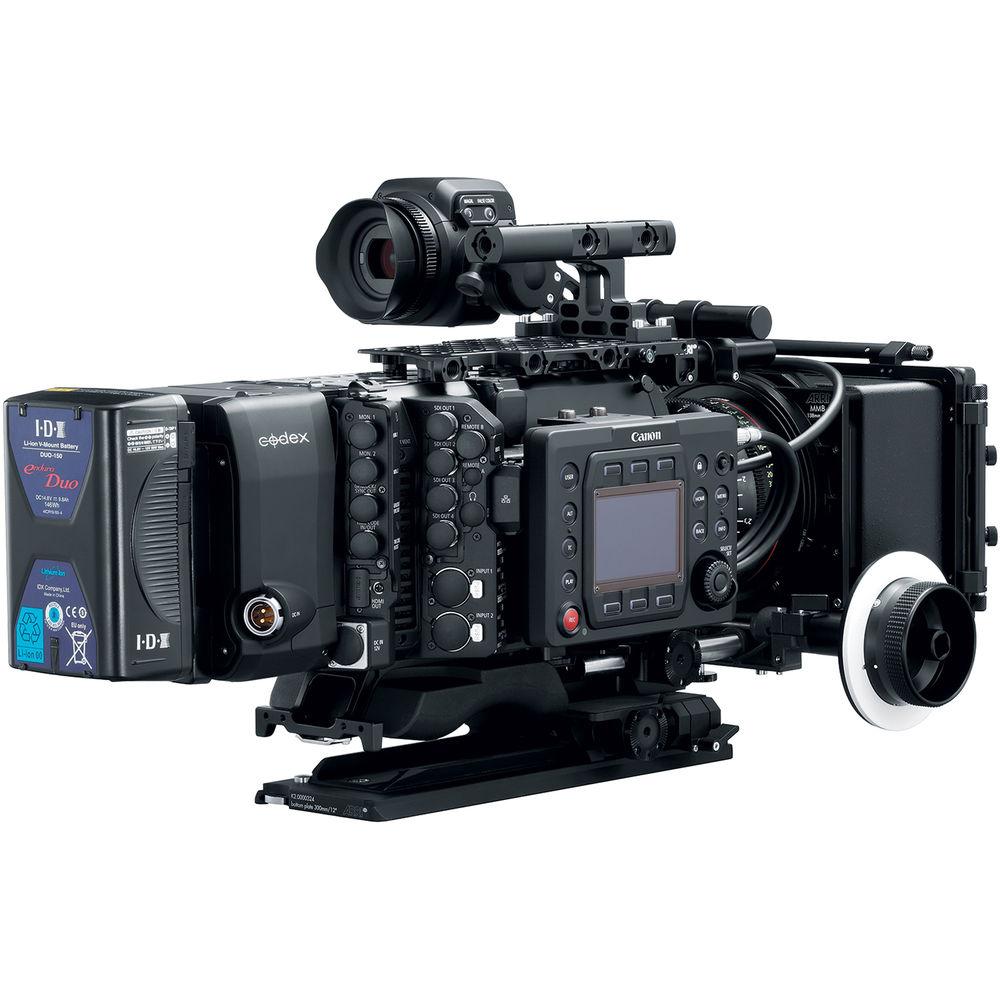

- By removing the battery mount on the rear of the camera, and using the included bracket, a Codex Digital raw recorder can be installed using the included bracket. 12-bit DCI 4K raw files will be recorded onto separately available Codex Digital Capture Drives and will be instantly compatible with the robust Codex Digital workflow.
- HLG
- The EOS C700 FF Digital Cinema Camera features the option to output HDR formats conforming to ITU-R BT.2100 over the monitor input, to assist in HDR production. ITU-R BT.2100 allows compatible monitors to simulate the HDR look of the final piece allowing for easier lighting and other technical decisions on set during the acquisition process.
- LUT
- The EOS C700 FF Digital Cinema Camera supports User LUTs. Users can customize their own LUTs and load them on the camera for viewing and recording.
Monitoring Features - HDR
- If using monitors compatible with the SMPTE ST 2084 standard, you can connect to the monitor via SDI or HDMI outputs for vibrant images with enhanced dynamic range visibility over standard monitoring solutions. The separately available EVF-V70 OLED viewfinder has HDR simulation via a LUT that resembles the SMPTE ST 2084 standard for HDR preview monitoring in-camera.
- Surrounding Area
- The viewfinder and monitoring outputs display a translucent area around the image that is being recorded. Having that area lets the operator see what's happening outside the recorded frame.
- ACES Support
- The EOS C700 FF Digital Cinema Camera supports ACES 1.0 of the Academy Color Encoding System. Using Canon supplied IDTs, images captured on the EOS C700 FF can be imported directly into the ACES compatible systems. Additionally, video output from the camera can be monitored by selecting the ACES Proxy. Aces Proxy allows the camera to send a monitor output that simulates ACES space to a compatible monitor or device. Modifications made using the proxy output can be saved and later brought into the editing or grading suite to help insure changes and color choices made on set are accurately reproduced in post.
- Anamorphic De-Squeeze
- Anamorphic lenses enable one-of-a-kind visual expression and are supported on the C700. When outputted to EVF or monitor outputs, the image is stretched to 2.39:1 after de-squeezing. Magnification factor can be set to OFF/2x/1.33x to match the anamorphic optics in use.
General Features - Canon Log
- Following in the tradition of the EOS C series cameras, the EOS C700 FF Digital Cinema Camera offers Canon Log, Canon Log 2, and Canon Log 3 curves for recording.
Canon Log 2 emphasizes post-production grading, and maintains higher tonality in dark areas compared to the original Canon Log. With this curve, up to 15 stops of dynamic range can be realized in a single frame.
Canon Log 3 uses a gamma designed to simplify grading by tightening dark areas and adjusting gradation, making it a gamma that makes noise less noticeable and widens dynamic range while retaining Canon Log's ease of use. - Lens Control
- A 12-pin lens connection enables remote control of a compatible lens's focus, zoom, and iris functions, similar to that of a broadcast lens.
- B4 Lens Support
- With the separately available B4 lens mount adapter, traditional 2/3" ENG lenses can be used in run-and-gun situations as they cover a large zoom range while remaining relatively compact.
- Intuitive Operation

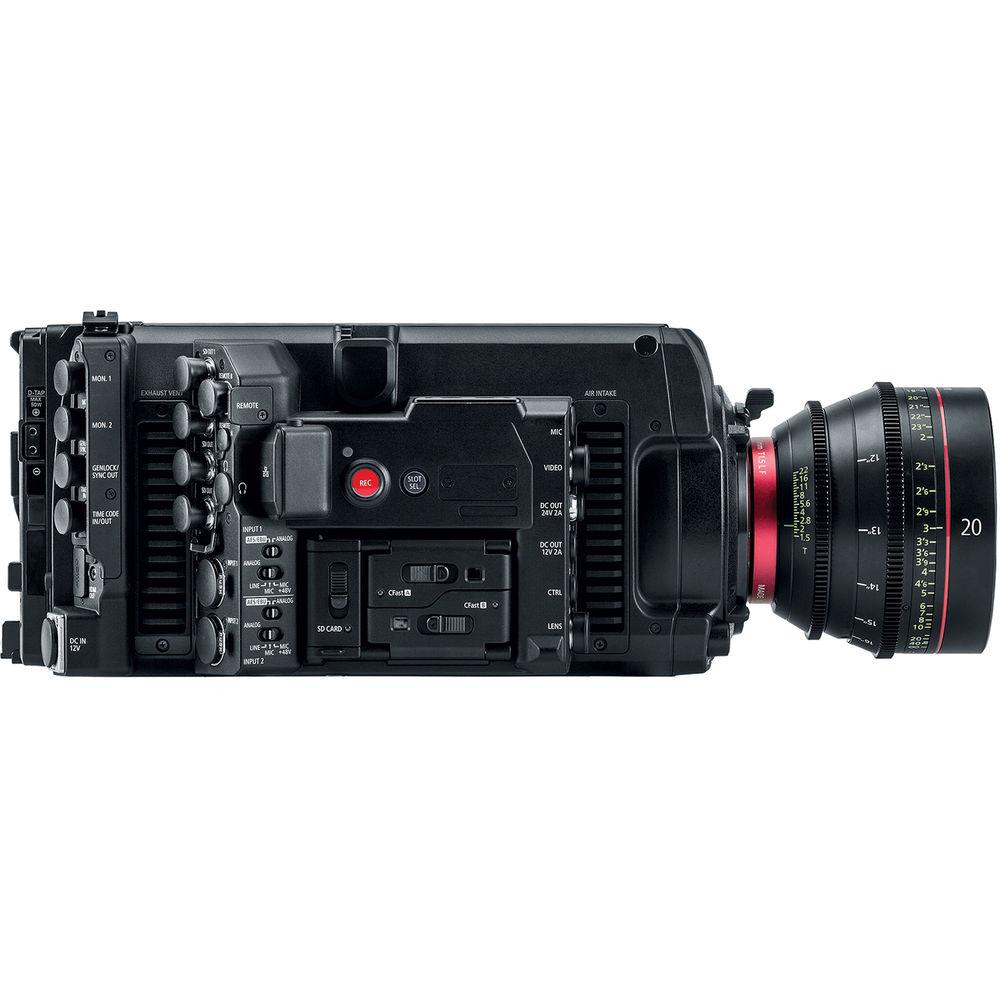

- In addition to several assignable buttons, six soft keys surround the control screen on the operator side of the camera. Each of the six buttons can be set to adjust a different camera setting easily and intuitively. This menu system can be driven independently of the EVF menu. Deeper settings can be accessed using the dial, set key, as well as familiar home and back buttons.
- ND Filters
- Dual motorized filter wheels hold 2-, 4-, and 6-stop ND filters. When the camera is set to expanded ISO, the camera will combine the filter wheels to allow 8- and 10-stop settings.
- IP Streaming Support
- IP streaming support lets users stream video online in real-time as they shoot. The C700 can connect with compatible IP decoders, IP streaming software and other devices, either through the on-board Ethernet connection or with a separately available Wi-Fi adapter, to enable live streaming to video websites or news programs within an existing video production and editing workflow, such as at a broadcast station.
UPC: 013803305890 In the Box Canon EOS C700 Full-Frame Cinema Camera (PL Mount) Handle Unit Body Cap Tripod Adapter Base 4 x Base Foot WFT Attachment Mic Holder 2 x Measuring Hook Reinforcing Plate for Codex Recorder Cable Clamp Base Allen Wrench Button Battery Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon EOS C700 Full-Frame Cinema Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon C700 FF PL Specs | | | Image Sensor Size | 38.1 x 20.1 mm (Full-Frame) | | Sensor Type | CMOS | | Sensor Resolution | 6062 x 3432 (20.8 MP) | | Effective Sensor Resolution | 5952 x 3140 (18.69 MP) | | Color Filter | Bayer | | ISO | 160 to 25,600 (Native)
100 to 102,400 (Expanded) | | Advertised Dynamic Range | 15 Stops | | | | Lens Mount | PL Mount | | Lens Communication | Yes | | Built-In ND Filter | Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters | | Built-In Microphone Type | Mono | | Recording Media | 2 x CFast 2.0 Card Slots
1 x SD (Unspecified Type) Card Slot | | | | Recording Modes | XF-AVC 4:2:2 10-Bit:
4096 x 2160 up to 60 fps
3840 x 2160 up to 60 fps
2048 x 1080 up to 168 fps
1920 x 1080 up to 60 fps
1920 x 1080 at 50/59.94 fps
XF-AVC 4:4:4 12-Bit:
2048 x 1080 up to 60 fps
1920 x 1080 up to 60 fps
XF-AVC 4:4:4 10-Bit:
1920 x 1080 up to 60 fps
XF-AVC 4:2:0 8-Bit:
2048 x 1080 up to 60 fps
ProRes 4:2:2 10-Bit:
4096 x 2160 up to 30 fps
3840 x 2160 up to 30 fps
2048 x 1080 up to 168 fps
1920 x 1080 up to 168 fps
ProRes 4:4:4 12-Bit:
2048 x 1080 up to 60 fps
1920 x 1080 up to 60 fps | | | | Raw Output | External Recorder:
5952 x 3140 12-Bit
5952 x 2532 12-Bit
4096 x 2160 12-Bit
5952 x 3140 10-Bit
5952 x 2532 10-Bit
4096 x 2160 10-Bit
2048 x 1080 10-Bit | | IP Streaming | MP4: 720 x 480 to 1920 x 1080 at 29.97p, 59.94i (1.5 to 9.0 Mb/s) | | | | Video Connectors | 2 x BNC Monitor Output
4 x BNC (SDI) Output
1 x HDMI Output | | Audio Connectors | 1 x 1/8" (3.5 mm) Stereo Mic Level Input
2 x 3-Pin XLR Input | | Other I/O | 1 x RJ45 LAN | | | | Battery Type | V-Mount | | Power Connectors | 1 x 4-Pin XLR (12 VDC) Input
1 x D-Tap Output | | | | Accessory Mount | None | | Dimensions | 6.6 x 6.1 x 12.9" / 16.76 x 15.49 x 32.77 cm | | Weight | 7.6 lb / 3.4 kg |
