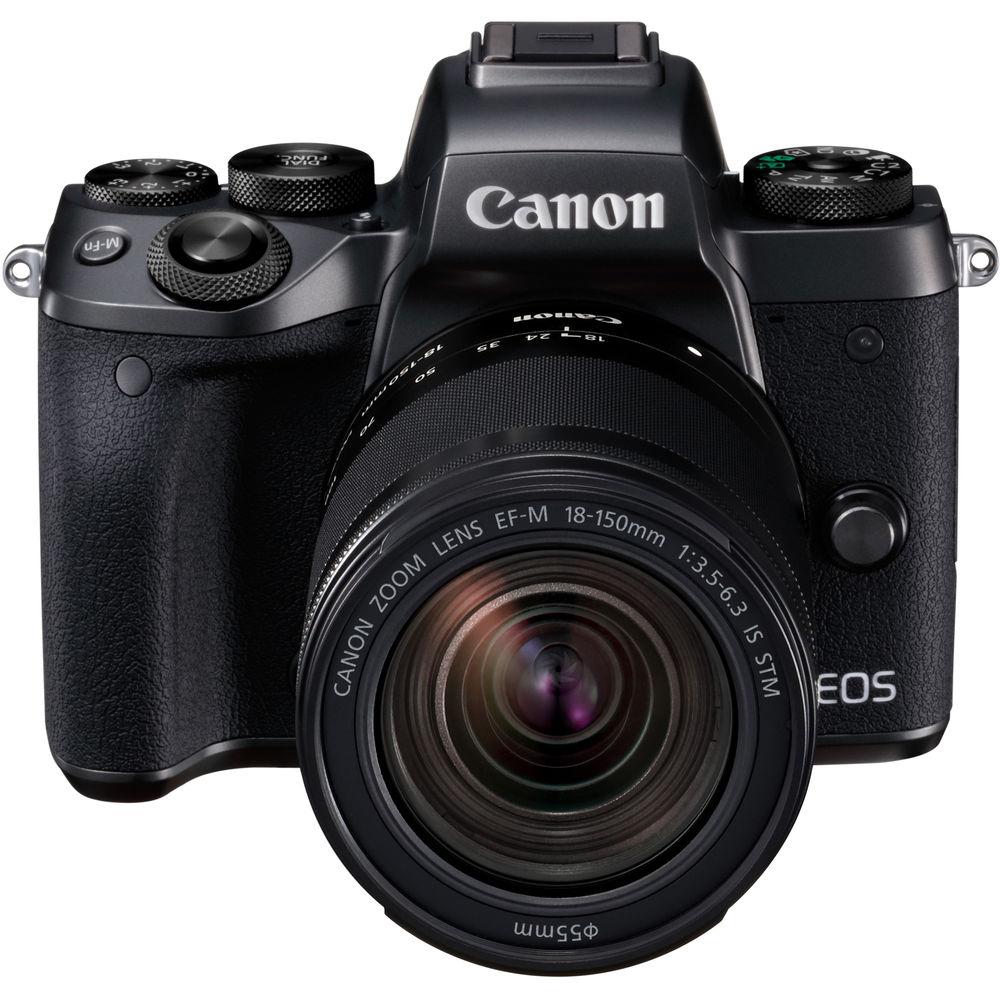

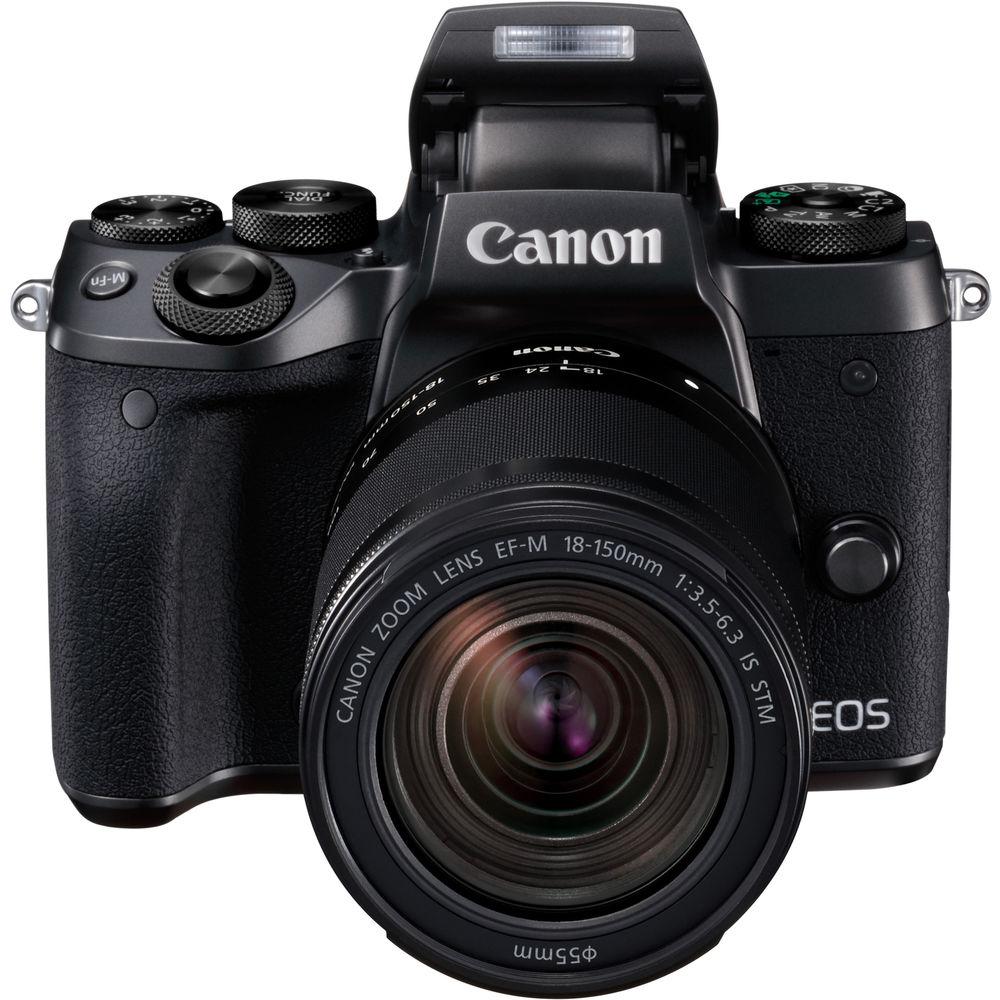

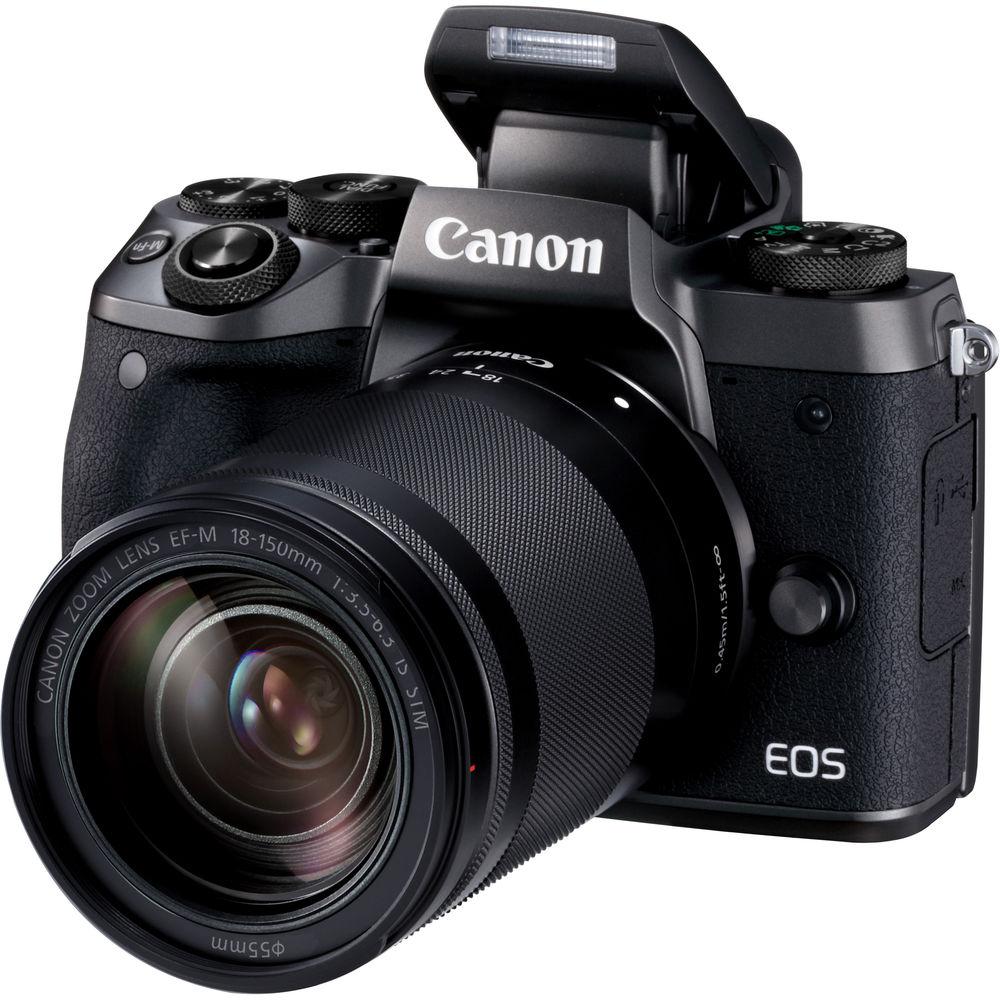

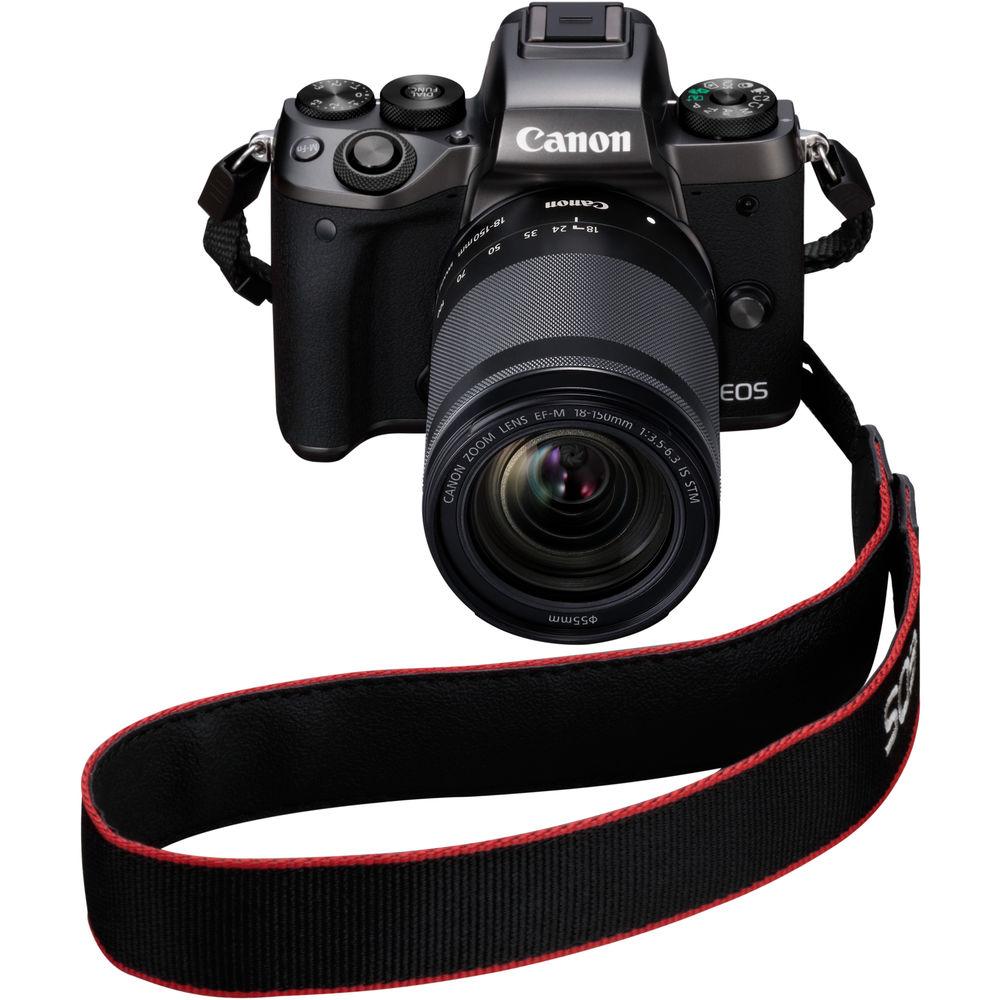

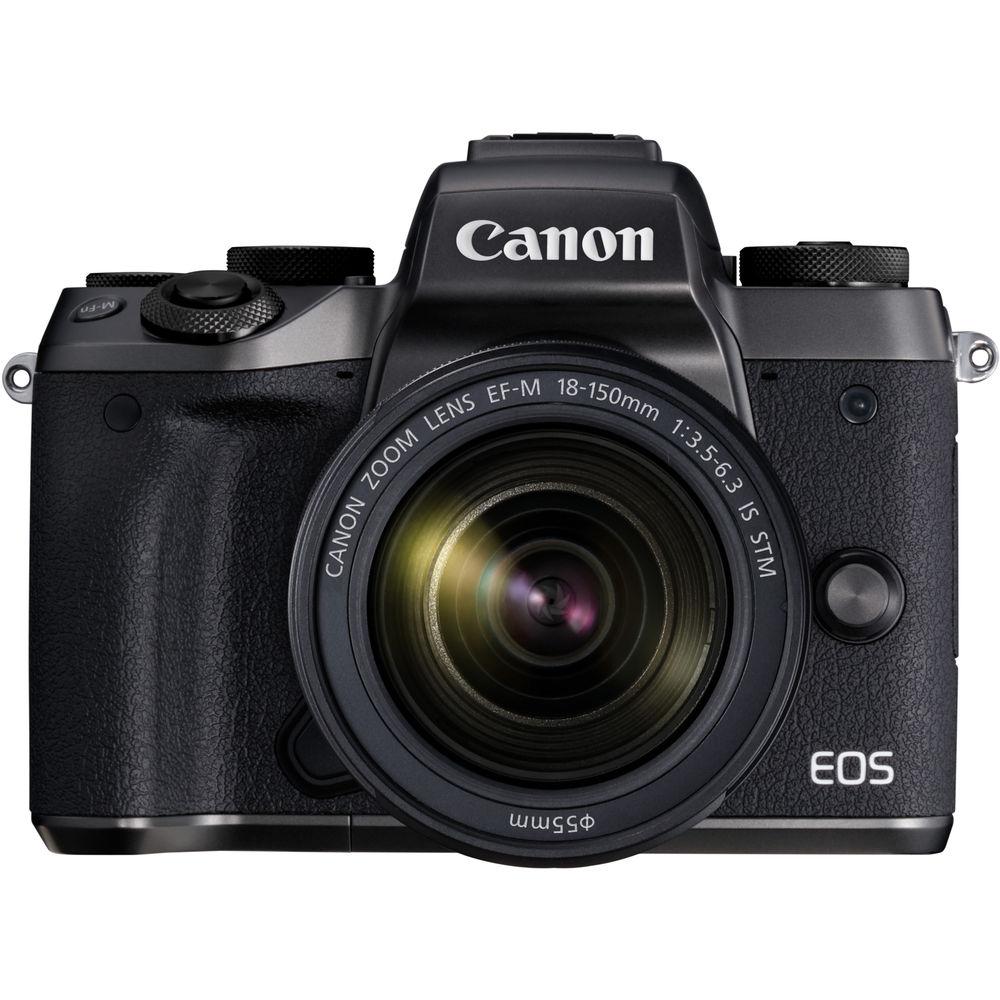

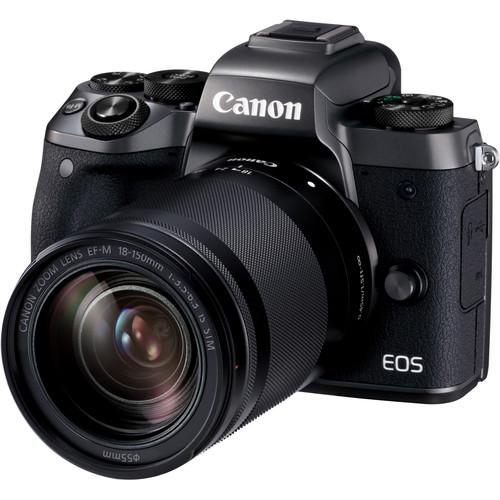

Canon EOS M5 Mirrorless Digital Camera

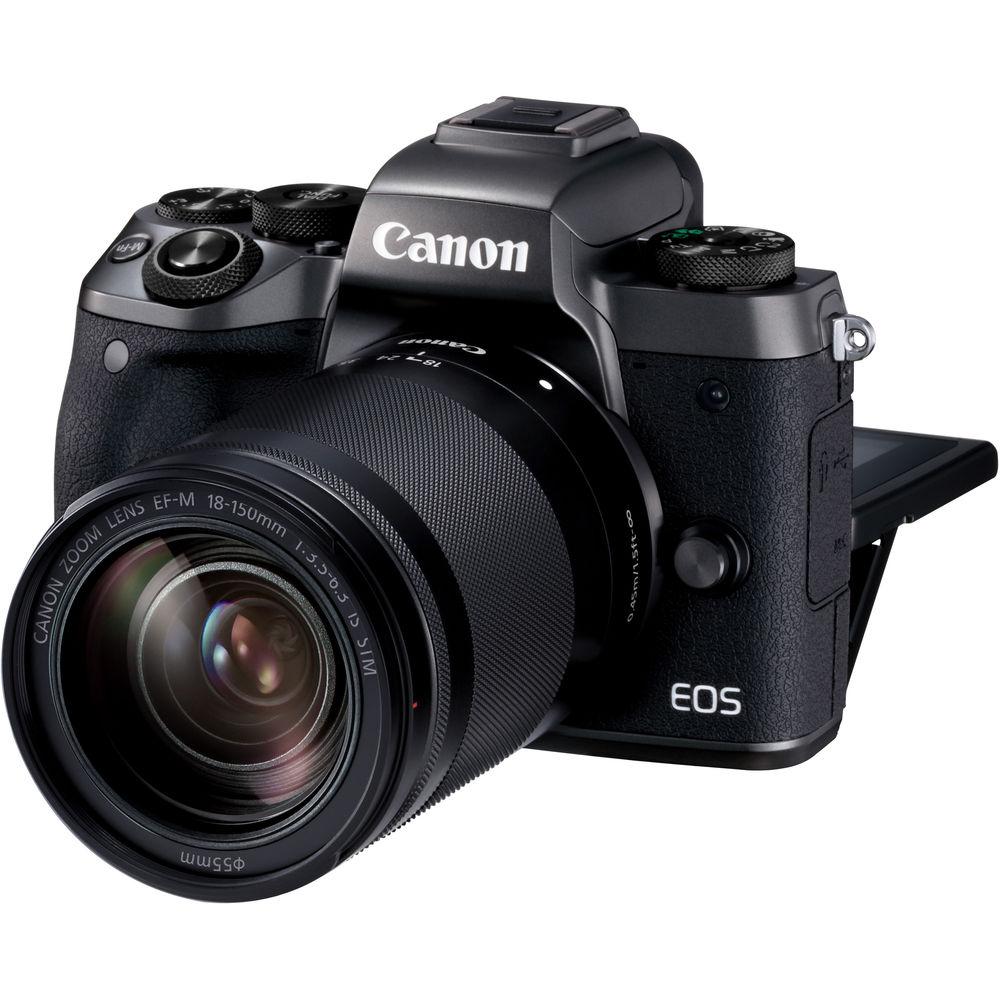

User Manual for Canon EOS M5 Mirrorless Digital Camera with 18-150mm Lens

• Product category: Mirrorless System Cameras Canon
• Brand: Canon
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Canon Mirrorless System Cameras

Product description

• First Look: Canon EOS M5 Mirrorless Camera
• Introducing the Features of the Canon EOS M5
• The Advanced Canon EOS M5
• Official Canon EOS M5 Sample Movie
• Canon EOS M5 feature: Bluetooth Connectivity

24.2MP APS-C CMOS Sensor and DIGIC 7 Image Processor
• Both a 24.2MP APS-C CMOS sensor and DIGIC 7 image processor are used to deliver high sensitivity and fast camera performance to suit both stills and video applications. A flexible ISO 100-25600 range suits working in a variety of lighting conditions, and the processing capabilities minimize noise for notable clarity. The processor also contributes to a fast 7 fps continuous shooting rate, which can be quickened to 9 fps with AF lock, for photographing fast-moving subjects. Full HD 1080p video recording is also supported in 60 and 50 fps frame rates. Additionally, the processor affords a fast camera startup time and short interval times between each frame for a more intuitive and efficient shooting process.

Dual Pixel CMOS AF
• Dual Pixel CMOS AF offers smooth and fast focusing performance in a similar manner to how a camcorder acquires focus. This system integrates two separate photodiodes within each pixel to provide a broad and dense network of phase-detection gathering elements across a majority of the image sensor to reduce focus hunting for faster, more direct control of focus placement. When working with still imagery, this focusing system works to acquire focus quickly and accurately, making it ideally suited to shooting and tracking moving subjects so that critical focus is attained with each shot. When shooting video, a Movie Servo AF mode offers smooth and natural focusing when changing from different subjects or different distances within the scene, as well as the ability to specify tracking sensitivity, AF speed, and Face Tracking priority. Benefited by the Touch AF system, rack focus is possible simply by touching elements within the scene on the touchscreen in order to change focus in an intuitive manner. Subject tracking in movies is also heightened due to the Dual Pixel CMOS AF system's ability to recognize subjects and maintain focus when working within changing or cluttered scenery.

Digital IS
• Supporting video applications, Digital IS with 5-axis image stabilization minimizes the appearance of camera shake for sharper handheld shooting. This benefits recording while walking or moving, and can also be used in conjunction with lenses featuring optical IS for more effective overall stabilization.

Body Design and Built-In Wi-Fi
• • A high-resolution 2.36m-dot electronic viewfinder affords a bright, clear means for natural eye-level viewing to suit working in bright conditions.

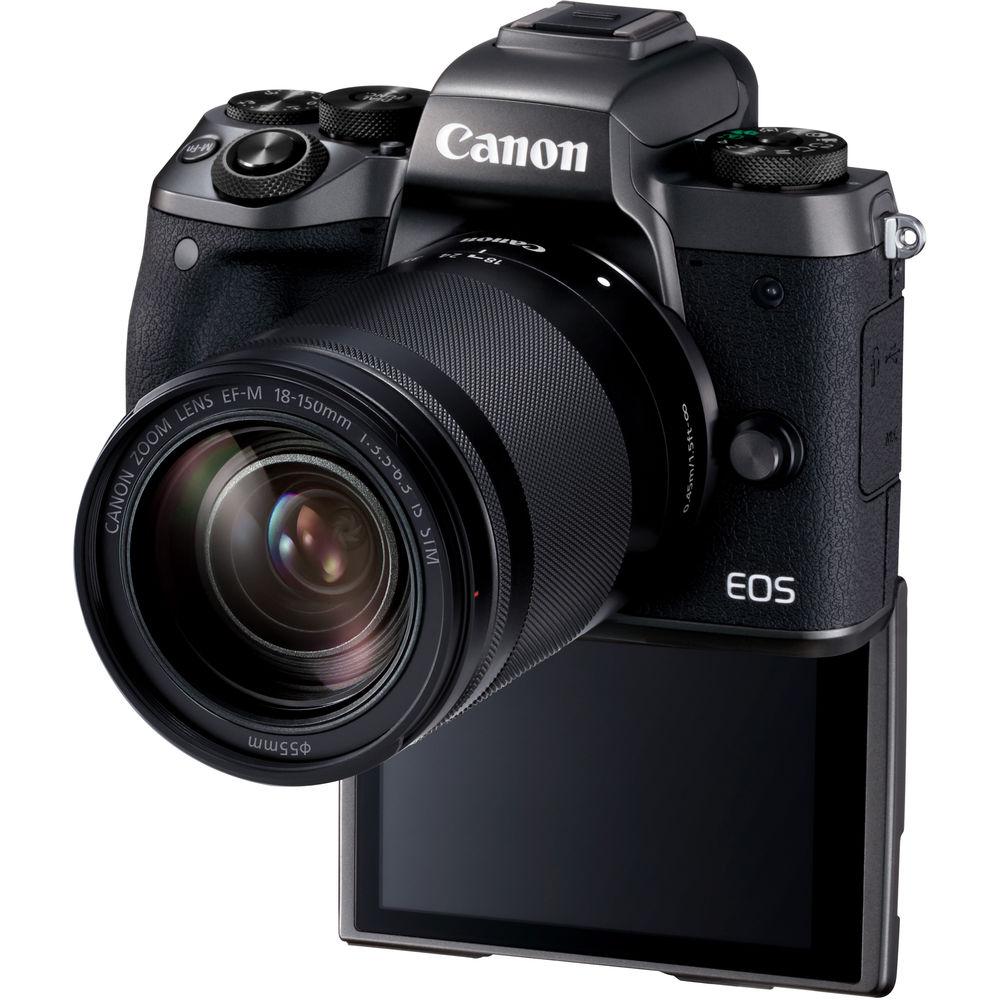

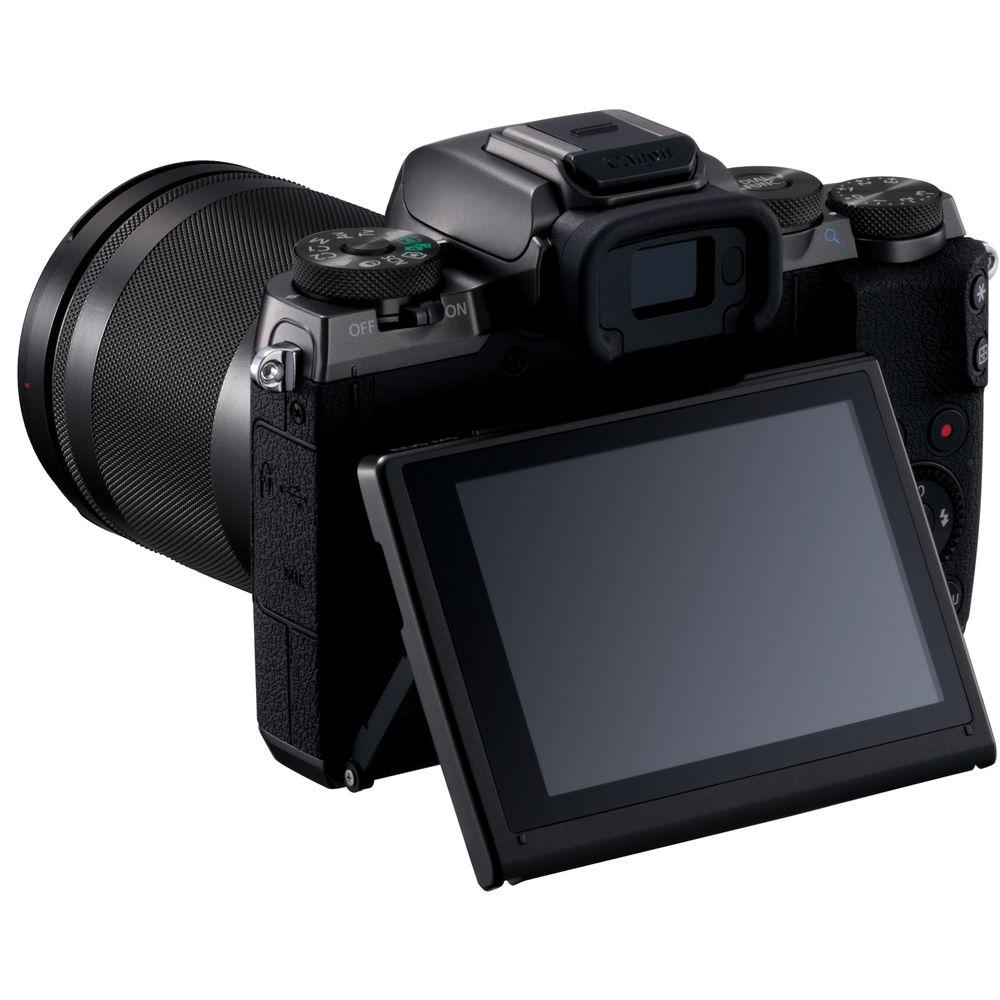

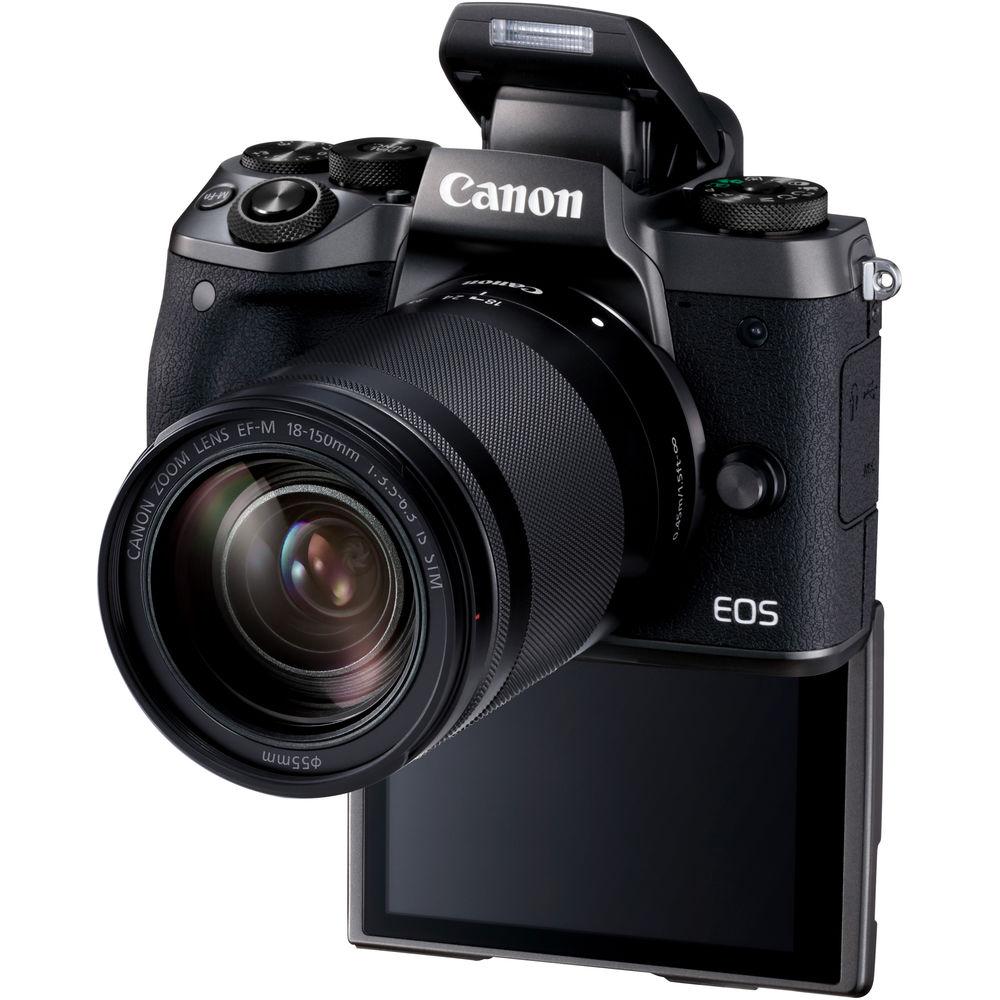

  • Large 3.2" 1.62m-dot touchscreen LCD provides an intuitive method for controlling focusing points, navigating menus, and reviewing imagery. This screen also features a tilting design (85° up, 180° down) to better enable working from high and low angles.
  • Touch and Drag AF lets you manually move the AF frame while shooting for more precise control.
  • Physical controls allow for intuitive settings adjustments, and include a front dial, quick control dial, dial function button, and exposure compensation dial. Each of these can be customized to adjust specific functions for more personalized control.
  • Built-in Wi-Fi with NFC allows for easy wireless sharing of both photos and movies to a linked mobile device.
  • Bluetooth permits linking a smartphone or tablet for quick image sharing between devices as well as remote control capabilities.

EF-M 18-150mm f/3.5-6.3 IS STM Lens
• Included with the camera body is the EF-M 18-150mm f/3.5-6.3 IS STM lens, which covers wide-angle to telephoto perspectives with a 28.8-240mm equivalent focal length range. An optimized optical design maintains even illumination and sharpness throughout the zoom range while a maximum magnification ratio of 0.31x benefits working with close-up subjects. An Image Stabilizer helps to minimize the appearance of camera shake and works in conjunction with the camera's Digital IS for more effective shake reduction.

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Canon M5 Specs

Focal Length	18 to 150mm (35mm Equivalent Focal Length: 28.8 to 240mm)
Maximum Aperture	f/3.5 to 6.3
Minimum Aperture	Not Specified by Manufacturer
Angle of View	74 Rating 80% users recommend this product to others. And what about you? This product has already been rated by 66 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
