User Manual for Canon EOS M50 Mirrorless Digital Camera Click to enlarge the picture
Contents of the user manual for the Canon EOS M50 Mirrorless Digital Camera
- Product category: Mirrorless System Cameras Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Mirrorless System Cameras
 |
User manual for the Canon EOS M50 Mirrorless Digital Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description WPPI 2018: Canon Reveals M50 4K Mirrorless and AI Bounce Speedlite Read More - First Look: Canon EOS M50
- Introducing the EOS M50 Digital Camera
- An In-Depth Look at the Canon EOS M50
- Canon EOS M50: Video Recording
- Canon EOS M50: Autofocus

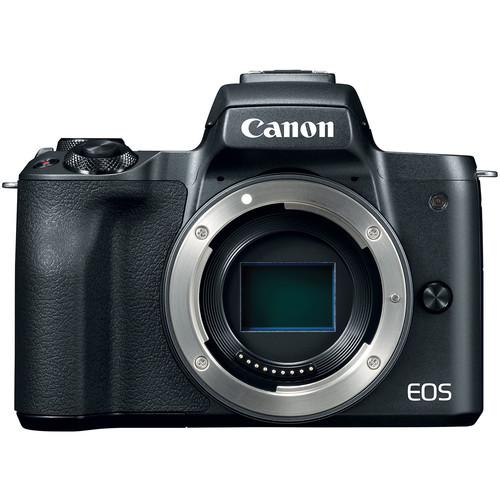

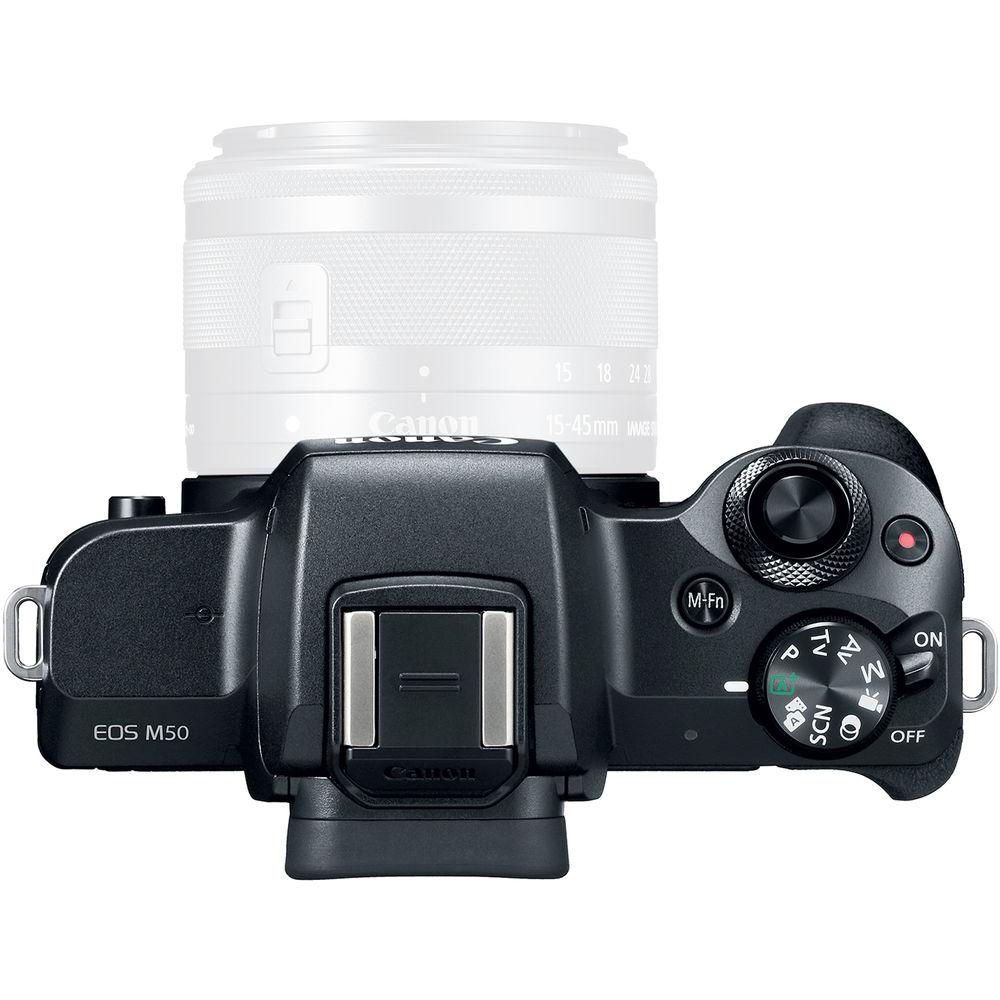

Comprising a versatile feature-set to suit both stills and video applications, the black EOS M50 Mirrorless Digital Camera from Canon separates itself from the pack with UHD 4K video recording, a high-resolution electronic viewfinder, and improved Dual Pixel CMOS AF with Eye Detection AF. Utilizing a 24.1MP APS-C CMOS sensor and DIGIC 8 image processor, improved Auto Lighting Optimizer helps to ensure clean image quality with low noise, along with top 10 fps shooting rate and a native sensitivity range of ISO 100-25600, which can be extended to ISO 51200 for working in low-light conditions. The sensor and processor combination also enables UHD 4K video recording at 23.98 fps, along with Full HD 1080p60 and HD 720p120 for slow motion capture. The sensor's design also facilitates Dual Pixel CMOS AF, which uses phase-detection autofocus for quick, accurate, and smooth performance to suit both stills and video use. Additionally, Combination IS 5-axis image stabilization also helps to realize steady, shake-free recording by minimizing the appearance of camera shake.
Complementing the imaging attributes, the EOS M50 also incorporates a 2.36m-dot OLED electronic viewfinder and a 3.0" touchscreen LCD for intuitive control. The screen's vari-angle design permits working from high and low working angles and its touchscreen interface allows working with Touch and Drag AF for easier manipulation of the AF area. Additionally, built-in Wi-Fi with NFC is available for quick and convenient pairing with a smartphone or tablet for wireless image sharing, and Bluetooth is also featured for image sharing to and remote camera control from a mobile device. - 24.1MP APS-C CMOS Sensor and DIGIC 8 Image Processor
- Both a 24.1MP APS-C CMOS sensor and DIGIC 8 image processor are used to deliver high sensitivity and fast camera performance to suit both stills and video applications. A flexible ISO 100-25600 range, with an expandable ISO 51200 setting, suits working in a variety of lighting conditions, and the processing capabilities minimize noise and afford Auto Lighting Optimizer for notable clarity in various shooting situations. UHD 4K video recording is also supported at 23.98 fps, along with Full HD 1080p60 and HD 720p120 settings for slow motion recording. Additionally, the processor affords a 10 fps continuous shooting rate, fast camera startup time, and short interval times between each frame for a more intuitive and efficient shooting process.
- Dual Pixel CMOS AF
- Dual Pixel CMOS AF offers smooth and fast focusing performance in a similar manner to how a camcorder acquires focus. This system integrates two separate photodiodes within each pixel to provide a broad and dense network of phase-detection gathering elements across a majority of the image sensor to reduce focus hunting for faster, more direct control of focus placement. When working with still imagery, this focusing system works to acquire focus quickly and accurately, making it ideally suited to shooting and tracking moving subjects so that critical focus is attained with each shot. Eye Detection AF can also be used for portraiture, and helps to prioritize focus on a subject's eye for ensured sharpness.
When shooting video, a Movie Servo AF mode offers smooth and natural focusing when changing from different subjects or different distances within the scene, as well as the ability to specify tracking sensitivity, AF speed, and Face Tracking priority. Benefited by the Touch AF system, rack focus is possible simply by touching elements within the scene on the touchscreen in order to change focus in an intuitive manner. Subject tracking in movies is also heightened due to the Dual Pixel CMOS AF system's ability to recognize subjects and maintain focus when working within changing or cluttered scenery. - Combination IS
- Combination IS uses the built-in 5-axis digital image stabilization in conjunction with lens-based image stabilization systems to effectively minimize the appearance of camera shake for sharper handheld shooting. This benefits recording while walking or moving, and can also be used in conjunction with lenses featuring optical IS for more effective overall stabilization.
- Body Design and Wireless Connectivity
-

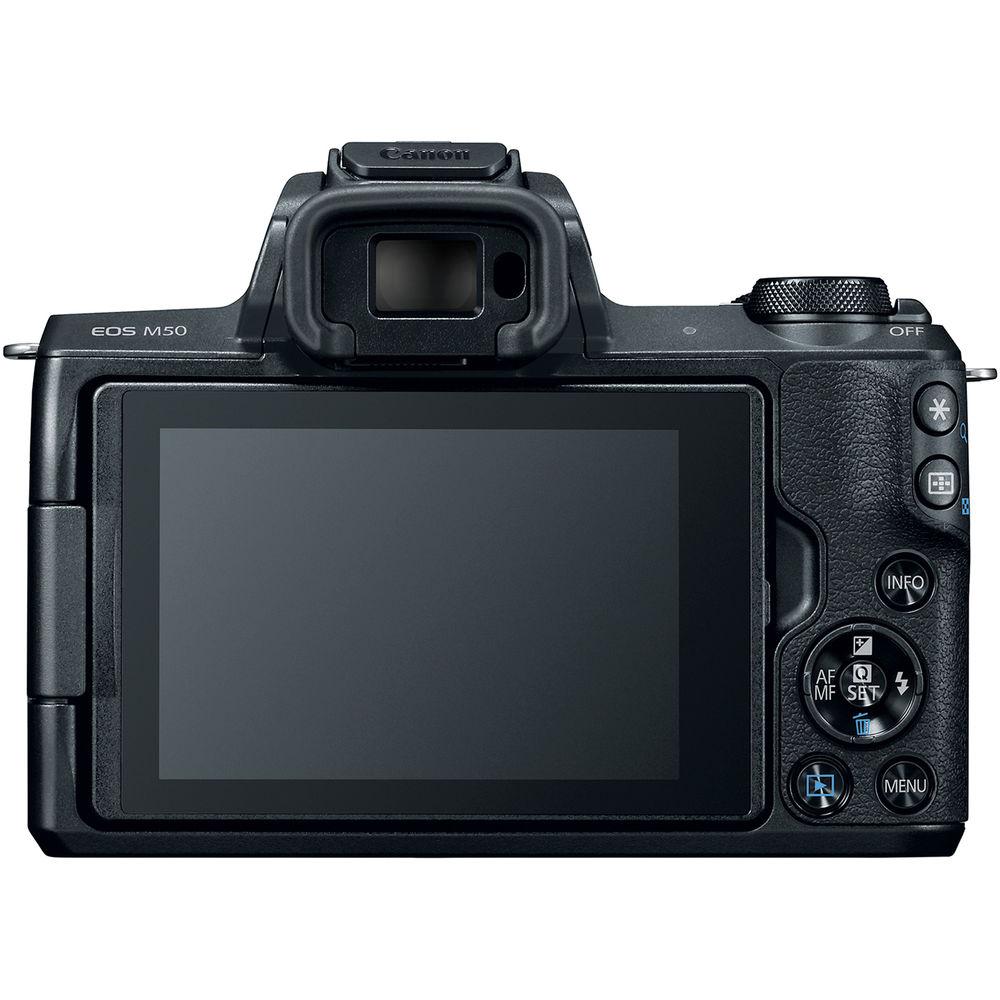

- Large 3.0" touchscreen LCD provides an intuitive method for controlling focusing points, navigating menus, and reviewing imagery. This screen also features a vari-angle to better enable working from high and low angles.
- Integrated 2.36m-dot OLED electronic viewfinder permits bright, clear eye-level monitoring and also permits working with Touch and Drag AF for manually moving the AF area while shooting with the EVF for more intuitive control.
- Built-in Wi-Fi with NFC allows for easy wireless sharing of both photos and movies to a linked mobile device.
- Bluetooth permits linking a smartphone or tablet for quick, automatic image sharing between devices as well as remote control capabilities.
- Built-in pop-up flash provides additional illumination for working in low-light conditions. A hot shoe is also available for working with an optional external flash for greater control.

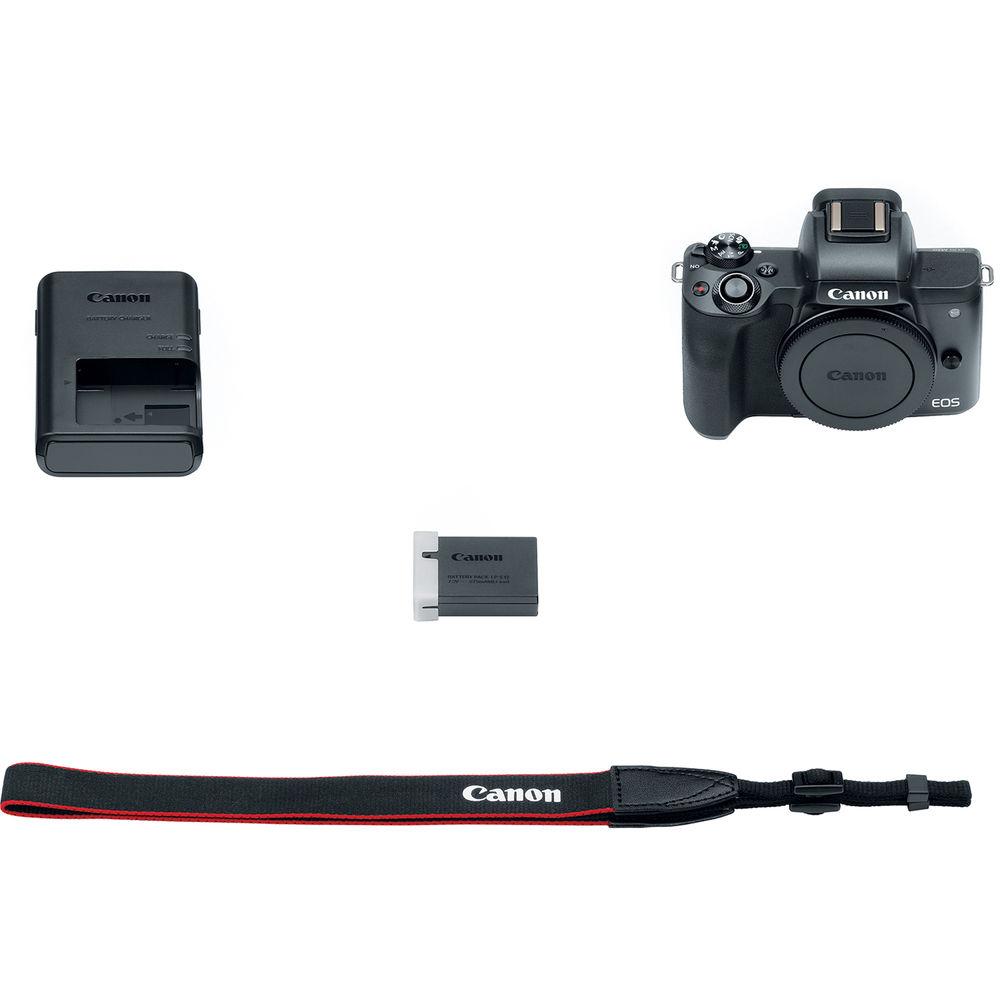

UPC: 013803301212 In the Box Canon EOS M50 Mirrorless Digital Camera (Body Only, Black) LP-E12 Lithium-Ion Battery Pack (7.2V, 875mAh) Battery Charger LC-E12 for Battery Pack LP-E12 R-F-4 Camera Cover (Body Cap) for EOS M Mirrorless Camera EM-200DB Neck Strap Terminal Cover Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon EOS M50 Mirrorless Digital Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon M50 Specs | | | Lens Mount | Canon EF-M | | Camera Format | APS-C (1.6x Crop Factor) | | Pixels | Actual: 25.8 Megapixel
Effective: 24.1 Megapixel | | Maximum Resolution | 6000 x 4000 | | Aspect Ratio | 1:1, 3:2, 4:3, 16:9 | | Sensor Type | CMOS | | Sensor Size | 22.3 x 14.9 mm | | Image File Format | JPEG, RAW | | Bit Depth | 14-Bit | | Image Stabilization | Digital, 3-Axis (Video Only) | | | | ISO Sensitivity | Auto, 100 to 25600 (Extended: 100 to 51200) | | Shutter Speed | 1/4000 to 30 Seconds | | Metering Method | Center-Weighted Average, Evaluative, Partial, Spot | | Exposure Modes | Aperture Priority, Manual, Program, Shutter Priority | | Exposure Compensation | -3 to +3 EV (1/3 EV Steps) | | Metering Range | 0 to 20 EV | | White Balance | Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten | | Continuous Shooting | Up to 10 fps at 24.2 MP for up to 10 Exposures (Raw Format)
Up to 10 fps at 24.2 MP for up to 33 Exposures (JPEG Format)
Up to 4 fps at 24.2 MP for up to 15 Exposures (Raw Format)
Up to 4 fps at 24.2 MP for up to 1000 Exposures (JPEG Format)
Up to 7.4 fps at 24.2 MP for up to 47 Exposures (JPEG Format) | | Self Timer | 2/10-Second Delay | | | | Recording Modes | MP4/H.264
UHD 4K (3840 x 2160) at 23.976p
Full HD (1920 x 1080) at 59.94p [60 Mb/s]
Full HD (1920 x 1080) at 23.976p/29.97p [30 Mb/s]
HD (1280 x 720) at 120p [52 Mb/s]
HD (1280 x 720) at 59.94p [26 Mb/s] | | Recording Limit | Up to 29 Minutes, 59 Seconds | | Video Encoding | NTSC/PAL | | Audio Recording | Built-In Microphone (Stereo) | | Audio File Format | AAC LC | | | | Focus Type | Auto and Manual Focus | | Focus Mode | Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S) | | Autofocus Points | Contrast Detection: 143
Phase Detection: 99 | | Autofocus Sensitivity | -2 to +18 EV | | | | Viewfinder Type | Electronic | | Viewfinder Size | 0.39" | | Viewfinder Resolution | 2,360,000 Dot | | Viewfinder Coverage | 100% | | Monitor Size | 3" | | Monitor Resolution | 1,040,000 Dot | | Monitor Type | Articulating Touchscreen LCD | | | | Built-in Flash | Yes | | Guide Number | 16.4' / 5 m at ISO 100 | | Maximum Sync Speed | 1/200 Second | | Flash Compensation | -2 to +2 EV (1/3 EV Steps) | | Dedicated Flash System | eTTL | | External Flash Connection | Hot Shoe | | | | Memory Card Slot | 1 x SD/SDHC/SDXC | | Connectivity | 3.5mm Microphone, HDMI D (Micro), USB 2.0 Micro-B | | Wireless | Wi-Fi
Bluetooth | | GPS | None | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 85% | | | | Battery | 1 x LP-E12 Rechargeable Lithium-Ion, 7.2 VDC, 875 mAh | | Dimensions (W x H x D) | 4.6 x 3.5 x 2.3" / 116.3 x 88.1 x 58.7 mm | | Weight | 13.65 oz / 387 g (Body with Battery and Memory) | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 6.5 x 6.5 x 5.5" |
