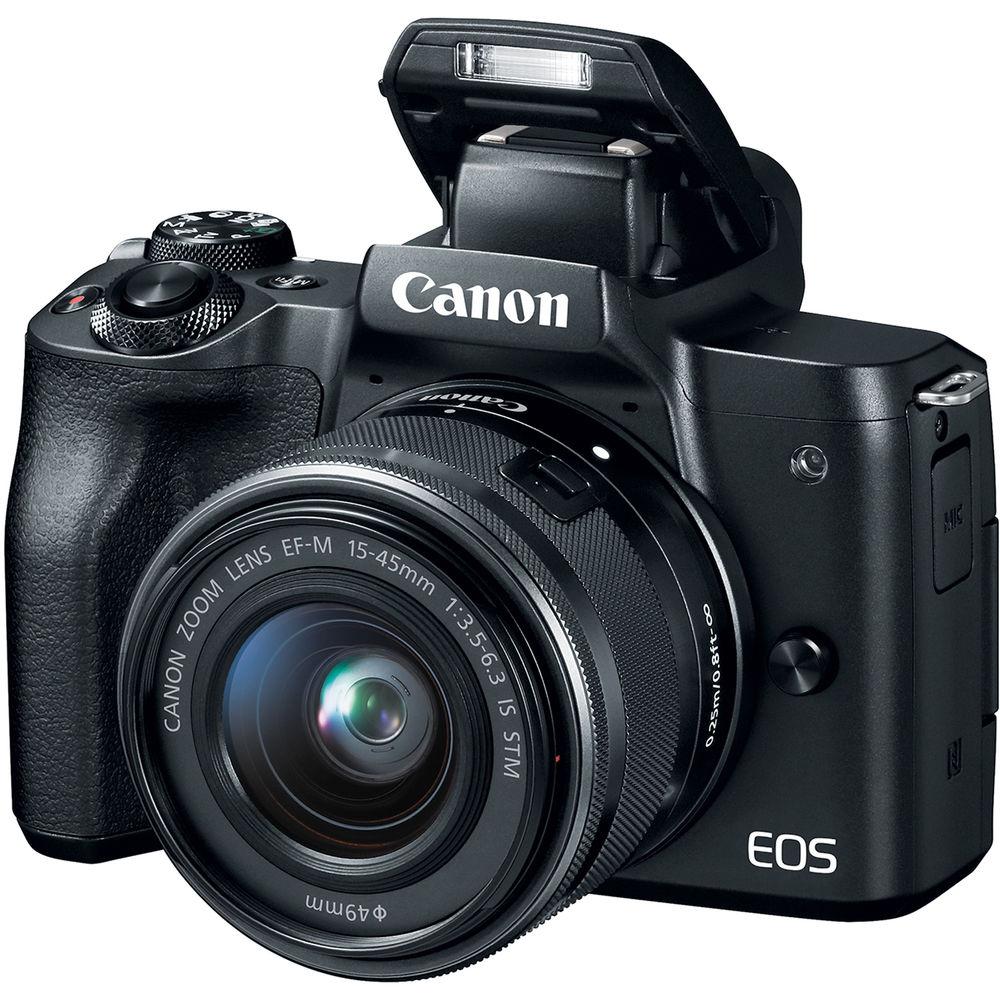

Canon EOS M50 Mirrorless Digital Camera

User Manual for Canon EOS M50 Mirrorless Digital Camera with 15-45mm Lens

• Product category: Mirrorless System Cameras Canon
• Brand: Canon

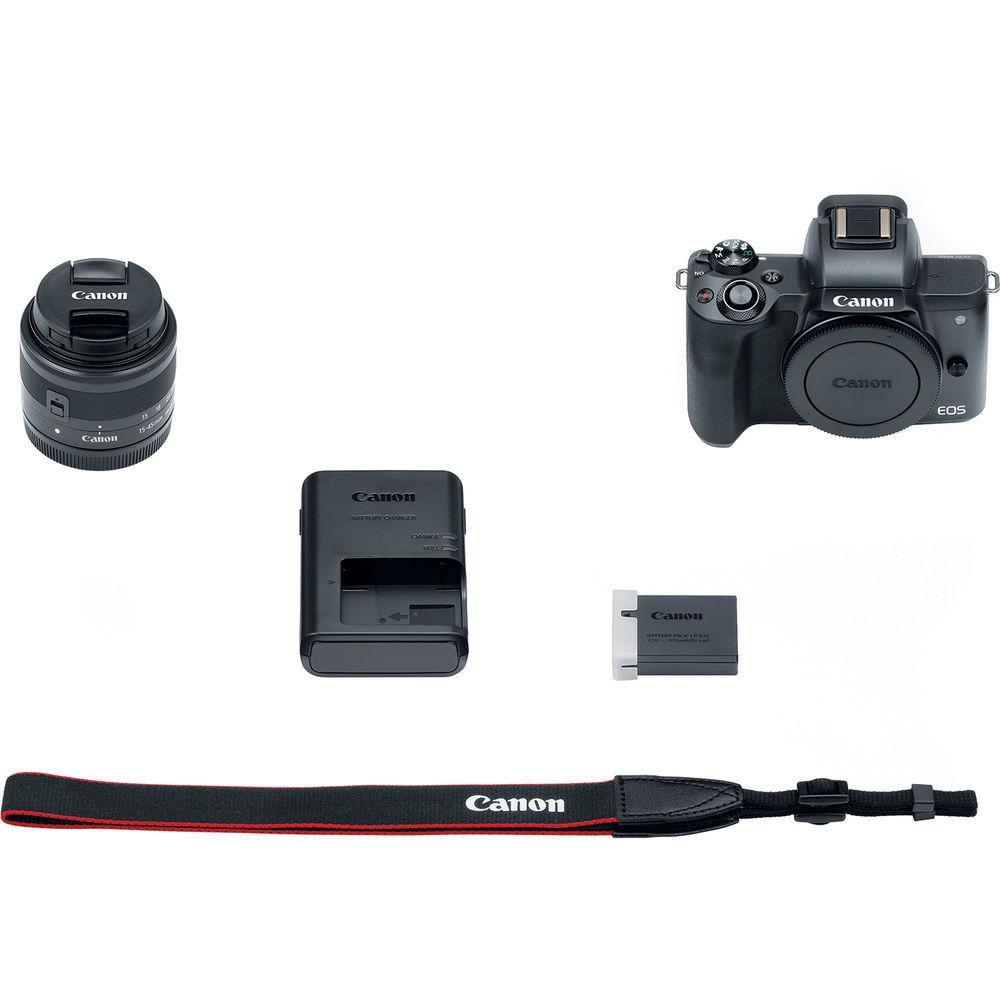

• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Canon Mirrorless System Cameras

Product description

• Introducing the EOS M50 Digital Camera
• An In-Depth Look at the Canon EOS M50
• Canon EOS M50: Video Recording
• Canon EOS M50: Autofocus

24.1MP APS-C CMOS Sensor and DIGIC 8 Image Processor
• Both a 24.1MP APS-C CMOS sensor and DIGIC 8 image processor are used to deliver high sensitivity and fast camera performance to suit both stills and video applications. A flexible ISO 100-25600 range, with an expandable ISO 51200 setting, suits working in a variety of lighting conditions, and the processing capabilities minimize noise and afford Auto Lighting Optimizer for notable clarity in various shooting situations. UHD 4K video recording is also supported at 23.98 fps, along with Full HD 1080p60 and HD 720p120 settings for slow motion recording. Additionally, the processor affords a 10 fps continuous shooting rate, fast camera startup time, and short interval times between each frame for a more intuitive and efficient shooting process.

Dual Pixel CMOS AF
• Dual Pixel CMOS AF offers smooth and fast focusing performance in a similar manner to how a camcorder acquires focus. This system integrates two separate photodiodes within each pixel to provide a broad and dense network of phase-detection gathering elements across a majority of the image sensor to reduce focus hunting for faster, more direct control of focus placement. When working with still imagery, this focusing system works to acquire focus quickly and accurately, making it ideally suited to shooting and tracking moving subjects so that critical focus is attained with each shot. Eye Detection AF can also be used for portraiture, and helps to prioritize focus on a subject's eye for ensured sharpness.

  When shooting video, a Movie Servo AF mode offers smooth and natural focusing when changing from different subjects or different distances within the scene, as well as the ability to specify tracking sensitivity, AF speed, and Face Tracking priority. Benefited by the Touch AF system, rack focus is possible simply by touching elements within the scene on the touchscreen in order to change focus in an intuitive manner. Subject tracking in movies is also heightened due to the Dual Pixel CMOS AF system's ability to recognize subjects and maintain focus when working within changing or cluttered scenery.

Combination IS
• Combination IS uses the built-in 5-axis digital image stabilization in conjunction with lens-based image stabilization systems to effectively minimize the appearance of camera shake for sharper handheld shooting. This benefits recording while walking or moving, and can also be used in conjunction with lenses featuring optical IS for more effective overall stabilization.

Body Design and Wireless Connectivity

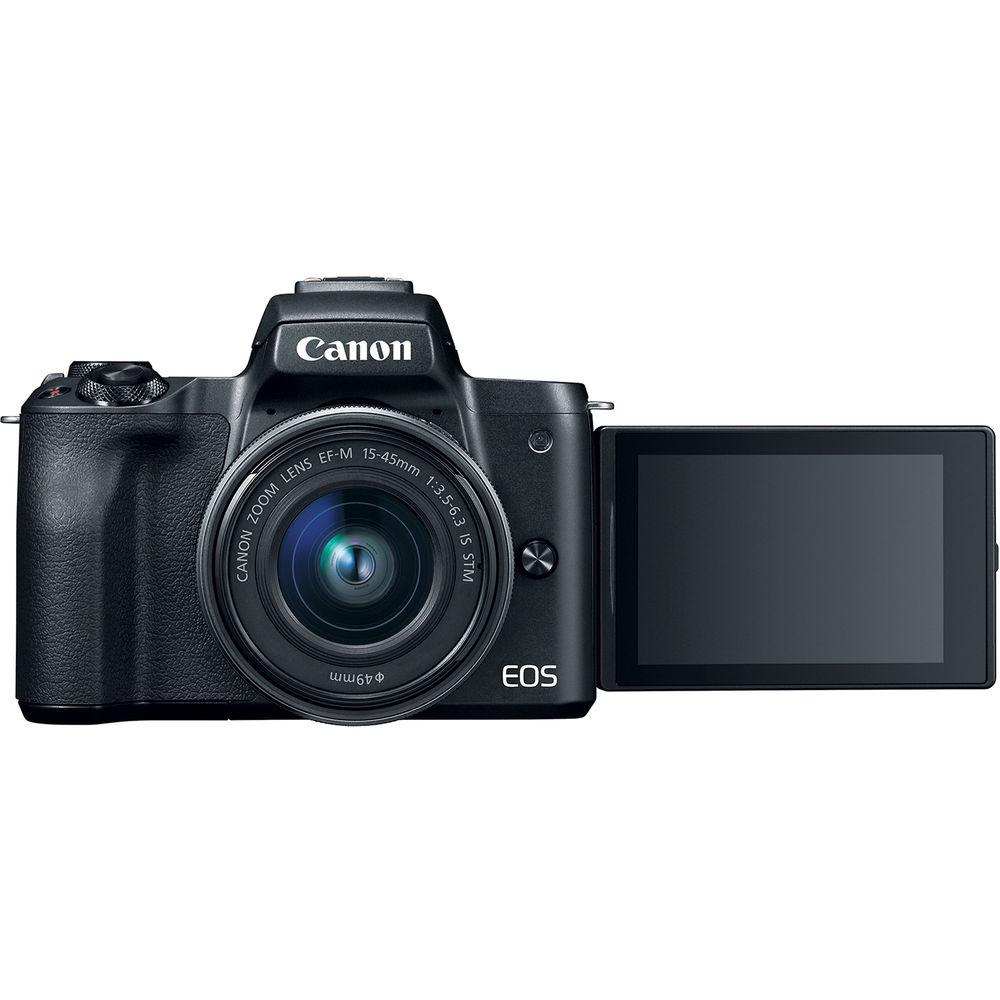

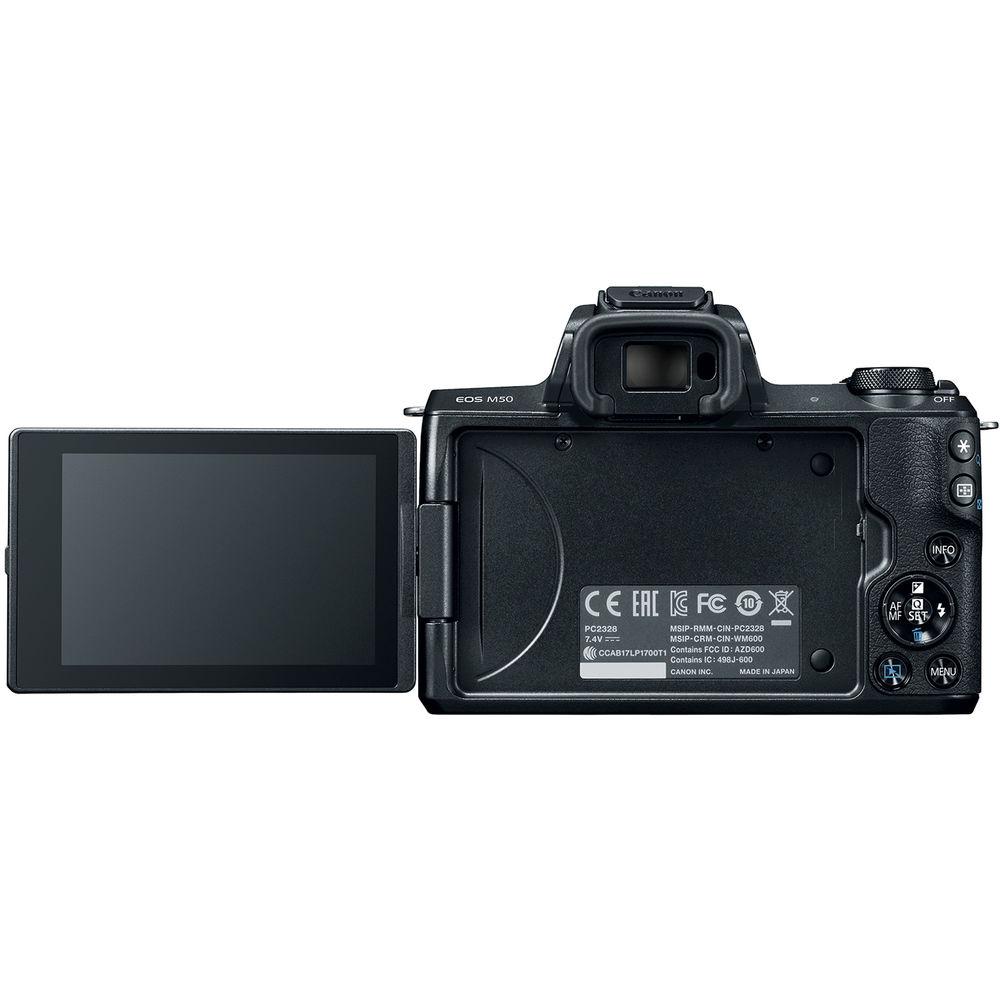

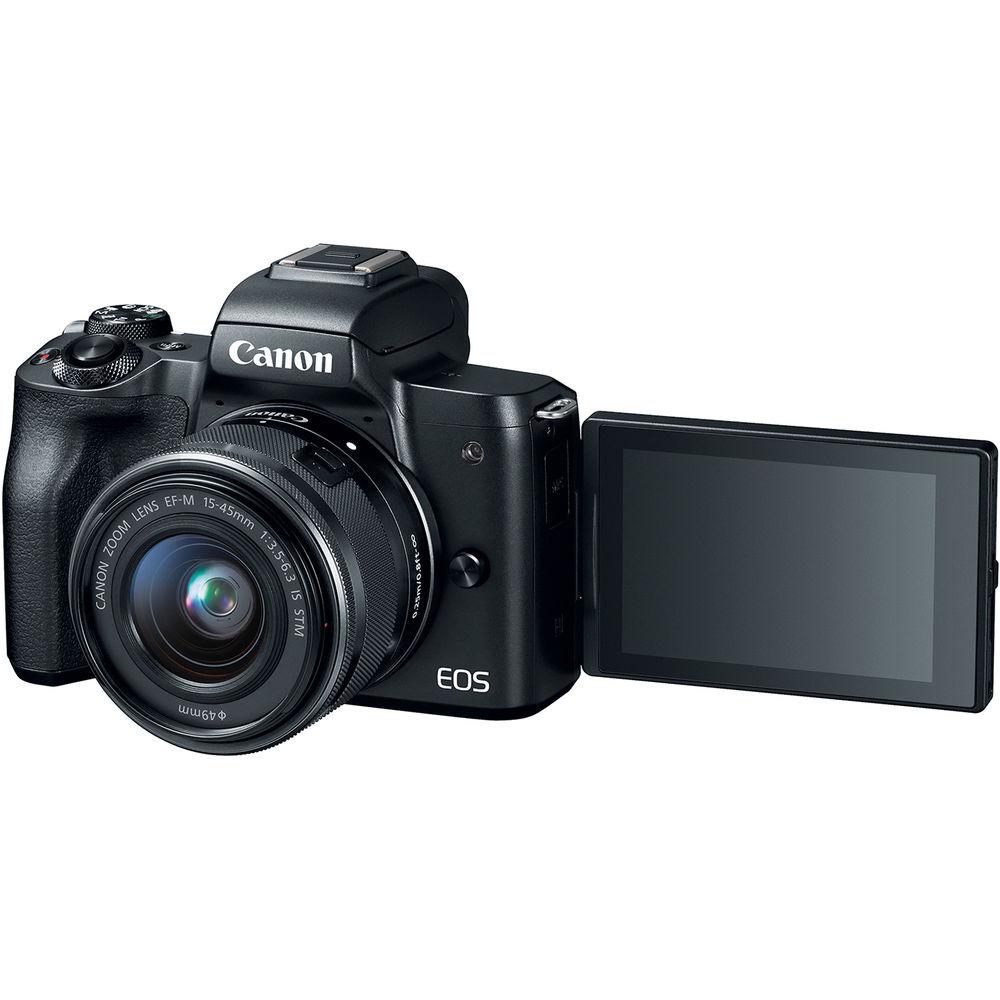

• • Large 3.0" touchscreen LCD provides an intuitive method for controlling focusing points, navigating menus, and reviewing imagery. This screen also features a vari-angle to better enable working from high and low angles.
  • Integrated 2.36m-dot OLED electronic viewfinder permits bright, clear eye-level monitoring and also permits working with Touch and Drag AF for manually moving the AF area while shooting with the EVF for more intuitive control.
  • Built-in Wi-Fi with NFC allows for easy wireless sharing of both photos and movies to a linked mobile device.
  • Bluetooth permits linking a smartphone or tablet for quick, automatic image sharing between devices as well as remote control capabilities.

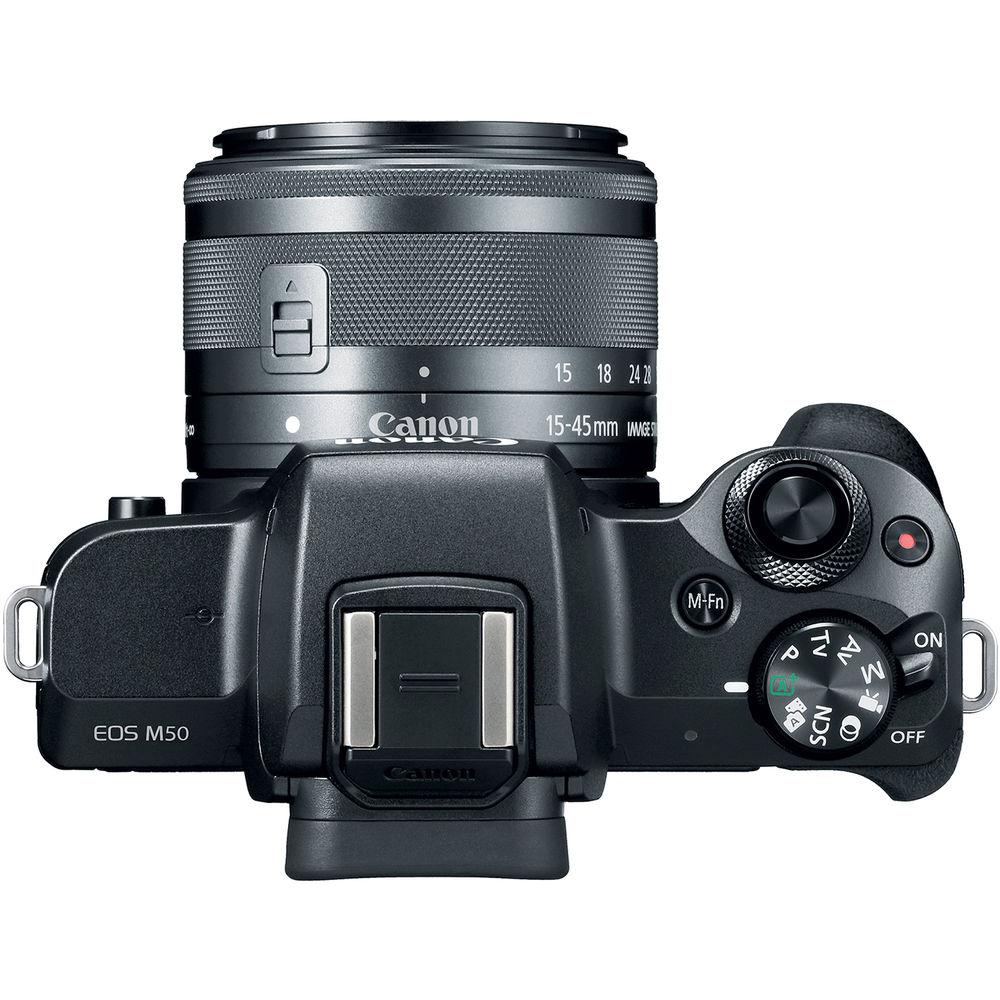

  • Built-in pop-up flash provides additional illumination for working in low-light conditions. A hot shoe is also available for working with an optional external flash for greater control.

EF-M 15-45mm f/3.5-6.3 IS STM Lens
• Included with the camera body is the versatile standard zoom EF-M 15-45mm f/3.5-6.3 IS STM lens, which provides a 24-72mm equivalent focal length range. Three aspherical elements help to control chromatic aberrations and distortions throughout the zoom range and an optimized lens placement works to reduce flare and ghosting. An Optical Image Stabilizer works to minimize the appearance of camera shake by up to 3.5 stops for sharper handheld shooting and an STM stepping motor provides fast, smooth, and near-silent autofocus performance.

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Canon M50 Specs

Focal Length	15 to 45mm (35mm Equivalent Focal Length: 24 to 72mm)
Maximum Aperture	f/3.5 to 6.3
Minimum Aperture	Not Specified by Manufacturer
Angle of View	84 Rating 90% users recommend this product to others. And what about you? This product has already been rated by 56 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
