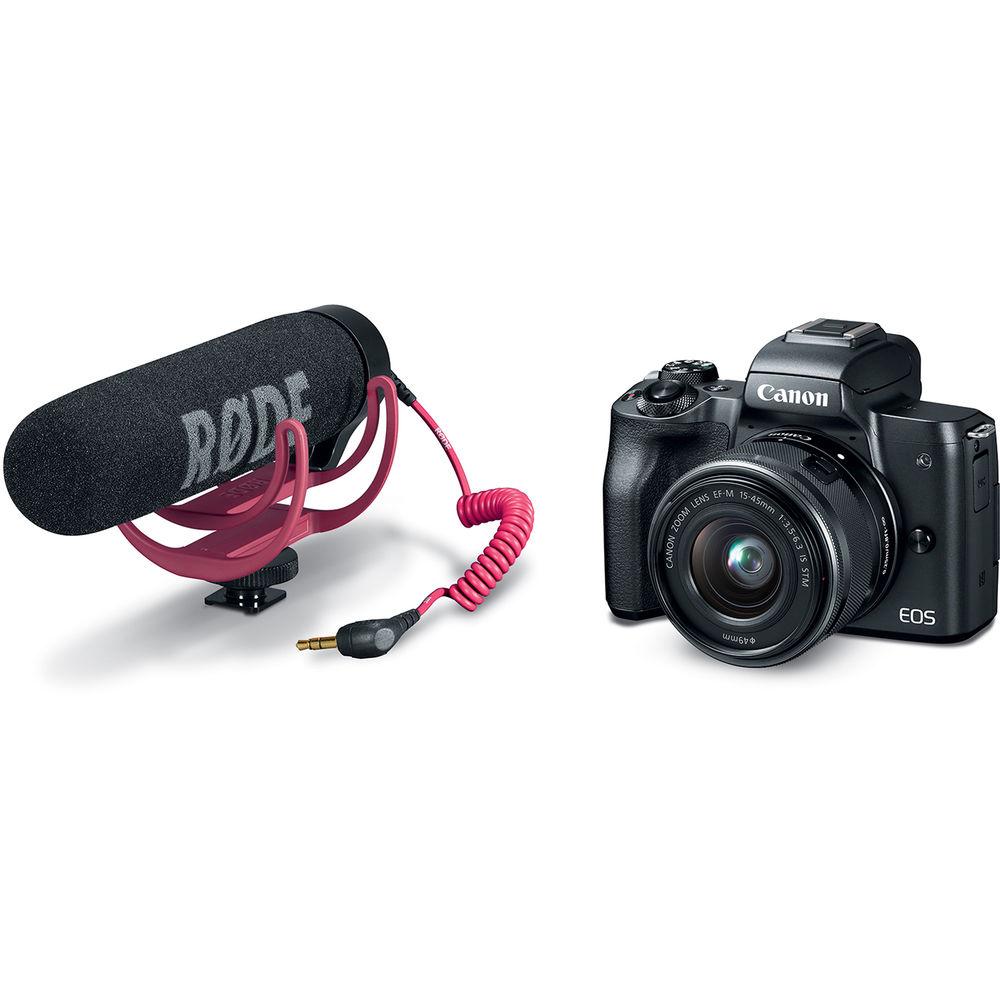

User Manual for Canon EOS M50 Mirrorless Digital Camera with 15-45mm Lens Video Creator Kit

• Product category: Mirrorless System Cameras Canon
• Brand: Canon
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Canon Mirrorless System Cameras

Product description

• EOS M50 Mirrorless Digital Camera with 15-45mm Lens (Black)
  • Introducing the EOS M50 Digital Camera
  • An In-Depth Look at the Canon EOS M50
  • Canon EOS M50: Video Recording
  • Canon EOS M50: Autofocus

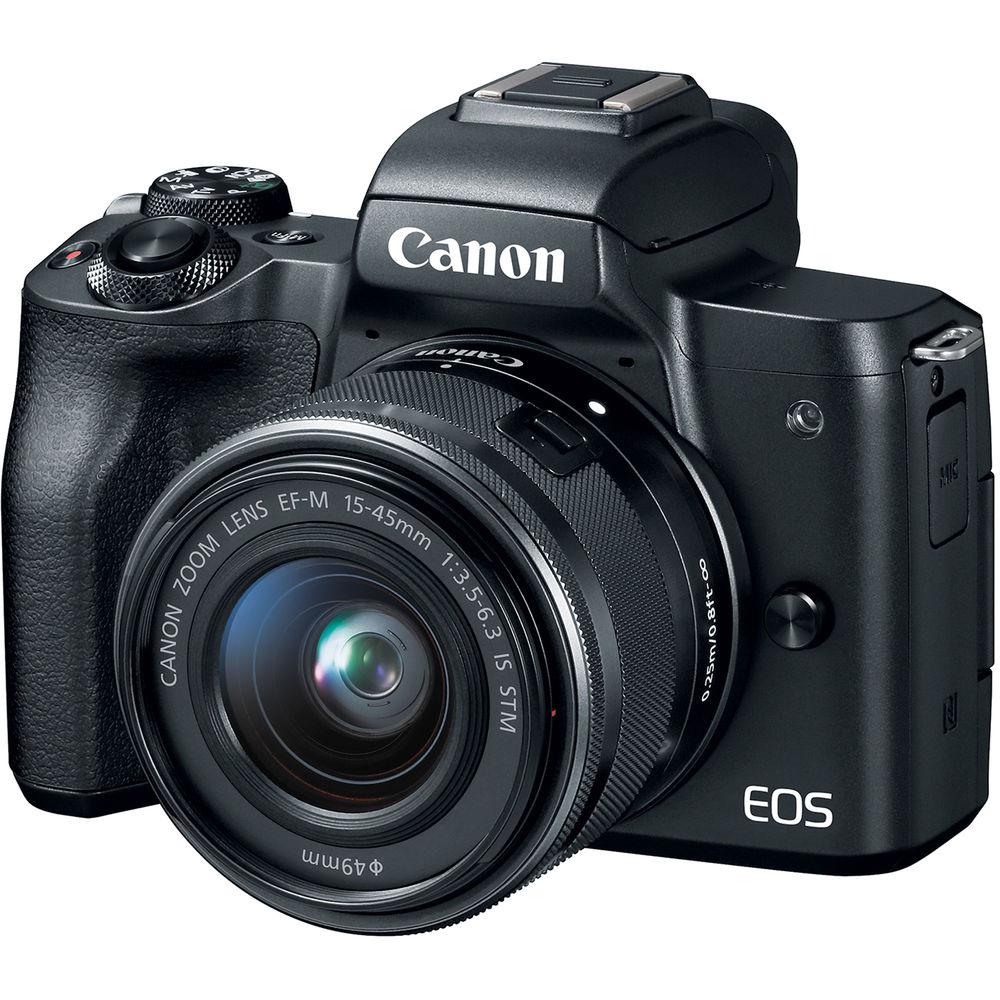

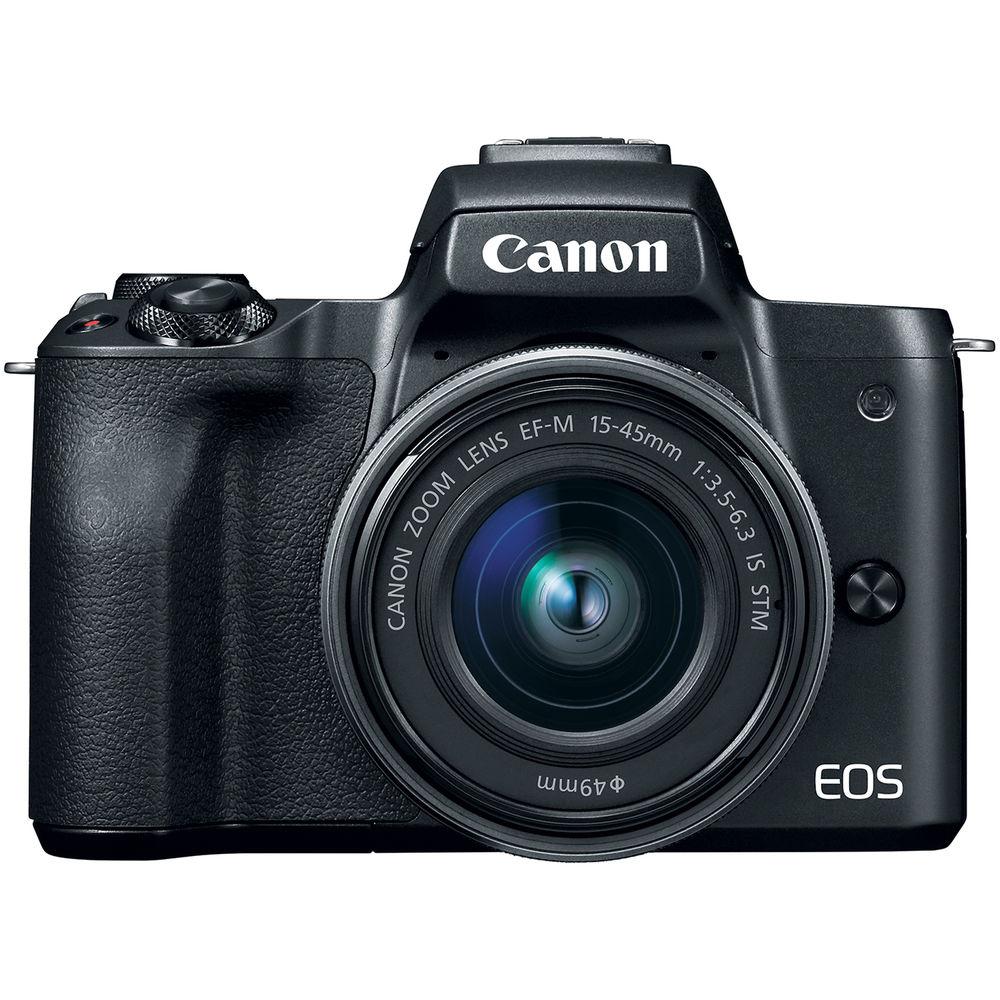

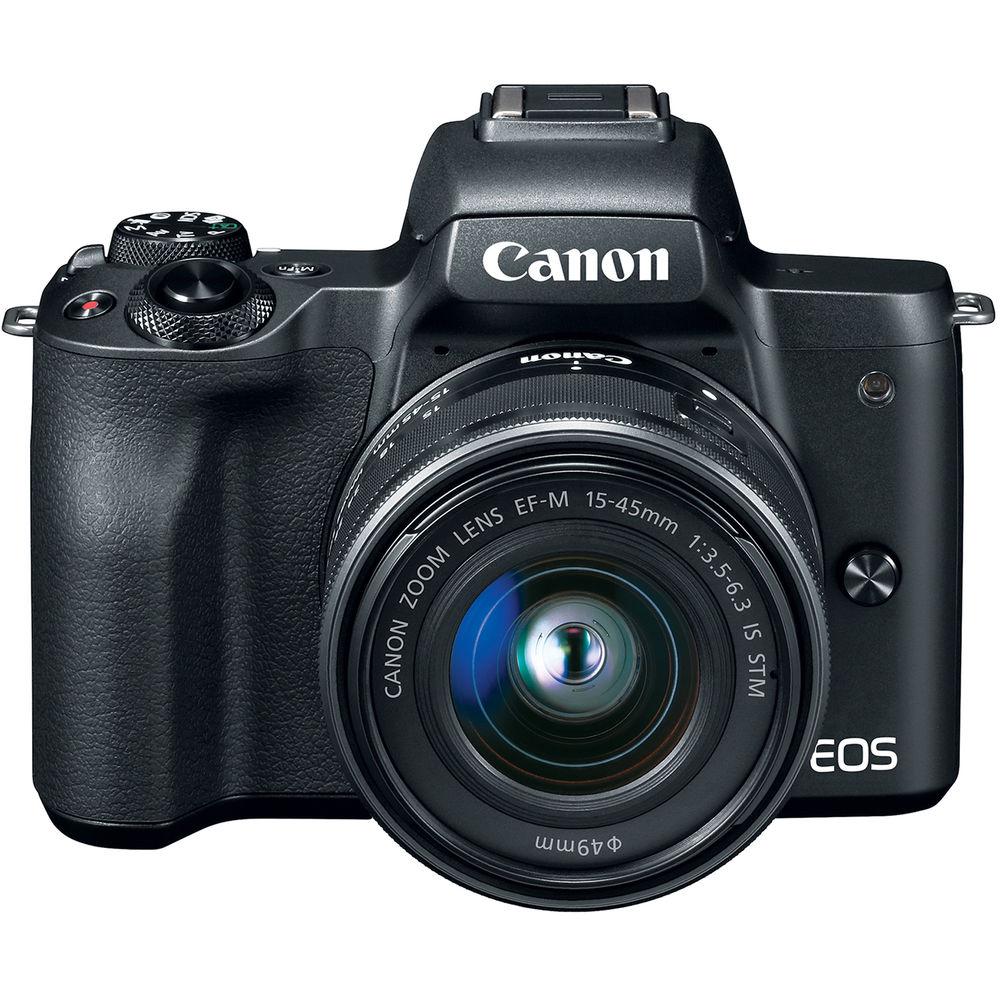

  Comprising a versatile feature-set to suit both stills and video applications, the black EOS M50 Mirrorless Digital Camera from Canon separates itself from the pack with UHD 4K video recording, a high-resolution electronic viewfinder, and improved Dual Pixel CMOS AF with Eye Detection AF. Utilizing a 24.1MP APS-C CMOS sensor and DIGIC 8 image processor, improved Auto Lighting Optimizer helps to ensure clean image quality with low noise, along with top 10 fps shooting rate and a native sensitivity range of ISO 100-25600, which can be extended to ISO 51200 for working in low-light conditions. The sensor and processor combination also enables UHD 4K video recording at 23.98 fps, along with Full HD 1080p60 and HD 720p120 for slow motion capture. The sensor's design also facilitates Dual Pixel CMOS AF, which uses phase-detection autofocus for quick, accurate, and smooth performance to suit both stills and video use. Additionally, Combination IS 5-axis image stabilization also helps to realize steady, shake-free recording by minimizing the appearance of camera shake.

  Complementing the imaging attributes, the EOS M50 also incorporates a 2.36m-dot OLED electronic viewfinder and a 3.0" touchscreen LCD for intuitive control. The screen's vari-angle design permits working from high and low working angles and its touchscreen interface allows working with Touch and Drag AF for easier manipulation of the AF area. Additionally, built-in Wi-Fi with NFC is available for quick and convenient pairing with a smartphone or tablet for wireless image sharing, and Bluetooth is also featured for image sharing to and remote camera control from a mobile device.
  24.1MP APS-C CMOS Sensor and DIGIC 8 Image Processor
  • Both a 24.1MP APS-C CMOS sensor and DIGIC 8 image processor are used to deliver high sensitivity and fast camera performance to suit both stills and video applications. A flexible ISO 100-25600 range, with an expandable ISO 51200 setting, suits working in a variety of lighting conditions, and the processing capabilities minimize noise and afford Auto Lighting Optimizer for notable clarity in various shooting situations. UHD 4K video recording is also supported at 23.98 fps, along with Full HD 1080p60 and HD 720p120 settings for slow motion recording. Additionally, the processor affords a 10 fps continuous shooting rate, fast camera startup time, and short interval times between each frame for a more intuitive and efficient shooting process.
  Dual Pixel CMOS AF
  • Dual Pixel CMOS AF offers smooth and fast focusing performance in a similar manner to how a camcorder acquires focus. This system integrates two separate photodiodes within each pixel to provide a broad and dense network of phase-detection gathering elements across a majority of the image sensor to reduce focus hunting for faster, more direct control of focus placement. When working with still imagery, this focusing system works to acquire focus quickly and accurately, making it ideally suited to shooting and tracking moving subjects so that critical focus is attained with each shot. Eye Detection AF can also be used for portraiture, and helps to prioritize focus on a subject's eye for ensured sharpness.

    When shooting video, a Movie Servo AF mode offers smooth and natural focusing when changing from different subjects or different distances within the scene, as well as the ability to specify tracking sensitivity, AF speed, and Face Tracking priority. Benefited by the Touch AF system, rack focus is possible simply by touching elements within the scene on the touchscreen in order to change focus in an intuitive manner. Subject tracking in movies is also heightened due to the Dual Pixel CMOS AF system's ability to recognize subjects and maintain focus when working within changing or cluttered scenery.
  Combination IS
  • Combination IS uses the built-in 5-axis digital image stabilization in conjunction with lens-based image stabilization systems to effectively minimize the appearance of camera shake for sharper handheld shooting. This benefits recording while walking or moving, and can also be used in conjunction with lenses featuring optical IS for more effective overall stabilization.
  Body Design and Wireless Connectivity

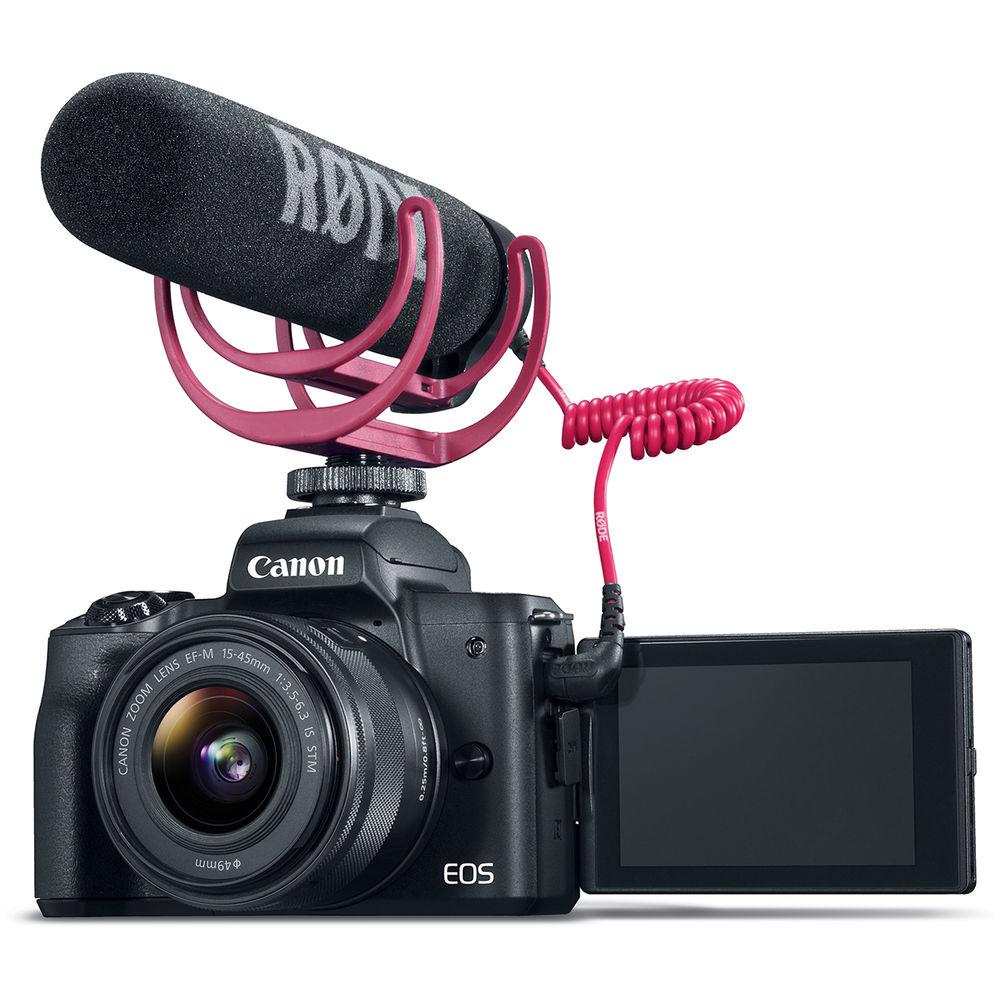

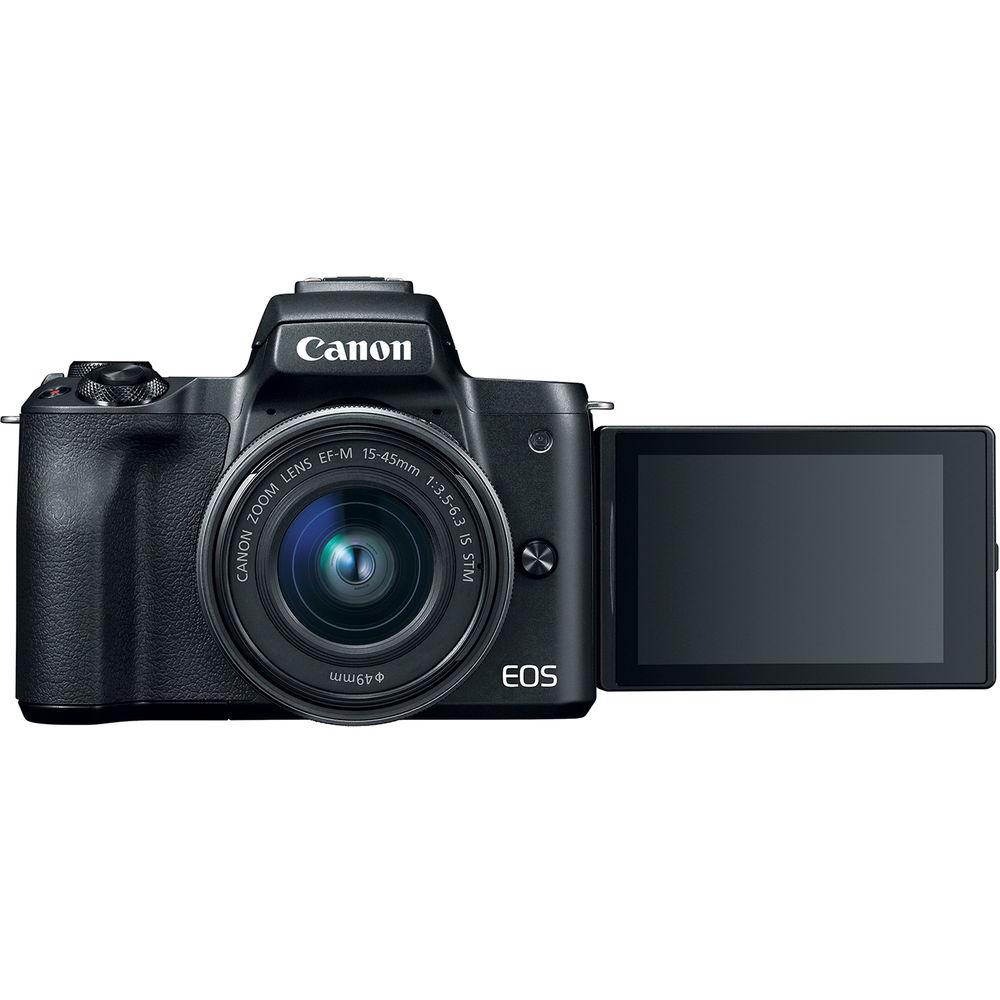

  • • Large 3.0" touchscreen LCD provides an intuitive method for controlling focusing points, navigating menus, and reviewing imagery. This screen also features a vari-angle to better enable working from high and low angles.
    • Integrated 2.36m-dot OLED electronic viewfinder permits bright, clear eye-level monitoring and also permits working with Touch and Drag AF for manually moving the AF area while shooting with the EVF for more intuitive control.
    • Built-in Wi-Fi with NFC allows for easy wireless sharing of both photos and movies to a linked mobile device.
    • Bluetooth permits linking a smartphone or tablet for quick, automatic image sharing between devices as well as remote control capabilities.

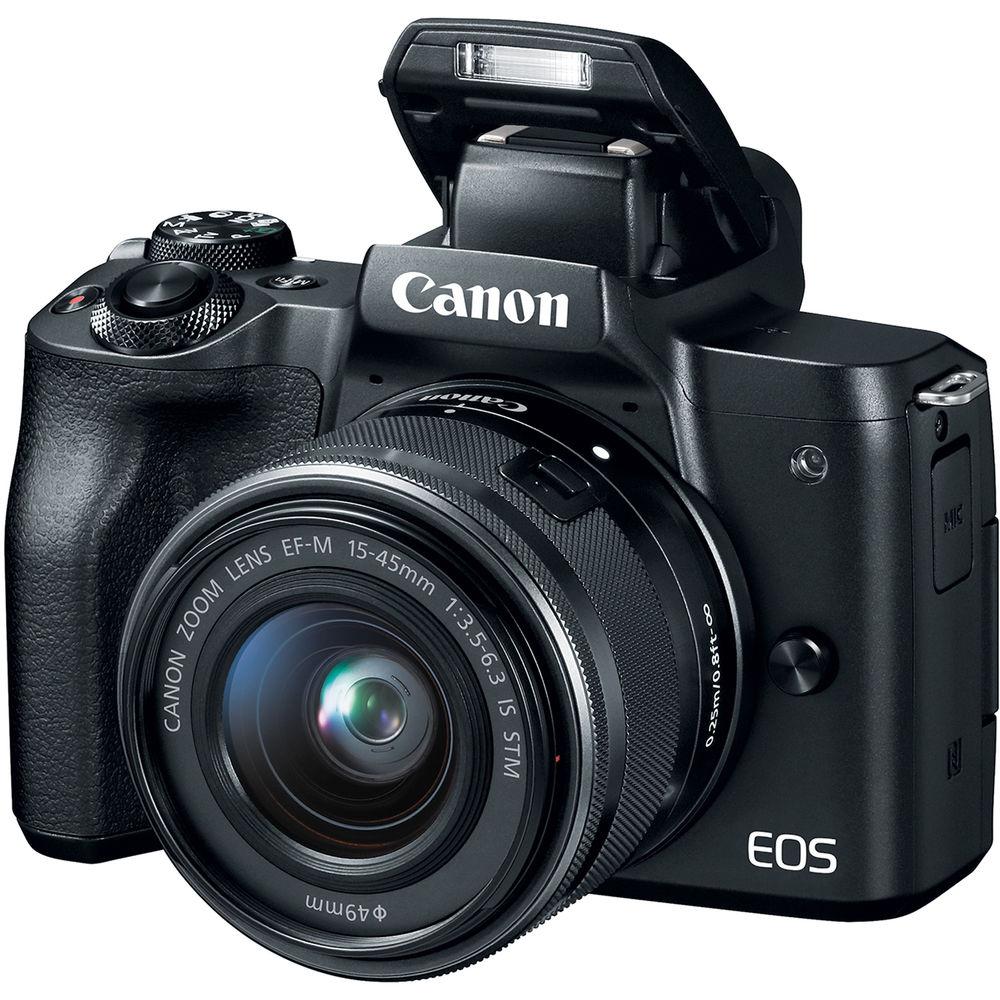

    • Built-in pop-up flash provides additional illumination for working in low-light conditions. A hot shoe is also available for working with an optional external flash for greater control.
  EF-M 15-45mm f/3.5-6.3 IS STM Lens
  • Included with the camera body is the versatile standard zoom EF-M 15-45mm f/3.5-6.3 IS STM lens, which provides a 24-72mm equivalent focal length range. Three aspherical elements help to control chromatic aberrations and distortions throughout the zoom range and an optimized lens placement works to reduce flare and ghosting. An Optical Image Stabilizer works to minimize the appearance of camera shake by up to 3.5 stops for sharper handheld shooting and an STM stepping motor provides fast, smooth, and near-silent autofocus performance.
  UPC: 013803301229

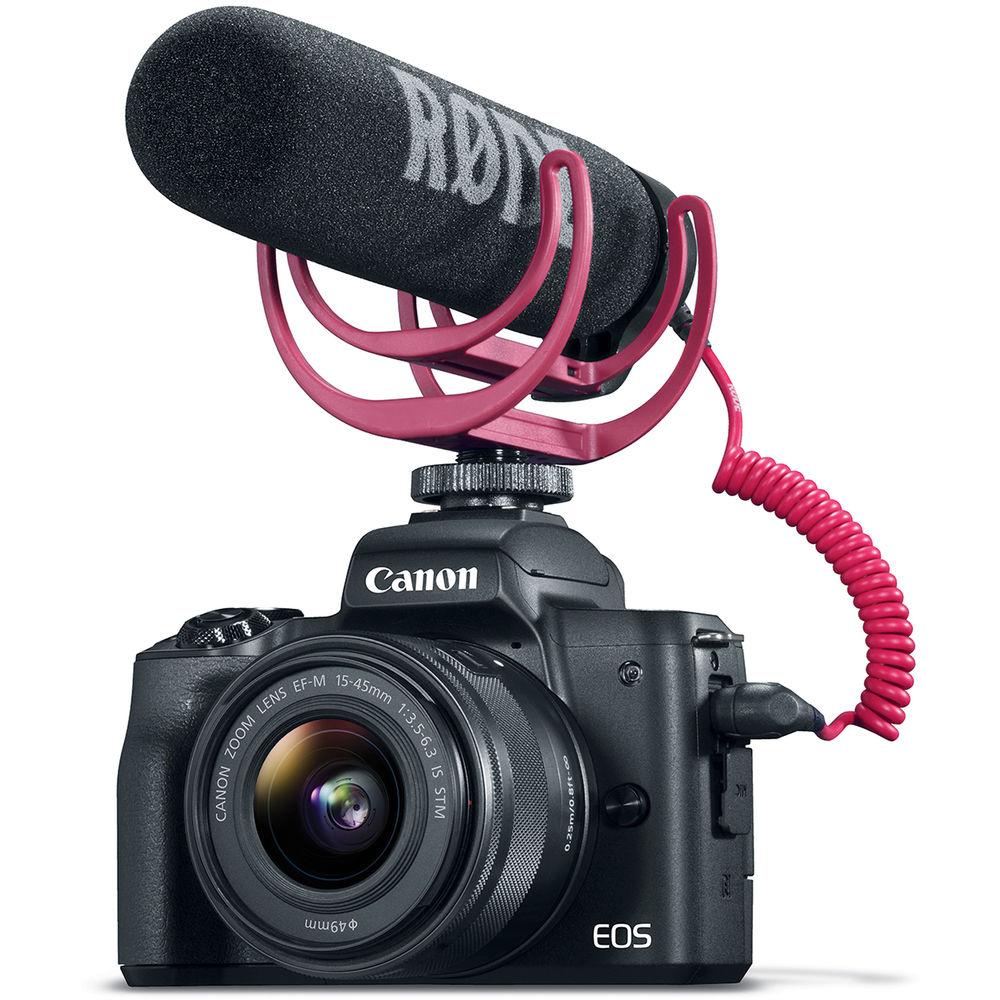

• VideoMic GO Lightweight On-Camera Microphone The VideoMic GO Lightweight On-Camera Microphone from Rode is a lightweight microphone which adds high-quality audio recording to your small camcorder and HDSLR camera. At only 2.6 ounces, the microphone keeps your camera setup lightweight, making it ideal for handheld shooting. It features an integrated Rycote Lyre shock mount for isolation from bumps and vibration, and offers battery-free operation, using instead the plug-in power from your camera's 3.5mm microphone input. Please note that the microphone will not work with cameras that don't supply plug-in power to their 3.5mm audio input jack.

  The VideoMic GO is a directional microphone. It utilizes a supercardioid polar pattern to attenuate sounds from the sides, resulting in a signal that sounds closer to the camera, even when shooting in noisy environments or at moderate distances. The integrated shoe mount provides a 3/8" thread for additional mounting options. A foam windshield and 7.9" dual mono 3.5mm coiled output cable is included.
  Lightweight Design
  • At only 2.6 ounces, the VideoMic GO is ideal for run-and-gun HDSLR recording without the additional weight of larger on-camera microphone options.
  Integrated Rycote Lyre Shock Mount
  • Constructed from a single piece of hard-wearing thermoplastic, the Lyre provides superior acoustic suspension to traditional elastic solutions, and won't wear out, sag, snap, or require any rethreading to maintain its effectiveness.
  No Battery Needed
  • The VideoMic Go does not require batteries for operation, but instead uses the plug-in power supplied via your camera's 3.5mm microphone input. Simply plug in, and you're ready to record.
  Additional Features
  • • Reinforced ABS construction
    • Foam windshield
    • Integrated shoe mount with 3/8" thread
    • 3.5mm TRS mini-jack audio output connection
    UPC: 698813003396

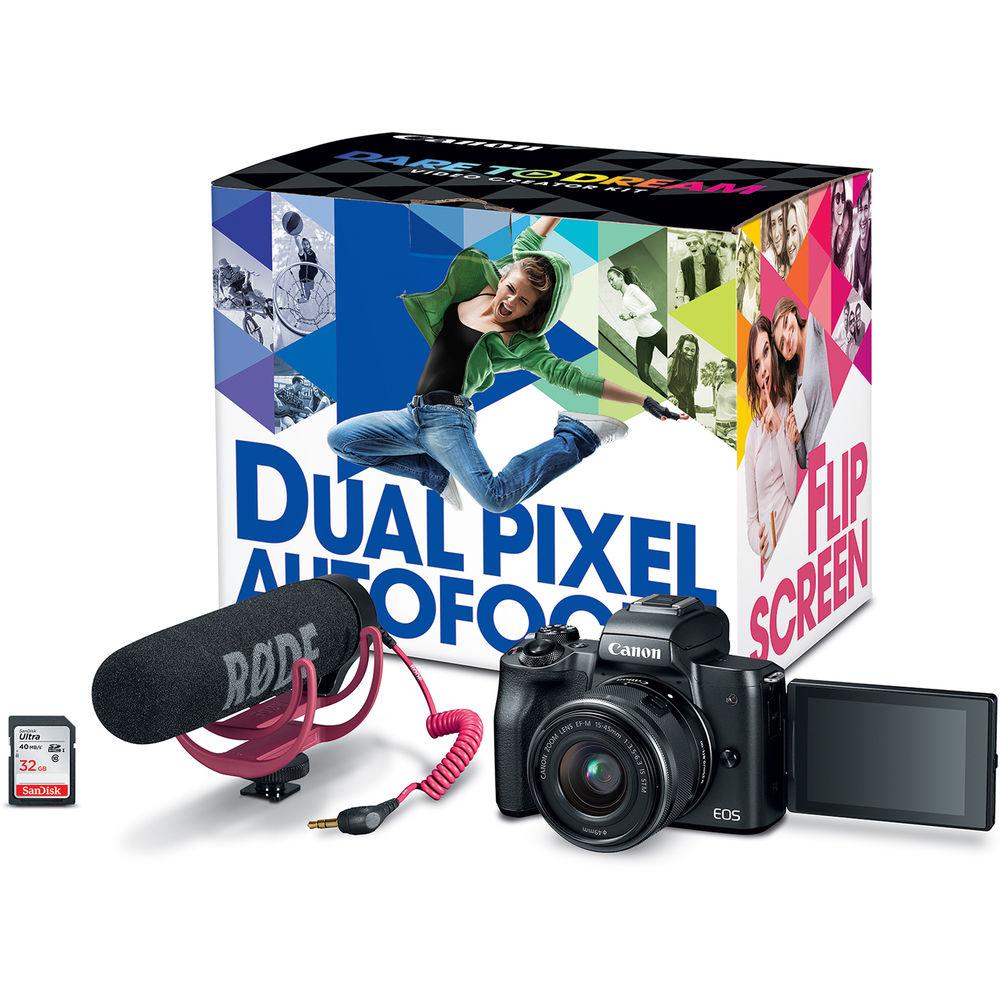

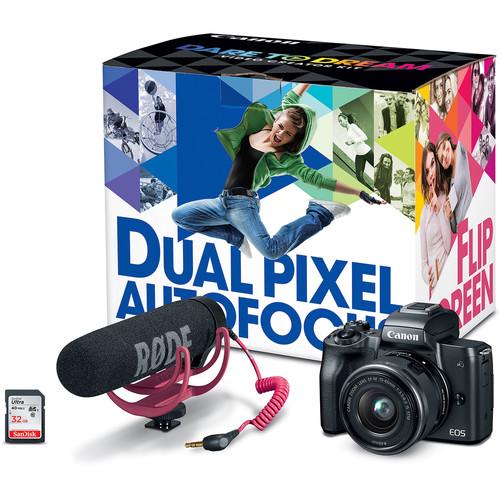

  In the Box Bundle Items EOS M50 Mirrorless Digital Camera with 15-45mm Lens (Black) tvqbbrsyzzcvuqtswsudfadrbxwuzzatw
  • EF-M 15-45mm f/3.5-6.3 IS STM Lens (Graphite)
  • LP-E12 Lithium-Ion Battery Pack (7.2V, 875mAh)
  • Battery Charger LC-E12 for Battery Pack LP-E12
  • R-F-4 Camera Cover (Body Cap) for EOS M Mirrorless Camera
  • EM-200DB Neck Strap
  • Terminal Cover
  • Limited 1-Year Warranty
  VideoMic GO Lightweight On-Camera Microphone tvqbbrsyzzcvuqtswsudfadrbxwuzzatw
  • Foam Windshield
  • 3.5mm Dual Mono Output Cable (7.9")
  • Limited 2-Year Warranty

Also Includes

• 32GB SDHC Memory Card

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• EOS M50 Mirrorless Digital Camera with 15-45mm Lens (Black)

  Lens Mount	Canon EF-M
  Camera Format	APS-C (1.6x Crop Factor)
  Pixels	Actual: 25.8 Megapixel Effective: 24.1 Megapixel
  Maximum Resolution	6000 x 4000
  Aspect Ratio	1:1, 3:2, 4:3, 16:9
  Sensor Type	CMOS
  Sensor Size	22.3 x 14.9 mm
  Image File Format	JPEG, RAW
  Bit Depth	14-Bit
  Image Stabilization	Digital, 3-Axis (Video Only)

  ISO Sensitivity	Auto, 100 to 25600 (Extended: 100 to 51200)
  Shutter Speed	1/4000 to 30 Seconds
  Metering Method	Center-Weighted Average, Evaluative, Partial, Spot
  Exposure Modes	Aperture Priority, Manual, Program, Shutter Priority
  Exposure Compensation	-3 to +3 EV (1/3 EV Steps)
  Metering Range	0 to 20 EV
  White Balance	Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten
  Continuous Shooting	Up to 10 fps at 24.2 MP for up to 10 Exposures (Raw Format) Up to 10 fps at 24.2 MP for up to 33 Exposures (JPEG Format) Up to 4 fps at 24.2 MP for up to 15 Exposures (Raw Format) Up to 4 fps at 24.2 MP for up to 1000 Exposures (JPEG Format) Up to 7.4 fps at 24.2 MP for up to 47 Exposures (JPEG Format)
  Self Timer	2/10-Second Delay

  Recording Modes	MP4/H.264 UHD 4K (3840 x 2160) at 23.976p Full HD (1920 x 1080) at 59.94p [60 Mb/s] Full HD (1920 x 1080) at 23.976p/29.97p [30 Mb/s] HD (1280 x 720) at 120p [52 Mb/s] HD (1280 x 720) at 59.94p [26 Mb/s]
  Recording Limit	Up to 29 Minutes, 59 Seconds
  Video Encoding	NTSC/PAL
  Audio Recording	Built-In Microphone (Stereo) External Microphone Input
  Audio File Format	AAC LC

  Focus Type	Auto and Manual Focus
  Focus Mode	Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	Contrast Detection: 143 Phase Detection: 99
  Autofocus Sensitivity	-2 to +18 EV

  Viewfinder Type	Electronic
  Viewfinder Size	0.39"
  Viewfinder Resolution	2,360,000 Dot
  Viewfinder Coverage	100%
  Monitor Size	3"
  Monitor Resolution	1,040,000 Dot
  Monitor Type	Articulating Touchscreen LCD

  Built-in Flash	Yes
  Guide Number	16.4' / 5 m at ISO 100
  Maximum Sync Speed	1/200 Second
  Flash Compensation	-2 to +2 EV (1/3 EV Steps)
  Dedicated Flash System	eTTL
  External Flash Connection	Hot Shoe

  Memory Card Slot	1 x SD/SDHC/SDXC
  Connectivity	3.5mm Microphone, HDMI D (Micro), USB 2.0 Micro-B
  Wireless	Wi-Fi Bluetooth
  GPS	None

  Operating Temperature	32 to 104°F / 0 to 40°C
  Operating Humidity	0 to 85%

  Battery	1 x LP-E12 Rechargeable Lithium-Ion, 7.2 VDC, 875 mAh
  Dimensions (W x H x D)	4.6 x 3.5 x 2.3" / 116.3 x 88.1 x 58.7 mm
  Weight	13.65 oz / 387 g (Body with Battery and Memory)

  Focal Length	15 to 45mm (35mm Equivalent Focal Length: 24 to 72mm)
  Maximum Aperture	f/3.5 to 6.3
  Minimum Aperture	Not Specified by Manufacturer
  Angle of View	84 Rating 90% users recommend this product to others. And what about you? This product has already been rated by 56 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
