User manual

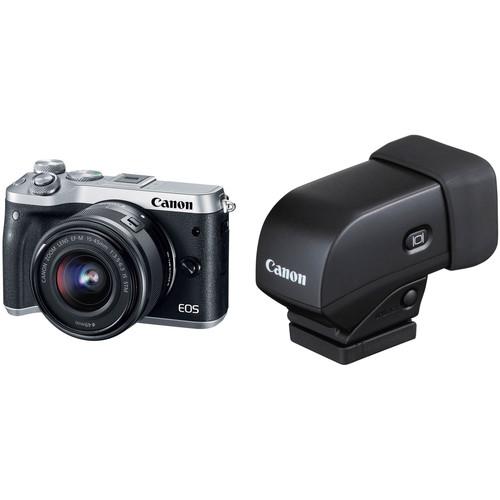

Canon EOS M6 Mirrorless Digital Camera

User Manual for Canon EOS M6 Mirrorless Digital Camera with 15-45mm Lens and Electronic Viewfinder Kit

• Product category: Mirrorless System Cameras Canon
• Brand: Canon
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Canon Mirrorless System Cameras

Product description

• Canon EOS M6 Mirrorless Digital Camera with 15-45mm Lens (Silver)
  • First Look: Canon EOS M6
  • Introducing the Canon EOS M-Series
  • Introducing the EOS M6 Digital Camera
  • The Advanced Canon EOS M6
  A well-rounded mirrorless camera for both stills and video use, the silver EOS M6 from Canon offers apt imaging qualities with a refined, functional physical design. Making use of a 24.2MP APS-C CMOS sensor, both high-resolution stills and Full HD 1080p/60 video can be recorded, while the DIGIC 7 image processor affords a wide expanded sensitivity range from ISO 100-25600, along with quick continuous shooting up to 9 fps. The sensor's design also facilitates Dual Pixel CMOS AF, which uses phase-detection autofocus for quick, accurate, and smooth performance to suit both stills and video use. Additionally, Combination IS 5-axis image stabilization also helps to realize steady, shake-free recording by minimizing the appearance of camera shake.

  Alongside the imaging attributes, the EOS M6 also incorporates a large 3.0" 1.04m-dot touchscreen LCD for intuitive control, and the screen's design tilts to enable easier shooting from high and low working angles. Additionally, built-in Wi-Fi with NFC is available for quick and convenient pairing with a smartphone or tablet for wireless image sharing, and Bluetooth is also featured for image sharing to and remote camera control from a mobile device.
  24.2MP APS-C CMOS Sensor and DIGIC 7 Image Processor
  • Both a 24.2MP APS-C CMOS sensor and DIGIC 7 image processor are used to deliver high sensitivity and fast camera performance to suit both stills and video applications. A flexible ISO 100-25600 range suits working in a variety of lighting conditions, and the processing capabilities minimize noise for notable clarity. The processor also contributes to a fast 7 fps continuous shooting rate, which can be quickened to 9 fps with AF lock, for photographing fast-moving subjects. Full HD 1080p video recording is also supported at up to a 60 fps frame rate. Additionally, the processor affords a fast camera startup time and short interval times between each frame for a more intuitive and efficient shooting process.
  Dual Pixel CMOS AF
  • Dual Pixel CMOS AF offers smooth and fast focusing performance in a similar manner to how a camcorder acquires focus. This system integrates two separate photodiodes within each pixel to provide a broad and dense network of phase-detection gathering elements across a majority of the image sensor to reduce focus hunting for faster, more direct control of focus placement. When working with still imagery, this focusing system works to acquire focus quickly and accurately, making it ideally suited to shooting and tracking moving subjects so that critical focus is attained with each shot. When shooting video, a Movie Servo AF mode offers smooth and natural focusing when changing from different subjects or different distances within the scene, as well as the ability to specify tracking sensitivity, AF speed, and Face Tracking priority. Benefited by the Touch AF system, rack focus is possible simply by touching elements within the scene on the touchscreen in order to change focus in an intuitive manner. Subject tracking in movies is also heightened due to the Dual Pixel CMOS AF system's ability to recognize subjects and maintain focus when working within changing or cluttered scenery.
  Combination IS
  • Combination IS uses the built-in 5-axis digital image stabilization in conjunction with lens-based image stabilization systems to effectively minimize the appearance of camera shake for sharper handheld shooting. This benefits recording while walking or moving, and can also be used in conjunction with lenses featuring optical IS for more effective overall stabilization.
  Body Design and Built-In Wi-Fi
  • • Large 3.0" touchscreen LCD provides an intuitive method for controlling focusing points, navigating menus, and reviewing imagery. This screen also features a tilting design (180° upward, 45° downward) to better enable working from high and low angles.
    • Compatible with optional external EVF-DC2 for eye-level monitoring.
    • Five function dials can be used for intuitive settings adjustments, and each can be customized to adjust specific functions for more personalized control.
    • Built-in Wi-Fi with NFC allows for easy wireless sharing of both photos and movies to a linked mobile device.
    • Bluetooth permits linking a smartphone or tablet for quick image sharing between devices as well as remote control capabilities.
    • The included LP-E17 lithium-ion battery offers approximately 295 shots per charge, or 425 shots when working in Eco mode.
    • Manual pop-up flash is available for additional illumination.
  EF-M 15-45mm f/3.5-6.3 IS STM Lens
  • Included with the camera body is the versatile standard zoom EF-M 15-45mm f/3.5-6.3 IS STM lens, which provides a 24-72mm equivalent focal length range. Three aspherical elements help to control chromatic aberrations and distortions throughout the zoom range and an optimized lens placement works to reduce flare and ghosting. An Optical Image Stabilizer works to minimize the appearance of camera shake by up to 3.5 stops for sharper handheld shooting and an STM stepping motor provides fast, smooth, and near-silent autofocus performance.
  UPC: 013803286823
• Canon EVF-DC1 Electronic Viewfinder for PowerShot G1 X Mark II, PowerShot G3 X, or EOS M3
  • First Look: Canon EOS M6
  • Introducing the Canon EOS M-Series
  • Introducing the EOS M6 Digital Camera
  • The Advanced Canon EOS M6
  The EVF-DC1 Electronic Viewfinder from Canon is compatible with their PowerShot G1 X Mark II, PowerShot G3 X, or EOS M3 Digital Camera. It offers an XGA LCD with a 2.36MP resolution and displays all shooting information found on the camera's LCD screen. Mounted easily on the camera's accessory shoe, the electronic viewfinder features a high eyepoint, a dioptric adjustment range of -3.0 to +1.0, and 90° upward tilt capability, helping to enable steady shooting even on an angle. The camera can be directed to switch automatically between the LCD and the viewfinder with an eyepiece sensor or can be set manually with a dedicated button. Brightness can be set independently from the camera's monitor. UPC: 013803242010

• EOS M6 Mirrorless Digital Camera with 15-45mm Lens (Silver)
• EF-M 15-45mm f/3.5-6.3 IS STM Lens (Silver)
• LP-E17 Lithium-Ion Battery Pack
• LC-E17 Charger for LP-E17 Battery Pack
• R-F-4 Camera Cover (Body Cap) for EOS M Mirrorless Camera
• EM-300DB Strap
• Terminal Cover
• Limited 1-Year Warranty

• EVF-DC1 Electronic Viewfinder for PowerShot G1 X Mark II, PowerShot G3 X, or EOS M3 xstvquaecudyurawaxtfadxvxrreyrzbu

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Canon EOS M6 Mirrorless Digital Camera with 15-45mm Lens (Silver)

  Lens Mount	Canon EF-M
  Camera Format	APS-C (1.6x Crop Factor)
  Pixels	Actual: 25.8 Megapixel Effective: 24.2 Megapixel
  Maximum Resolution	6000 x 4000
  Aspect Ratio	1:1, 3:2, 4:3, 16:9
  Sensor Type	CMOS
  Sensor Size	22.3 x 14.9 mm
  Image File Format	JPEG, RAW
  Bit Depth	14-Bit
  Image Stabilization	Digital, 5-Axis (Video Only)

  ISO Sensitivity	Auto, 100 to 6400 (Extended: 100 to 25600)
  Shutter Speed	1/4000 to 30 Seconds
  Metering Method	Center-Weighted Average, Evaluative, Partial, Spot
  Exposure Modes	Aperture Priority, Manual, Program, Shutter Priority
  Exposure Compensation	-3 to +3 EV (1/3 EV Steps)
  Metering Range	1 to 20 EV
  White Balance	Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten
  Continuous Shooting	Up to 9 fps at 24.2 MP for up to 17 Exposures (Raw Format) Up to 9 fps at 24.2 MP for up to 26 Exposures (JPEG Format) Up to 7 fps at 24.2 MP for up to 31 Exposures (JPEG Format) Up to 4 fps at 24.2 MP for up to 1000 Exposures (JPEG Format) Up to 4 fps at 24.2 MP for up to 30 Exposures (Raw Format)
  Self Timer	2/10-Second Delay

  Recording Modes	MP4/H.264 Full HD (1920 x 1080) at 59.94p [35 Mb/s] Full HD (1920 x 1080) at 23.976p/29.97p [24 Mb/s] HD (1280 x 720) at 59.94p [16 Mb/s] SD (640 x 480) at 29.97p [3 Mb/s]
  External Recording Modes	Full HD (1920 x 1080)23.976p/29.97p/59.94p
  Recording Limit	Up to 29 Minutes, 59 Seconds
  Video Encoding	NTSC/PAL
  Audio Recording	Built-In Microphone (Stereo) External Microphone Input
  Audio File Format	AAC LC

  Focus Type	Auto and Manual Focus
  Focus Mode	Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	Phase Detection: 49
  Autofocus Sensitivity	-1 to +18 EV

  Monitor Size	3"
  Monitor Resolution	1,040,000 Dot
  Monitor Type	Tilting Touchscreen LCD

  Built-in Flash	Yes
  Guide Number	16.4' / 5 m at ISO 100
  Maximum Sync Speed	1/200 Second
  Flash Compensation	-2 to +2 EV (1/3 EV Steps)
  Dedicated Flash System	eTTL
  External Flash Connection	Hot Shoe

  Memory Card Slot	1 x SD/SDHC/SDXC
  Connectivity	HDMI D (Micro), USB 2.0 Micro-B
  Wireless	Wi-Fi Bluetooth
  GPS	None

  Operating Temperature	32 to 104°F / 0 to 40°C
  Operating Humidity	0 to 85%

  Battery	1 x LP-E17 Rechargeable Lithium-Ion, 7.2 VDC, 1040 mAh
  Dimensions (W x H x D)	4.4 x 2.7 x 1.8" / 112.0 x 68.0 x 44.5 mm
  Weight	13.76 oz / 390 g (Body with Battery and Memory)

  Focal Length	15 to 45mm (35mm Equivalent Focal Length: 24 to 72mm)
  Maximum Aperture	f/3.5 to 6.3
  Minimum Aperture	Not Specified by Manufacturer
  Angle of View	84 Rating 80% users recommend this product to others. And what about you? This product has already been rated by 32 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
