Product description

• Canon EOS M6 Mirrorless Digital Camera with 15-45mm Lens Video Creator Kit (Black)
  • Introducing the Canon EOS M-Series
  • Introducing the EOS M6 Digital Camera
  • The Advanced Canon EOS M6

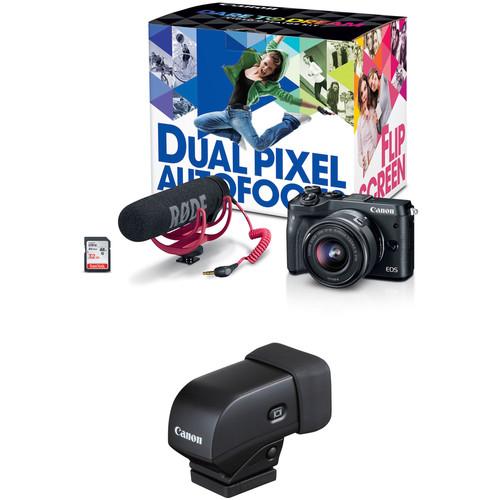

  Configured for the aspiring filmmaker, the black EOS M6 Mirrorless Digital Camera with 15-45mm Lens Video Creator Kit from Canon bundles the mirrorless body with the versatile EF-M 15-45mm f/3.5-6.3 IS STM lens, a Rode VideoMic GO On-Camera Microphone, and a 32GB SDHC memory card. Together, these items form the essentials needed to record well-rounded Full HD 1080p movies with enhanced audio. UPC: 660685172531
• Canon EVF-DC1 Electronic Viewfinder for PowerShot G1 X Mark II, PowerShot G3 X, or EOS M3
  • Introducing the Canon EOS M-Series
  • Introducing the EOS M6 Digital Camera
  • The Advanced Canon EOS M6
  The EVF-DC1 Electronic Viewfinder from Canon is compatible with their PowerShot G1 X Mark II, PowerShot G3 X, or EOS M3 Digital Camera. It offers an XGA LCD with a 2.36MP resolution and displays all shooting information found on the camera's LCD screen. Mounted easily on the camera's accessory shoe, the electronic viewfinder features a high eyepoint, a dioptric adjustment range of -3.0 to +1.0, and 90° upward tilt capability, helping to enable steady shooting even on an angle. The camera can be directed to switch automatically between the LCD and the viewfinder with an eyepiece sensor or can be set manually with a dedicated button. Brightness can be set independently from the camera's monitor. UPC: 013803242010

• EOS M6 Mirrorless Digital Camera with 15-45mm Lens Video Creator Kit (Black)
• EOS M6 Mirrorless Digital Camera with 15-45mm Lens (Black)
• VideoMic GO Lightweight On-Camera Microphone
• 32GB SDHC Memory Card

• EVF-DC1 Electronic Viewfinder for PowerShot G1 X Mark II, PowerShot G3 X, or EOS M3

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Canon EOS M6 Mirrorless Digital Camera with 15-45mm Lens (Black)

  Lens Mount	Canon EF-M
  Camera Format	APS-C (1.6x Crop Factor)
  Pixels	Actual: 25.8 Megapixel Effective: 24.2 Megapixel
  Maximum Resolution	6000 x 4000
  Aspect Ratio	1:1, 3:2, 4:3, 16:9
  Sensor Type	CMOS
  Sensor Size	22.3 x 14.9 mm
  Image File Format	JPEG, RAW
  Bit Depth	14-Bit
  Image Stabilization	Digital, 5-Axis (Video Only)

  ISO Sensitivity	Auto, 100 to 6400 (Extended: 100 to 25600)
  Shutter Speed	1/4000 to 30 Seconds
  Metering Method	Center-Weighted Average, Evaluative, Partial, Spot
  Exposure Modes	Aperture Priority, Manual, Program, Shutter Priority
  Exposure Compensation	-3 to +3 EV (1/3 EV Steps)
  Metering Range	1 to 20 EV
  White Balance	Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten
  Continuous Shooting	Up to 9 fps at 24.2 MP for up to 17 Exposures (Raw Format) Up to 9 fps at 24.2 MP for up to 26 Exposures (JPEG Format) Up to 7 fps at 24.2 MP for up to 31 Exposures (JPEG Format) Up to 4 fps at 24.2 MP for up to 1000 Exposures (JPEG Format) Up to 4 fps at 24.2 MP for up to 30 Exposures (Raw Format)
  Self Timer	2/10-Second Delay

  Recording Modes	MP4/H.264 Full HD (1920 x 1080) at 59.94p [35 Mb/s] Full HD (1920 x 1080) at 23.976p/29.97p [24 Mb/s] HD (1280 x 720) at 59.94p [16 Mb/s] SD (640 x 480) at 29.97p [3 Mb/s]
  External Recording Modes	Full HD (1920 x 1080)23.976p/29.97p/59.94p
  Recording Limit	Up to 29 Minutes, 59 Seconds
  Video Encoding	NTSC/PAL
  Audio Recording	Built-In Microphone (Stereo) External Microphone Input
  Audio File Format	AAC LC

  Focus Type	Auto and Manual Focus
  Focus Mode	Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	Phase Detection: 49
  Autofocus Sensitivity	-1 to +18 EV

  Monitor Size	3"
  Monitor Resolution	1,040,000 Dot
  Monitor Type	Tilting Touchscreen LCD

  Built-in Flash	Yes
  Guide Number	16.4' / 5 m at ISO 100
  Maximum Sync Speed	1/200 Second
  Flash Compensation	-2 to +2 EV (1/3 EV Steps)
  Dedicated Flash System	eTTL
  External Flash Connection	Hot Shoe

  Memory Card Slot	1 x SD/SDHC/SDXC
  Connectivity	HDMI D (Micro), USB 2.0 Micro-B
  Wireless	Wi-Fi Bluetooth
  GPS	None

  Operating Temperature	32 to 104°F / 0 to 40°C
  Operating Humidity	0 to 85%

  Battery	1 x LP-E17 Rechargeable Lithium-Ion Battery Pack, 7.2 VDC, 1040 mAh
  Dimensions (W x H x D)	4.4 x 2.7 x 1.8" / 112.0 x 68.0 x 44.5 mm
  Weight	13.76 oz / 390 g (Body with Battery and Memory)

  Focal Length	15 to 45mm (35mm Equivalent Focal Length: 24 to 72mm)
  Maximum Aperture	f/3.5 to 6.3
  Minimum Aperture	Not Specified by Manufacturer
  Angle of View	84 Rating 80% users recommend this product to others. And what about you? This product has already been rated by 37 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
