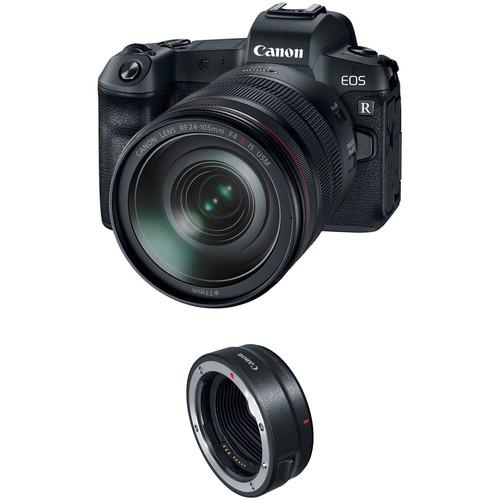

User Manual for Canon EOS R Mirrorless Digital Camera with 24-105mm Lens and Mount Adapter EF-EOS R Kit

• Product category: Mirrorless System Cameras Canon
• Brand: Canon
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Canon Mirrorless System Cameras

Product description

• Canon EOS R Mirrorless Digital Camera with 24-105mm Lens
  • Discover the New Canon EOS R System with Rudy Winston
  • Canon EOS R System Operability
  • EOS R Quick Tips: Electronic ViewfinderThe Basics
  • Canon EOS R Sample Video - Lake Natron
  The first step in Canon's mirrorless evolution, the EOS R pairs a redeveloped lens mount and updated full-frame image sensor for a unique and sophisticated multimedia camera system. Revolving around the new RF lens mount, the EOS R is poised to be the means from which to make the most of a new series of lenses and optical technologies.

  Focusing on the camera itself, the EOS R features a high-resolution 30.3MP full-frame CMOS sensor along with a DIGIC 8 image processor. The combination of these technologies offers a wide sensitivity range up a native ISO 40000, fast continuous shooting to 8 fps, and UHD 4K30 video recording. In addition to imaging, the sensor also facilitates an advanced Dual Pixel CMOS AF system, which uses 5655 selectable points for quickly and accurately acquiring focus. This focusing system is also sensitive down to EV -6 for working in impressively dark conditions. The AF system is also perfectly matched to the UHD 4K video recording capabilities, which are also rounded out by Movie Digital IS to minimize camera shake, built-in Canon Log gamma for a greater dynamic range, and 4K 10-bit 4:2:2 output over HDMI for even greater color control.

  Beyond the performance attributes, this camera has been designed from the ground up and features a high-resolution 3.69m-dot OLED electronic viewfinder for clear and bright eye-level viewing. Conversely, a rear 3.15" 2.1m-dot LCD touchscreen is also featured, and has a swivel design to suit working from high and low angles. Also catering to the tactile cravings is a Multi-Function bar, which is customizable for intuitively adjusting shooting settings. And as a camera built to withstand the toughest environments, the magnesium alloy body is dust and moisture-sealed.
  Canon RF Lens Mount
  • Beginning with a new lens mount, the EOS R is the first camera to support Canon's line of RF-mount lenses. This mount is characterized by its wide 54mm diameter and short 20mm flange-back distance, which promotes the ability to design lenses that are both faster and smaller than their SLR equivalents. The mount also incorporates a 12-pin electronic contact system for more sophisticated autofocus and image stabilization capabilities. This mount design also lends full compatibility to existing EF and EF-S-mount lenses via an optional EF-EOS R Mount Adapter.
  30.3MP Full-Frame CMOS Sensor and DIGIC 8 Image Processor
  • A large 30.3MP full-frame CMOS sensor is featured and serves as an ideal balance between high-resolution output, low-light performance, and high-speed capabilities. When paired with the DIGIC 8 image processor, the EOS R affords a native sensitivity range of ISO 100-40000, which can be expanded to ISO 50-102400 for working in a variety of lighting conditions. Quick continuous shooting to 8 fps is also supported for photographing moving subjects.
  Dual Pixel CMOS AF
  • Dual Pixel CMOS AF offers smooth and fast focusing performance in a similar manner to how a camcorder acquires focus. This system integrates two separate photodiodes within each pixel to provide a broad and dense network of 5655 phase-detection gathering elements across a majority of the image sensor to reduce focus hunting for faster, more direct control of focus placement. When working with still imagery, this focusing system works to acquire focus quickly and accurately, making it ideally suited to shooting and tracking moving subjects so that critical focus is attained with each shot. When shooting video, a Movie Servo AF mode offers smooth and natural focusing when changing from different subjects or different distances within the scene, as well as the ability to specify tracking sensitivity, AF speed, and Face Tracking priority. Benefited by the Touch AF system, rack focus is possible simply by touching elements within the scene on the touchscreen in order to change focus in an intuitive manner. Subject tracking in movies is also heightened due to the Dual Pixel CMOS AF system's ability to recognize subjects and maintain focus when working within changing or cluttered scenery. Additionally, the focus system is sensitive down to EV -6 for working in truly low-light conditions with accurate AF capabilities.
  UHD 4K Video Recording and Canon Log Gamma
  • Designed for multimedia image-maker, the EOS R supports UHD 4K (3840 x 2160) resolution recording at up to 30 fps at 480 Mb/s, along with Full HD 1080p shooting at 60 fps and HD 720p at 120 fps for slow motion playback. When recording in-camera, 4K video has 4:2:2 sampling and 8-bit color depth, a 4:2:2 10-bit clean output in ITU-R CT.2020 is possible when using an external recorder.

    Integrated Canon Log also allows users to capture flat images with an improved dynamic range of 800%, or 12 stops. This function makes it easier to match cameras in post-production as well as provides the most latitude and potential for color grading. For monitoring, a View Assist function is available, which emulates a graded look for more accurate viewing on the camera's LCD.

    Audio can be recorded using the on-board stereo microphone or an optional external mic can also be used via the 3.5mm mic jack.
  Dual Pixel RAW
  • First introduced with the EOS 5D Mark IV, Dual Pixel RAW allows photographers to record all the information the sensor's unique pixel architecture can deliver, providing a way for fine adjustments to be made after the image is taken. These adjustments include focus fine tuning that can help you ever-so-slightly adjust the focus point to bring out extra details, shift bokeh around for improved composition, and reduce the impact of ghosting on your photos. This requires the use of Canon's Digital Photo Professional software.
  Body Design
  • • Integrated 3.69m-dot OLED electronic viewfinder has 0.71x magnification and affords a bright and clear means for eye-level viewing.
    • Rear 3.15" 2.1m-dot LCD features a swivel design for easier use when working from high, low, and front-facing angles. It is also a touchscreen for intuitive control over shooting, playback, and menu navigation controls.
    • Customizable Multi-Function Bar is located near the viewfinder on the rear of the camera, and can be set to control four functions using right, left, slide, and press movements. It can be used to adjust ISO or white balance, to check focus/display focus info or AF modes, change to movie shooting modes, use flexible-priority AE, or be customized for other functions.
    • Top panel incorporates a dot-matrix LCD, which provides quick access to important camera settings.
    • One SD memory card slot featured, and supports the UHS-II protocol for faster read and write speeds to better support 4K video recording and fast continuous shooting.
    • Magnesium alloy body design is lightweight, durable, and features dust- and water-resistant seals for use in a variety of weather conditions.
    • Built-in Wi-Fi and Bluetooth connectivity enable wireless sharing, control, and image transfer with a compatible smart device via the Canon Camera Connect app, which also supports geotagging your files using your mobile device's location data.
    • Included LP-E6N rechargeable lithium-ion battery provides approximately 430 shots per charge, and in-camera charging is supported via the PD-E1 USB Power Adapter. This camera is also compatible with the LP-E6 battery, however is not supported for in-camera charging.
  RF 24-105mm f/4L IS USM Lens
  • Included with the camera body is the versatile RF 24-105mm f/4L IS USM lens; a standard zoom covering wide-angle to portrait-length focal lengths. Its f/4 constant maximum aperture maintains consistent performance throughout the zoom range and suits working in a variety of lighting conditions. An Image Stabilizer also suits photographing in low-light by compensating for the effects of camera shake to result in sharper imagery when shooting handheld. Benefitting both stills and video applications, it also has an Ultrasonic Motor that delivers quick, quiet, and precise autofocus performance along with full-time manual focus override.
  Other Camera Features
  • • Digital Lens Optimizer helps to minimize the appearance of various optical aberrations in-camera, including diffraction, for cleaner image quality.
    • Multi shot noise reduction technology records four sequential exposures and then combines them in-camera to produce an image with smoother tones and lower noise to suit long exposure images.
    • Images can be saved as Compact Raw (C-RAW / .CR3) files, which offer smaller file sizes for faster post-processing.
    • Language Support: English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Ukraine, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Malay, Indonesian, and Japanese.
  UPC: 013803306354
• Canon Mount Adapter EF-EOS R
  • Discover the New Canon EOS R System with Rudy Winston
  • Canon EOS R System Operability
  • EOS R Quick Tips: Electronic ViewfinderThe Basics
  • Canon EOS R Sample Video - Lake Natron
  Extending the range of compatible lenses, the Canon Mount Adapter EF-EOS R is a lightweight, compact lens adapter designed for attaching any EF or EF-S-mount lens to the EOS R mirrorless digital camera. This simple adapter retains full autofocus and image stabilization capabilities and contains no optical components, thereby maintaining the original optical quality of the mounted lens. It is also dust- and water-resistant, making it suitable for use in harsh weather conditions. UPC: 013803304886

• EOS R Mirrorless Digital Camera with 24-105mm Lens eryytuwbxevfyzbddaswdbzswssdxteqtdrs
• RF 24-105mm f/4L IS USM Lens
• LP-E6N Lithium-Ion Battery Pack (7.2V, 1865mAh)
• LC-E6 Charger for LP-E6 Battery Pack
• ER-100B Neck Strap
• Cable Protector
• IFC-100U Interface Cable (39.4")
• R-F-5 Camera Cover
• Limited 1-Year Warranty

• Mount Adapter EF-EOS R

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Canon EOS R Mirrorless Digital Camera with 24-105mm Lens

  Lens Mount	Canon RF
  Camera Format	Full-Frame (1x Crop Factor)
  Pixels	Actual: 31.7 Megapixel Effective: 30.3 Megapixel
  Maximum Resolution	6720 x 4480
  Aspect Ratio	1:1, 3:2, 4:3, 16:9
  Sensor Type	CMOS
  Sensor Size	36 x 24 mm
  Image File Format	JPEG, RAW
  Bit Depth	14-Bit
  Image Stabilization	Digital, 5-Axis (Video Only)

  ISO Sensitivity	Auto, 100 to 40000 (Extended: 50 to 102400)
  Shutter Speed	Electronic Front Curtain Shutter 1/8000 to 30 Seconds Bulb Mode
  Metering Method	Center-Weighted Average, Evaluative, Partial
  Exposure Modes	Aperture Priority, Manual, Shutter Priority
  Exposure Compensation	-3 to +3 EV (1/3, 1/2 EV Steps)
  Metering Range	-3 to 20 EV
  White Balance	Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten
  Continuous Shooting	Up to 8 fps at 30.3 MP for up to 47 Exposures (Raw Format) Up to 8 fps at 30.3 MP for up to 100 Exposures (JPEG Format) Up to 3 fps at 30.3 MP for up to 47 Exposures (Raw Format) Up to 3 fps at 30.3 MP for up to 100 Exposures (JPEG Format) Up to 2.2 fps at 30.3 MP for up to 47 Exposures (Raw Format) Up to 2.2 fps at 30.3 MP for up to 100 Exposures (JPEG Format)
  Self Timer	2/10-Second Delay

  Recording Modes	MP4/H.264 UHD 4K (3840 x 2160) at 23.976p/24p/25p/29.97p Full HD (1920 x 1080) at 23.976p/24p/25p/29.97p/50p/59.94p HD (1280 x 720) at 25p/29.97p/50p/59.94p/100p/120p
  External Recording Modes	4:2:2 10-Bit UHD 4K (3840 x 2160)
  Recording Limit	Up to 29 Minutes, 59 Seconds
  Video Encoding	NTSC/PAL
  Audio Recording	Built-In Microphone (Stereo) External Microphone Input
  Audio File Format	AAC, Linear PCM (Stereo)

  Focus Type	Auto and Manual Focus
  Focus Mode	Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	Phase Detection: 5655
  Autofocus Sensitivity	-6 to +18 EV

  Viewfinder Type	Electronic
  Viewfinder Size	0.5"
  Viewfinder Resolution	3,690,000 Dot
  Viewfinder Eye Point	23 mm
  Viewfinder Coverage	100%
  Viewfinder Magnification	Approx. 0.71x
  Diopter Adjustment	-4 to +2 m
  Monitor Size	3.15"
  Monitor Resolution	2,100,000 Dot
  Monitor Type	Articulating Touchscreen LCD

  Built-in Flash	None
  Flash Modes	Flash On, Slow Sync
  Flash Compensation	-3 to +3 EV (1/3, 1/2 EV Steps)
  Dedicated Flash System	eTTL
  External Flash Connection	Hot Shoe

  Memory Card Slot	1 x SD/SDHC/SDXC
  Connectivity	3.5mm Microphone, HDMI C (Mini), USB Type-C
  Wireless	Wi-Fi Bluetooth
  GPS	None

  Operating Temperature	32 to 104°F / 0 to 40°C
  Operating Humidity	0 to 85%

  Battery	1 x LP-E6N Rechargeable Lithium-Ion, 7.2 VDC, 1865 mAh
  Dimensions (W x H x D)	5.3 x 3.9 x 3.3" / 135.8 x 98.3 x 84.4 mm
  Weight	1.45 lb / 660 g (Body with Battery and Memory)

  Focal Length	24 to 105mm
  Maximum Aperture	f/4
  Minimum Aperture	f/22
  Angle of View	84 Rating 92% users recommend this product to others. And what about you? This product has already been rated by 17 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
