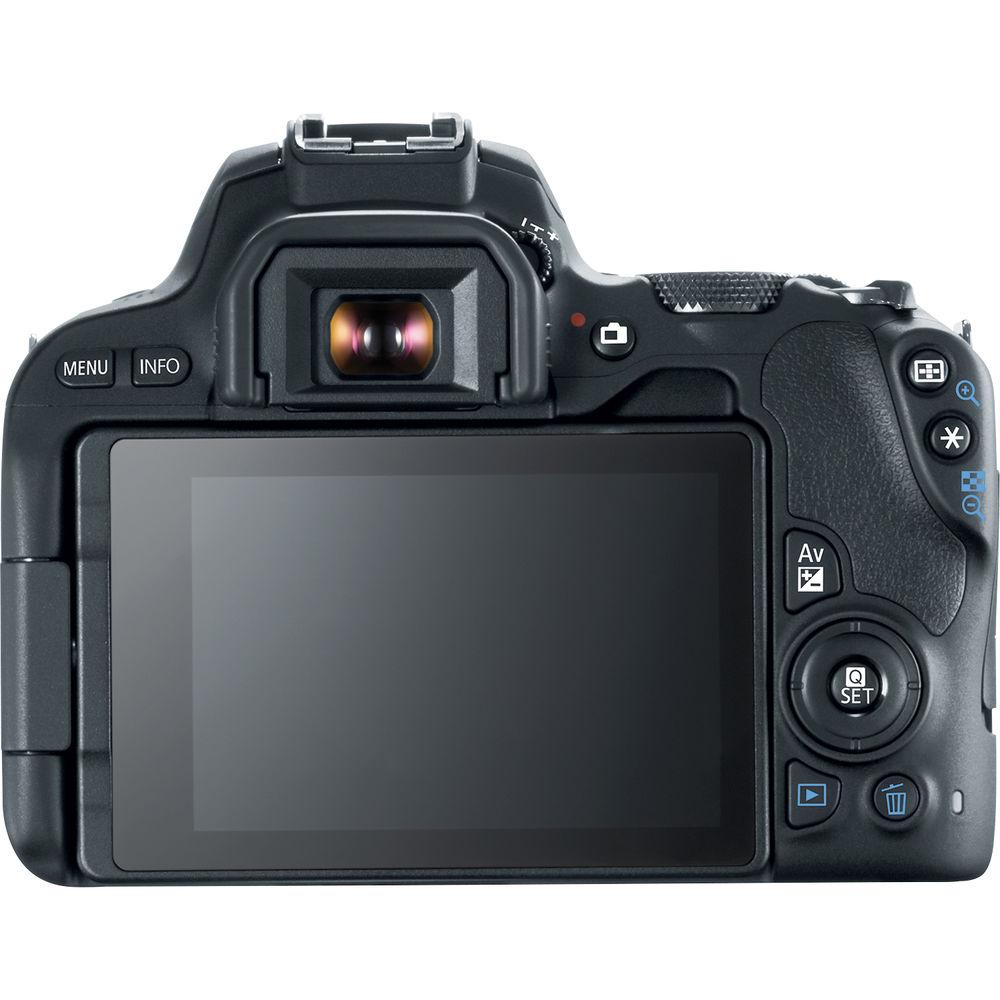

User Manual for Canon EOS Rebel SL2 DSLR Camera Click to enlarge the picture
Contents of the user manual for the Canon EOS Rebel SL2 DSLR Camera
- Product category: DSLR Cameras Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon DSLR Cameras
 |
User manual for the Canon EOS Rebel SL2 DSLR Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description Canon EOS Rebel SL2 Released with Upgraded CMOS Sensor and 60p Video Read More - First Look: Canon EOS Rebel SL2
- fficial Canon Rebel SL2 Digital Camera Introduction
- Introducing the Canon Rebel SL2 Digital Camera
- Canon EOS Rebel SL2 Snapshots: Flash Forward, with Speedlites

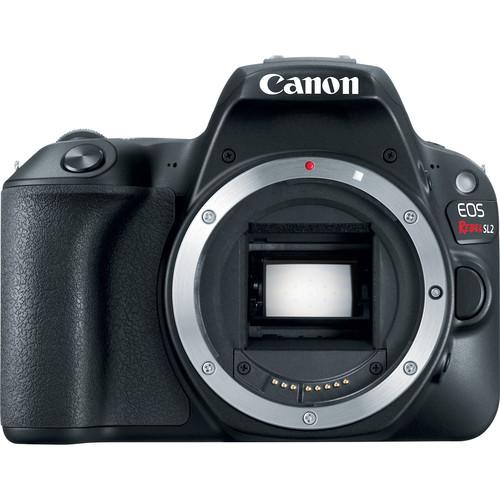

With a compact and lightweight body, the black Canon EOS Rebel SL2 DSLR Camera provides users with a fully-featured system that won't weigh them down. Packed into the tiny body is a capable 24.2MP APS-C CMOS sensor and a DIGIC 7 Image Processor, both of which work together to create sharp, vivid images at native sensitivities up to ISO 25600 and extended sensitivities up to ISO 51200. Video shooting has received a boost with Full HD 1080p recording possible at up to 60 fps. The SL2 also manages some significant body upgrades, with the main addition being a 3.0" vari-angle touchscreen LCD for intuitive operation and the ability to work at odd angles with relative ease.
As a DSLR, the SL2 obviously retains the optical viewfinder for fast, natural composition of your images and it can shoot continuously at speeds up to 5 fps. This setup also features a 9-point AF system for capturing tack sharp images. If you are working in Live View or shooting video, the SL2 does offer Dual Pixel CMOS AF technology, providing fast, accurate focusing in these modes and with intuitive control via the touchscreen. Additionally, the SL2 has a microphone input for higher quality audio recording during movie shooting.
For those inclined to share their journeys, the SL2 features built-in Wi-Fi with NFC and Bluetooth, making connecting to a smart device fast and simple. This setup permits wireless control over camera settings as well as the ability to transfer files to your phone. The SL2 also offers a Feature Assistant to help new shooters learn how to use the camera and its functions. - 24.2MP APS-C CMOS Sensor and DIGIC 7 Image Processor
- Both a 24.2MP APS-C CMOS sensor and DIGIC 7 image processor are used to deliver high sensitivity and fast camera performance to suit both stills and video applications. A flexible native ISO 100-25600 range, which can be extended to ISO 51200, suits working in a variety of lighting conditions, and the processing capabilities minimize noise for notable clarity. The processor also contributes to a fast 6 fps continuous shooting rate for photographing fast-moving subjects.
- 9-Point AF System and Dual Pixel CMOS AF
- Benefitting stills shooting with the optical viewfinder, a 9-point phase-detection autofocus system provides quick and precise focusing in difficult lighting conditions. The center point is also a cross-type for enhanced accuracy and speed. When recording video, or shooting in live view, a Dual Pixel CMOS AF system is employed that offers smooth and fast focusing performance in a similar manner to how a camcorder acquires focus. This system integrates two separate photodiodes within each pixel to provide a broad and dense network of phase-detection gathering elements across a majority of the image sensor to reduce focus hunting for faster, more direct control of focus placement. When working with still imagery, this focusing system works to acquire focus quickly and accurately, making it ideally suited to shooting and tracking moving subjects so that critical focus is attained with each shot. When shooting video, a Movie Servo AF mode offers smooth and natural focusing when changing from different subjects or different distances within the scene, as well as the ability to specify tracking sensitivity, AF speed, and Face Tracking priority. Benefited by the Touch AF system, rack focus is possible simply by touching elements within the scene on the touchscreen in order to change focus in an intuitive manner. Subject tracking in movies is also heightened due to the Dual Pixel CMOS AF system's ability to recognize subjects and maintain focus when working within changing or cluttered scenery.
- Full HD 1080p Video Recording

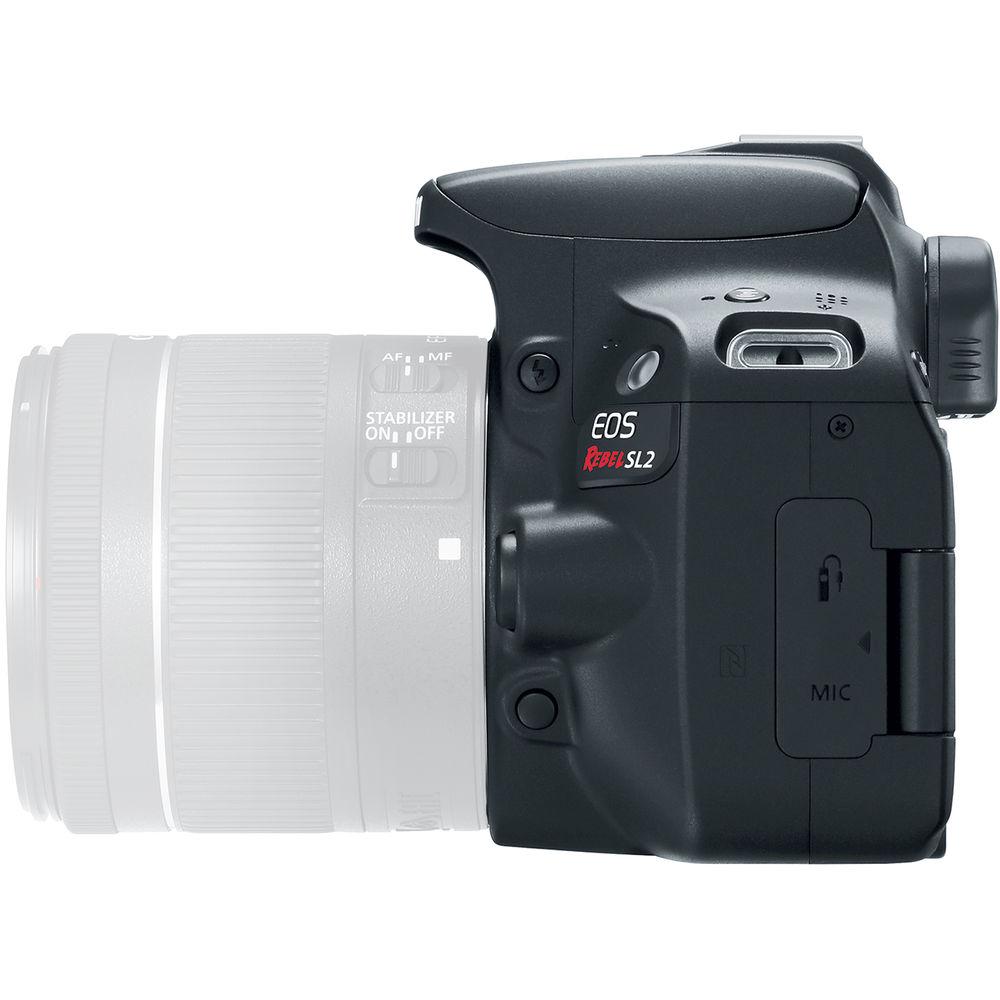

- In addition to stills recording, the SL2 also supports Full HD 1080p video recording at up to 60 fps in the MP4 format. Video recording is benefitted by the inclusion of Dual Pixel CMOS AF and the Movie Servo AF focusing functions, as well as the touchscreen design of the LCD monitor for intuitive control. Additionally, an external microphone jack is incorporated in the body design for greater control over your recorded sound.
- Body Design and Other Features
-

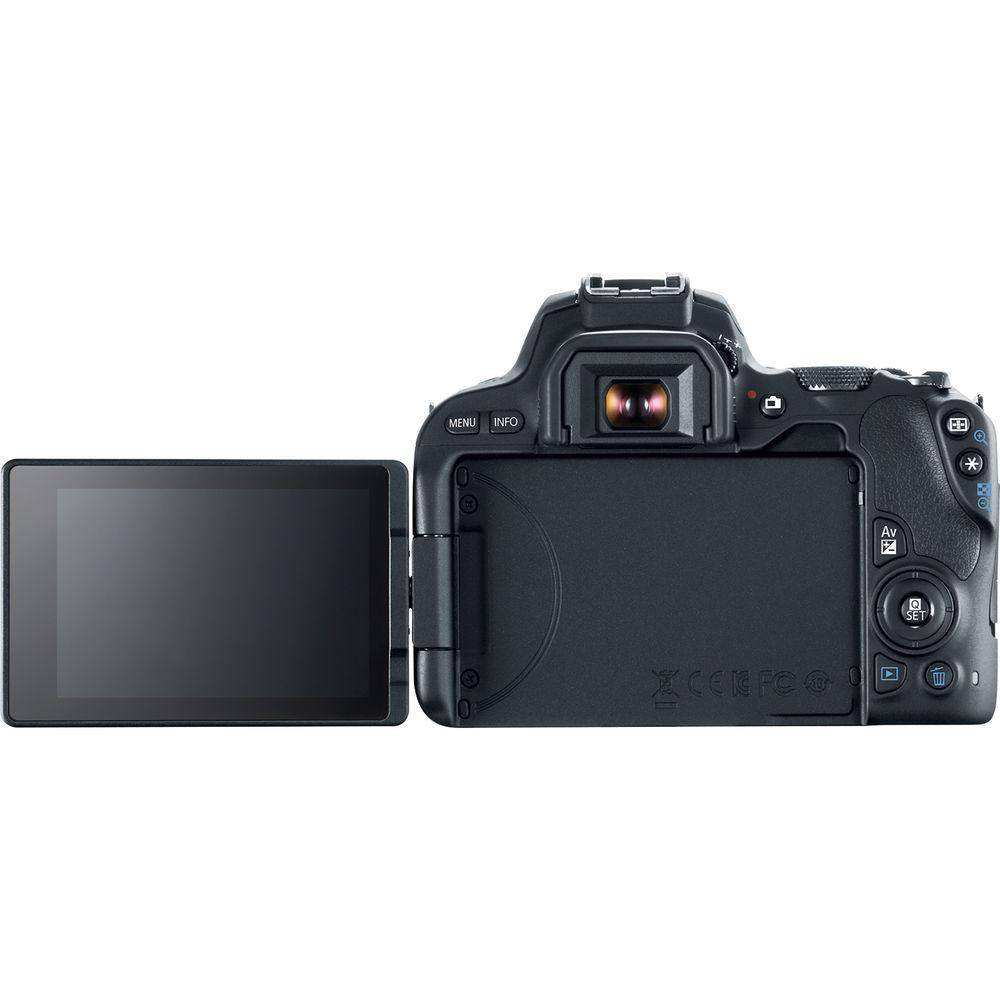

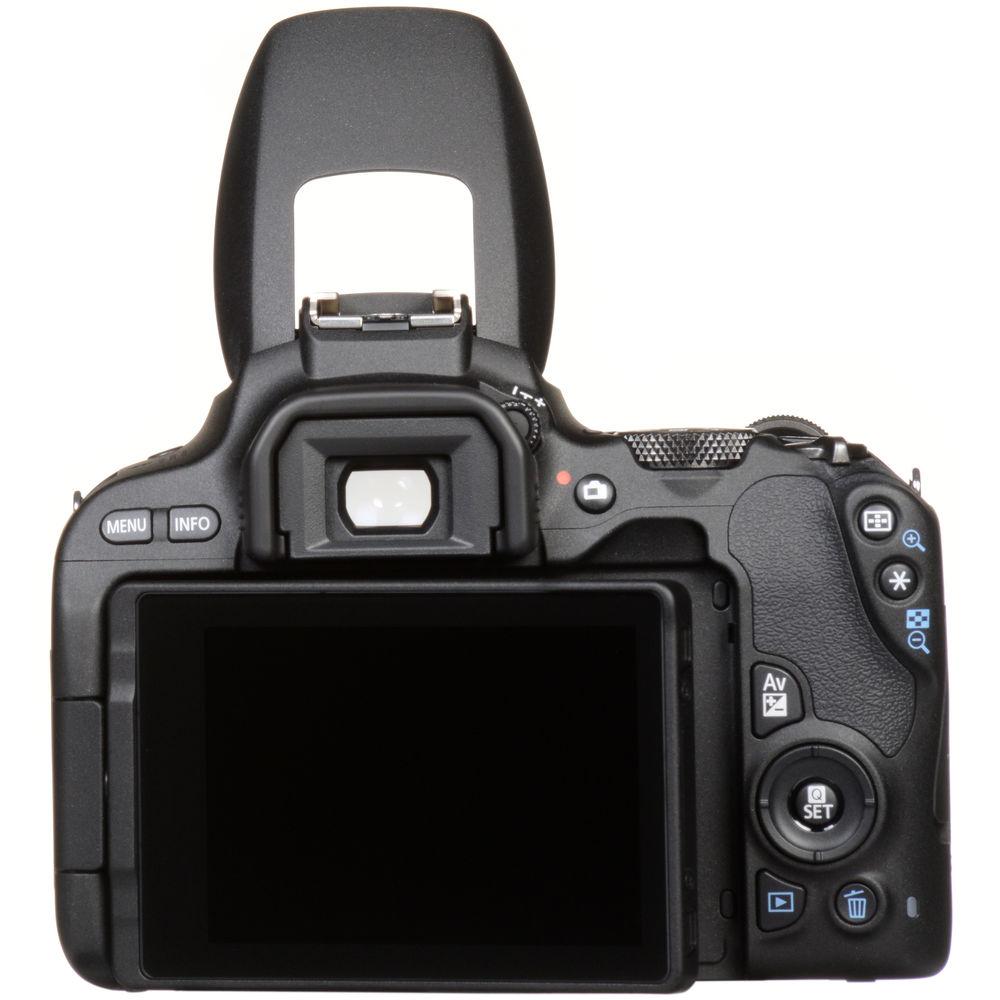

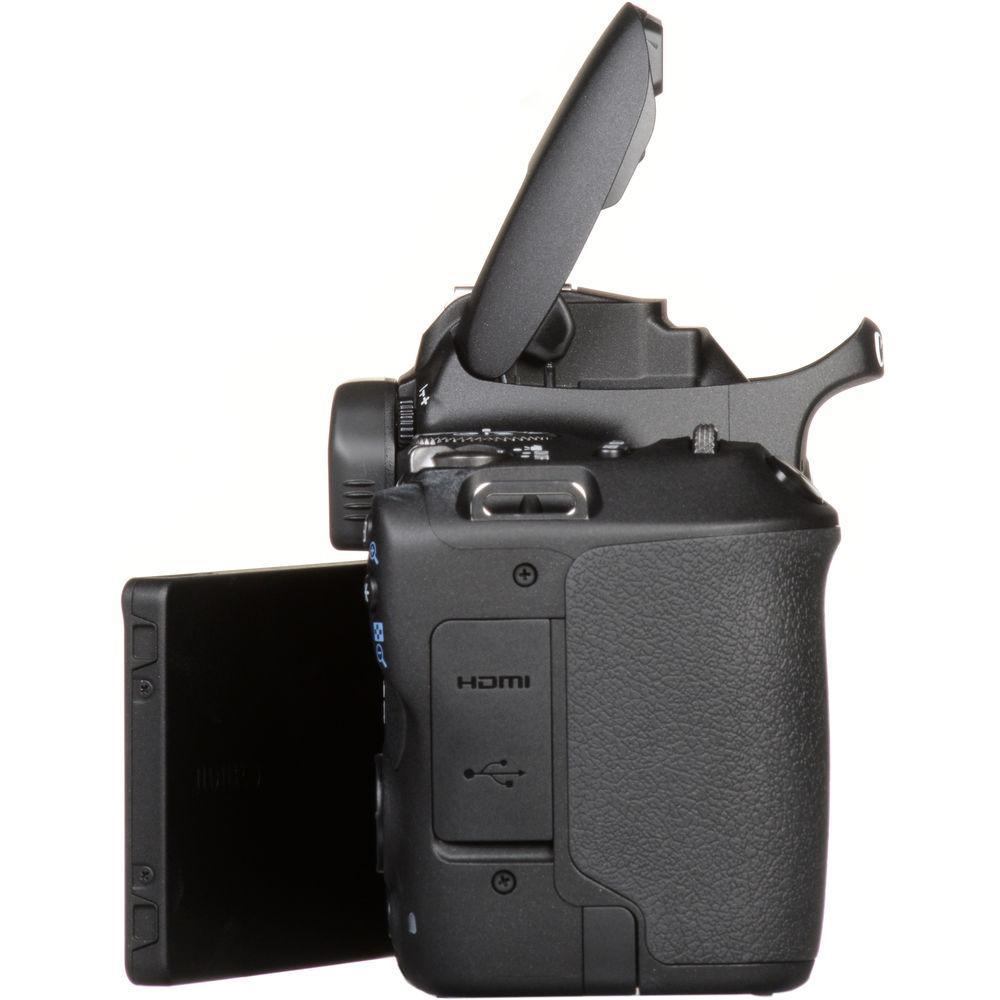

- Large 3.0" 1.04m-dot touchscreen LCD provides an intuitive method for controlling focusing points, navigating menus, and reviewing imagery. This screen also features a vari-angle design to better enable working from high and low angles.
- Optical pentamirror viewfinder serves a clear means for eye-level shooting.
- Built-in Wi-Fi with NFC allows for easy wireless sharing of both photos and movies to a linked mobile device.
- Bluetooth permits linking a smartphone or tablet for quick image sharing between devices as well as remote control capabilities.
- Included LP-E17 rechargeable lithium-ion battery provides approximately 820 shots per charge.
- A Feature Assistant user interface is available to highlight and guide use of specific camera modes and features.

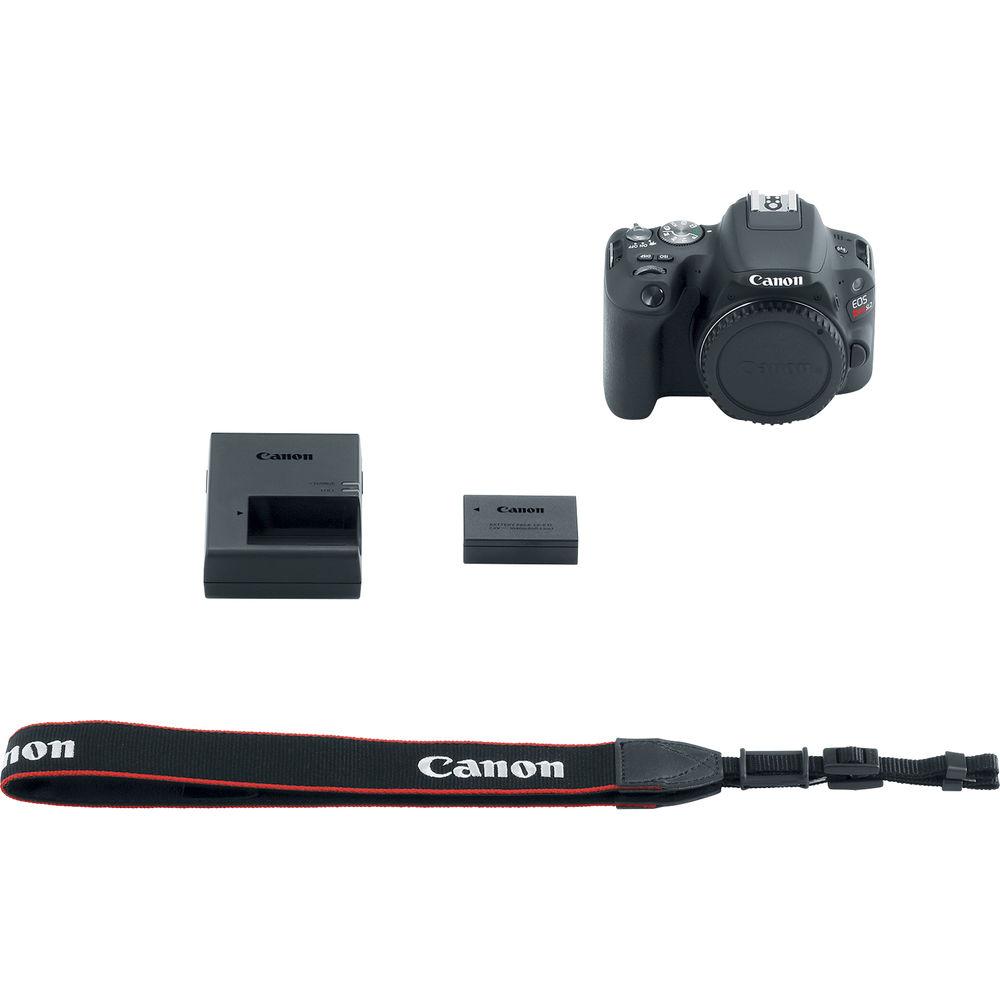

UPC: 013803290790 In the Box Canon EOS Rebel SL2 DSLR Camera (Black, Body Only) - LP-E17 Lithium-Ion Battery Pack
- LC-E17 Charger for LP-E17 Battery Pack
- Eyecup EF
- EW-400D Wide Strap
- Limited 1-Year Warranty
User Manual PDF 23.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon EOS Rebel SL2 DSLR Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon Rebel SL2 Specs | | | Lens Mount | Canon EF-S | | Camera Format | APS-C (1.6x Crop Factor) | | Pixels | Actual: 25.8 Megapixel
Effective: 24.2 Megapixel | | Maximum Resolution | 6000 x 4000 | | Aspect Ratio | 1:1, 3:2, 4:3, 16:9 | | Sensor Type | CMOS | | Sensor Size | 22.3 x 14.9 mm | | Image File Format | JPEG, RAW | | Bit Depth | 14-Bit | | Image Stabilization | None | | | | ISO Sensitivity | Auto, 100 to 25600 (Extended: 100 to 51200) | | Shutter Speed | Mechanical Shutter
1/4000 to 30 Seconds
Bulb Mode | | Metering Method | Evaluative | | Exposure Modes | Aperture Priority, Auto, Manual, Shutter Priority | | Exposure Compensation | -5 to +5 EV (1/3, 1/2 EV Steps) | | Metering Range | 1 to 20 EV | | White Balance | Auto, Cloudy, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten | | Continuous Shooting | Up to 5 fps at 24 MP
Up to 2.5 fps at 24 MP | | Interval Recording | Yes | | Self Timer | 2/10-Second Delay | | | | Recording Modes | MP4/H.264
Full HD (1920 x 1080) at 23.976p/29.97p/59.94p
HD (1280 x 720) at 29.97p/59.94p
SD (640 x 480) at 29.97p | | Recording Limit | Up to 29 Minutes, 59 Seconds for Full HD (1920 x 1080) | | Video Encoding | NTSC | | ISO Sensitivity | Auto: 100 to 12800 (Extended: 25600) | | Audio Recording | Built-In Microphone (Stereo)

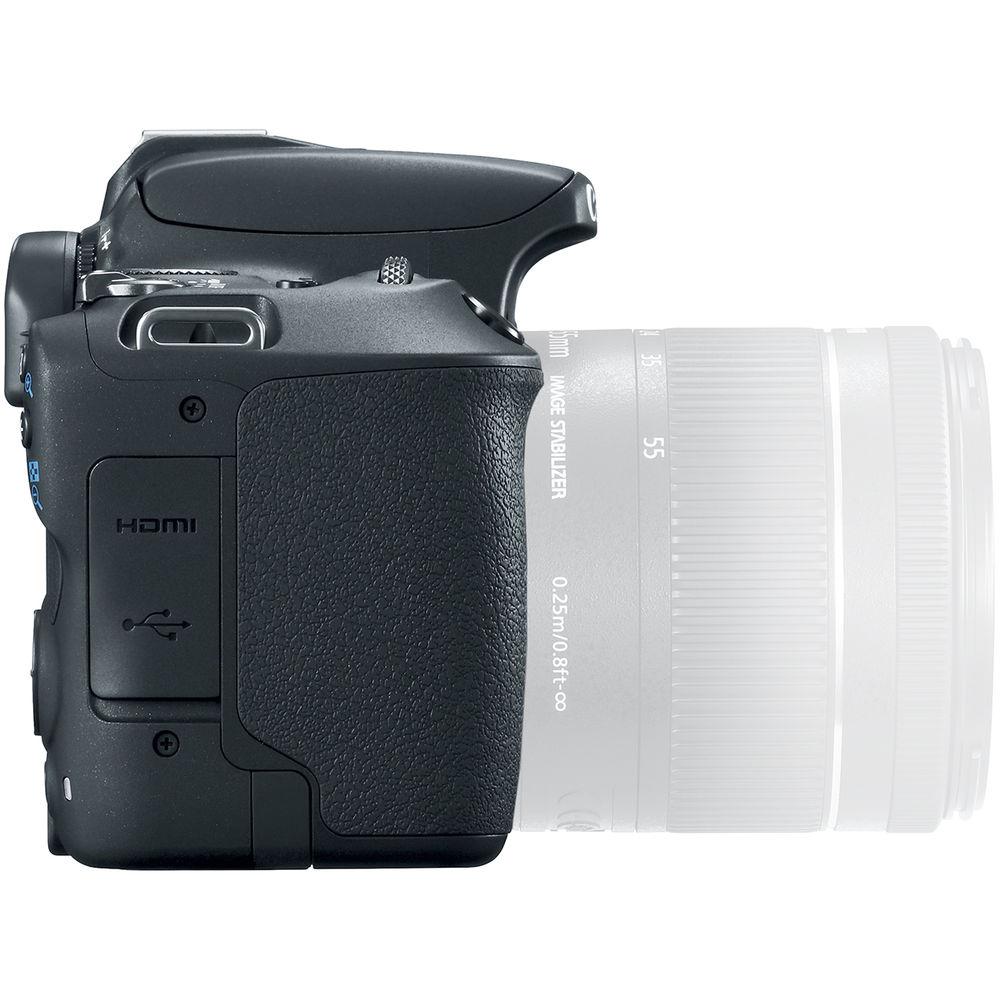

External Microphone Input | | Audio File Format | AAC | | | | Focus Type | Auto and Manual Focus | | Focus Mode | Automatic (A), Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S) | | Autofocus Points | Phase Detection: 9 (1 Cross-Type) | | Autofocus Sensitivity | -0.5 to +18 EV | | | | Viewfinder Type | Optical (Pentamirror) | | Viewfinder Eye Point | 19 mm | | Viewfinder Coverage | 95% | | Viewfinder Magnification | Approx. 0.87x | | Diopter Adjustment | -3 to +1 m | | Monitor Size | 3" | | Monitor Resolution | 1,040,000 Dot | | Monitor Type | Tilting Touchscreen LCD | | | | Built-in Flash | Yes | | Flash Compensation | -2 to +2 EV (1/3, 1/2 EV Steps) | | Dedicated Flash System | eTTL | | External Flash Connection | Hot Shoe | | | | Memory Card Slot | 1 x SD/SDHC/SDXC | | Connectivity | 3.5mm Microphone, HDMI C (Mini), Mini-USB | | Wireless | Wi-Fi
Bluetooth | | GPS | None | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 85% | | | | Battery | 1 x LP-E17 Rechargeable Lithium-Ion, 7.2 VDC, 1040 mAh | | Dimensions (W x H x D) | 4.8 x 3.6 x 2.7" / 122.4 x 92.6 x 69.8 mm | | Weight | 14.32 oz / 406 g (Body Only) | | | | Package Weight | 2.7 lb | | Box Dimensions (LxWxH) | 8.8 x 6.6 x 5.9" |
