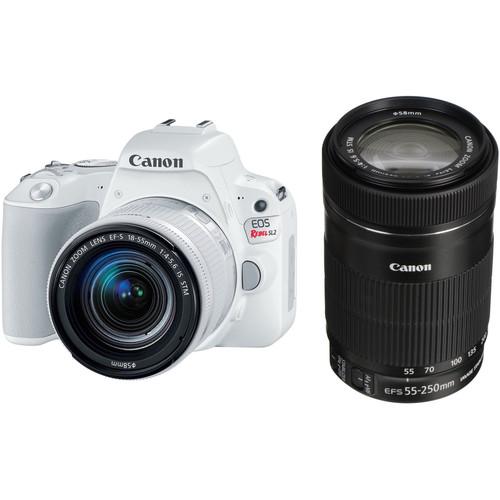

User Manual for Canon EOS Rebel SL2 DSLR Camera with 18-55mm and 55-250mm Lenses Kit

• Product category: DSLR Cameras Canon
• Brand: Canon
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Canon DSLR Cameras

Product description

• Canon EOS Rebel SL2 DSLR Camera with 18-55mm Lens (White)
  • fficial Canon Rebel SL2 Digital Camera Introduction
  • Introducing the Canon Rebel SL2 Digital Camera
  • Canon EOS Rebel SL2 Snapshots: Flash Forward, with Speedlites
  With a compact and lightweight body, the white Canon EOS Rebel SL2 DSLR Camera provides users with a fully-featured system that won't weigh them down. Packed into the tiny body is a capable 24.2MP APS-C CMOS sensor and a DIGIC 7 Image Processor, both of which work together to create sharp, vivid images at native sensitivities up to ISO 25600 and extended sensitivities up to ISO 51200. Video shooting has received a boost with Full HD 1080p recording possible at up to 60 fps. The SL2 also manages some significant body upgrades, with the main addition being a 3.0" vari-angle touchscreen LCD for intuitive operation and the ability to work at odd angles with relative ease.

  As a DSLR, the SL2 obviously retains the optical viewfinder for fast, natural composition of your images and it can shoot continuously at speeds up to 5 fps. This setup also features a 9-point AF system for capturing tack sharp images. If you are working in Live View or shooting video, the SL2 does offer Dual Pixel CMOS AF technology, providing fast, accurate focusing in these modes and with intuitive control via the touchscreen. Additionally, the SL2 has a microphone input for higher quality audio recording during movie shooting.

  For those inclined to share their journeys, the SL2 features built-in Wi-Fi with NFC and Bluetooth, making connecting to a smart device fast and simple. This setup permits wireless control over camera settings as well as the ability to transfer files to your phone. The SL2 also offers a Feature Assistant to help new shooters learn how to use the camera and its functions.

  Included with the camera is the EF-S 18-55mm f/4-5.6 IS STM Lens, a compact mid-range zoom with an equivalent range of 28.8-88mm. The lens is designed to be small, a perfect match for the SL2, and incorporates both image stabilization and STM autofocus for ensuring your photos and videos are of the highest quality.
  24.2MP APS-C CMOS Sensor and DIGIC 7 Image Processor
  • Both a 24.2MP APS-C CMOS sensor and DIGIC 7 image processor are used to deliver high sensitivity and fast camera performance to suit both stills and video applications. A flexible native ISO 100-25600 range, which can be extended to ISO 51200, suits working in a variety of lighting conditions, and the processing capabilities minimize noise for notable clarity. The processor also contributes to a fast 6 fps continuous shooting rate for photographing fast-moving subjects.
  9-Point AF System and Dual Pixel CMOS AF
  • Benefitting stills shooting with the optical viewfinder, a 9-point phase-detection autofocus system provides quick and precise focusing in difficult lighting conditions. The center point is also a cross-type for enhanced accuracy and speed. When recording video, or shooting in live view, a Dual Pixel CMOS AF system is employed that offers smooth and fast focusing performance in a similar manner to how a camcorder acquires focus. This system integrates two separate photodiodes within each pixel to provide a broad and dense network of phase-detection gathering elements across a majority of the image sensor to reduce focus hunting for faster, more direct control of focus placement. When working with still imagery, this focusing system works to acquire focus quickly and accurately, making it ideally suited to shooting and tracking moving subjects so that critical focus is attained with each shot. When shooting video, a Movie Servo AF mode offers smooth and natural focusing when changing from different subjects or different distances within the scene, as well as the ability to specify tracking sensitivity, AF speed, and Face Tracking priority. Benefited by the Touch AF system, rack focus is possible simply by touching elements within the scene on the touchscreen in order to change focus in an intuitive manner. Subject tracking in movies is also heightened due to the Dual Pixel CMOS AF system's ability to recognize subjects and maintain focus when working within changing or cluttered scenery.
  Full HD 1080p Video Recording
  • In addition to stills recording, the SL2 also supports Full HD 1080p video recording at up to 60 fps in the MP4 format. Video recording is benefitted by the inclusion of Dual Pixel CMOS AF and the Movie Servo AF focusing functions, as well as the touchscreen design of the LCD monitor for intuitive control. Additionally, an external microphone jack is incorporated in the body design for greater control over your recorded sound.
  Body Design and Other Features
  • • Large 3.0" 1.04m-dot touchscreen LCD provides an intuitive method for controlling focusing points, navigating menus, and reviewing imagery. This screen also features a vari-angle design to better enable working from high and low angles.
    • Optical pentamirror viewfinder serves a clear means for eye-level shooting.
    • Built-in Wi-Fi with NFC allows for easy wireless sharing of both photos and movies to a linked mobile device.
    • Bluetooth permits linking a smartphone or tablet for quick image sharing between devices as well as remote control capabilities.
    • Included LP-E17 rechargeable lithium-ion battery provides approximately 820 shots per charge.
    • A Feature Assistant user interface is available to highlight and guide use of specific camera modes and features.
    UPC: 013803290813
  • Canon EF-S 55-250mm f/4-5.6 IS STM Lens
    • fficial Canon Rebel SL2 Digital Camera Introduction
    • Introducing the Canon Rebel SL2 Digital Camera
    • Canon EOS Rebel SL2 Snapshots: Flash Forward, with Speedlites
    Suitable for distant subject matter, the EF-S 55-250mm f/4-5.6 IS STM is an 88-400mm-equivalent zoom for Canon APS-C DSLRs. This lens's long reach is enhanced by the inclusion of an Ultra-Low Dispersion element, which helps to greatly reduce color fringing and chromatic aberrations for greater clarity and color accuracy throughout the zoom range. A Super Spectra coating is also featured, and minimizes flare and ghosting in order to produce greater contrast when working in bright lighting conditions. Benefitting both photo and video applications, an STM stepping AF motor is used to realize quick and near-silent autofocus performance along with full-time manual focus override. Additionally, a four-stop-effective Image Stabilizer system is also featured and minimizes the appearance of camera shake for sharper handheld shooting.
    • Telephoto zoom is designed for APS-C-format Canon EF-S-mount DSLRs and provides an 88-400mm equivalent focal length range.
    • One Ultra-Low Dispersion glass element noticeably reduces color fringing and chromatic aberrations for high clarity and color fidelity.
    • Super Spectra coating has been applied to individual elements to minimize ghosting and flare for greater contrast and color neutrality when working in strong lighting conditions.
    • An Optical Image Stabilizer helps to minimize the appearance of camera shake by up to 3.5 stops to better enable working in low-light conditions and with slower shutter speeds.
    • Enhanced lens coatings minimize flare and ghosting in order to produce true colors with maintained contrast.
    • An STM stepping AF motor realizes smooth, near-silent autofocus that is complemented by a rear focus system, advanced AF algorithms, and a high-speed CPU for fast AF performance. Additionally, full-time manual focus override is also available.
    • Rounded seven-blade diaphragm contributes to a pleasing out of focus quality that benefits the use of shallow depth of field and selective focus techniques.
    UPC: 013803220742
  In the Box
  • EOS Rebel SL2 DSLR Camera with 18-55mm Lens (White) vtxdzrfttdccurcxbssdczftcewczxrz
  • EF-S 18-55mm f/4-5.6 IS STM Lens
  • RF-3 Body Cap for Canon EOS Cameras
  • LP-E17 Lithium-Ion Battery Pack
  • LC-E17 Charger for LP-E17 Battery Pack
  • Eyecup EF
  • EW-400D Wide Strap
  • Limited 1-Year Warranty
  • EF-S 55-250mm f/4-5.6 IS STM Lens
  Table of Contents

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Canon EOS Rebel SL2 DSLR Camera with 18-55mm Lens (White)

  Lens Mount	Canon EF-S
  Camera Format	APS-C (1.6x Crop Factor)
  Pixels	Actual: 25.8 Megapixel Effective: 24.2 Megapixel
  Maximum Resolution	6000 x 4000
  Aspect Ratio	3:2
  Sensor Type	CMOS
  Sensor Size	22.3 x 14.9 mm
  Image File Format	JPEG, RAW
  Bit Depth	14-Bit
  Image Stabilization	None

  ISO Sensitivity	Auto, 100 to 25600 (Extended: 100 to 51200)
  Shutter Speed	Mechanical Shutter 1/4000 to 30 Seconds Bulb Mode
  Metering Method	Evaluative
  Exposure Modes	Aperture Priority, Auto, Manual, Shutter Priority
  Exposure Compensation	-5 to +5 EV (1/3, 1/2 EV Steps)
  Metering Range	1 to 20 EV
  White Balance	Auto, Cloudy, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten
  Continuous Shooting	Up to 5 fps at 24 MP Up to 2.5 fps at 24 MP
  Interval Recording	Yes
  Self Timer	2/10-Second Delay

  Recording Modes	MP4/H.264 Full HD (1920 x 1080) at 23.976p/29.97p/59.94p HD (1280 x 720) at 29.97p/59.94p SD (640 x 480) at 29.97p
  Recording Limit	Up to 29 Minutes, 59 Seconds for Full HD (1920 x 1080)
  Video Encoding	NTSC
  ISO Sensitivity	Auto: 100 to 12800 (Extended: 25600)
  Audio Recording	Built-In Microphone (Stereo) External Microphone Input
  Audio File Format	AAC

  Focus Type	Auto and Manual Focus
  Focus Mode	Automatic (A), Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	Phase Detection: 9 (1 Cross-Type)
  Autofocus Sensitivity	-0.5 to +18 EV

  Viewfinder Type	Optical (Pentamirror)
  Viewfinder Eye Point	19 mm
  Viewfinder Coverage	95%
  Viewfinder Magnification	Approx. 0.87x
  Diopter Adjustment	-3 to +1 m
  Monitor Size	3"
  Monitor Resolution	1,040,000 Dot
  Monitor Type	Tilting Touchscreen LCD

  Built-in Flash	Yes
  Flash Compensation	-2 to +2 EV (1/3, 1/2 EV Steps)
  Dedicated Flash System	eTTL
  External Flash Connection	Hot Shoe

  Memory Card Slot	1 x SD/SDHC/SDXC
  Connectivity	3.5mm Microphone, HDMI C (Mini), Mini-USB
  Wireless	Wi-Fi Bluetooth
  GPS	None

  Operating Temperature	32 to 104°F / 0 to 40°C
  Operating Humidity	0 to 85%

  Battery	1 x LP-E17 Rechargeable Lithium-Ion, 7.2 VDC, 1040 mAh
  Dimensions (W x H x D)	4.8 x 3.6 x 2.7" / 122.4 x 92.6 x 69.8 mm
  Weight	14.32 oz / 406 g (Body Only)

  Focal Length	18 to 55mm (35mm Equivalent Focal Length: 28.8 to 88mm)
  Maximum Aperture	f/4 to 5.6
  Minimum Aperture	f/22 to 32
  Angle of View	74 Rating 100% users recommend this product to others. And what about you? This product has already been rated by 94 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
