User manual

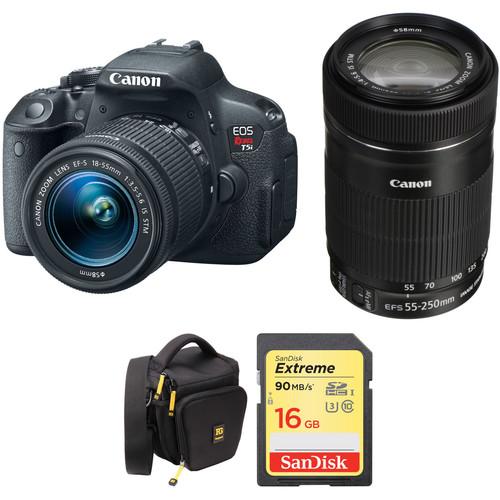

Canon EOS Rebel T5i DSLR Camera

User Manual for Canon EOS Rebel T5i DSLR Camera with 18-55mm and 55-250mm Lenses Kit

• Product category: DSLR Cameras Canon
• Brand: Canon
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Canon DSLR Cameras

Product description

• Canon EOS Rebel T5i DSLR Camera with 18-55mm Lens
  • Canon EOS Rebel T5i Demo
  • Features of DSLR
  The EOS Rebel T5i DSLR Camera with 18-55mm Lens from Canon is an APS-C format digital SLR camera with an 18MP CMOS sensor and the DIGIC 5 image processor. It is combined with the EF-S 18-55mm f/3.5-5.6 IS STM lens for an effective range of wide-angle to standard focal length. With 14-bit Analog/Digital conversion, an ISO range from 100-12800 (expandable to 25600) and Multi Shot Noise Reduction, the Rebel T5i offers sharp details, accurate colors and low-noise imaging in both bright and low-light shooting situations. Its 9-point all cross-type autofocus system provides fast focusing when shooting with the viewfinder, and Hybrid CMOS AF increases autofocus speeds when shooting in Live View. The Rebel T5i can continuously shoot up to 5 fps. A 3.0" Clear View II Vari-angle Touchscreen LCD with 1,040k-dot resolution provides composition and playback viewing. Its tilt and swivel capability makes it easy to compose your shots at odd angles, and a smudge-resistant coating keeps the monitor clear. Intuitive touchscreen operation includes Touch Autofocus. Full HD 1080p at 30 fps and 24 fps is supported with Movie Servo for continuous autofocus during shooting. Manual exposure is provided in video mode and 60 fps is possible when shooting at 720p HD. A built-in stereo microphone with manual audio level adjustment is provided for quality audio recording with your videos. Scene Intelligent Auto Mode automatically makes the optimal camera adjustments based on scene recognition and improved scene detection is particularly helpful when shooting night scenes. Advanced imaging features such as Handheld Night Scene and HDR Backlight Control make capturing difficult shots easy, and seven Creative Filters add expressive touches to your images and can even be viewed in real time during Live View shooting. The EOS Rebel T5i is compatible with the full line of Canon EF and EF-S lenses. It is paired here with the EF-S 18-55mm f/3.5-5.6 IS STM lens, which offers wide-angle to standard focal length shooting specifically designed for APS-C cameras. It is equivalent to a 28.8-88mm focal length in the 35mm format, and its minimum focus distance is 9.8". This lens features Canon's Optical Image Stabilization system, providing 4-stops of compensation for blur caused by slow shutter speeds when shooting hand-held in low light or at longer focal lengths. An internal focusing system provides fast autofocus, and with a Stepping Motor (STM) and six-group zoom system it supports the Rebel T5i's Movie Servo AF feature for smooth and quiet continuous autofocus during video recording. Manual focus override is possible. A high precision aspherical element reduces chromatic aberration throughout the zoom range for sharp imaging, and Canon lens coatings provide accurate color balance and minimal ghosting and flare.
  18MP CMOS Sensor and DIGIC 5 Image Processor
  • High resolution, low-noise imaging and fast performance speed, including 5 fps continuous shooting, is provided by the combination of the Canon DIGIC 5 Image Processor and 18MP CMOS sensor.
  3.0" Vari-angle Touchscreen LCD Monitor
  • A 3.0" Clear View II Vari-angle Touchscreen LCD monitor with 1,040k-dot resolution provides clear composition and playback viewing even in bright light. Its tilt and swivel capability makes shooting at odd angles easy, and a smudge-resistant coating keeps the monitor clear. Seven-level brightness control is available. Intuitive touchscreen control makes menu control simple, and even offers Touch Autofocus.
  Full HD 1080 Video Capture
  • Full HD Movie mode supports Movie Servo for continuous focus tracking of moving subjects during recording. Manual exposure control and a built-in stereo microphone with manual audio level adjustment provide high-quality control over your shooting, and multiple frame rates and resolutions provide quality-level and stylistic shooting options. The ISO range in Video mode is 100-6400, and is expandable to 12800. Stills can be recorded during video shooting simply by pressing the camera's shutter button.
  14-bit A/D Conversion
  • With 14-bit analog-to-digital conversion, the EOS Rebel T5i captures and records images with subtle tonal gradations and details resulting in more realistic and color-accurate images. By recording up to 16,384 colors per channel, the EOS Rebel T5i ensures that the fine details are recorded with accuracy.
  ISO Range - Stills
  • An ISO Range of 100-12800 (expandable to 25600) provides low-noise capture in low light situations and saturated colors in bright conditions.
  9-point Autofocus System
  • A 9-point all cross-type AF system (including a high-precision dual-cross f/2.8 center point) provides fast and accurate autofocus performance when shooting with the viewfinder.
  Hybrid CMOS AF
  • The Hybrid CMOS AF System is utilized when shooting photos and video in Live View. Combining two different kinds of AF-phase and contrast detection-continuous focus tracking becomes faster and more accurate than ever before in Live View.
  EF-S 18-55mm f/3.5-5.6 IS STM Lens
  • The EF-S 18-55mm f/3.5-5.6 IS STM lens offers wide-angle to standard length shooting capability specifically designed for APS-C cameras. It is equivalent to a 28.8-88mm focal length in the 35mm format and its minimum focus distance is 9.8". This lens features Canon's Optical Image Stabilization system, providing four stops of compensation against the blur caused by slow shutter speeds when shooting hand-held in low light or at longer focal lengths. An internal focusing system provides fast autofocus and with a Stepping Motor (STM) and six-group zoom system it supports the Rebel T5i's Movie Servo AF feature for smooth and quiet continuous autofocus during video recording. Manual focus override is possible. A high precision aspherical lens reduces chromatic aberration throughout the zoom range for sharp imaging and Canon lens coatings provide accurate color balance and minimal ghosting and flare.
  Lens Compatibility
  • The Canon Rebel T5i is compatible with all EF and EF-S lenses.
  Continuous Shooting
  • The Rebel T5i offers continuous shooting rates up to 5 fps at full resolution.
  Multi Shot Noise Reduction
  • Multi Shot Noise Reduction provides outstanding noise reduction while preserving exacting detail at high ISO speeds.
  Scene Intelligent Auto
  • Scene Intelligent Auto mode incorporates a number of Canon technologies to deliver the best possible exposure. Joining Picture Style Auto, Automatic Lighting Optimizer, Automatic White Balance, Autofocus, and Automatic Exposure, Scene Intelligent Auto mode analyzes the image, accounting for faces, colors, brightness, moving objects, contrast, even whether the camera is handheld or on a tripod, and then chooses the exposure and enhancements that bring out the best in any scene or situation.
  Advanced Image Features
  • Handheld Night Scene mode makes it easy to shoot difficult night scenes without blur. By shooting and combining four consecutive shots at a shutter speed fast enough to avoid camera shake, Handheld Night Scene mode makes dramatic nighttime photography simple. HDR Backlight Control shoots three images of the same scene at differing exposures, and combines them for one expertly balanced image.
  Scene Mode Position
  • Newly featured on the EOS Rebel T5i, the SCN setting on the Mode dial activates a choice of scenes on the menu screen for quick access to features like Night Portrait, HDR Backlight Control, Handheld Night Scene and more.
  Memory
  • Compatible with SD/SDHC/SDXC memory cards, including Ultra High Speed (UHS-I) cards.
  Lens Aberration Correction
  • The EOS Rebel T5i features lens correction tools that compensate for lens characteristics that can affect overall image quality. The EOS Rebel T5i's Peripheral Illumination Correction feature corrects light falloff in the corner of the image according to the characteristics of the lens being used. It even has correction data for a number of popular lenses stored in its memory. With the EOS Rebel T5i's chromatic aberration correction tool, distracting color fringing can be corrected at the time of shooting.
  Creative Filters
  • Seven Creative Filters add expressive touches to your images and can be seen in real time when shooting in Live View. Creative Filters include Grainy Black and White, Soft Focus, Fisheye Effect, Toy Camera Effect, Miniature Effect, Art Bold Effect and Water Painting Effect. Each effect can be applied in three different levels (low, standard and strong).
  GPS Compatible
  • With the optional GP-E2 GPS Receiver attached to the hot shoe or the digital terminal, the EOS Rebel T5i can record location, including latitude, longitude and altitude, and has the ability to track the trajectory of movement with its logging function. An electronic compass records the camera's orientation during each shot, and world time information is recorded through GPS synching.
  Photobook Set-up
  • Photographers can share their images in book form with the EOS Rebel T5i's convenient Photobook Set-up feature. Users can easily choose specific images, images in a folder and even all images, then specify their sequence and layout. The results can be printed in book form with ease.
  Languages Supported
  • English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukrainian, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Japanese
  Playback Display
  • Single Image, Index Display (4, 9, 36, 100 images), Jump Display (1/10/100 images, by date, by folder, movies only, stills only, by rating)
  UPC: 013803222432
• Canon EF-S 55-250mm f/4-5.6 IS STM Lens
  • Canon EOS Rebel T5i Demo
  • Features of DSLR
  Suitable for distant subject matter, the EF-S 55-250mm f/4-5.6 IS STM is an 88-400mm-equivalent zoom for Canon APS-C DSLRs. This lens's long reach is enhanced by the inclusion of an Ultra-Low Dispersion element, which helps to greatly reduce color fringing and chromatic aberrations for greater clarity and color accuracy throughout the zoom range. A Super Spectra coating is also featured, and minimizes flare and ghosting in order to produce greater contrast when working in bright lighting conditions. Benefitting both photo and video applications, an STM stepping AF motor is used to realize quick and near-silent autofocus performance along with full-time manual focus override. Additionally, a four-stop-effective Image Stabilizer system is also featured and minimizes the appearance of camera shake for sharper handheld shooting.
  • Telephoto zoom is designed for APS-C-format Canon EF-S-mount DSLRs and provides an 88-400mm equivalent focal length range.
  • One Ultra-Low Dispersion glass element noticeably reduces color fringing and chromatic aberrations for high clarity and color fidelity.
  • Super Spectra coating has been applied to individual elements to minimize ghosting and flare for greater contrast and color neutrality when working in strong lighting conditions.
  • An Optical Image Stabilizer helps to minimize the appearance of camera shake by up to 3.5 stops to better enable working in low-light conditions and with slower shutter speeds.
  • Enhanced lens coatings minimize flare and ghosting in order to produce true colors with maintained contrast.
  • An STM stepping AF motor realizes smooth, near-silent autofocus that is complemented by a rear focus system, advanced AF algorithms, and a high-speed CPU for fast AF performance. Additionally, full-time manual focus override is also available.
  • Rounded seven-blade diaphragm contributes to a pleasing out of focus quality that benefits the use of shallow depth of field and selective focus techniques.
  UPC: 013803220742
• Ruggard Hunter 35 DSLR Holster Bag
  • Canon EOS Rebel T5i Demo
  • Features of DSLR
  The Hunter 35 DSLR Holster Bag from Ruggard is slightly larger than the Hunter 25 and holds a DSLR (up to semi-pro size) with lens attached, face down, in shooting position. When you're ready to shoot, simply remove your camera, get the shot and replace your camera in the bag. The zippered top of the bag opens away from your body for fast access to your gear. This also serves as a security feature since no one but you will be able to see inside the bag. The bag has a water-repellent exterior and smooth polyester lining that helps prevent scratches to the finish of your camera/lens combo. Inside, there are two removable touch fastened strips that can be configured to support your gear. For storage, there is a front zippered organizer panel, mesh side pocket and two side loops that accept optional pouches. On the inside of the quick-release flap, there are two touch fastened memory card pockets. The bag is carried by its removable shoulder strap, top carry handle or belt loop that will leave you hands free. The zippers have yellow pull tabs that make the bag easy to use while you're wearing gloves.
  Carry-on Form Factor
  • FAA and airline carry-on specifications are subject to change without notice. Please check with your airline before designating this case as a carry-on item. Most airlines require carry-on items to have an external linear measurement that is equal to or less than 45.0" (114.3 cm). The external dimensions of this case add up to 20.9" (53.1 cm)
  UPC: 847628559004
• SanDisk 16GB Extreme UHS-I SDHC Memory Card
  • Canon EOS Rebel T5i Demo
  • Features of DSLR
  Built to meet the demands of photographers and passionate shutterbugs who are using advanced cameras and HD camcorders, the 16GB Extreme UHS-I SDHC Memory Card from SanDisk allows users to take advantage of functions such as fast action shots, continuous burst mode, and multiple frames per second. It features a capacity of 16GB, is compatible with the UHS-I bus, and delivers maximum read speeds of up to 90 MB/s and maximum write speeds of up to 40 MB/s. This Extreme UHS-I SDHC card supports the U3 speed class, which guarantees minimum write speeds of 30 MB/s. If your device only supports the Class 10 standard, minimum write speeds are guaranteed not to drop below 10 MB/s.

  Built for extreme conditions, SanDisk's 16GB Extreme UHS-I SDHC Memory Card is water, shock, and x-ray proof, while also being able to withstand temperatures from -13 to 185°F, allowing for use in environments such as snow and deserts. A built-in write protect switch further helps to safeguard your content, while advanced Error Correction Code engine offers improved data integrity and card reliability during read and write operations. Downloadable RescuePRO data recovery software helps you restore accidentally deleted images. The card also has a writable label on its surface and the included jewel case makes for easy storage and organization. This card is backed by a limited lifetime warranty.

  General Features

  Faster Performance and Downloads
  • With write speeds up to 40 MB/s, this card unleashes the full shooting potential of your advanced camera or DSLR. Take advantage of advanced functions such as fast action shots, continuous burst mode, and multiple frames per second. Photos are written to your card almost instantly so you'll get your best shot, and you'll save time moving it all from your camera to your computer.
  Capacity for High-Resolution Photos and Videos
  • With a capacity of 16GB to capture it all, this SanDisk Extreme UHS-I Card offers enough room for thousands of high-resolution photos. The card can accommodate high-volume image formats, such as RAW and JPEG, and also provides plenty of room for Full HD videos.
  4K and Full HD Video Recording
  • With Class 10 and UHS Speed Class 3 (U3) video ratings, you'll be ready to capture 4K Ultra HD, cinema quality 3D, and Full HD video (1080p), which require more performance than ordinary cards can handle. This memory card's accelerated minimum sustained write speeds help ensure that video data isn't lost during recording, by reducing dropouts and stuttering.
  Error Correction for Enhanced Relability
  • Thanks to its Advanced Error Correction Code engine, this SanDisk Extreme UHS-I SDHC card helps reduce the chance for errors during data storage and retrieval. It prevents potential data corruption, providing high data integrity.
  Fast Transfer Speeds Reduce Upload Times
  • SanDisk Extreme UHS-I SDHC cards boast a read speed of up to 90 MB/s, so you can transfer photos and videos to your computer quickly. You'll spend less time uploading photos and more time editing, storing, and sharing.
  Durable Design
  • Designed and tested to withstand the tough conditions, this card has a capacity of 16GB and is waterproof, shockproof, and X-ray proof. It can operate in temperatures ranging from -13 to 185°F, so you can work in almost any climate.
  RescuePRO Software
  • SanDisk RescuePRO and RescuePRO Deluxe software are file and data recovery products for recovering deleted files from all types of digital media.
  UPC: 619659135829

• EOS Rebel T5i DSLR Camera with 18-55mm Lens sbudaeadvxtfrdsf
• EF-S 18-55mm f/3.5-5.6 IS STM Lens
• LP-E8 Rechargeable Lithium-Ion Battery Pack (7.2V, 1120mAh)
• LC-E8E Charger for LP-E8 Battery Pack
• Eyecup EF
• RF-3 Body Cap for Canon EOS Cameras
• EW-100DB IV Wide Camera Strap
• E-58 II 58mm Lens Cap
• Lens Dust Cap E (Rear)
• Interface Cable
• EOS Digital Solution Disk
• Limited 1-Year Warranty

• EF-S 55-250mm f/4-5.6 IS STM Lens

Includes Free

• Ruggard - Hunter 35 DSLR Holster Bag

• SanDisk - 16GB Extreme UHS-I SDHC Memory Card

Upload User Manual

Please enter here the link to the user manual of this product: User manual for Canon EOS Rebel T5i DSLR Camera with 18-55mm and 55-250mm Lenses Kit can be downloaded below, so the upload option is not active. OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0% User manual for Canon EOS Rebel T5i DSLR Camera with 18-55mm and 55-250mm Lenses Kit can be downloaded below, so the upload option is not active.

Download User Manual

Download PDF User Manual - Canon EOS Rebel T5i DSLR Camera with 18-55mm and 55-250mm Lenses Kit (PDF file, 17.77 MB)

Technical parameters

• Canon EOS Rebel T5i DSLR Camera with 18-55mm Lens

  Lens Mount	Canon EF-S
  Camera Format	APS-C (1.6x Crop Factor)
  Pixels	Actual: 18.5 Megapixel Effective: 18 Megapixel
  Maximum Resolution	5184 x 3456
  Aspect Ratio	3:2
  Sensor Type	CMOS
  Sensor Size	22.3 x 14.9 mm
  Image File Format	JPEG, RAW
  Bit Depth	14-Bit
  Image Stabilization	None

  ISO Sensitivity	Auto, 100 to 12800 (Extended: 100 to 25600)
  Shutter Speed	Electronic Front Curtain Shutter 1/4000 to 30 Seconds
  Metering Method	Average, Center-Weighted Average, Multi-Zone, Partial, Spot
  Exposure Modes	Aperture Priority, Auto, Manual, Shutter Priority
  Exposure Compensation	-5 to +5 EV (1/3, 1/2 EV Steps)
  Metering Range	1 to 20 EV
  White Balance	Auto, Cloudy, Custom, Daylight, Flash, Fluorescent (White), Shade, Sunset, Tungsten, Twilight
  Self Timer	2/10-Second Delay

  Recording Modes	MOV/H.264 Full HD (1920 x 1080) at 24p/25p/29.97p HD (1280 x 720) at 50p/59.94p SD (640 x 480) at 25p/29.97p
  Recording Limit	Up to 29 Minutes, 59 Seconds for Full HD (1920 x 1080) Up to 29 Minutes, 59 Seconds for HD (1280 x 720) Up to 29 Minutes, 59 Seconds for SD (640 x 480)
  Video Encoding	NTSC/PAL
  ISO Sensitivity	Auto: 100 to 6400 (Extended: 12800)
  Audio Recording	External Microphone Input
  Audio File Format	Linear PCM

  Focus Type	Auto and Manual Focus
  Focus Mode	Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	9
  Autofocus Sensitivity	-0.5 to +18 EV

  Viewfinder Type	Optical (Pentamirror)
  Viewfinder Coverage	95%
  Viewfinder Magnification	Approx. 0.87x
  Diopter Adjustment	-3 to +1 m
  Monitor Size	3"
  Monitor Type	Tilting Touchscreen LCD

  Built-in Flash	Yes
  Flash Compensation	-2 to +2 EV (1/3, 1/2 EV Steps)
  Dedicated Flash System	eTTL
  External Flash Connection	Hot Shoe

  Memory Card Slot	1 x SD/SDHC/SDXC
  Connectivity	HDMI C (Mini), USB 2.0
  Wireless	None
  GPS	None

  Operating Temperature	32 to 104°F / 0 to 40°C
  Operating Humidity	0 to 85%

  Battery	1 x LP-E8 Rechargeable Lithium-Ion Battery Pack
  Dimensions (W x H x D)	5.2 x 3.9 x 3.1" / 13.2 x 9.9 x 7.9 cm
  Weight	18.52 oz / 525.04 g (Body Only)

  Focal Length	18 to 55mm (35mm Equivalent Focal Length: 28.8 to 88mm)
  Maximum Aperture	f/3.5 to 5.6
  Minimum Aperture	f/22 to 38
  Angle of View	74 Rating 94% users recommend this product to others. And what about you? This product has already been rated by 57 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
