Product description

• EOS Rebel T6i DSLR Camera with 18-55mm Lens
  Packing a high resolution 24.2-megapixel CMOS sensor and the DIGIC 6 Image Processor into a compact body is the EOS Rebel T6i DSLR Camera with 18-55mm Lens from Canon, which includes a versatile standard zoom lens useful for stills and video. This system enables shooting in a wide variety of conditions, from bright sunlight to dim indoor scenarios due to ISO performance of up to 12,800, which can be expanded to 25,600. The APS-C camera also has built-in Wi-Fi connectivity with NFC that allows for wireless transfer of images and video to social networks and cloud storage via the Camera Connect mobile app. Also, NFC enables fast connection to mobile devices as well as the CS100 Connect Station.

  Full HD video in MP4 format is possible with the T6i in addition to stills and it has Hybrid CMOS AF III for fast, accurate autofocus during movie shooting and during Live View. A vari-angle 3.0" 1.04M-dot ClearView II touchscreen LCD monitor on the rear of the camera allows for versatile positioning of the camera and clear viewing, even outdoors. Additionally, the EOS scene analysis system can detect near-infrared light and flickering light sources to provide the best information for metering the scene.

  High speed continuous shooting at up to 5 fps ensures you will not miss a shot during fast action and this is benefited by the use of a 19-point all cross-type autofocus system. Creative filters are also available for preset looks for your photos and videos.

  The EOS Rebel T6i is compatible with the full line of Canon EF and EF-S lenses. It is paired here with the EF-S 18-55mm f/3.5-5.6 IS STM lens, which offers wide-angle to standard focal length shooting specifically designed for APS-C cameras. It is equivalent to a 28.8-88mm focal length in the 35mm format, and its minimum focus distance is 9.8". This lens features Canon's Optical Image Stabilization system, providing 4 stops of compensation for blur caused by slow shutter speeds when shooting hand-held in low light or at longer focal lengths. An internal focusing system provides fast autofocus, and with a Stepping Motor (STM) and six-group zoom system it supports the Rebel T6i's Movie Servo AF feature for smooth and quiet continuous autofocus during video recording. Manual focus override is possible. A high precision aspherical element reduces chromatic aberration throughout the zoom range for sharp imaging, and Canon lens coatings provide accurate color balance and minimal ghosting and flare.

  Product Advisory: In some units of the EOS Rebel T6i white spots may exist on the optical layer which may result in the appearance of dark circular patterns on the capture image under certain shooting conditions. Potentially affected units include cameras with serials numbers of "XXnnnnnnnnnn" in which XX is 01 or 02. These cameras will be inspected and repaired free of charge by Canon USA.

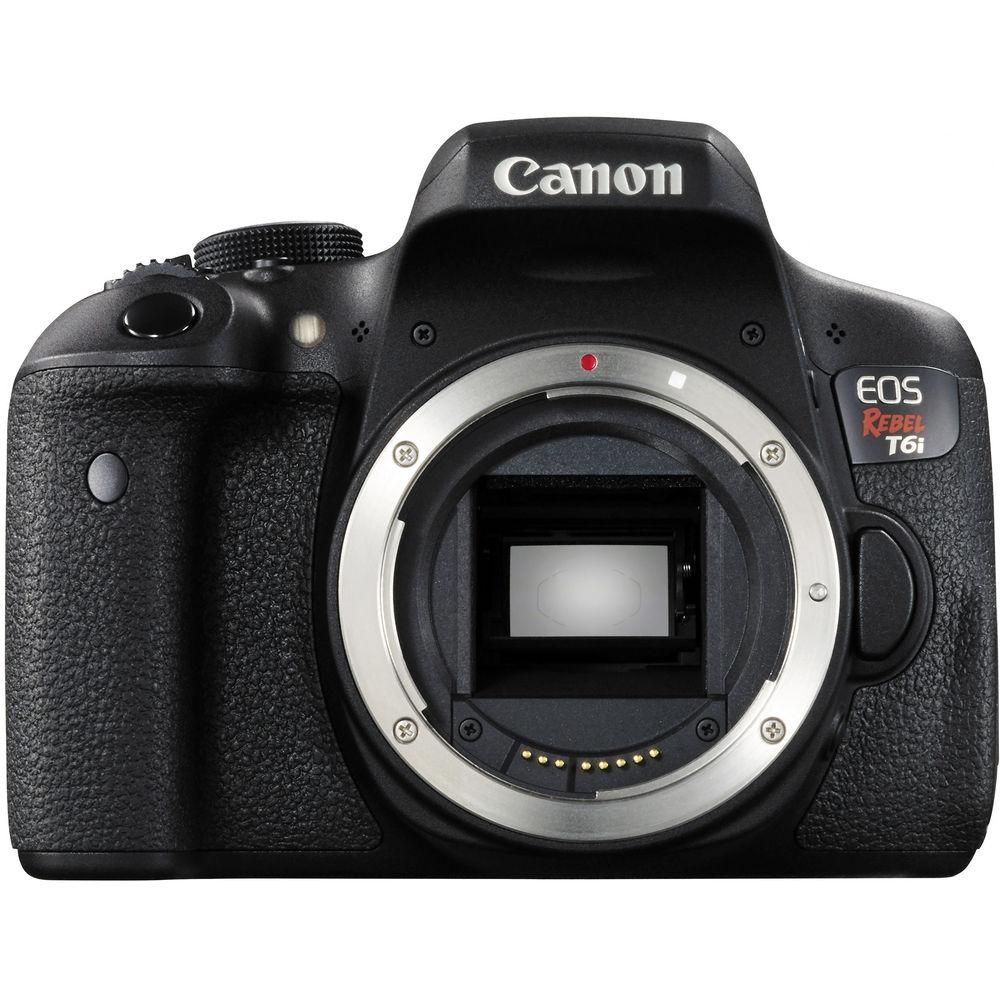

  24.2MP APS-C CMOS Sensor & DIGIC 6 Image Processor
  • At the core of the T6i is the 24.2-megapixel APS-C CMOS sensor and the DIGIC 6 Image Processor, both of which work together to produce high resolution images in a variety of shooting conditions. This is possible through a native sensitivity of ISO 100-12,800, which is expandable to 25,600 for situations that demand it.

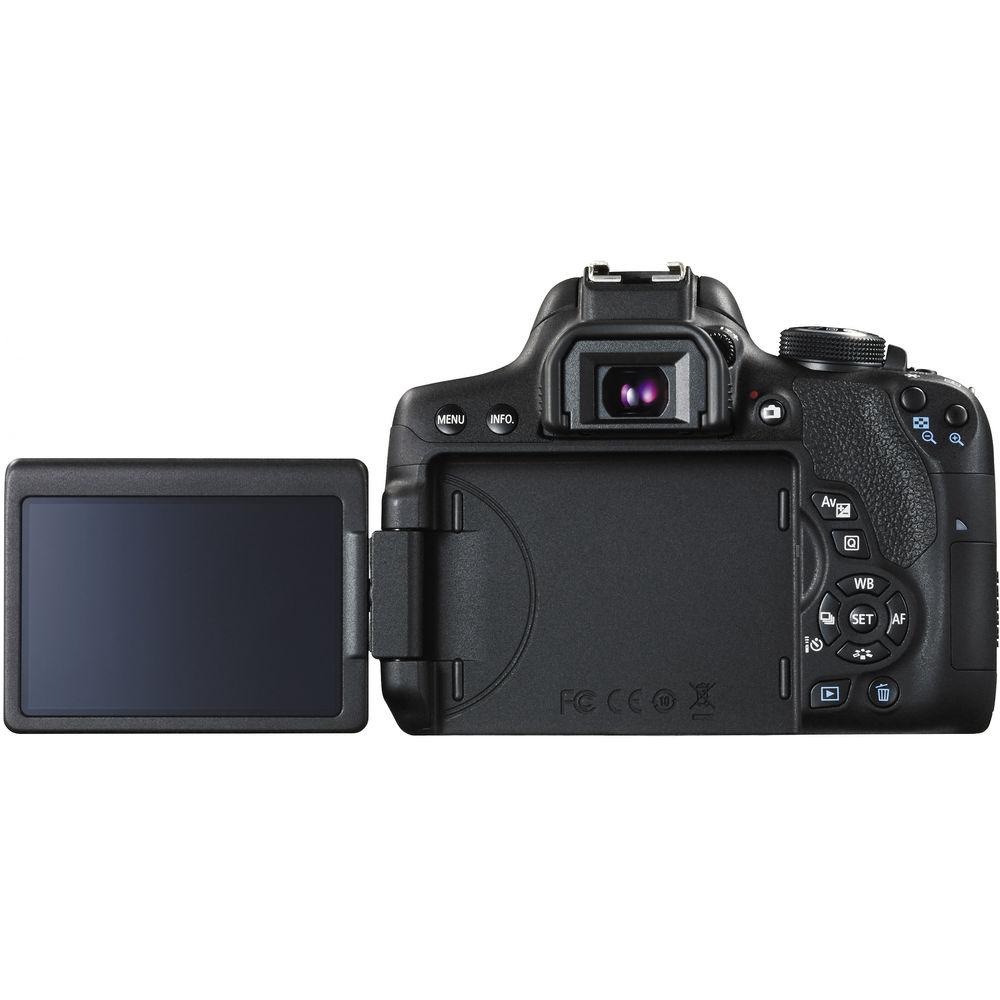

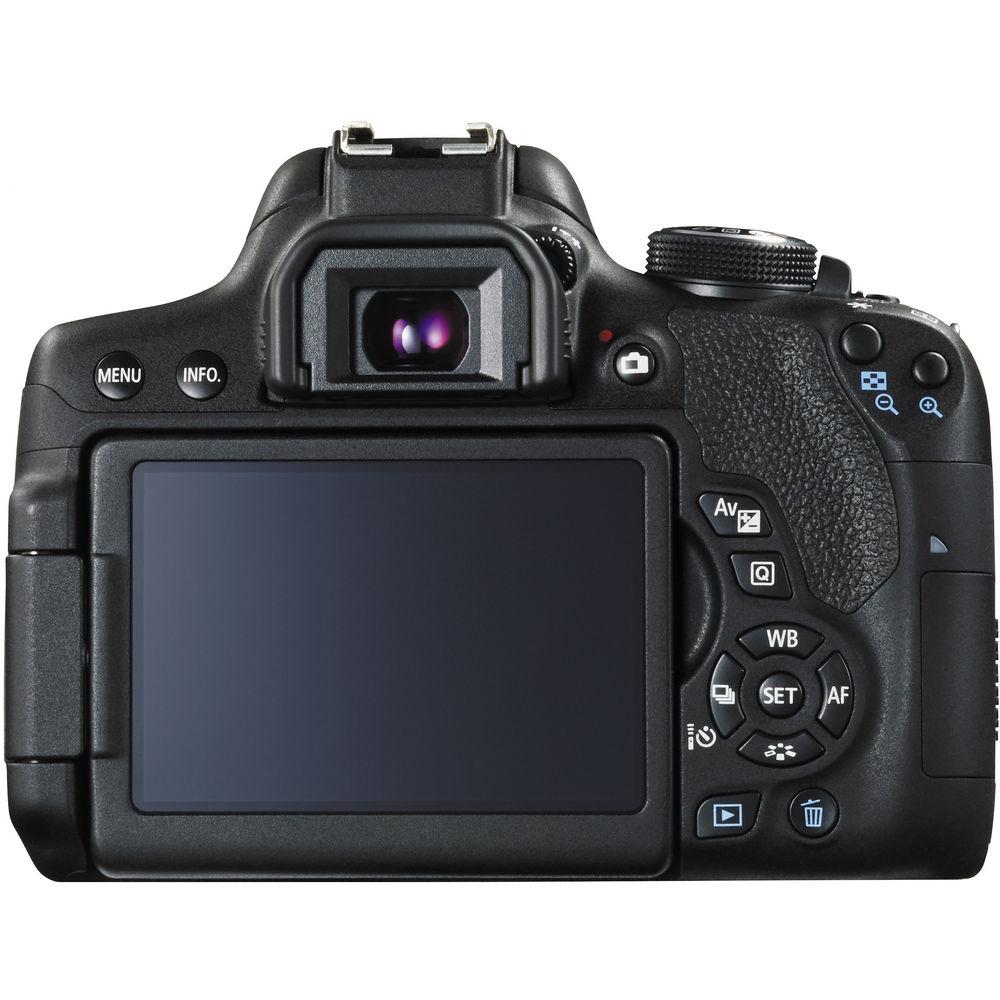

  3.0" Vari-Angle Touchscreen LCD Monitor
  • A 3.0" Clear View II Vari-angle Touchscreen LCD monitor with 1,040k-dot resolution provides clear composition and playback viewing even in bright light. Its tilt and swivel capability makes shooting at odd angles easy, and a smudge-resistant coating keeps the monitor clear. Seven-level brightness control is available. Intuitive touchscreen control makes menu control simple, and even offers Touch Autofocus.
  Full HD 1080p Video Capture
  • Full HD Movie mode supports Movie Servo for continuous focus tracking of moving subjects during recording. Manual exposure control and a built-in stereo microphone with manual audio level adjustment provide high-quality control over your shooting, and multiple frame rates and resolutions provide quality-level and stylistic shooting options. Stills can be recorded during video shooting simply by pressing the camera's shutter button.
  19-Point All Cross-Type AF System
  • For fast, accurate focusing in a variety of situations, the T6i features a 19-point all cross-type AF system. This allows for speedy focusing performance when using the viewfinder as well as in area selection modes.
  Hybrid CMOS AF III
  • The Hybrid CMOS AF III System is utilized when shooting photos and video in Live View. Combining two different kinds of AF- phase and contrast detection- continuous focus tracking becomes faster and more accurate than ever before in Live View.
  Built-In Wi-Fi Connectivity with NFC
  • Wirelessly transfer images and videos with the built-in Wi-Fi connectivity of the T6i. When used with the Camera Connect mobile app users will be able to quickly and effectively upload files directly to social networking sites. Also, with NFC the camera can be paired to compatible mobile devices quickly, as well as to the CS100 Connect Station.
  Other Features
  • • Continuous shooting rate of up to 5 fps.
    • Creative filters during stills, video, and Live View shooting.

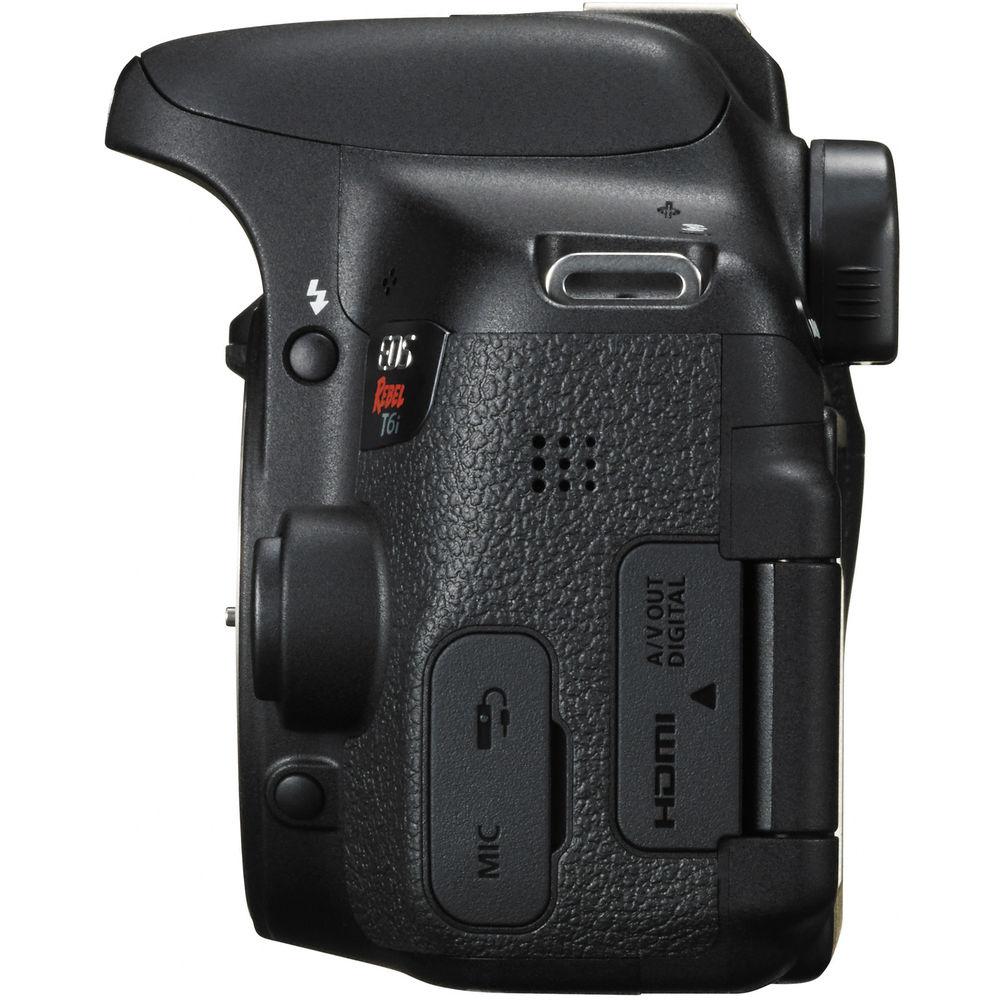

    • Microphone jack for audio recording.
    UPC: 013803257359

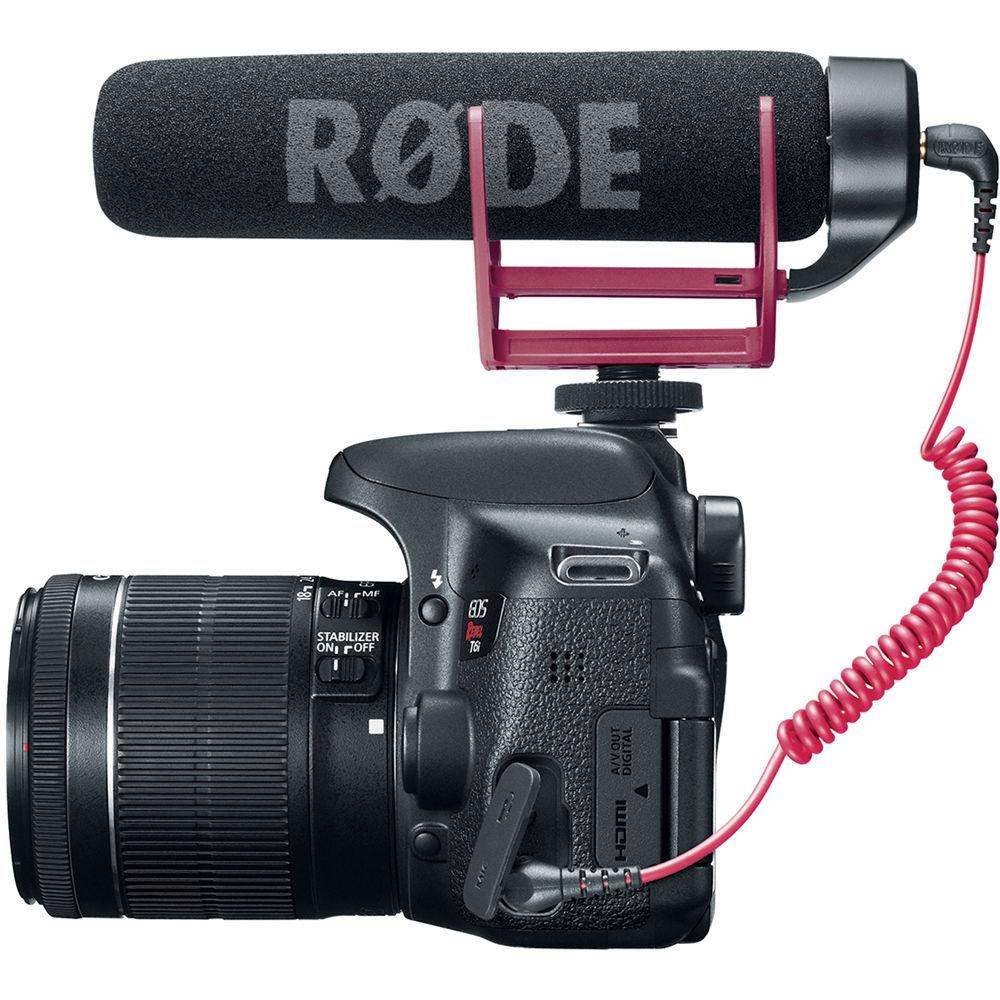

  • VideoMic GO Lightweight On-Camera Microphone The VideoMic GO Lightweight On-Camera Microphone from Rode is a lightweight microphone which adds high-quality audio recording to your small camcorder and HDSLR camera. At only 2.6 ounces, the microphone keeps your camera setup lightweight, making it ideal for handheld shooting. It features an integrated Rycote Lyre shock mount for isolation from bumps and vibration, and offers battery-free operation, using instead the plug-in power from your camera's 3.5mm microphone input. Please note that the microphone will not work with cameras that don't supply plug-in power to their 3.5mm audio input jack.

    The VideoMic GO is a directional microphone. It utilizes a supercardioid polar pattern to attenuate sounds from the sides, resulting in a signal that sounds closer to the camera, even when shooting in noisy environments or at moderate distances. The integrated shoe mount provides a 3/8" thread for additional mounting options. A foam windshield and 7.9" dual mono 3.5mm coiled output cable is included.
    Lightweight Design
    • At only 2.6 ounces, the VideoMic GO is ideal for run-and-gun HDSLR recording without the additional weight of larger on-camera microphone options.
    Integrated Rycote Lyre Shock Mount
    • Constructed from a single piece of hard-wearing thermoplastic, the Lyre provides superior acoustic suspension to traditional elastic solutions, and won't wear out, sag, snap, or require any rethreading to maintain its effectiveness.
    No Battery Needed
    • The VideoMic Go does not require batteries for operation, but instead uses the plug-in power supplied via your camera's 3.5mm microphone input. Simply plug in, and you're ready to record.
    Additional Features
    • • Reinforced ABS construction
      • Foam windshield
      • Integrated shoe mount with 3/8" thread
      • 3.5mm TRS mini-jack audio output connection
      UPC: 698813003396
    • 32GB Ultra UHS-I SDHC Memory Card (Class 10) Record Full HD 1080p video with this Class 10 compliant 32GB Ultra UHS-I SDHC Memory Card from SanDisk. With enhanced data read speeds of up to 40 MB/s this Ultra SDHC memory card is designed to suit the needs of compact and mid-range point and shoot cameras. You can also save and store a variety of files such as music, movies, documents and more. The writable label found on the card allows you to write down what is saved to the card while the built-in write protect switch helps to prevent accidental data loss. This card, as with most SanDisk cards, comes shock, temperature, x-ray, magnet, and waterproof to take your files with you nearly anywhere you go.
      • Class 10 performance for Full HD Video (1080p)
      • Read speeds up to 40 MB/s
      • Writable label for easy identification and organization
      • Engineered with UHS-I bus architecture
      • This SD memory card comes shock, temperature, x-ray, magnet, and waterproof proof

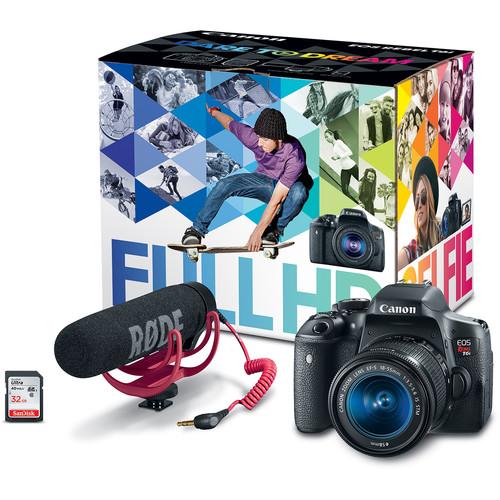

    In the Box Bundle Items EOS Rebel T6i DSLR Camera with 18-55mm Lens fqrycvttbddetaesrq
    • EF-S 18-55mm f/3.5-5.6 IS STM Lens
    • Eyecup EF
    • RF-3 Body Cap for Canon EOS Cameras
    • EW-300D Wide Strap
    • LP-E17 Battery Pack
    • LC-E17 Charger for LP-E17 Battery Pack
    • IFC-130U Interface Cable
    • EOS DIGITAL Solution Disc
    • Limited 1-Year Warranty
    VideoMic GO Lightweight On-Camera Microphone fqrycvttbddetaesrq
    • Foam Windshield
    • 3.5mm Dual Mono Output Cable (7.9")
    • Limited 2-Year Warranty
    32GB Ultra UHS-I SDHC Memory Card (Class 10)
    • Limited 10-Year Warranty
  User Manual PDF 22mb More from Manufacturer Table of Contents

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• EOS Rebel T6i DSLR Camera with 18-55mm Lens

  Lens Mount	Canon EF-S
  Camera Format	APS-C (1.6x Crop Factor)
  Pixels	Actual: 24.7 Megapixel Effective: 24.2 Megapixel
  Maximum Resolution	6000 x 4000
  Aspect Ratio	3:2
  Sensor Type	CMOS
  Sensor Size	22.3 x 14.9 mm
  Image File Format	JPEG, RAW
  Bit Depth	14-Bit
  Image Stabilization	None

  ISO Sensitivity	100 to 12800 (Extended: 100 to 25600)
  Shutter Speed	Electronic Front Curtain Shutter 1/4000 to 30 Seconds
  Metering Method	Center-Weighted Average, Evaluative, Partial, Spot
  Exposure Modes	Aperture Priority, Manual, Program, Shutter Priority
  Exposure Compensation	-5 to +5 EV (1/3, 1/2 EV Steps)
  Metering Range	1 to 20 EV
  White Balance	Auto, Cloudy, Custom, Daylight, Flash, Fluorescent (White), Shade, Sunset, Tungsten, Twilight
  Interval Recording	None
  Self Timer	2/10-Second Delay
  Mirror Lock-Up	Yes

  Recording Modes	MP4 Full HD (1920 x 1080) at 23.976p/25p/29.97p HD (1280 x 720) at 50p/59.94p SD (640 x 480) at 25p/29.97p
  External Recording Modes	Full HD (1920 x 1080) SD (640 x 480)
  Recording Limit	Up to 29 Minutes, 59 Seconds for Full HD (1920 x 1080)
  Video Encoding	NTSC/PAL
  ISO Sensitivity	Auto: 100 to 12800 (Extended: 25600)
  Audio Recording	Built-In Microphone
  Audio File Format	AAC

  Focus Type	Auto and Manual Focus
  Focus Mode	Automatic (A), Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	Phase Detection: 19 (19 Cross-Type)
  Autofocus Sensitivity	-0.5 to +18 EV

  Viewfinder Type	Optical (Pentamirror)
  Viewfinder Eye Point	19 mm
  Viewfinder Coverage	95%
  Viewfinder Magnification	Approx. 0.82x
  Diopter Adjustment	-3 to +1 m
  Monitor Size	3"
  Monitor Resolution	1,040,000 Dot
  Monitor Type	Tilting Touchscreen LCD

  Built-in Flash	Yes
  Maximum Sync Speed	1/200 Second
  Flash Compensation	-2 to +2 EV (1/3, 1/2 EV Steps)
  Dedicated Flash System	eTTL
  External Flash Connection	Hot Shoe

  Memory Card Slot	1 x SD/SDHC/SDXC
  Connectivity	3.5mm Microphone, HDMI C (Mini)
  Wireless	Wi-Fi
  GPS	None

  Operating Temperature	32 to 104°F / 0 to 40°C
  Operating Humidity	0 to 85%

  Battery	1 x LP-E17 Rechargeable Lithium-Ion
  Dimensions (W x H x D)	5.2 x 4.0 x 3.1" / 13.2 x 10.1 x 7.8 cm
  Weight	19.58 oz / 555.09 g

  Focal Length	18 to 55mm (35mm Equivalent Focal Length: 29 to 88mm)
  Maximum Aperture	f/3.5 to 5.6
  Minimum Aperture	f/22 to 38
