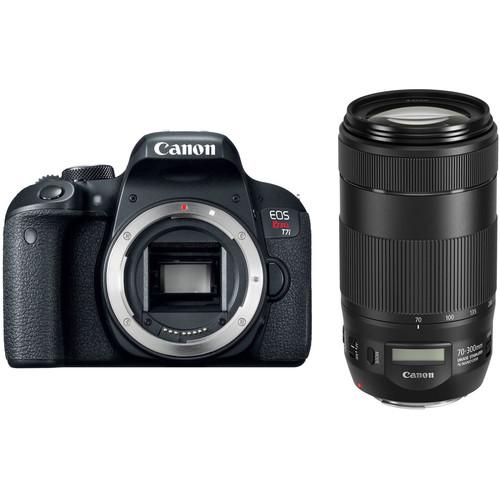

User Manual for Canon EOS Rebel T7i with 70-300mm f 4-5.6 IS II Lens Wildlife Kit

• Product category: DSLR Cameras Canon
• Brand: Canon
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Canon DSLR Cameras

Product description

• Canon EOS Rebel T7i DSLR Camera (Body Only)
  • First Look: Canon EOS Rebel T7i
  • Introducing the EOS Rebel T7i Digital Camera
  • Canon EOS Rebel T7i: Dual Pixel CMOS AF
  • Canon EOS Rebel T7i: Getting the Background Look You Want
  • Canon EOS Rebel T7i: The Power of Digital SLR Autofocus
  Packing a versatile feature-set in a sleek and portable body, the EOS Rebel T7i DSLR from Canon offers advanced imaging capabilities along with a convenient range of controls and connectivity. Utilizing a 24.2MP APS-C CMOS sensor and DIGIC 7 image processor, the Rebel T7i is able to capture high-resolution stills and video with an expanded sensitivity range of ISO 100-51200 to suit working in a wide variety of lighting conditions. The sensor and processor combination also avails 6 fps continuous shooting for working with moving subjects. Benefitting the imaging attributes, the sensor's design also facilitates Dual Pixel CMOS AF, which uses phase-detection autofocus for quick, accurate, and smooth focusing performance when recording movies or shooting stills in live view. When shooting stills using the optical viewfinder, a 45-point all cross-type phase-detection system is used for quick and accurate focusing in a variety of shooting scenarios.

  In regard to the physical design, a large 3.0" 1.04m-dot touchscreen LCD is featured for intuitive settings control and live view monitoring, and it uses a vari-angle design to permit easier viewing from high and low working angles. Additionally, built-in Wi-Fi with NFC is available for quick and convenient pairing with a smartphone or tablet for wireless image sharing, and Bluetooth is also featured for image sharing to and remote camera control from a mobile device.
  24.2MP APS-C CMOS Sensor and DIGIC 7 Image Processor
  • Both a 24.2MP APS-C CMOS sensor and DIGIC 7 image processor are used to deliver high sensitivity and fast camera performance to suit both stills and video applications. A flexible native ISO 100-25600 range, which can be extended to ISO 51200, suits working in a variety of lighting conditions, and the processing capabilities minimize noise for notable clarity. The processor also contributes to a fast 6 fps continuous shooting rate for photographing fast-moving subjects.
  45-Point All Cross-Type AF and Dual Pixel CMOS AF Systems
  • Benefitting stills shooting with the optical viewfinder, a wide-area 45-point all cross-type phase-detection autofocus system provides quick and precise focusing in difficult lighting conditions. The cross-type design of the sensors affords greater accuracy in low-contrast and mixed lighting conditions, and the broad coverage of the 45 sensors is ideal for tracking and maintaining focus on moving subjects.

    When recording video or shooting in live view, a Dual Pixel CMOS AF system is employed that offers smooth and fast focusing performance in a similar manner to how a camcorder acquires focus. This system integrates two separate photodiodes within each pixel to provide a broad and dense network of phase-detection gathering elements across a majority of the image sensor to reduce focus hunting for faster, more direct control of focus placement. When working with still imagery, this focusing system works to acquire focus quickly and accurately, making it ideally suited to shooting and tracking moving subjects so that critical focus is attained with each shot. When shooting video, a Movie Servo AF mode offers smooth and natural focusing when changing from different subjects or different distances within the scene, as well as the ability to specify tracking sensitivity, AF speed, and Face Tracking priority. Benefited by the Touch AF system, rack focus is possible simply by touching elements within the scene on the touchscreen in order to change focus in an intuitive manner. Subject tracking in movies is also heightened due to the Dual Pixel CMOS AF system's ability to recognize subjects and maintain focus when working within changing or cluttered scenery.
  Full HD 1080p Video Recording
  • In addition to stills recording, the T7i also supports Full HD 1080p video recording at up to 60 fps in the MP4 format with IPB compression, or 30 fps in the MOV format with ALL-I compression when making in-camera time-lapse movies. Video recording is benefitted by the inclusion of Dual Pixel CMOS AF and the Movie Servo AF focusing functions, as well as the touchscreen design of the LCD monitor for intuitive control. Movie Electronic IS is also featured to minimize the appearance of camera shake across five axes for smoother, steadier recording when shooting handheld. Additionally, an external microphone jack is incorporated in the body design for greater control over your recorded sound.
    Unique to most video recording systems, the T7i also features an HDR Movie mode that can be used to achieve greater highlight and shadow detail when recording in high contrast scenarios. This mode captures two HD frames at different exposures, one normal and one underexposed, in short succession at up to 60 fps and then composites them during playback at 30 fps to create a movie with a longer-appearing dynamic range.
  Body Design and Built-In Wi-Fi
  • • Large 3.0" 1.04m-dot touchscreen LCD provides an intuitive method for controlling focusing points, navigating menus, and reviewing imagery. This screen also features a vari-angle design to better enable working from high and low angles.
    • Optical pentamirror viewfinder serves a clear means for eye-level shooting.
    • Built-in Wi-Fi with NFC allows for easy wireless sharing of both photos and movies to a linked mobile device.
    • Bluetooth permits linking a smartphone or tablet for quick image sharing between devices as well as remote control capabilities.
    • Included LP-E17 rechargeable lithium-ion battery provides approximately 820 shots per charge.
  Other Camera Features
  • • A 7560-pixel RGB+IR metering sensor benefits both autofocus and exposure metering precision and enables Color Tracking for more accurately detecting skin colors.
    • Creative Filters can be applied to creatively refine the look of imagery in-camera, and include Art Bold, Water Painting, and Fisheye Effect for stills, as well as Dream, Old Movies, and Memory for video.
    • A Feature Assistant user interface is available to highlight and guide use of specific camera modes and features.
    • Picture Style modes: Auto, Standard, Portrait, Landscape, Fine Detail, Neutral, Faithful, Monochrome, and User-Defined settings. Language support: English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian, Ukraine, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, and Japanese.
  UPC: 013803286496
• Canon EF 70-300mm f/4-5.6 IS II USM Lens
  • First Look: Canon EOS Rebel T7i
  • Introducing the EOS Rebel T7i Digital Camera
  • Canon EOS Rebel T7i: Dual Pixel CMOS AF
  • Canon EOS Rebel T7i: Getting the Background Look You Want
  • Canon EOS Rebel T7i: The Power of Digital SLR Autofocus
  Spanning a useful telephoto range, the EF 70-300mm f/4-5.6 IS II USM Lens from Canon is a flexible zoom well-suited for a variety of subjects, ranging from portraiture to wildlife. Similarly versatile, the lens utilizes NANO USM technology that combines a fast, stills-optimized ring-type Ultrasonic Motor and a smooth, silent video-optimized Stepping Motor for all-around focusing performance to benefit multimedia image-makers. This dual-purpose AF motor also offers notably quicker performance throughout the zoom range for more responsive shooting from near to far. Additionally, also aiding both photo and movie recording, an Image Stabilizer system compensates for up to four stops of camera shake for sharper handheld shooting when working with slower shutter speeds.

  Beyond its performance attributes, this lens is also characterized by its unique Lens Information Display, which clearly showcases focus distance, focal length, and stabilizer settings on a top-facing screen for easy recognition. Benefitting optical performance, the lens' construction utilizes one Ultra Low Dispersion (UD) element to control chromatic aberrations and color fringing for improved clarity, and, additionally, a nine-blade diaphragm is used to produce a pleasing bokeh quality for shallow depth of field imagery.
  • Telephoto zoom designed for full-frame Canon EF-mount DSLRs, this lens is also suitable for use with APS-C models where it provides a 112-480mm equivalent focal length range.
  • One UD element is featured in the optical design to noticeably reduce chromatic aberrations and color fringing for increased clarity and improved color fidelity.
  • Lens Information Display on the top of the lens barrel clearly highlights focusing distance, focal length, and Image Stabilizer amount.
  • NANO USM system utilizes both a ring type USM and an STM mechanism to realize quick and accurate focusing that is also smooth and near-silent to suit both photography and video applications. This focusing system also affords full-time manual focus control when working in the one-shot AF mode.
  • An Image Stabilizer compensates for up to four stops of camera shake for sharper handheld shooting when working in difficult lighting conditions and with slower shutter speeds.
  • A circular nine-blade diaphragm contributes to a pleasing bokeh quality when working with selective focus and shallow depth of field techniques.
  UPC: 013803256888

• EOS Rebel T7i DSLR Camera (Body Only) edrwrqrawzasbawxys
• LP-E17 Lithium-Ion Battery Pack
• LC-E17 Charger for LP-E17 Battery Pack
• Eyecup EF
• RF-3 Body Cap for Canon EOS Cameras
• EW-400D Wide Strap
• Limited 1-Year Warranty

• EF 70-300mm f/4-5.6 IS II USM Lens

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Canon EOS Rebel T7i DSLR Camera (Body Only)

  Lens Mount	Canon EF-S
  Camera Format	APS-C (1.6x Crop Factor)
  Pixels	Actual: 25.8 Megapixel Effective: 24.2 Megapixel
  Maximum Resolution	6000 x 4000
  Aspect Ratio	1:1, 3:2, 4:3, 16:9
  Sensor Type	CMOS
  Sensor Size	22.3 x 14.9 mm
  Image File Format	JPEG, RAW
  Bit Depth	14-Bit
  Image Stabilization	Digital, 5-Axis (Video Only)

  ISO Sensitivity	Auto, 100 to 25600 (Extended: 100 to 51200)
  Shutter Speed	1/4000 to 30 Seconds Bulb Mode
  Metering Method	Center-Weighted Average, Evaluative, Partial, Spot
  Exposure Modes	Aperture Priority, Manual, Program, Shutter Priority
  Exposure Compensation	-5 to +5 EV (1/3, 1/2 EV Steps)
  Metering Range	1 to 20 EV
  White Balance	Auto, Cloudy, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten
  Continuous Shooting	Up to 6 fps at 24.2 MP for up to 190 Exposures (JPEG Format) Up to 6 fps at 24.2 MP for up to 21 Exposures (Raw Format) Up to 3 fps at 24.2 MP for up to 190 Exposures (JPEG Format) Up to 3 fps at 24.2 MP for up to 21 Exposures (Raw Format)
  Interval Recording	Yes
  Self Timer	2/10-Second Delay

  Recording Modes	MP4/H.264 Full HD (1920 x 1080) at 59.94p [60 Mb/s] Full HD (1920 x 1080) at 23.976p/29.97p [30 Mb/s] Full HD (1920 x 1080) at 29.97p [12 Mb/s] HD (1280 x 720) at 59.94p [26 Mb/s] HD (1280 x 720) at 29.97p [4 Mb/s] SD (640 x 480) at 29.97p [9 Mb/s] SD (640 x 480) at 29.97p [3 Mb/s] MOV/iFrame Full HD (1920 x 1080) at 29.97p [90 Mb/s]
  Recording Limit	Up to 29 Minutes, 59 Seconds for Full HD (1920 x 1080)
  Video Encoding	NTSC/PAL
  ISO Sensitivity	Auto/Manual: 100 to 12800 (Extended: 25600)
  Audio Recording	Built-In Microphone (Stereo) External Microphone Input
  Audio File Format	AAC

  Focus Type	Auto and Manual Focus
  Focus Mode	Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S)
  Autofocus Points	Phase Detection: 45 (45 Cross-Type)

  Viewfinder Type	Optical (Pentamirror)
  Viewfinder Eye Point	19 mm
  Viewfinder Coverage	95%
  Viewfinder Magnification	Approx. 0.82x
  Diopter Adjustment	-3 to +1 m
  Monitor Size	3"
  Monitor Resolution	1,040,000 Dot
  Monitor Type	Articulating Touchscreen LCD

  Built-in Flash	Yes
  Maximum Sync Speed	1/200 Second
  Flash Compensation	-2 to +2 EV (1/3, 1/2 EV Steps)
  Dedicated Flash System	eTTL
  External Flash Connection	Hot Shoe

  Memory Card Slot	1 x SD/SDHC/SDXC
  Connectivity	3.5mm Microphone, HDMI C (Mini), Mini-USB, USB 2.0
  Wireless	Wi-Fi Bluetooth
  GPS	None

  Operating Temperature	32 to 104°F / 0 to 40°C
  Operating Humidity	0 to 85%

  Battery	1 x LP-E17 Rechargeable Lithium-Ion, 7.2 VDC, 1040 mAh
  Dimensions (W x H x D)	5.2 x 3.9 x 3.0" / 131.0 x 99.9 x 76.2 mm
  Weight	1.17 lb / 532 g

  Box Dimensions (LxWxH)	8.9 x 6.6 x 5.9"

• Canon EF 70-300mm f/4-5.6 IS II USM Lens

  Focal Length	70 to 300mm
  Maximum Aperture	f/4 to 5.6
  Minimum Aperture	f/32 to 45
  Lens Mount	Canon EF
  Format Compatibility	Full-Frame
  Angle of View	34 Rating 60% users recommend this product to others. And what about you? This product has already been rated by 79 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
