Product description Canon Adds Entry-Level EOS RP to Full-Frame Mirrorless System Read More - Canon EOS-RP | First Look
- Canon EOS-RP Sample
Impressively small despite having a large full-frame sensor, the Canon EOS RP offers flexible imaging capabilities along with a portable form factor. Featuring a high-resolution 26.2MP full-frame CMOS sensor along with a DIGIC 8 image processor, both stills and UHD 4K video can be recorded using a broad sensitivity range, from ISO 100-40000, to suit working in a variety of lighting conditions. Continuous shooting is also supported at up to 5 fps for photographing moving subjects. The sensor also facilitates an advanced Dual Pixel CMOS AF system, with 4779 selectable on-sensor phase-detection points for quickly and accurately acquiring focus during stills and video operation.
Complementing the sensor and processor, the RP also sports a 2.36m-dot OLED electronic viewfinder along with a rear 3.0" 1.04m-dot vari-angle touchscreen LCD monitor for easier viewing from high and low angles. Additionally, Wi-Fi and Bluetooth allow for wireless remote camera control along with direct image sharing to linked mobile devices. - Canon RF Lens Mount

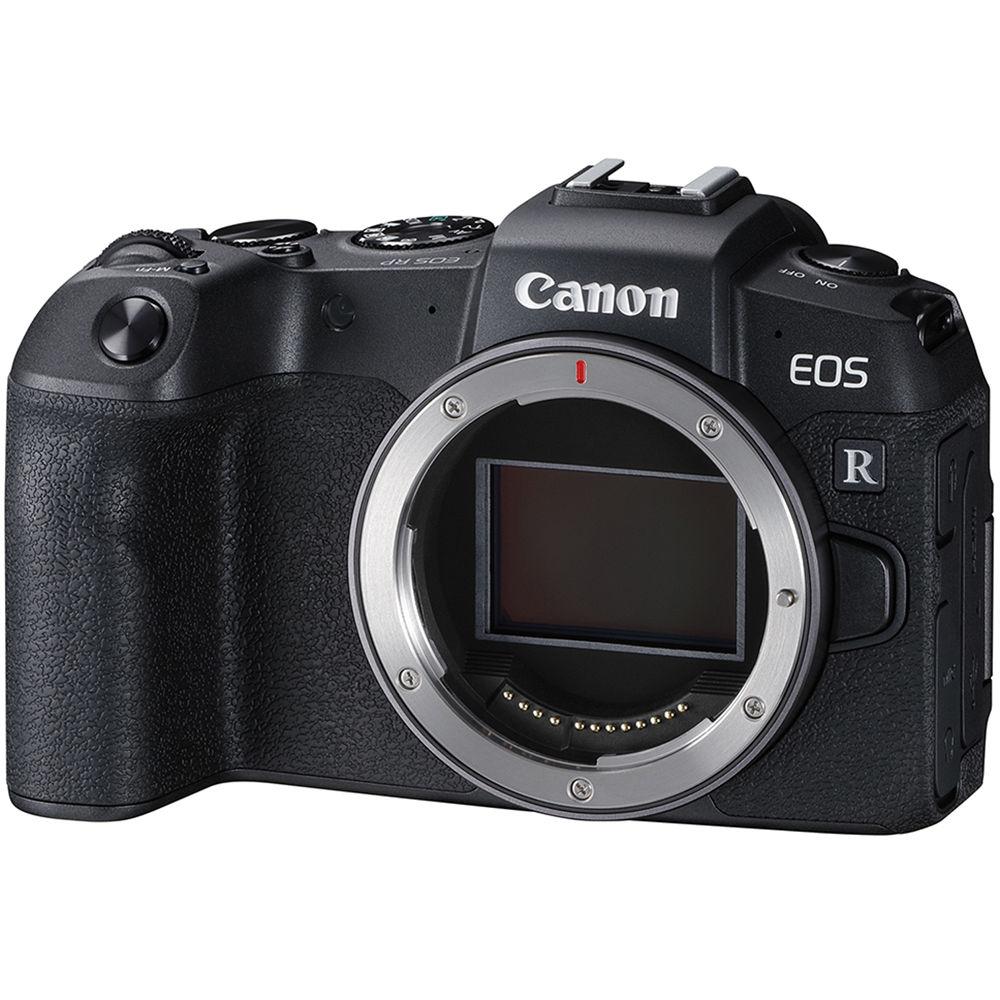

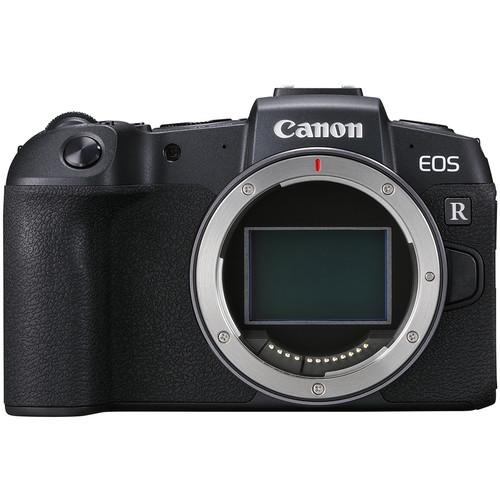

- The EOS RP features the RF lens mount, which support Canon's line of RF-mount lenses. This mount is characterized by its wide 54mm diameter and short 20mm flange-back distance, which promotes the ability to design lenses that are both faster and smaller than their SLR equivalents. The mount also incorporates a 12-pin electronic contact system for more sophisticated autofocus and image stabilization capabilities. This mount design also lends full compatibility to existing EF and EF-S-mount lenses via an optional EF-EOS R Mount Adapter.
- 26.2MP Full-Frame CMOS Sensor and DIGIC 8 Image Processor
- A large 26.2MP full-frame CMOS sensor is featured and serves as an ideal balance between high-resolution output, low-light performance, and high-speed capabilities. When paired with the DIGIC 8 image processor, the EOS RP has a wide native sensitivity range from ISO 100-40000 for working in a variety of lighting conditions. Additionally, continuous shooting up to 5 fps is possible for working with moving subjects.
- Dual Pixel CMOS AF
- Dual Pixel CMOS AF offers smooth and fast focusing performance in a similar manner to how a camcorder acquires focus. This system integrates two separate photodiodes within each pixel to provide a broad and dense network phase-detection gathering elements across a majority of the image sensor to reduce focus hunting for faster, more direct control of focus placement. When working with still imagery, this focusing system works to acquire focus quickly and accurately, making it ideally suited to shooting and tracking moving subjects so that critical focus is attained with each shot. When shooting video, a Movie Servo AF mode offers smooth and natural focusing when changing from different subjects or different distances within the scene, as well as the ability to specify tracking sensitivity, AF speed, and Face or Eye Tracking priority. Benefited by the Touch AF system, rack focus is possible simply by touching elements within the scene on the touchscreen in order to change focus in an intuitive manner. Subject tracking in movies is also heightened due to the Dual Pixel CMOS AF system's ability to recognize subjects and maintain focus when working within changing or cluttered scenery. Additionally, the focus system is sensitive down to EV -5 for working in truly low-light conditions with accurate AF capabilities.
- UHD 4K Video Recording
- Designed for multimedia image-maker, the EOS RP supports UHD 4K (3840 x 2160) resolution recording at up to 23.98 fps at 120 Mb/s, along with Full HD 1080p and HD 720p at 60 fps for slow motion playback. When recording in-camera, 4K video has 4:2:0 sampling and 8-bit color depth, and 4:2:2 8-bit output is possible when using an external recorder.
Audio can be recorded using the on-board stereo microphone or an optional external mic can also be used via the 3.5mm mic jack.
Also, 5-axis Dual Sensing IS can be used when recording video to electronically reduce the appearance of camera shake for sharper, smoother recording. - Body Design
-

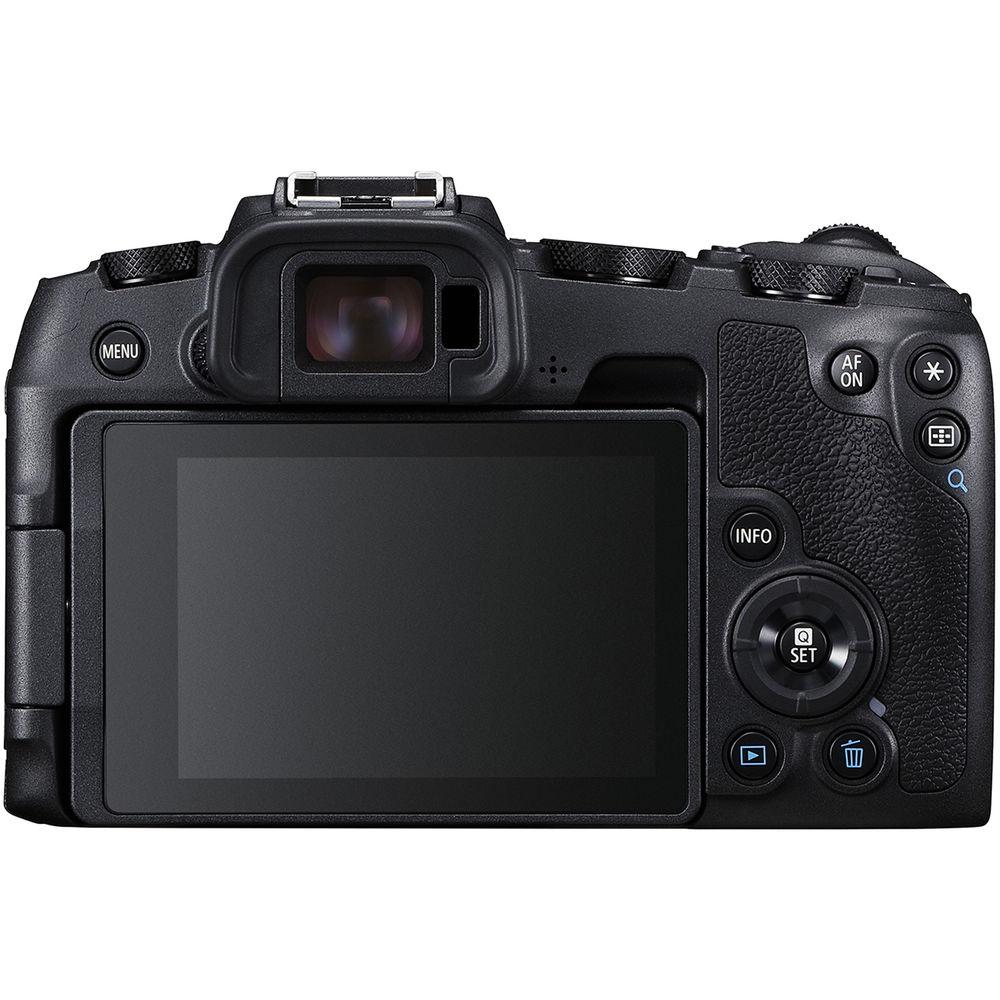

- Integrated 2.36m-dot OLED electronic viewfinder affords a bright and clear means for eye-level viewing.

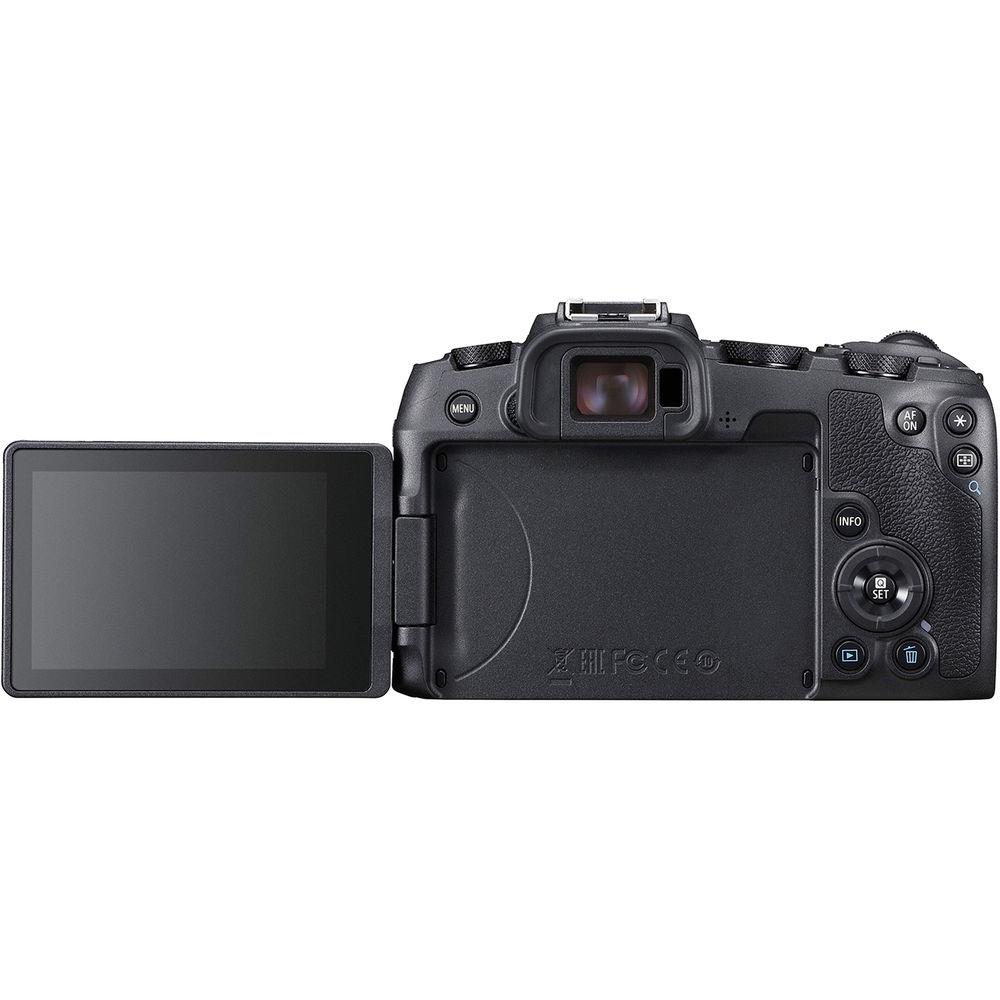

- Rear 3.0" 1.04m-dot LCD features a vari-angle design for easier use when working from high, low, and front-facing angles. It is also a touchscreen for intuitive control over shooting, playback, and menu navigation controls.
- Built-in Wi-Fi and Bluetooth connectivity enable wireless sharing, control, and image transfer with a compatible smart device via the Canon Camera Connect app, which also supports geotagging your files using your mobile device's location data.
- In-camera charging over USB is supported for easier on-the-go charging.

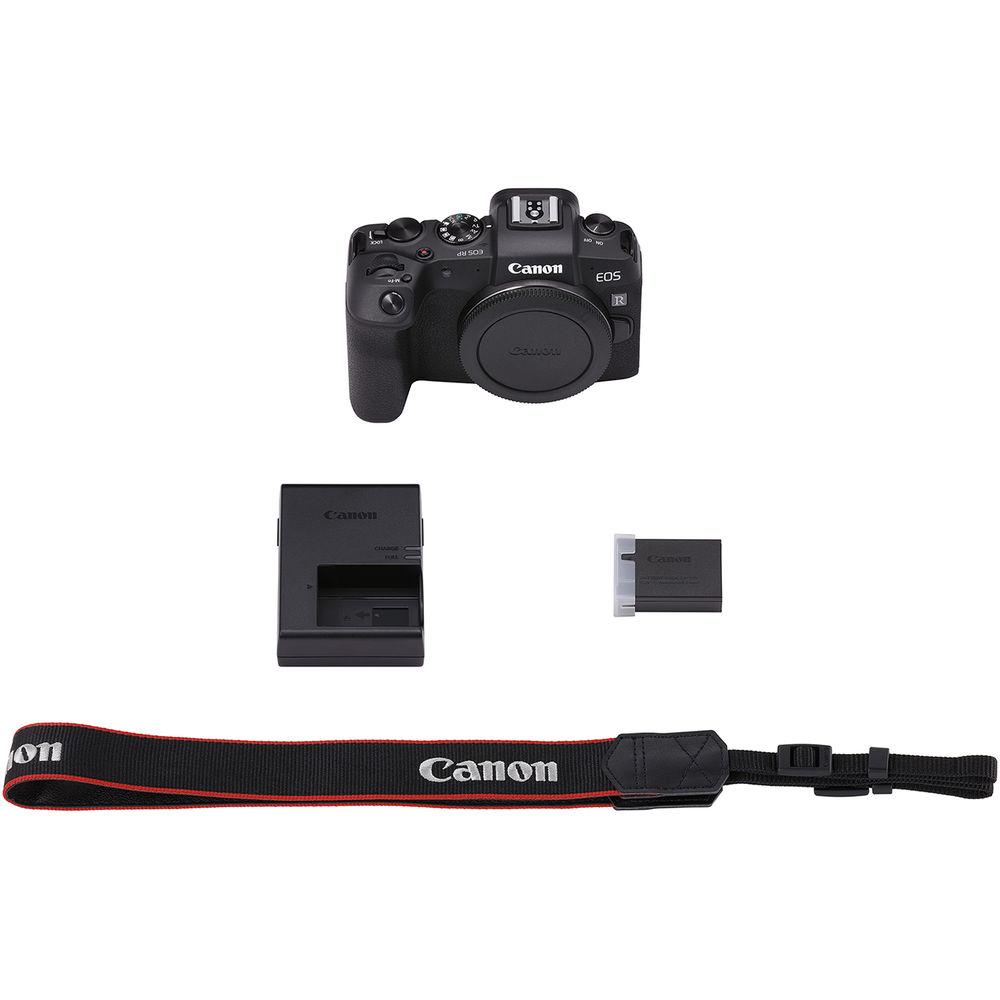

UPC: 013803313222 In the Box Canon EOS RP Mirrorless Digital Camera (Body Only) LP-E17 Lithium-Ion Battery Pack LC-E17 Charger for LP-E17 Battery Pack R-F-5 Camera Cover ER-EOSRP Strap Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon EOS RP Mirrorless Digital Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon RP Specs | | | Lens Mount | Canon RF | | Camera Format | Full-Frame (1x Crop Factor) | | Pixels | Actual: 27.1 Megapixel
Effective: 26.2 Megapixel | | Maximum Resolution | 6240 x 4160 | | Aspect Ratio | 3:2, 4:3, 16:9 | | Sensor Type | CMOS | | Sensor Size | 35.9 x 24 mm | | Image File Format | JPEG, RAW | | Bit Depth | 14-Bit | | Image Stabilization | Digital, 5-Axis (Video Only) | | | | ISO Sensitivity | Auto, 100 to 40000 (Extended: 50 to 102400) | | Shutter Speed | 1/4000 to 30 Seconds | | Metering Method | Center-Weighted Average, Evaluative, Partial, Spot | | Exposure Modes | Aperture Priority, Manual, Program, Shutter Priority | | Exposure Compensation | -3 to +3 EV (1/3, 1/2 EV Steps) | | Metering Range | -3 to 20 EV | | White Balance | Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent (White), Shade, Tungsten | | Continuous Shooting | Up to 5 fps at 26.2 MP for Unlimited Exposures (JPEG Format)
Up to 5 fps at 26.2 MP for up to 50 Exposures (Raw Format) | | Interval Recording | Yes | | Self Timer | 2/10-Second Delay | | | | Recording Modes | MP4/H.264
UHD 4K (3840 x 2160) at 23.976p/25p
Full HD (1920 x 1080) at 25p/29.97p/50p/59.94p [60 Mb/s]
HD (1280 x 720) at 25p/29.97p/50p/59.94p [12 Mb/s] | | External Recording Modes | UHD 4K (3840 x 2160)
Full HD (1920 x 1080)
HD (1280 x 720) | | Recording Limit | Up to 29 Minutes, 59 Seconds | | Audio Recording | Built-In Microphone (Stereo) | | Audio File Format | AAC, Linear PCM | | | | Focus Type | Auto and Manual Focus | | Focus Mode | Continuous-Servo AF (C), Single-Servo AF (S) | | Autofocus Points | Phase Detection: 4779 | | Autofocus Sensitivity | -5 to +18 EV | | | | Viewfinder Type | Electronic | | Viewfinder Size | 0.39" | | Viewfinder Resolution | 2,360,000 Dot | | Viewfinder Eye Point | 22 mm | | Viewfinder Coverage | 100% | | Viewfinder Magnification | Approx. 0.7x | | Diopter Adjustment | -4 to +1 m | | Monitor Size | 3" | | Monitor Resolution | 1,040,000 Dot | | Monitor Type | Articulating Touchscreen LCD | | | | Built-in Flash | None | | Maximum Sync Speed | 1/180 Second | | Flash Compensation | -3 to +3 EV (1/3, 1/2 EV Steps) | | Dedicated Flash System | eTTL | | External Flash Connection | Hot Shoe | | | | Memory Card Slot | 1 x SD/SDHC/SDXC | | Connectivity | 3.5mm Headphone, 3.5mm Microphone, Canon E3, HDMI C (Mini), USB 2.0, USB Type-C | | Wireless | Wi-Fi
Bluetooth | | GPS | None | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 85% | | | | Battery | 1 x LP-E17 Rechargeable Lithium-Ion, 7.2 VDC, 1040 mAh | | Dimensions (W x H x D) | 5.2 x 3.3 x 2.8" / 132.5 x 85.0 x 70.0 mm | | Weight | 1.07 lb / 485 g (Body with Battery and Memory) | | | | Package Weight | 2.8 lb | | Box Dimensions (LxWxH) | 11.2 x 10.0 x 6.0" |
