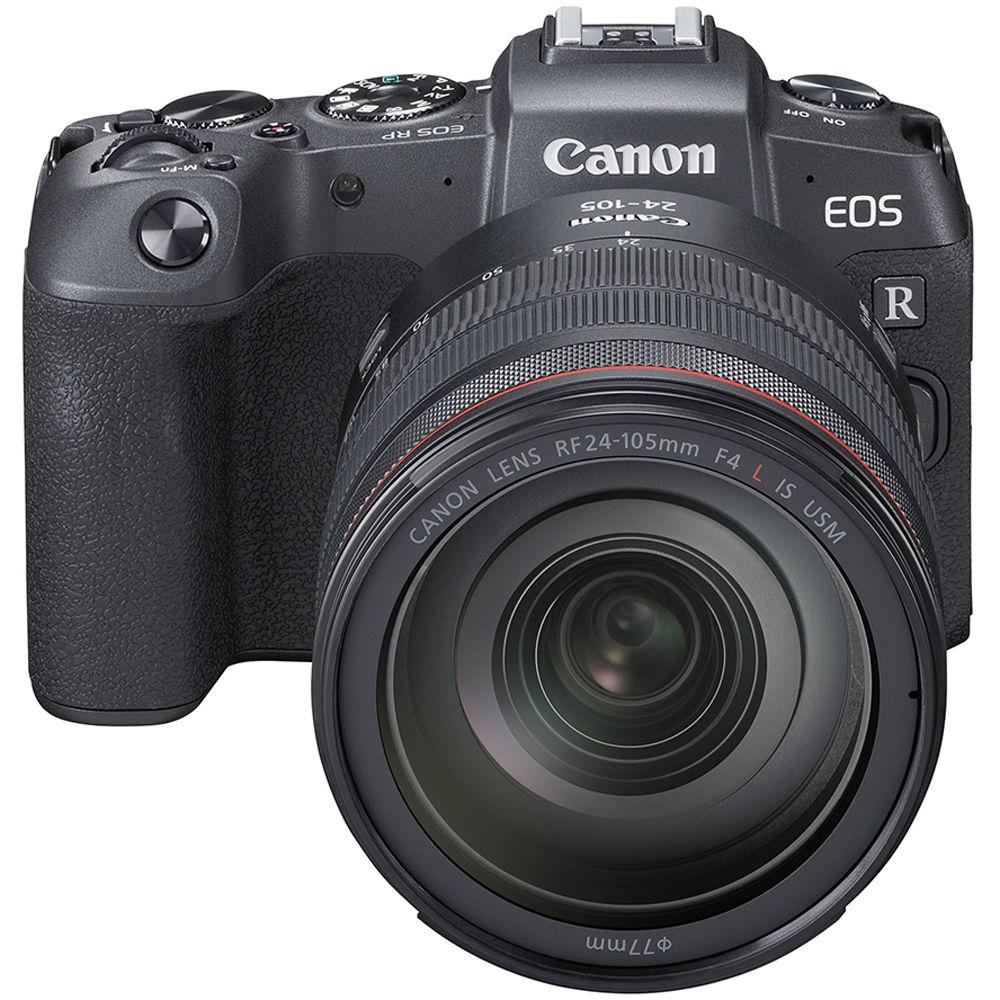

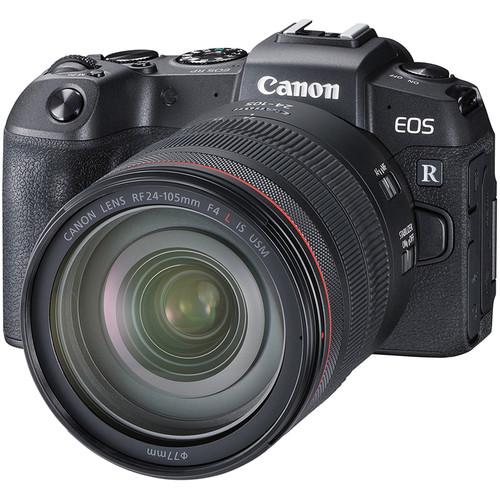

Canon EOS RP Mirrorless Digital Camera

User Manual for Canon EOS RP Mirrorless Digital Camera with EF 24-105mm f 3.5-5.6 STM Lens and Mount Adapter EF-EOS R Kit

• Product category: Mirrorless System Cameras Canon
• Brand: Canon
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Canon Mirrorless System Cameras

Product description

• Canon EOS-RP | First Look
• Canon EOS-RP Sample

Canon RF Lens Mount
• The EOS RP features the RF lens mount, which support Canon's line of RF-mount lenses. This mount is characterized by its wide 54mm diameter and short 20mm flange-back distance, which promotes the ability to design lenses that are both faster and smaller than their SLR equivalents. The mount also incorporates a 12-pin electronic contact system for more sophisticated autofocus and image stabilization capabilities. This mount design also lends full compatibility to existing EF and EF-S-mount lenses via an optional EF-EOS R Mount Adapter.

26.2MP Full-Frame CMOS Sensor and DIGIC 8 Image Processor
• A large 26.2MP full-frame CMOS sensor is featured and serves as an ideal balance between high-resolution output, low-light performance, and high-speed capabilities. When paired with the DIGIC 8 image processor, the EOS RP has a wide native sensitivity range from ISO 100-40000 for working in a variety of lighting conditions. Additionally, continuous shooting up to 5 fps is possible for working with moving subjects.

Dual Pixel CMOS AF
• Dual Pixel CMOS AF offers smooth and fast focusing performance in a similar manner to how a camcorder acquires focus. This system integrates two separate photodiodes within each pixel to provide a broad and dense network phase-detection gathering elements across a majority of the image sensor to reduce focus hunting for faster, more direct control of focus placement. When working with still imagery, this focusing system works to acquire focus quickly and accurately, making it ideally suited to shooting and tracking moving subjects so that critical focus is attained with each shot. When shooting video, a Movie Servo AF mode offers smooth and natural focusing when changing from different subjects or different distances within the scene, as well as the ability to specify tracking sensitivity, AF speed, and Face or Eye Tracking priority. Benefited by the Touch AF system, rack focus is possible simply by touching elements within the scene on the touchscreen in order to change focus in an intuitive manner. Subject tracking in movies is also heightened due to the Dual Pixel CMOS AF system's ability to recognize subjects and maintain focus when working within changing or cluttered scenery. Additionally, the focus system is sensitive down to EV -5 for working in truly low-light conditions with accurate AF capabilities.

UHD 4K Video Recording
• Designed for multimedia image-maker, the EOS RP supports UHD 4K (3840 x 2160) resolution recording at up to 23.98 fps at 120 Mb/s, along with Full HD 1080p and HD 720p at 60 fps for slow motion playback. When recording in-camera, 4K video has 4:2:0 sampling and 8-bit color depth, and 4:2:2 8-bit output is possible when using an external recorder.

  Audio can be recorded using the on-board stereo microphone or an optional external mic can also be used via the 3.5mm mic jack.

  Also, 5-axis Dual Sensing IS can be used when recording video to electronically reduce the appearance of camera shake for sharper, smoother recording.

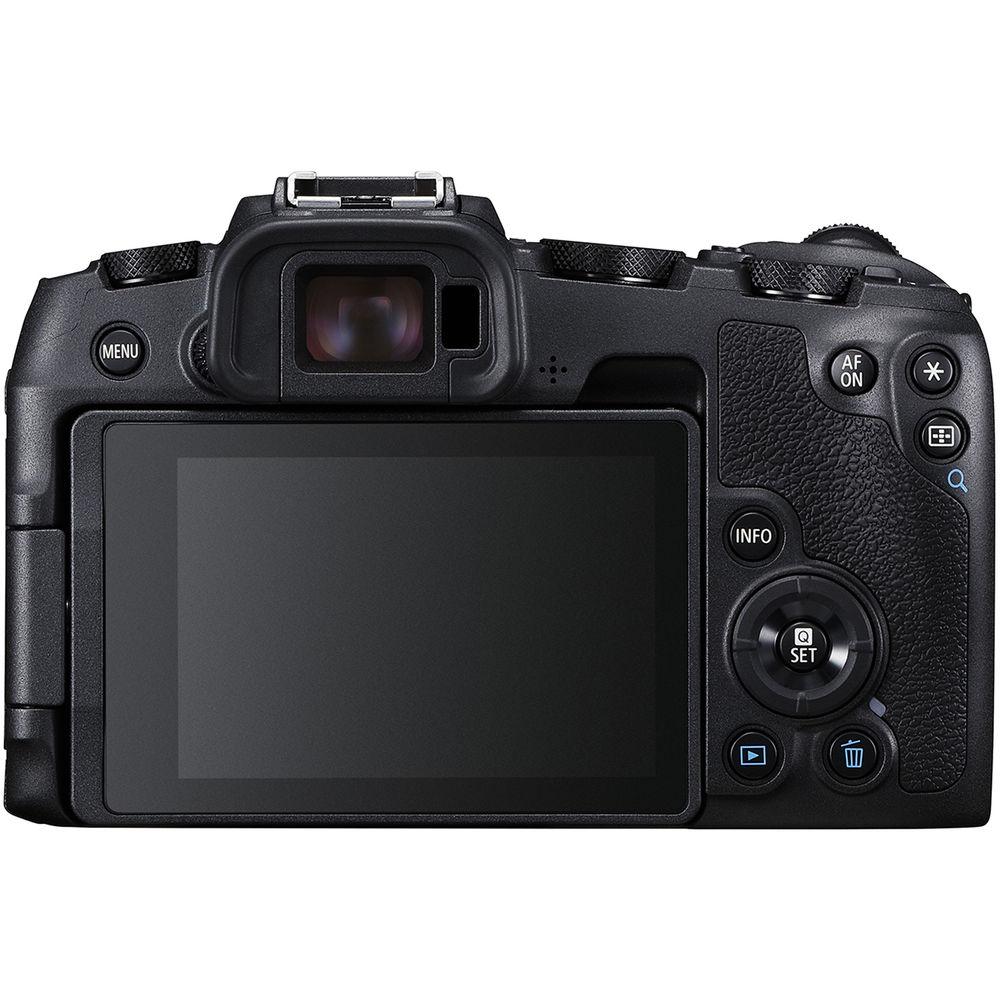

Body Design
• • Integrated 2.36m-dot OLED electronic viewfinder affords a bright and clear means for eye-level viewing.

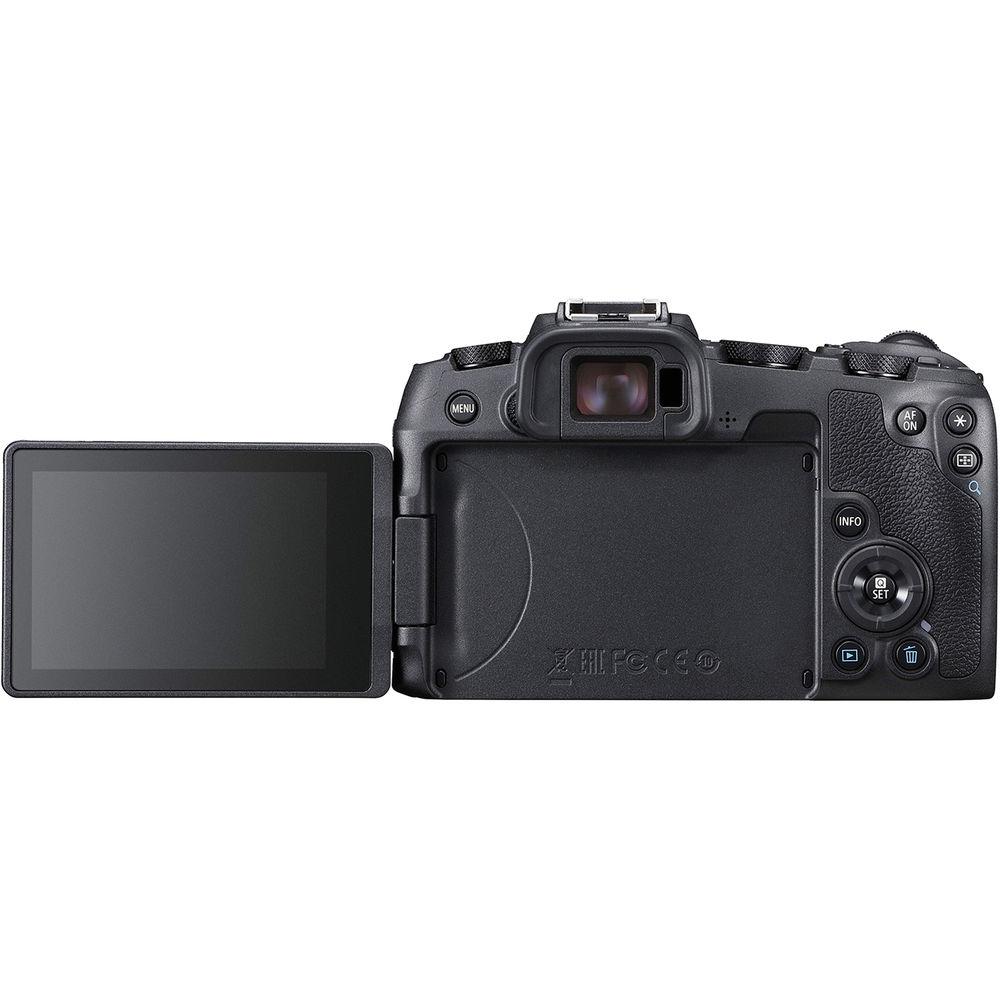

  • Rear 3.0" 1.04m-dot LCD features a vari-angle design for easier use when working from high, low, and front-facing angles. It is also a touchscreen for intuitive control over shooting, playback, and menu navigation controls.
  • Built-in Wi-Fi and Bluetooth connectivity enable wireless sharing, control, and image transfer with a compatible smart device via the Canon Camera Connect app, which also supports geotagging your files using your mobile device's location data.
  • In-camera charging over USB is supported for easier on-the-go charging.

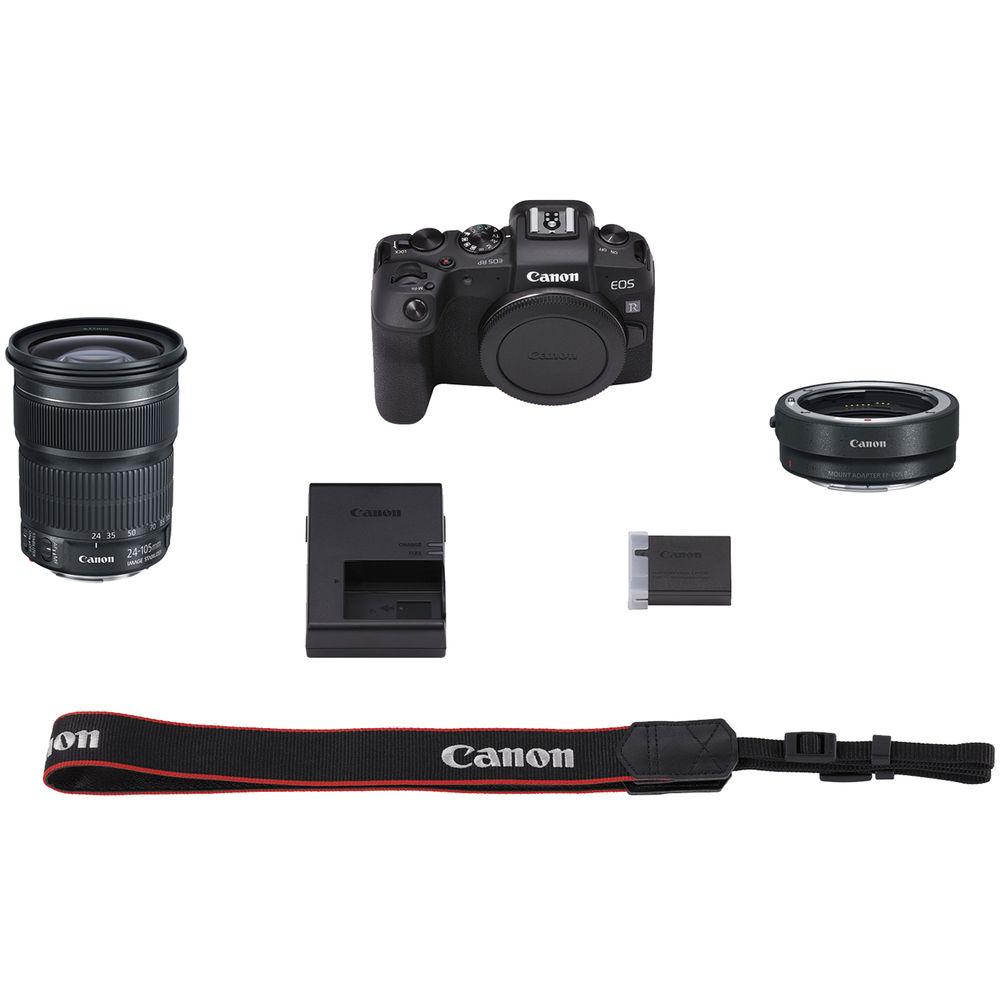

EF 24-105mm f/3.5-5.6 IS STM Lens and Mount Adapter EF-EOS R
• Included with the camera is the flexible EF 24-105mm f/3.5-5.6 IS STM lens, along with the Mount Adapter EF-EOS R for attaching this EF-mount lens, along with any additional EF-mount SLR lenses, to the mirrorless RF-mount camera body.

  The EF 24-105mm f/3.5-5.6 IS STM spans a useful wide-angle to short-telephoto range, making it suitable more a broad variety of shooting applications. It features two aspherical elements and one ultra-low dispersion element to control both spherical and chromatic aberrations in order to realize a high degree of sharpness and clarity. A Super Spectra coating has also been applied to reduce lens flare and increase contrast and color fidelity when working in bright lighting conditions. Benefitting both photo and video applications, an STM stepping AF motor is used to realize quick and near-silent autofocus performance along with full-time manual focus override. Additionally, a four-stop-effective Image Stabilizer system is also featured and minimizes the appearance of camera shake for sharper handheld shooting.

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Canon RP Specs

Focal Length	24 to 105mm
Maximum Aperture	f/22 to 32
Minimum Aperture	f/22 to 32
