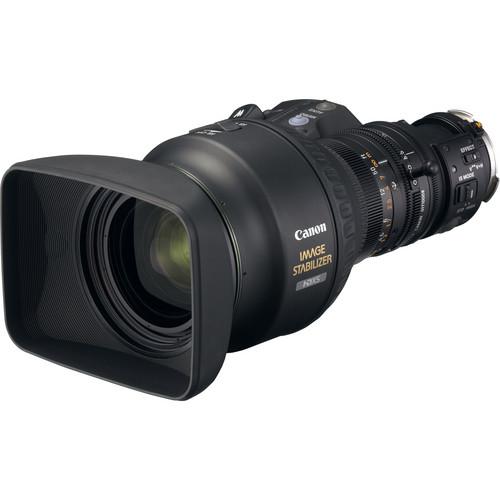

User Manual for Canon HJ15ex8.5BKRSE-V Portable Image Stabilized HD Lens Click to enlarge the picture
Contents of the user manual for the Canon HJ15ex8.5BKRSE-V Portable Image Stabilized HD
- Product category: Professional Lenses Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Professional Lenses
|
User manual for the Canon HJ15ex8.5BKRSE-V Portable Image Stabilized HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description The Canon HJ15ex8.5BKRSE-V Portable Image Stabilized HD Lens is a 15x zoom lens designed for mobile HD (High Definition) shooting. It features a built-in optical image stabilization system based on Canon’s patented Vari-Angle Prism Image Stabilizer (VAP-IS) technology. The VAP-IS technology intercepts light ray disturbances that occur due to vibration or jolt to the lens-camera system and correct their deviations in real-time.
With real-time compensation to counter a wide range of disturbances, the lens ensures enhanced HD image stabilization. These disturbances include lens-camera jolting associated with handheld and shoulder mounting, vibrations due to an unstable platform or windblown environments, as well as the higher vibration frequencies encountered when operating on vehicles, boats, and aircrafts.
You can optimize the image stabilization action for different shooting conditions by choosing any of the four modes - Portable, Tripod, H+V and V. The Portable mode compensates for motion-related disturbances during shoulder-mounted and handheld shooting. Tripod mode compensates for disturbances caused by unstable platform or wind. In the H+V mode, the lens provides optimized stabilization action when disturbance frequencies are both horizontal and vertical. V mode compensates for vertical disturbances that may occur while panning the lens-camera.
The digital drive unit features a unique design that improves operational control, and reduces fatigue encountered during long hours of shooting. Featuring 16-bit high resolution optical Rotary Encoders, the drive unit enables easy integration into virtual digital studio systems, and provides enhanced smoothness and precision over the lens controls. In addition, the Rotary Encoders help provide a dynamic zoom speed range of 0.5 second to over a 5 minute super slow zoom, and digital functions including the Shuttle Shot, Frame Preset and Speed Preset.
- 15x zoom lens designed for mobile HD shooting
- Supports 2/3" image format
- Built-in optical image stabilization system based on Canon's patented Vari-Angle Prism Image Stabilizer (VAP-IS) technology
- VAP-IS technology intercepts light ray disturbances that occur due to vibration or jolt to the lens-camera system and correct their deviations in real-time
- Real-time compensation counters a wide range of disturbances including lens-camera jolting associated with handheld and shoulder mounting, vibrations due to an unstable platform or windblown environments, as well as the higher vibration frequencies encountered when operating on vehicles, boats, and aircrafts
- Image Stabilization Indicator
- Digital drive unit features a unique design that improves operational control, and reduces fatigue encountered during long hours of shooting
4 image stabilization modes - Portable mode - compensates for motion-related disturbances during shoulder-mounted and handheld shooting
- Tripod mode - compensates for disturbances caused by unstable platform or wind
- H+V mode - provides optimized stabilization action when disturbance frequencies are both horizontal and vertical
- V mode - compensates for vertical disturbances that may occur while panning the lens-camera
16-bit High Resolution Optical Rotary Encoders - Easy integration into virtual digital studio systems
- Enhanced smoothness and precision over the lens controls
- Accurate repeatability in zoom, focus and iris controls
- Dynamic zoom speed range of 0.5 second to over a 5 minute slow zoom
- Digital functions including the Shuttle Shot, Frame Preset and Speed Preset
In the Box Canon HJ15ex8.5BKRSE-V Portable Image Stabilized HD Lens 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon HJ15ex8.5BKRSE-V Portable Image Stabilized HD Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon 8.5-127.5mm Specs | Zoom Ratio | 15x | | Image Size | 2/3" | | Focal Length | 8.5-128 mm | | Maximum Relative Aperture | 1:2.5 at 8.5-68 mm 1:4.7 at 128 mm | | Angular Field of View | 16:9 - 58.9° x 35.2° at 8.5 mm, 4.3° x 2.4° at 128 mm 4:3 - 54.7° x 42.4° at 8.5 mm, 3.9° x 3.0° at 128 mm | | Minimum Object Distance (M.O.D.) | 0.8 mm (10 mm with Macro) | | Object Dimensions at M.O.D. | 16:9 - 37.7 x 21.22" (95.8 x 53.9 cm) at 8.5 mm, 2.51 x 1.41" (6.4 x 3.6 cm) at 128 mm 4:3 - 34.4 x 25.82" (87.4 x 65.6 cm) at 8.5 mm, 2.28 x 1.73" (5.8 x 4.4 cm) at 128 mm | | Object Dimensions with Macro | 16:9 - 2.59 x 1.45" (6.6 x 3.7 cm) at 8.5 mm (10 mm with Macro) 4:3 - 2.3 x 1.77" (6.0 x 4.5 cm) at 8.5 mm (10 mm with Macro) | | Weight | 4.37 lb (1.99 kg) | | Dimensions (WxHxL) | 6.7 x 4.68 x 9.41" (17.02 x 11.91 x 23.91 cm) |
