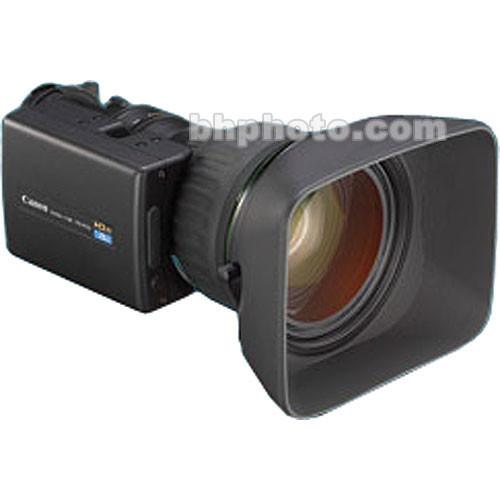

User Manual for Canon HJ18ex28B-ITS e-HDxs 18x 2 3" High Definition Telephoto Remote Motor Drive Lens with 2x Extender Click to enlarge the picture
Contents of the user manual for the Canon HJ18ex28B-ITS e-HDxs 18x 2 3"
- Product category: Professional Lenses Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Professional Lenses
|
User manual for the Canon HJ18ex28B-ITS e-HDxs 18x 2 3" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description The Canon e-HDxs HJ18ex28B-ITS is a high quality telephoto 18x zoom lens for professional 2/3" CCD remote video cameras. This model is highly versatile and can be used in a variety of professional applications, including teleconferencing, distance learning, and specialized broadcasting. The focal-length range is 28 to 500mm with a minimum object distance of 2.2 meters (7.2 feet) and comes equipped with a 2x extender for increased telephoto capability. - Video Conferencing Remote Control
- The HJ18ex28B-ITS can fit a remotely controlled and monitored CCTV pan and tilt system. This lens is particularly suited for the highest quality industrial cameras.
- High Definition Ready
- Many high definition cameras are hamstrung by insufficient optics. Remote lenses traditionally have been built to accommodate standard definition. This lens is designed specifically with high definition in mind. The optics increase fidelity, making sure HD footage is crystal clear.
- Shuttle-Shot Technology
- The lens has added capability when zooming, using the shuttle shot switch. At the touch of a button the lens can move to a pre-programmed point, going back and forth. This can be used both creatively while providing a no hassle way of verifying focus.
- Internal Focus for Ultimate Versatility
- The Canon HJ18ex28B-ITS is made for the highest quality professional video cameras. The front lens element is stationary and can be used with a matte box for greater lens flair protection as well as a wide array of square and rectangular filters.
- Integral 2x Extender
- For instant close-up shots, the lens has a switch which inserts an element that doubles the focal length at any point in the zoom range. Instead of using the zoom function, the extender gives immediate close-up images.
In the Box Canon HJ18ex28B-ITS e-HDxs 18x 2/3" High Definition Telephoto Remote Motor Drive Lens with 2x Extender Lens Hood Front and Rear Lens Cap 1 Year Parts and Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon HJ18ex28B-ITS e-HDxs 18x 2 3" High Definition Telephoto Remote Motor Drive Lens with 2x Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon 28-500mm Specs | Sensor Compatibility | 2/3" CCD (16:9) | | Focal Length | 28 to 500mm
With Extender: 56 to 1000mm | | Built-In Extender | None | | Zoom Ratio | 18x | | Angle of View | 16:9
Wide: 19.6° (H)
Tele: 1.1° (H)
4:3
Wide: 18° (H)
Tele: 1° (H)
16:9 With 2x Extender
Wide: 9.9° (H)
Tele: 0.6° (H)
4:3 With 2x Extender
Wide: 9° (H)
Tele: 0.5° (H) | | Maximum Aperture | f/2.8 to 4.9
With Extender: f/5.6 to 9.8 | | Focus Type | Servo | | Iris Type | Servo | | Macro | Yes | | Minimum Object Distance | 7.2' / 2.2 m | | Dimensions | 10.6 x 5.2 x 4.8" / 26.8 x 13.3 x 12.3 cm (L x W x H) | | Weight | 5.7 lb / 2.6 kg | | | | Package Weight | 12.95 lb | | Box Dimensions (LxWxH) | 20.0 x 13.0 x 12.0" |
