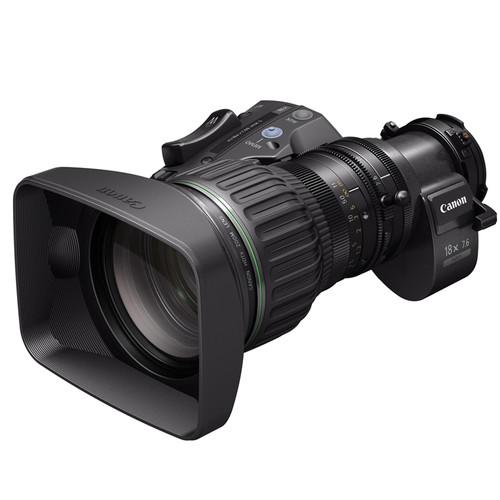

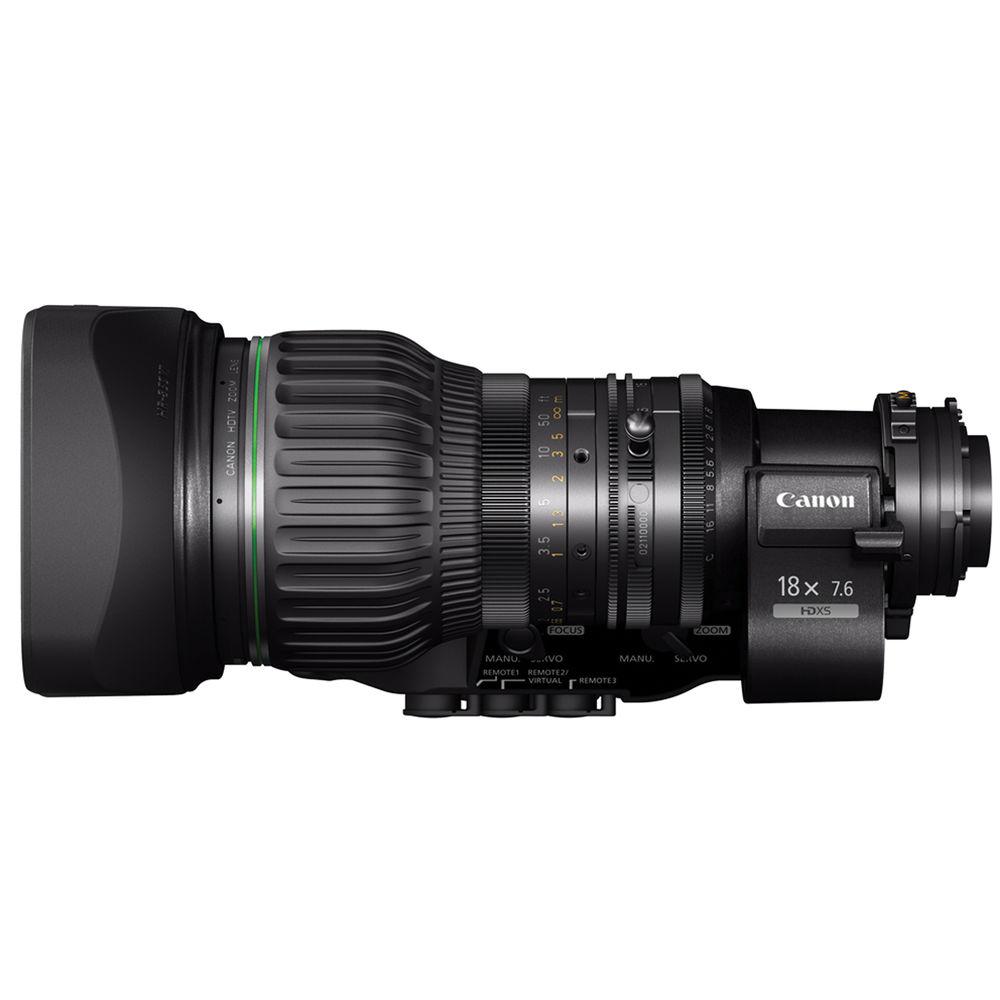

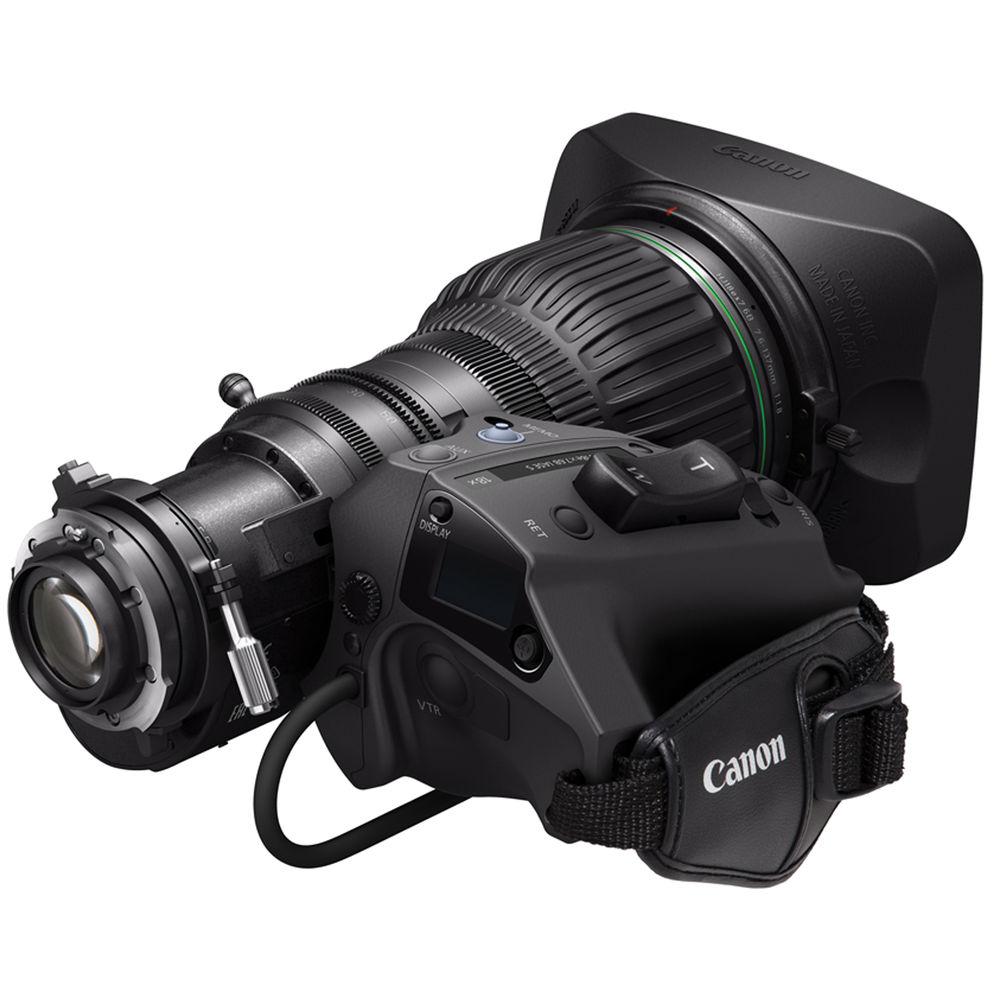

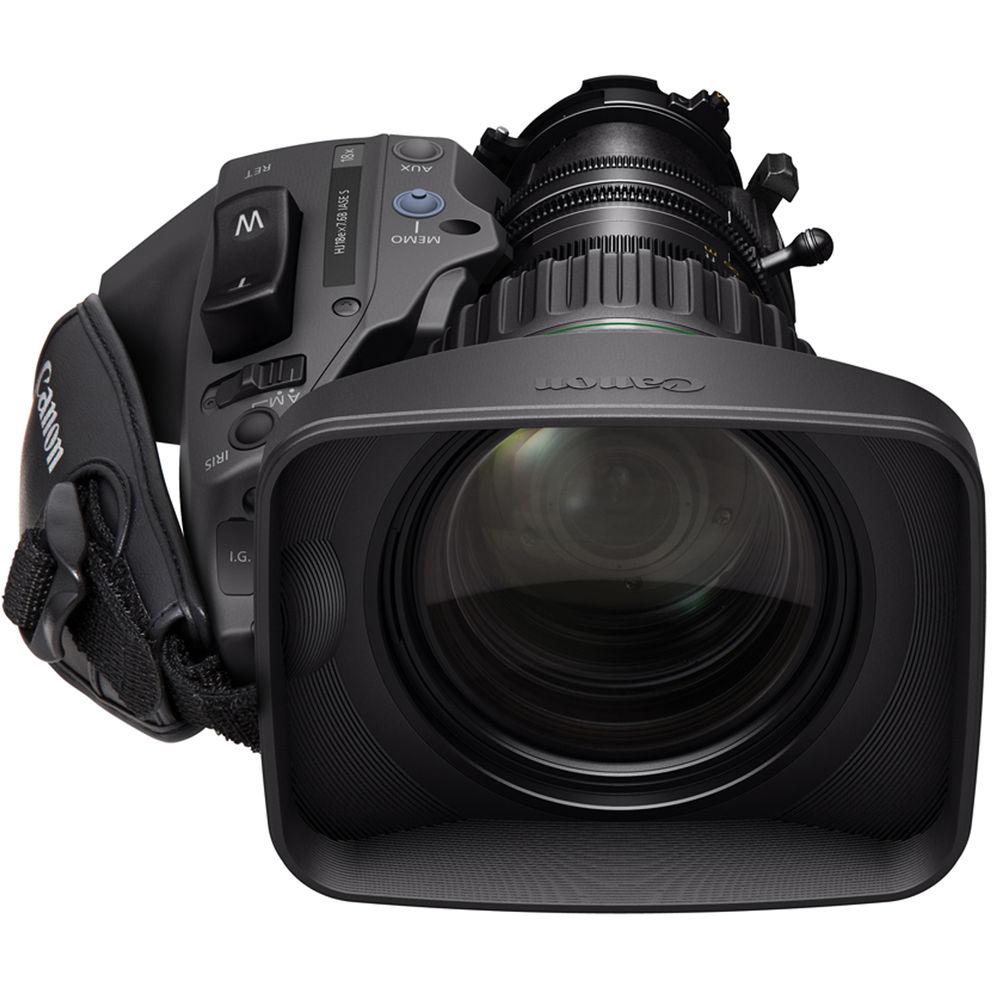

Product description The Canon HJ18EX7.6B IRSE S 2/3" ENG/EFP Zoom Lens with Semi Servo Control is an 18x zoom lens for 2/3" format 3-chip ENG/EFP cameras. The HJ18EX7.6B retains the compact lightweight design of Canon's HJ17EX7.6B lens, while improving on the zoom range and the digital drive. The lens incorporates a B4 mount, standard for ENG / EFP lenses, and features a built-in 2x extender.

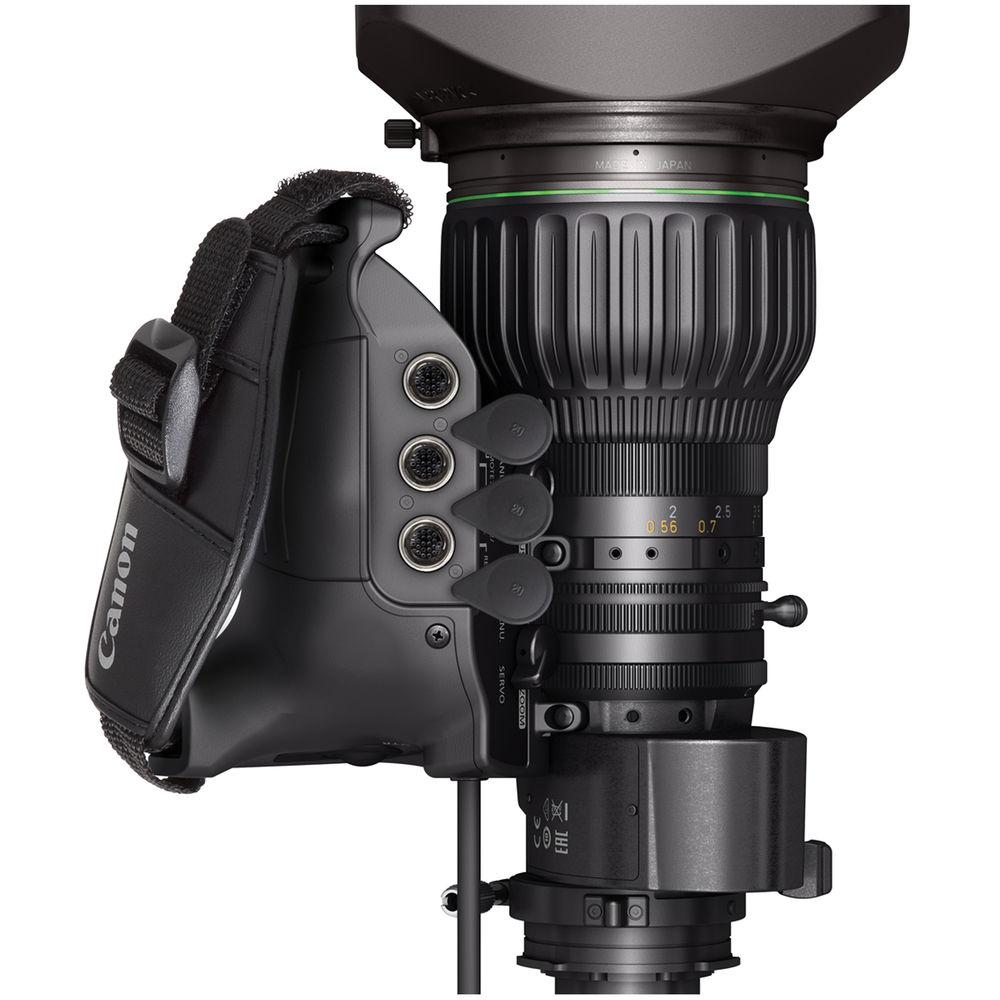

The lens features servo control of both the zoom and iris, leaving focus control completely manual. The lens's fourth generation digital drive unit uses three 20-pin connectors, and the encoder does not require initialization to provide high-precision encoding information for composing virtual and live-action images. The lens incorporates well known Canon features including Shuttle Shot, Frame Preset, and Speed Preset. - Breakdown of canon Lens Name
-
- HJ - ENG/EFP Portable Lens
- 18EX - 18x Zoom Ratio
- 7.6 - 7.6mm Focal length at wide end
- B - Optical adjustment for cameras with prism
- I - Built-in extender
- R - Servo zoom, manual focus
- S - Servo iris
- E - Digital drive with rotary encoder
- S - 4th generation digital drive
- Shuttle Shot
- By memorizing any two focal lengths, the Canon drive unit can automatically "shuttle" between two points, moving in either direction. As an example, this function is effective for shots in which an operator wants to start from a wide angle and then zoom in rapidly on to an object.
- Framing Preset
- An angle of view can be preset in either of two memories and the lens will zoom at the highest speed, or in a preset zoom speed, to the preset position with the push of a simple button. As an example, this function is effective for situations such as interview programs, where it is necessary to switch between bust shot and wide shot.
- Speed Preset
- A specific zoom speed can be preset in memory making it possible to repeat the zoom speed as often as you like with the push of a simple button. Using a preset speed when zooming in and zooming out contributes to stable images, particularly with slow zooms.
In the Box Canon HJ18EX7.6B IRSE S 2/3" ENG/EFP Zoom Lens with Semi Servo Control - 1-Year Limited Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon HJ18EX7.6B IRSE S 2 3" ENG EFP Zoom Lens with Semi Servo Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon 7.6-137mm Specs | Sensor Compatibility | 2/3" (16:9) | | Focal Length | 7.6 to 137mm
With Extender: 15.2 to 274mm | | Built-In Extender | 2x | | Zoom Ratio | 18x | | Macro | Yes | | Minimum Object Distance | 1.84' / 56 mm
Macro: 0.4" / 10 mm | | Dimensions | 8.1 x 6.3 x 4.1" / 206.2 x 160.5 x 105.0 mm (L x W x H) | | Weight | 3.5 lb / 1.6 kg |
