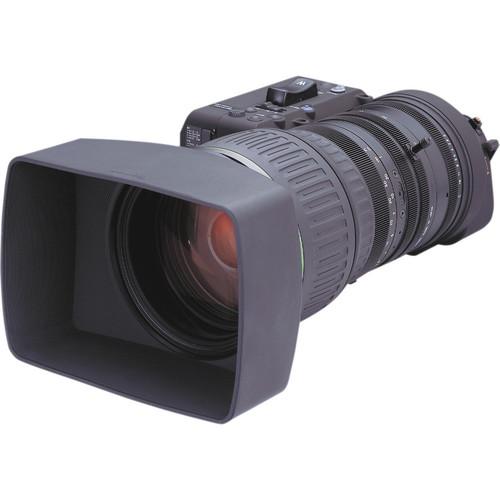

User Manual for Canon HJ40X10B 2 3" EFP Telephoto Lens with Semi Servo Kit Click to enlarge the picture
Contents of the user manual for the Canon HJ40X10B 2 3" EFP Telephoto
- Product category: Professional Lenses Canon
- Brand: Canon
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Canon Professional Lenses
|
User manual for the Canon HJ40X10B 2 3" EFP Telephoto contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Canon product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Canon user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Canon product will considerably shorten its lifespan!
|
Product description The Canon HJ40X10B 2/3" EFP Telephoto Lens with Semi Servo Kit is a telephoto lens that is intended for producers and broadcasters engaged in documentary, natural history, and many other challenging location productions that seek high definition image capture over very considerable distances. The HJ40X10B offers an extremely long focal length of up to 800mm with the extender that gives you the ability to shoot from very far distances. And with the Optical Image Stabilization feature, you can capture crisp and clear images at very long distances without concern for an unsteady image.
The HJ40X10B offers creative flexibility and mobility in a handheld HDTV camera system with the demanding performance requirements for high-end HDTV image acquisition at long focal lengths. Additionally the HJ40X10B incorporates a dual lens approach to broaden the shooting options, achievement of an adequate sensitivity, maximization of image contrast, and preservation of the highest MTF over the long focal ranges.
Also included with the HJ40X10B is the Canon SUP-300, a support bracket for long lenses from Canon. This bracket vertically supports the long lenses for stability and to suppress lens mount damage. - Optical Shift Image Stabilizer
- The HJ40X10B is equipped with a unique feature called the Optical Shift Image Stabilizer that helps eliminate the worry over unsteady images, which is key when shooting long distances. When the lens moves, the light rays from the subject are bent relative to the optical axis, resulting in an unsteady image because the light rays are deflected. By shifting the IS lens group on a plane perpendicular to the optical axis to counter the degree of image shake, the light rays reaching the image plane can be steadied. Since image shake occurs in both horizontal and vertical directions, two shake detecting sensors for yaw and pitch, detect the angle and speed of movement and send this information to a high-speed 32-bit microcomputer, which converts the information into drive signals for the IS lens group. Then the actuator moves the IS lens group horizontally and vertically thus counteracting the image shake and maintaining the stable picture.
- Servo Kit
- The HJ40X10B also comes packaged with its own servo kit. The Canon MS-210D is a semi-servo (manual/servo) controller kit for Canon digital IRS, VRS and WRS ENG/EFP lenses. The kit includes flex focus module, flex cable, flex focus controller, and digital servo zoom demand. The system provides precision manual zoom control and is useful in a variety of professional broadcast applications, including live event coverage and sports.
- Shuttle Shot
- The lens has added capability when zooming, using the shuttle-shot switch. At the touch of a button the lens can move to a pre-programmed point, going back and forth. This can also be used creatively while providing a no hassle way of verifying focus.
- Framing Preset
- The HJ40X10B also assists in shooting with its Framing Preset feature. An angle of view can be preset in either of two memories and the lens will zoom to that position by pushing a simple button. During a performance, framing preset will reproduce the zoom position decided upon at the rehearsal. It's easy to repeat the same zoom as often as you like at the highest speed or in a preset zoom speed.
- Improved Image Quality
- The lens element design greatly reduces aberrations and image distortions. These advances contribute to more balanced imaging from center to edge throughout the aperture range. These advances include an artificial element, "Fluorite", with extraordinary dispersion characteristics and the newly developed "Hi-UD" (high index ultra low dispersion) glass.
In the Box Canon HJ40X10B 2/3" EFP Telephoto Lens with Semi Servo Kit MS-210D Semi Servo Kit SUP-300 Lens Support 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Canon HJ40X10B 2 3" EFP Telephoto Lens with Semi Servo Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCanon 10-400mm Specs | Sensor Compatibility | 2/3" (16:9) | | Focal Length | 10 to 400mm
With Extender: 20 to 800mm | | Built-In Extender | 2x | | Zoom Ratio | 40x | | Macro | Yes | | Minimum Object Distance | 110.2" / 279.9 cm
Macro: 0.4" / 10.2 mm | | Dimensions | 13.2 x 6.9 x 5.2" / 335.4 x 174.1 x 133.0 mm (L x W x H) | | Weight | 11.9 lb / 5.4 kg |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 96 owners. Add your rating and experience with the product.
